Coxreels TSHL-N-535 Supreme Duty Spring Rewind Hose Reel is a less-hose model designed to accommodate up to 35 feet of 3/4" I.D. hose. Part of the T Series "Truck Mount" line, this dual-pedestal reel is built for mobile equipment and stationary installations that require dependable spring-powered hose storage. Its 300 PSI maximum working pressure supports compatible low-pressure air, water, or oil systems.
The T Series uses an extra-large chassis with dual pedestal-style arms extending from the roller guide bracket to the mounting base. Coxreels Super Hub provides triple axle support to help reduce vibration and reinforce the reel structure. Because the TSHL-N-535 is supplied without hose, the installer can select a hose that matches the fluid, temperature, pressure, and connection requirements of the intended system.

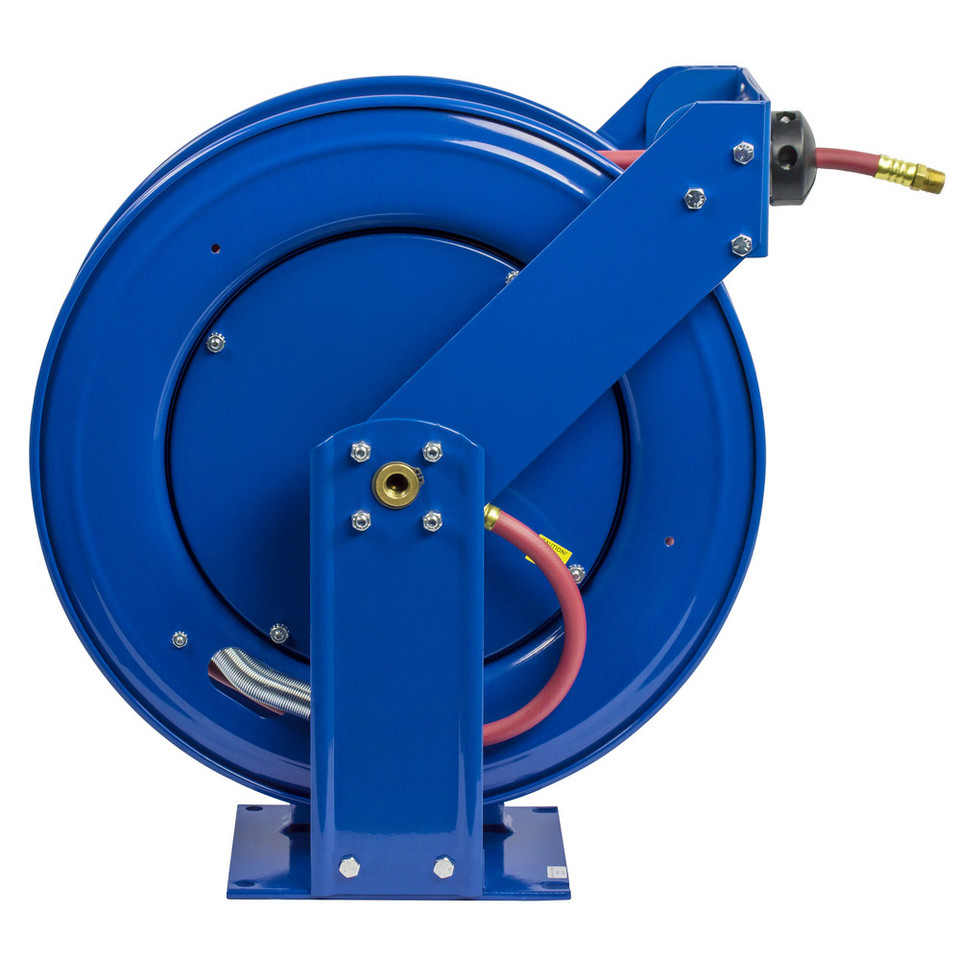

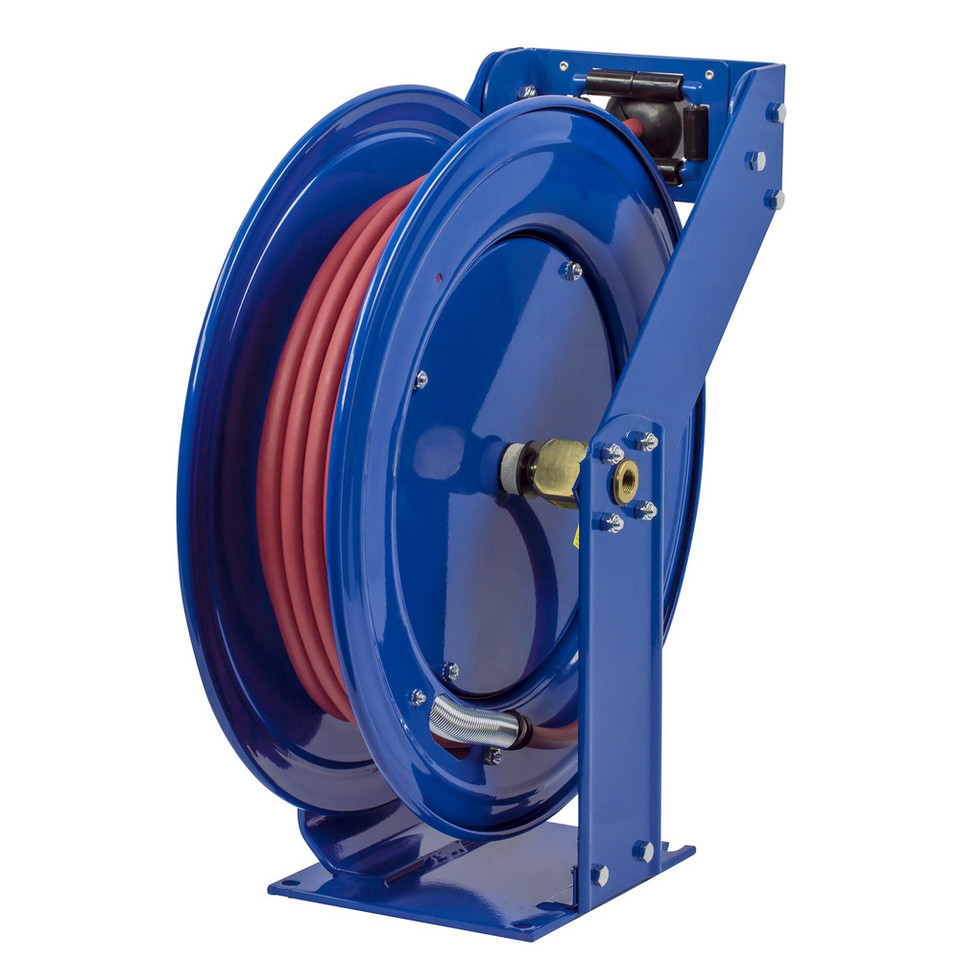

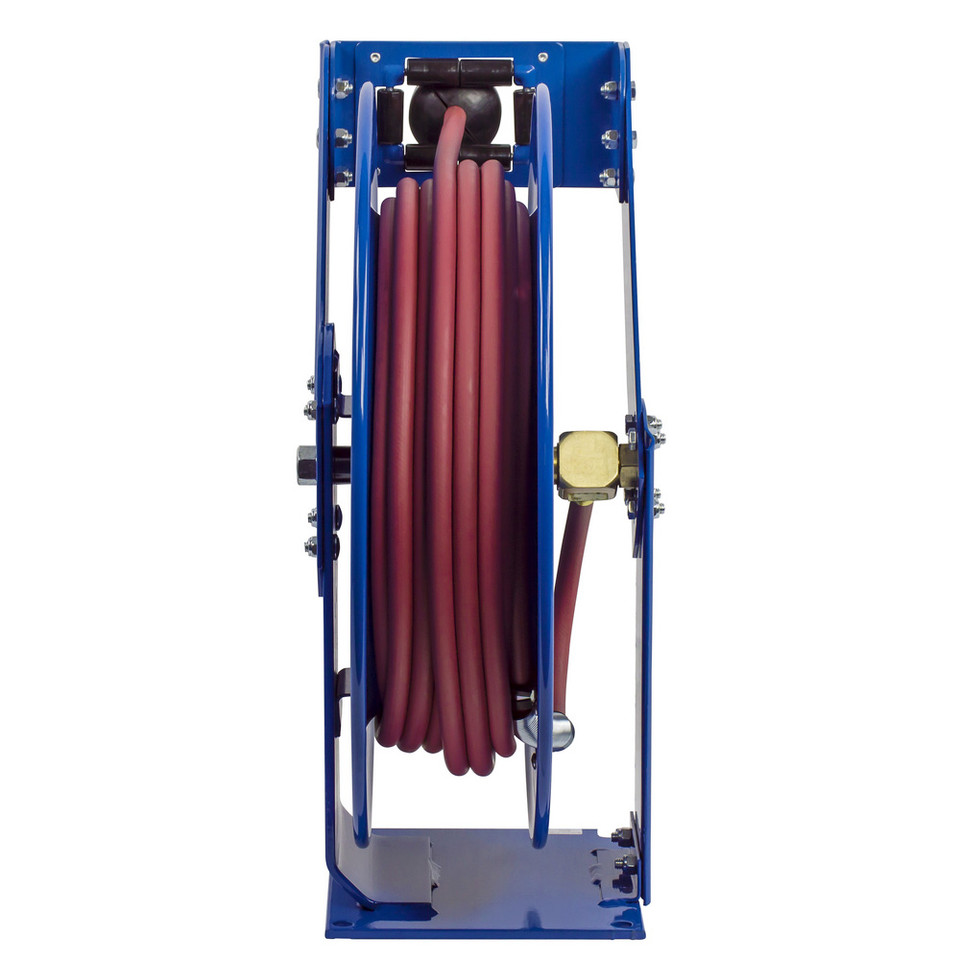

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Hose Reel | Duty Classification: Supreme Duty | Series: T Series | Model: TSHL-N-535 | Configuration: Less Hose | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Capacity: 35 ft | Maximum Working Pressure: 300 PSI | Service: Air, Water, Oil | Approximate Weight: 67 lbs
Features:
- Extra-large T Series chassis with dual pedestal-style arms supports demanding mobile and stationary hose-reel installations.
- Super Hub provides triple axle support to reduce vibration and strengthen the structural integrity of the reel.
- Spring-driven rewind automatically retrieves the installed hose after use for orderly storage.
- Multi-position locking ratchet secures the hose at the desired working length.
- Adjustable guide arm supports multiple mounting positions and hose payout directions.
- Less-hose configuration allows the installer to select a compatible hose for air, water, or oil service.
- Reel accommodates up to 35 feet of 3/4-inch I.D. hose when the hose outside diameter does not exceed 1-1/16 inches.
- Rolled reel-disc edges and reinforced steel construction contribute to reel strength and safer hose handling.
Made in USA:
Applications:
- Service trucks and utility vehicles requiring retractable storage for a separately selected 3/4-inch hose.
- Maintenance facilities operating compatible low-pressure air, water, or oil systems.
- Off-road equipment installations that benefit from the T Series dual-pedestal frame and triple axle support.
- Industrial work areas requiring organized hose storage with automatic spring rewind.
- Custom hose assemblies that remain within the reel's published hose diameter, capacity, and pressure limits.
FAQs:
- Q: Does the Coxreels TSHL-N-535 include a hose?
A: No. The TSHL-N-535 is supplied less hose, so a compatible hose must be purchased and installed separately. - Q: How much hose can this reel accommodate?
A: Coxreels lists capacity for up to 35 feet of 3/4-inch I.D. hose with a maximum outside diameter of 1-1/16 inches. - Q: Can this reel be used for oil service?
A: Yes. Coxreels identifies its less-hose, low-pressure T Series models for air, water, or oil service. The installed hose must also be compatible with the selected fluid and operating conditions. - Q: What is the maximum working pressure?
A: The reel is rated for a maximum working pressure of 300 PSI. The complete system must remain within the rating of its lowest-rated component. - Q: Why must the hose outside diameter be checked?
A: Coxreels states that the listed maximum hose outside diameter must not be exceeded to obtain the reel's full published hose capacity.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
