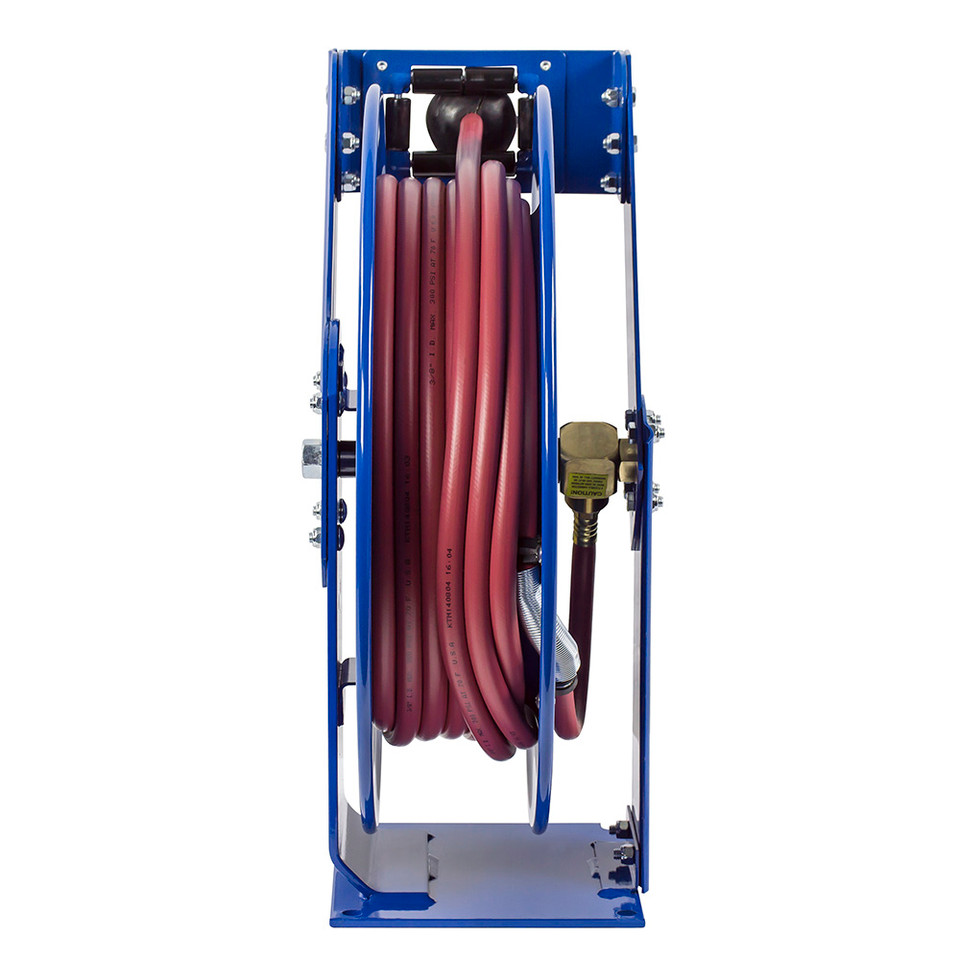

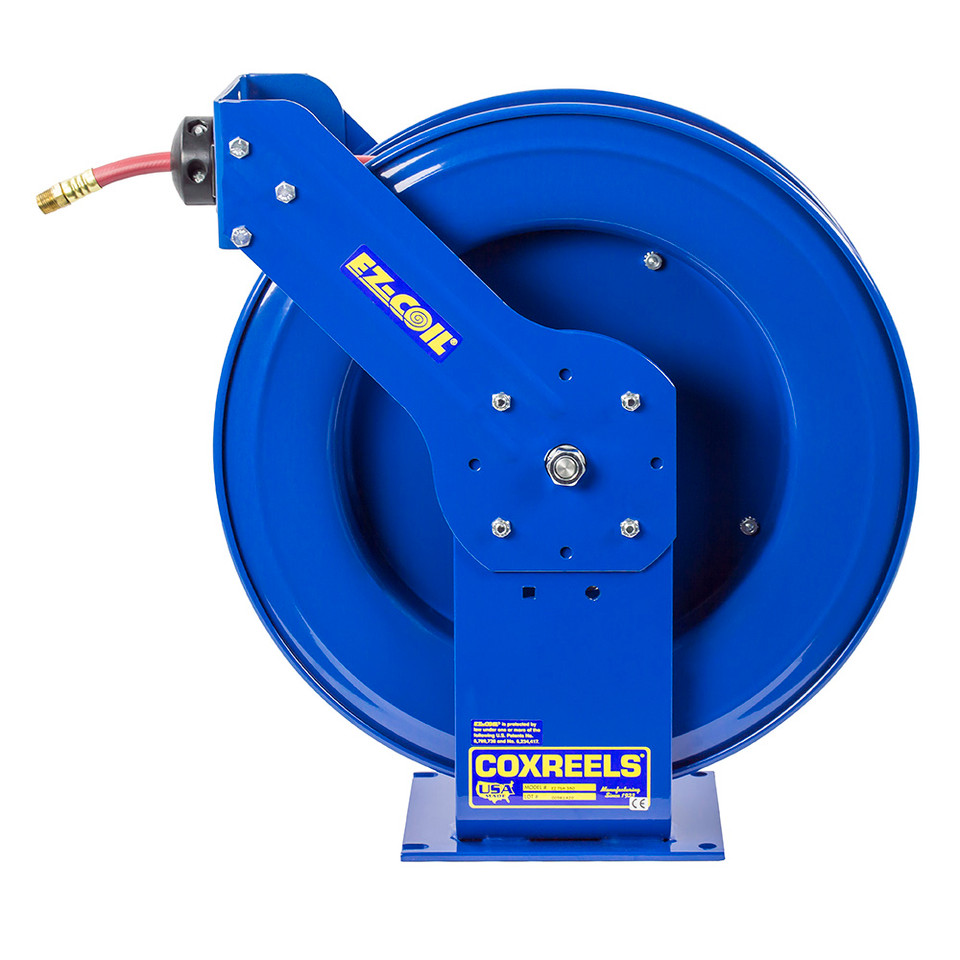

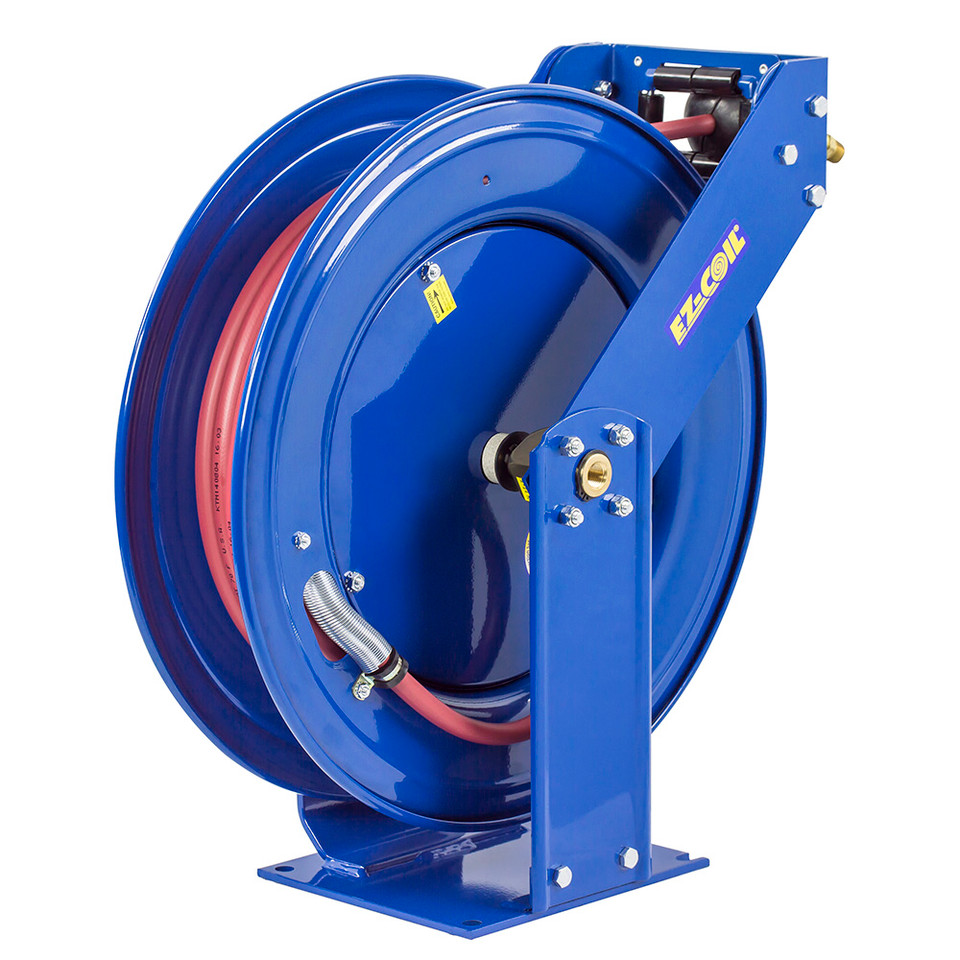

Coxreels EZ-TSH-375 Truck Mount Spring Rewind Hose Reel combines the rugged construction of the EZ-T Series with Coxreels' patented EZ-Coil controlled-retraction system. Supplied with 75 feet of 3/8-inch I.D. hose, this reel is rated for a maximum working pressure of 300 PSI and is intended for air and water service at temperatures up to 150°F.
Its extra-large chassis, dual-pedestal frame, and Super Hub triple-axle support help reduce vibration and reinforce the reel for rugged mobile and off-road installations. The EZ-Coil system retracts the hose up to 80% slower than a conventional spring-driven reel, helping provide more controlled hose return during daily use.
Type: Truck Mount Spring Rewind Hose Reel | Series: EZ-T Series | Model: EZ-TSH-375 | Pressure Classification: Low Pressure | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 75 ft | Max Pressure: 300 PSI | Service: Air and Water | Maximum Hose Temperature: 150°F | Ship Weight: 82 lbs | Overall Width: 9.38" | Overall Height: 25.5" | Overall Length: 24" | Mounting Pattern: 7" M x 8" N | Base Dimensions: 8" X x 9" Y
Features:
- Patented EZ-Coil safety system retracts the hose up to 80% slower than conventional spring-driven reels for more controlled rewind.
- Dual-pedestal reel frame with Super Hub triple-axle support reduces vibration and strengthens the reel structure.
- External fluid path uses a machined solid-brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
- Solid one-piece heavy-gauge 1/4-inch steel base and support posts provide a stable foundation for rugged mobile installations.
- Multi-position lock ratchet secures the hose at the desired working length, while the guide arm adjusts for wall, floor, vehicle, and overhead mounting.
- Rolled-edge ribbed steel discs, CPC powder-coat finish, adjustable solid-rubber hose stop, and permanently lubricated precision bearings support dependable operation.
Made in USA:
Applications:
- Truck-mounted air and water hose systems.
- Mobile service, fleet maintenance, and utility vehicles.
- Off-road equipment requiring controlled hose retraction.
- Wall-, floor-, vehicle-, or overhead-mounted hose-management installations.
- Applications requiring 75 feet of 3/8-inch hose at pressures up to 300 PSI.
FAQs:
- Q: Does the Coxreels EZ-TSH-375 include hose?
A: Yes. This model is supplied with 75 feet of 3/8-inch I.D. hose. - Q: What does the EZ-Coil system do?
A: The patented system controls hose return and retracts up to 80% slower than conventional spring-driven reels. - Q: What is the maximum working pressure?
A: The EZ-TSH-375 is rated for a maximum working pressure of 300 PSI. - Q: Which media can be used with the supplied hose?
A: Coxreels specifies this low-pressure hose-equipped model for air and water service. - Q: What mounting positions are supported?
A: The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
