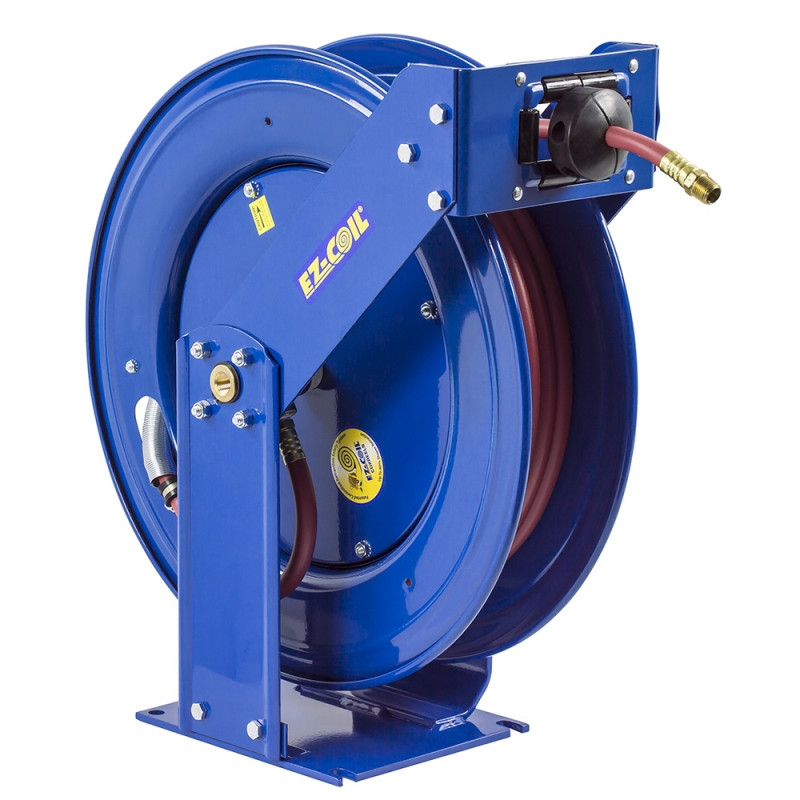

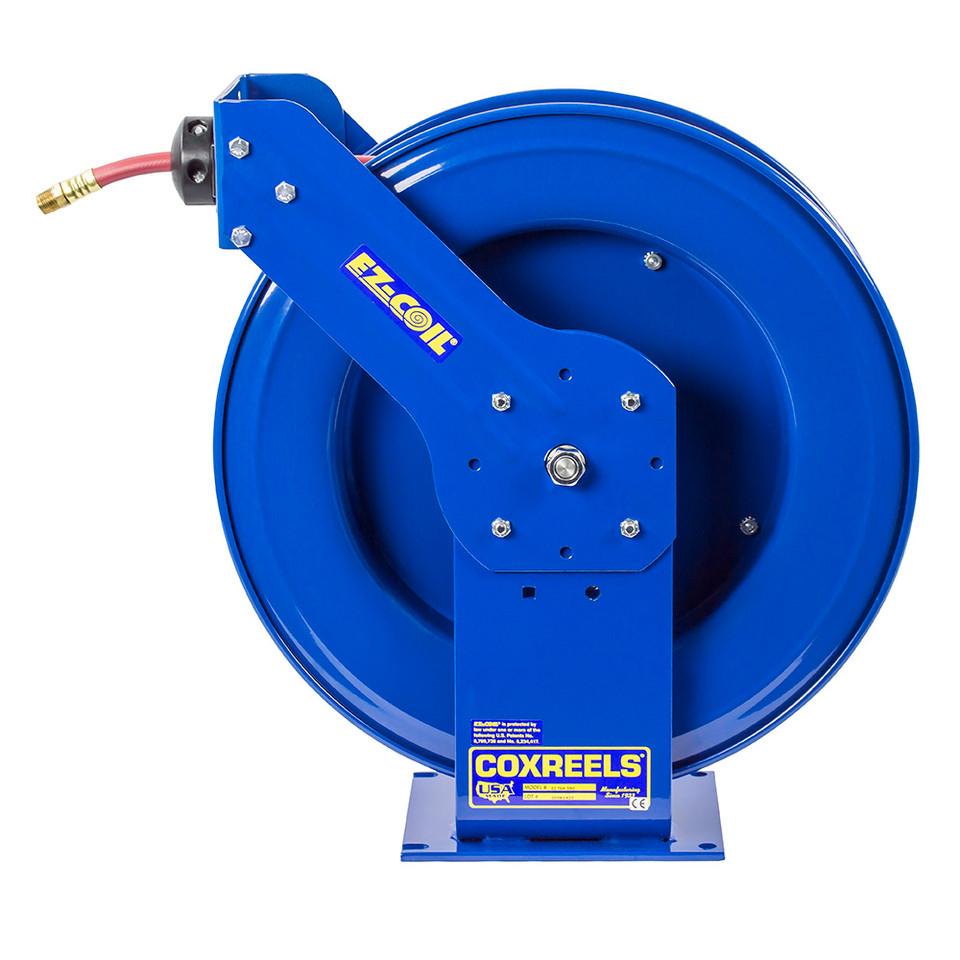

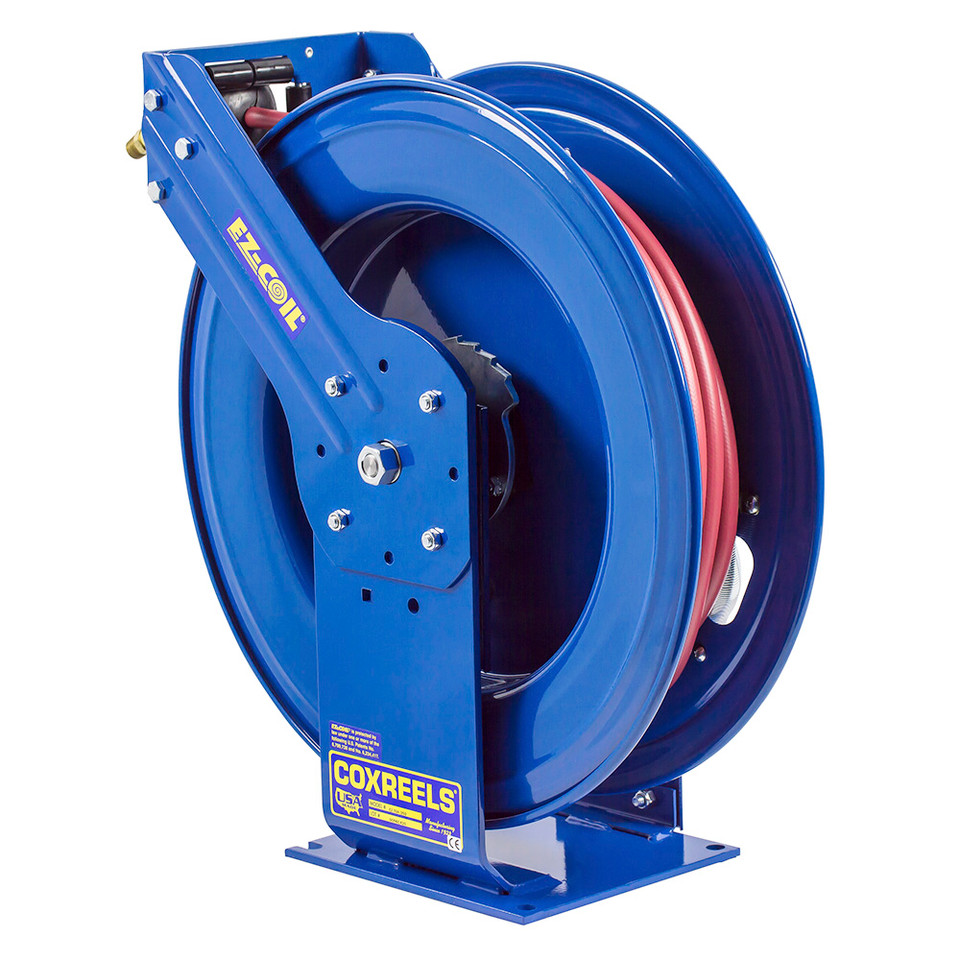

Built for mobile service trucks, off-road equipment support, fleet maintenance, and fixed shop hose stations, the Coxreels EZ-TMP-375 Truck Mount Spring Rewind Hose Reel pairs the rugged EZ-T Series frame with Coxreels’ controlled EZ-Coil retraction system. This medium-pressure reel is furnished with 3/8" I.D. hose, a 75 ft hose length, and a 3,000 PSI maximum pressure rating, giving technicians the reach and pressure capacity needed for air, water, or oil service where hose storage must stay secure and organized. The EZ-T Series uses a dual-pedestal truck-mount frame with Coxreels’ Super Hub triple axle support system, which helps reduce vibration and strengthens the reel structure in mobile and high-use environments. EZ-Coil controlled rewind retracts the hose up to 80% slower than conventional spring driven reels, helping reduce hose whip during rewind and making return more predictable around vehicles, equipment, and work crews.
Type: Truck Mount Spring Rewind Hose Reel | Series: EZ-T Series | Model: EZ-TMP-375 | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Length: 75 ft | Max Pressure: 3,000 PSI | Service: Air, Water, Oil | Hose Type: Standard one wire braid hose | Approx. Weight: 99 lbs.
Features:
- EZ-Coil controlled rewind system retracts up to 80% slower than conventional spring driven reels for safer, more controlled hose return.
- Dual pedestal truck-mount reel frame supports mobile and off-road service applications where vibration and movement are common.
- Coxreels Super Hub™ triple axle support system strengthens the reel structure and helps reduce vibration during operation.
- External fluid path with machined-from-solid brass 90° full-flow NPT swivel inlet supports efficient flow through the reel.
- Nitrile swivel seals support use with compatible air, water, and oil applications.
- Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions to match the installation layout.
- Solid one-piece heavy gauge 1/4" steel base and support posts provide a stable mounting foundation.
- 1" solid steel axle with lubricated precision bearings promotes smooth rotation during hose payout and rewind.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
Made in USA:
Applications:
- Service trucks and mobile repair units — managing 75 ft of medium-pressure hose for field maintenance and equipment support.
- Fleet maintenance shops — routing air, water, or oil hose around vehicle bays while keeping hose stored off the floor.
- Off-road and construction equipment service — supporting hose access near loaders, excavators, agricultural machinery, and utility vehicles.
- Industrial maintenance areas — supplying medium-pressure hose reach for routine MRO tasks where a rugged dual-pedestal reel is preferred.
- Lubrication and oil service stations — organizing hose for compatible oil transfer or service tasks within the reel’s pressure rating.
FAQs:
- Q: Does the EZ-TMP-375 include hose?
A: Yes. The EZ-TMP-375 is the hose-equipped model and is listed with 3/8" I.D. hose, 75 ft length, and 3,000 PSI maximum pressure. The corresponding less-hose version is listed separately as EZ-TMPL-N-375. - Q: What is the difference between the EZ-T Series and standard spring rewind reels?
A: The EZ-T Series is a truck-mount reel series with a dual-pedestal frame and Super Hub™ triple axle support. It is built for mobile and rugged service environments where the reel may see more vibration than a stationary wall-mounted shop reel. - Q: What does EZ-Coil mean?
A: EZ-Coil is Coxreels’ controlled rewind system. It retracts the hose up to 80% slower than a conventional spring driven reel, helping reduce hose whip and giving the operator more control during rewind. - Q: Can this reel be mounted on a service truck?
A: Yes. The EZ-T Series is specifically a truck-mount reel series, and the adjustable guide arm allows vehicle, wall, floor, or overhead mounting positions when installed with appropriate hardware. - Q: What media can be used with this reel?
A: The medium-pressure EZ-TMP-375 is furnished with standard one wire braid hose suitable for air, water, or oil applications. Always verify media compatibility, pressure, temperature, and fitting requirements before installation.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
