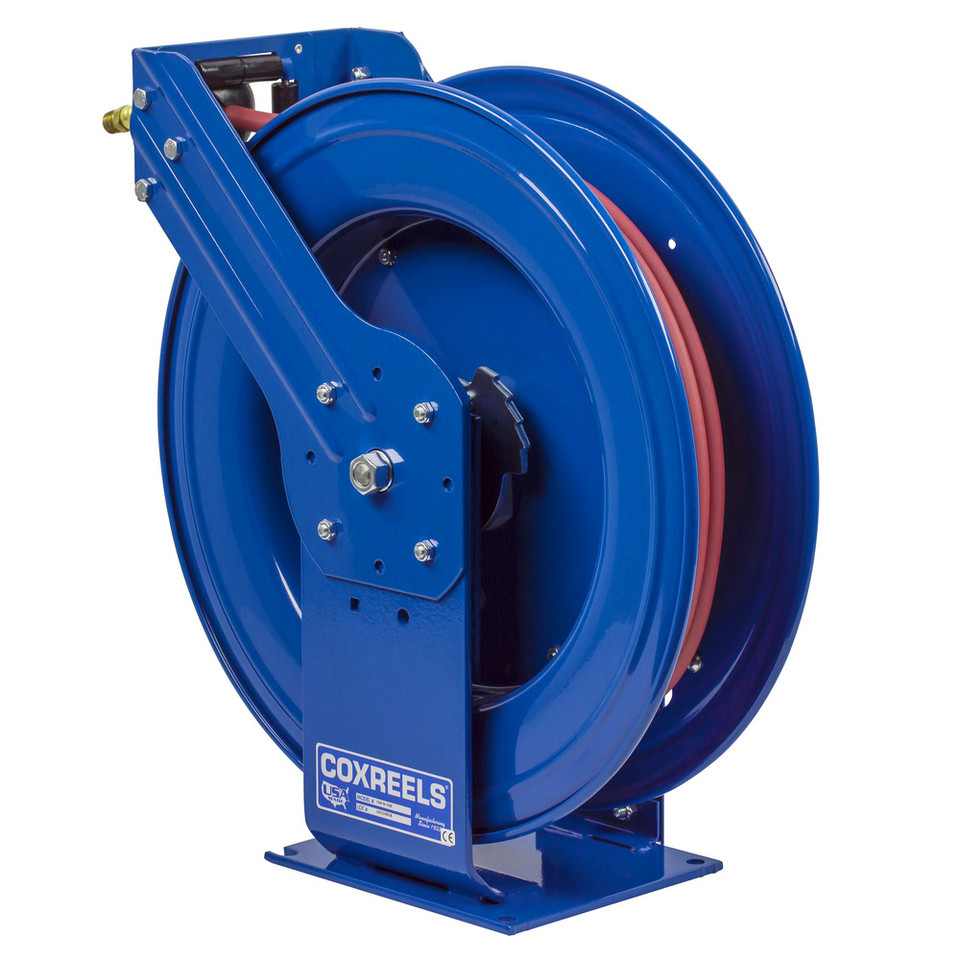

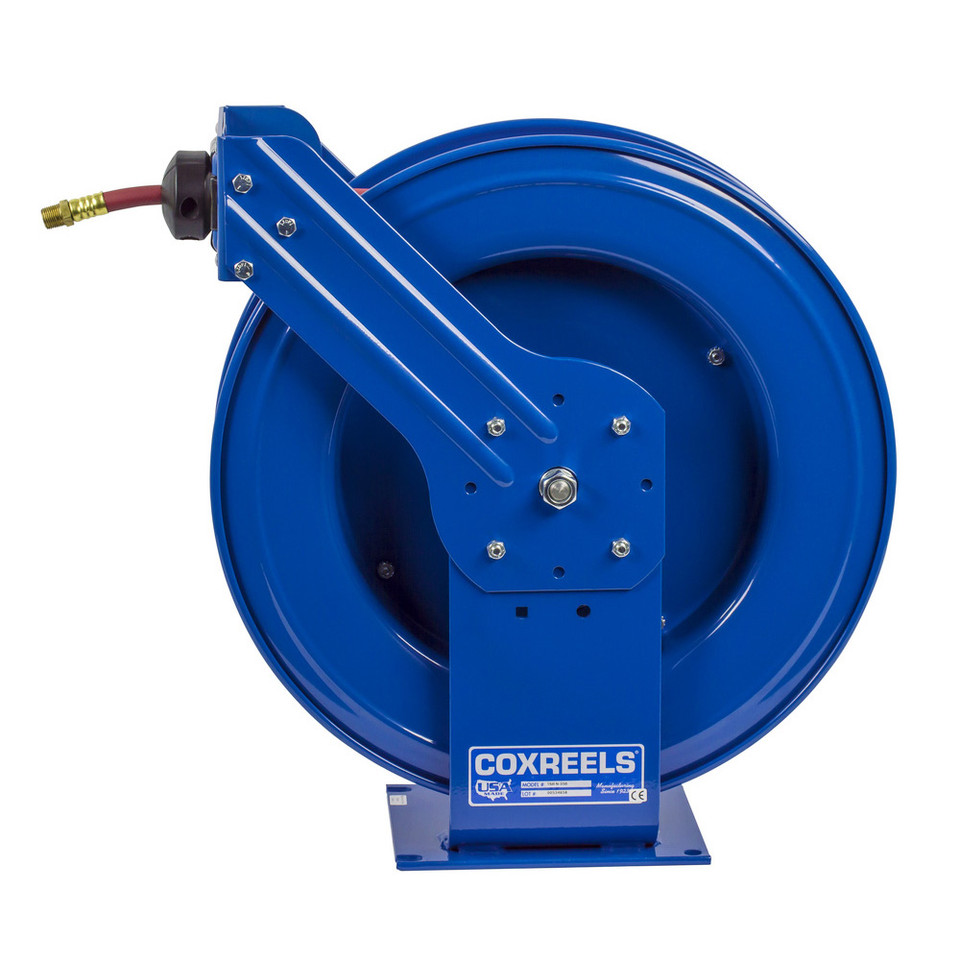

Coxreels TMP-N-450 Supreme Duty Spring Rewind Hose Reel is built for rugged mobile and stationary fluid-handling installations that require controlled hose deployment and automatic retrieval. This T Series model is furnished with 50 feet of 1/2-inch I.D. hose and carries a 2,500 PSI maximum pressure rating, making it suitable for compatible medium-pressure air, water, and oil applications.
A dual-pedestal chassis and Coxreels Super Hub dual-axle support system strengthen the reel structure while helping reduce vibration in truck-mounted and other demanding installations. The spring-driven mechanism retracts the hose after use, while the multi-position ratchet allows the operator to secure the hose at the desired working length.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T Series | Model: TMP-N-450 | Hose Included: Yes | Hose I.D.: 1/2" | Hose O.D.: 13/16" | Hose Length: 50 ft | Hose Construction: One-Wire Braid | Service: Air, Water, Oil | Max Pressure: 2,500 PSI | Swivel Seal: Nitrile | Ship Weight: 77 lbs | Overall Dimensions: 9 3/8" W x 21 1/4" H x 19 1/2" L | Mounting Pattern: 7" M x 8" N | Base Dimensions: 8" X x 9" Y
Features:
- Spring-driven rewind automatically retrieves the hose after use to help keep service areas and mobile equipment organized.
- Supplied with 50 feet of 1/2-inch I.D. one-wire braid hose for compatible medium-pressure air, water, and oil service.
- Standard hose exceeds SAE R1 specifications and supports operating temperatures up to 250°F.
- Sturdy dual-pedestal construction provides support on both sides of the drum for demanding mobile applications.
- Super Hub™ dual-axle support system helps reduce vibration and reinforces the reel's structural integrity.
- External fluid path uses a machined solid-brass 90-degree full-flow NPT swivel inlet for accessible maintenance and efficient flow.
- Nitrile swivel seals accommodate approved fluids when compatibility is confirmed for the complete system.
- Multi-position lock ratchet secures the hose at the selected working length and releases it for automatic rewind.
Made in USA:
Applications:
- Service trucks and mobile lubrication equipment exposed to vibration and frequent hose use.
- Industrial air and water service where a 50-foot medium-pressure hose provides the required working reach.
- Oil dispensing and lubrication systems using fluids compatible with the supplied hose and nitrile seals.
- Fleet maintenance bays, equipment shops, and plant service areas requiring automatic hose storage.
- Truck-mounted, skid-mounted, and stationary installations where dual-pedestal reel support is preferred.
FAQs:
- Q: Does the Coxreels TMP-N-450 include hose?
A: Yes. This model is furnished with 50 feet of 1/2-inch I.D. one-wire braid hose. - Q: What fluids can be used with the supplied hose?
A: Coxreels identifies the medium-pressure hose for compatible air, water, and oil applications. Fluid compatibility should still be checked against the complete system and operating conditions. - Q: How does the reel hold the hose at a working length?
A: A multi-position ratchet engages as the hose is extended, allowing the operator to stop at the desired length. A brief additional pull releases the ratchet for spring-powered rewind. - Q: What does the Super Hub™ system do?
A: The Super Hub™ design provides dual-axle support to reinforce the reel and help reduce vibration, particularly in mobile installations. - Q: Can this reel be used continuously at 2,500 PSI?
A: The reel and supplied hose have a maximum pressure rating of 2,500 PSI. The actual operating pressure must also remain within the ratings of the fittings, couplings, valves, and other system components.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- T Series
- Hose Inside Diameter (in.)
- 1/2
- Hose Outside Diameter (in.)
- 13/16
- Hose Length (ft.)
- 50
- Maximum Working Pressure (PSI)
- 2500
- Hose Included
- Yes
- Width (in.)
- 9-3/8
- Height (in.)
- 21-1/4
- Length (in.)
- 19-1/2
- Mounting Pattern (in.)
- 7
- Mounting Pattern (in.)
- 8
- Base (in.)
- 8
- Base (in.)
- 9
