Coxreels THPL-N-1100 Supreme Duty Spring Rewind Hose Reel is a high-pressure, less-hose model in the T Series built for rugged mobile and fixed hose-management installations. It accommodates up to 100 feet of 1/4-inch I.D. hose with a maximum hose O.D. of 9/16 inch and is rated for a maximum working pressure of 5,000 PSI.
The THPL-N-1100 combines a sturdy dual-pedestal frame with Coxreels' Super Hub triple-axle support for increased stability, reduced vibration, and greater structural integrity. Its automatic spring rewind, multi-position guide arm, and external fluid path support organized hose storage while allowing wall, floor, ceiling, or vehicle mounting.

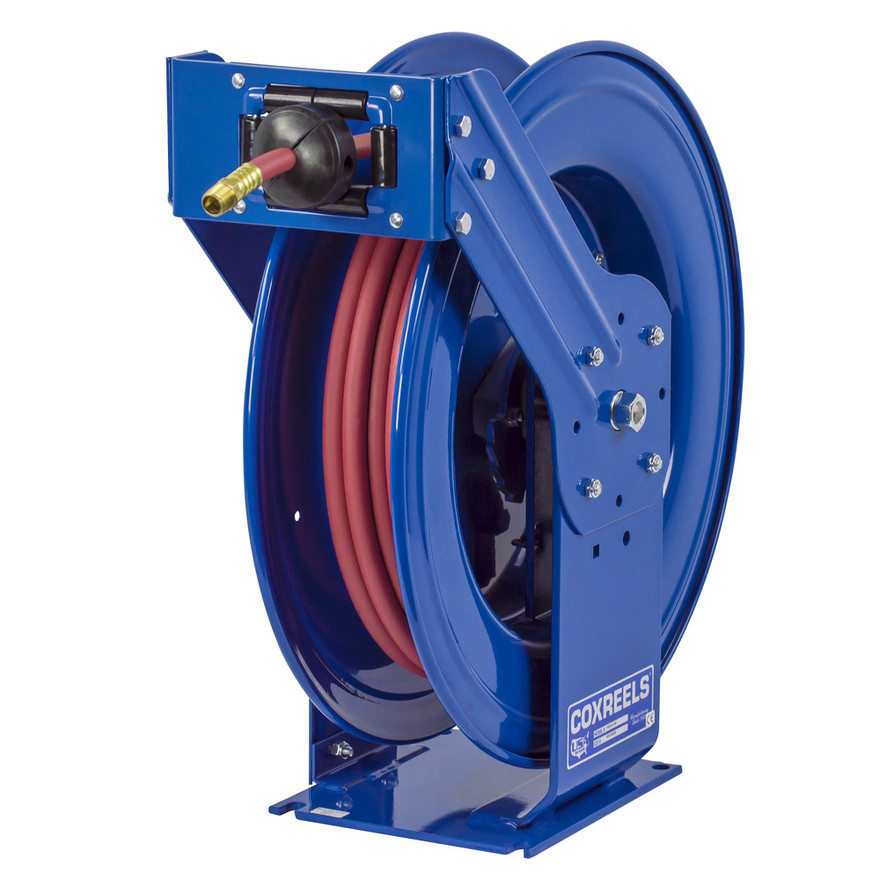

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T Series | Model: THPL-N-1100 | Pressure Classification: High Pressure | Configuration: Less Hose | Hose Included: No | Hose I.D. Capacity: 1/4" | Hose O.D.: 9/16" | Hose Capacity: 100 ft | Max Pressure: 5,000 PSI | Ship Weight: 82 lbs | Overall Width: 9.38" | Overall Height: 25.5" | Overall Length: 24" | Mounting Pattern: 7" M x 8" N | Base Dimensions: 8" X x 9" Y
Features:
- High-pressure reel configuration supports working pressures up to 5,000 PSI when fitted with compatible hose and connections.
- Dual-pedestal design with a one-piece 1/4-inch steel base and Super Hub triple-axle support provides stability for rugged installations.
- Machined solid-brass 90° full-flow NPT swivel provides an external fluid path and allows seal service without removing the reel from its mount.
- Lubricated and enclosed cartridge-style spring motor provides automatic hose retraction and can be removed for convenient maintenance.
- Heavy-duty CNC-spun ribbed discs with rolled edges add strength while helping protect the hose during use and rewind.
- Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, while the CPC powder-coat finish helps resist chips and rust.
Made in USA:
2 Year Manufacturer's Limited Warranty
Applications:
- Truck- and service-vehicle-mounted high-pressure hose systems.
- Mobile equipment requiring organized storage for long lengths of 1/4-inch hose.
- Wall- or floor-mounted hose-management installations.
- Ceiling-mounted systems where automatic rewind helps keep hose stored away from the work area.
- High-pressure applications operating within the reel's 5,000 PSI maximum rating.
FAQs:
- Q: Does the Coxreels THPL-N-1100 include hose?
A: No. This model is supplied as a reel only, and compatible hose must be selected and installed separately. - Q: What hose capacity does this reel provide?
A: Coxreels lists capacity for up to 100 feet of 1/4-inch I.D. hose with a maximum O.D. of 9/16 inch. - Q: What is the maximum working pressure?
A: The THPL-N-1100 is rated for a maximum working pressure of 5,000 PSI. - Q: Which mounting positions are supported?
A: The adjustable guide arm supports wall, floor, ceiling, and vehicle mounting positions. - Q: What are the overall reel dimensions?
A: The reel measures 9.38 inches wide, 25.5 inches high, and 24 inches long.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
