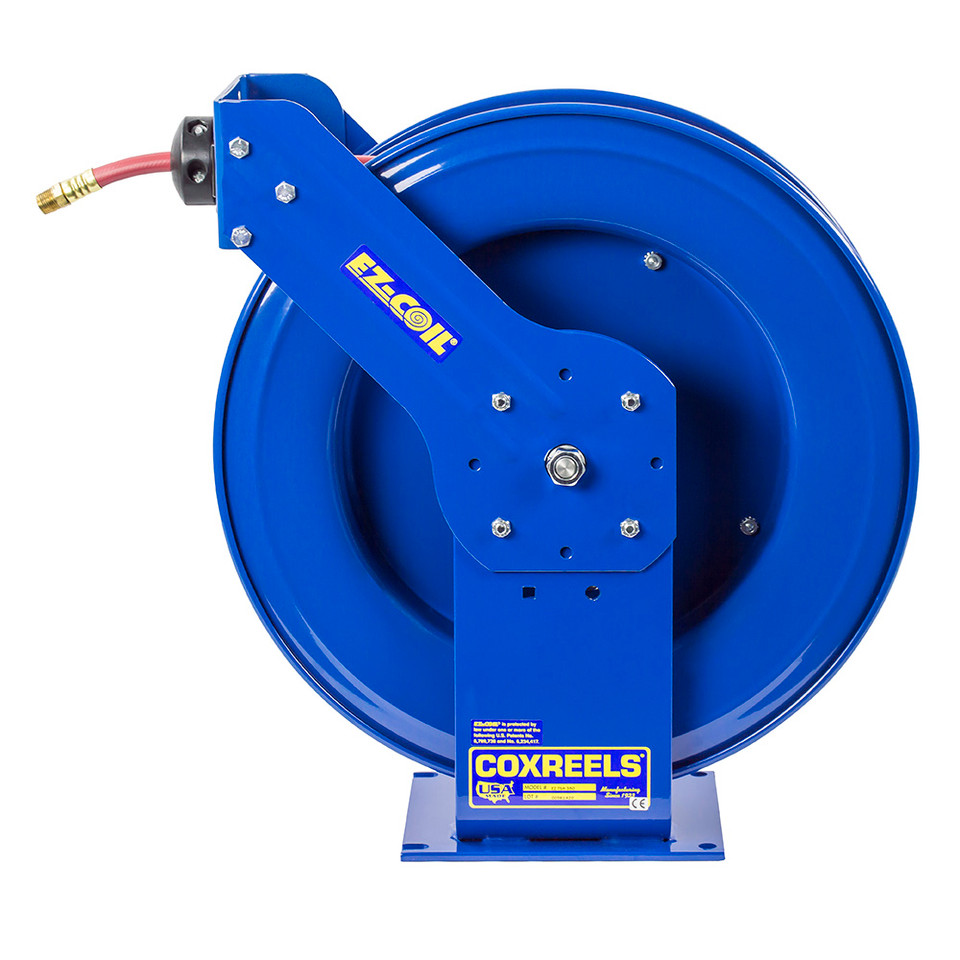

Built for service trucks, fleet maintenance bays, and industrial work areas that need controlled hose retrieval, the Coxreels EZ-TSH-475 Truck Mount Spring Rewind Hose Reel supplies 75 feet of 1/2-inch I.D. hose for compatible air and water service. Its 300 PSI maximum pressure rating supports common pneumatic and water-delivery tasks while providing more reach than a 50-foot reel.
This EZ-T Series reel incorporates Coxreels patented EZ-Coil controlled-retraction system, which rewinds the hose up to 80% slower than a conventional spring-driven reel. The dual-pedestal chassis and Super Hub triple-axle support system reinforce the reel for mobile and stationary mounting, while the adjustable guide arm allows the hose payout direction to be configured for the installation.
Type: Truck Mount Spring Rewind Hose Reel | Series: EZ-T Series | Model: EZ-TSH-475 | Pressure Classification: Low Pressure | Hose Included: Yes | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 75 ft | Max Pressure: 300 PSI | Service: Air and Water | Ship Weight: 82 lbs | Overall Width: 9.38" | Overall Height: 25.5" | Overall Length: 24" | Base Dimensions: 8" X x 9" Y | Mounting Pattern: 7" M x 8" N
Features:
- Patented EZ-Coil system retracts the hose up to 80% slower than conventional spring-driven reels for controlled rewind.
- Includes 75 feet of 1/2-inch I.D. hose for compatible air and water applications up to 300 PSI.
- Dual-pedestal frame with Super Hub triple-axle support increases structural stability and helps reduce vibration.
- Machined solid-brass 90-degree full-flow NPT swivel supports efficient media flow through the reel.
- Adjustable guide arm accommodates wall, floor, vehicle, and overhead mounting positions.
- Enclosed cartridge-style spring motor and multi-position locking ratchet provide automatic retrieval and secure the hose at the selected working length.
Made in USA:
Applications:
- Service trucks and utility vehicles supplying compressed air to tools and equipment.
- Fleet maintenance shops requiring organized hose storage with controlled retraction.
- Industrial maintenance stations using air or water within the reel's pressure and temperature limits.
- Equipment cleaning and general water-delivery tasks around machinery and work areas.
- Wall, floor, overhead, skid, and vehicle-mounted hose-management installations.
FAQs:
- Q: Does the Coxreels EZ-TSH-475 include hose?
A: Yes. It includes 75 feet of 1/2-inch I.D. hose with a 3/4-inch outside diameter. - Q: What is the maximum operating pressure?
A: The reel and supplied hose are rated for a maximum pressure of 300 PSI. - Q: What media can be used with this reel?
A: The manufacturer lists the supplied low-pressure hose for air and water service up to 150°F. - Q: How does EZ-Coil differ from a standard spring reel?
A: EZ-Coil slows hose retraction by up to 80%, providing a more controlled rewind than a conventional spring-driven reel. - Q: What mounting space is required?
A: The reel measures 9.38 inches wide, 25.5 inches high, and 24 inches long. Its base measures 8 by 9 inches with a 7-by-8-inch mounting pattern.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
