Built for mobile service equipment and fixed installations that need compact, automatic hose storage, the Coxreels TSHL-N-350 Supreme Duty Spring Rewind Hose Reel provides capacity for a 3/8" I.D. hose up to 50 feet long. This T Series model is supplied less hose, allowing the installer to select a compatible air, water, or oil hose for the application. Its 300 PSI maximum working-pressure rating supports low-pressure fluid-handling systems when the selected hose and all connected components meet the same operating requirements.
Coxreels identifies the T Series "Truck Mount" line as the toughest group within its spring-driven reel range. The extra-large chassis uses dual pedestal-style arms and Coxreels Super Hub, which provides triple axle support to reduce vibration and reinforce the reel structure. The TSHL-N-350 has a Size Index 1 frame measuring 9-3/8" wide x 21-1/4" high x 19-1/2" long, giving installers the dimensional information needed to plan space on service vehicles, maintenance equipment, shop walls, or other approved mounting surfaces.

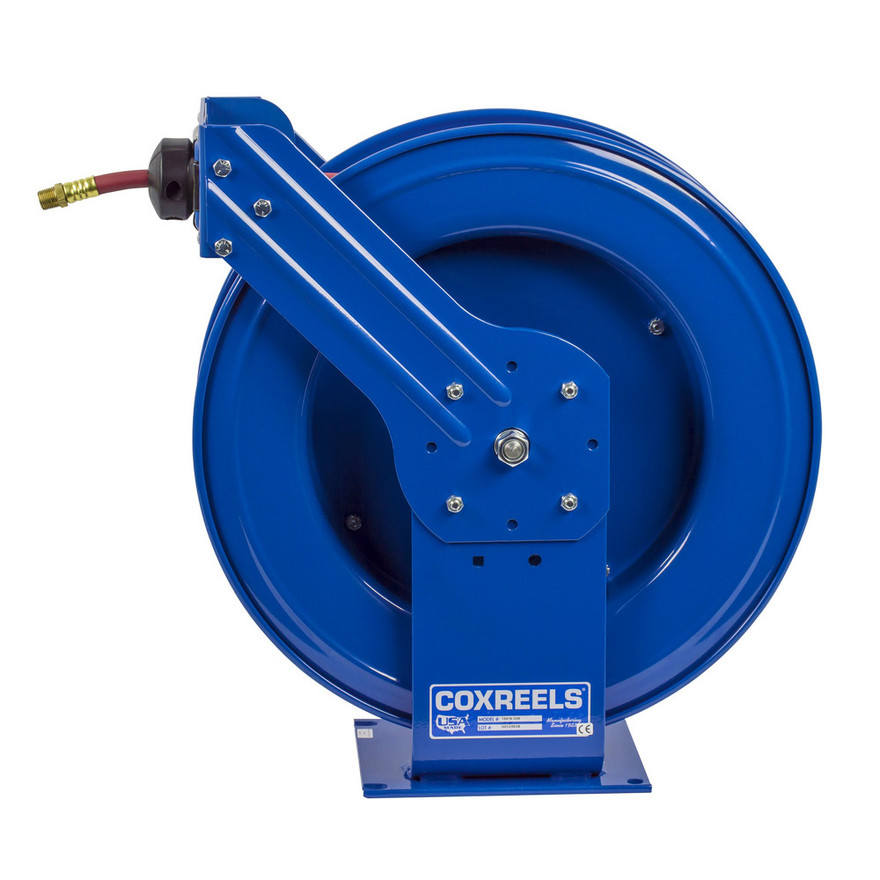

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Hose Reel | Duty Classification: Supreme Duty | Series: T Series | Model: TSHL-N-350 | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 50 ft | Maximum Working Pressure: 300 PSI | Approved Service: Air, Water, Oil | Approximate Weight: 55 lbs
Features:
- Extra-large T Series chassis with dual pedestal-style arms supports rugged mobile and stationary installations.
- Coxreels Super Hub provides triple axle support to reduce vibration and strengthen the structural integrity of the reel.
- Spring-driven rewind automatically retrieves the hose after use to support orderly hose storage.
- Multi-position locking ratchet mechanism secures the hose at the required working length during use.
- Adjustable guide arm accommodates multiple approved mounting positions and hose payout directions.
- Less-hose configuration allows the installer to select a compatible hose based on the intended air, water, or oil application.
- Size Index 1 frame provides a compact T Series configuration for installations with limited mounting space.
- Maximum hose outside diameter of 5/8 inch must not be exceeded when using the reel's full 50-foot hose capacity.
Made in USA:
Applications:
- Service and utility vehicles requiring retractable storage for a customer-selected 3/8-inch hose.
- Maintenance shops using low-pressure air, water, or oil hose systems rated at or below 300 PSI.
- Off-road equipment installations where the T Series dual-pedestal frame and triple axle support help control reel vibration.
- Industrial work areas seeking to keep frequently used hose organized and retracted between tasks.
- Custom hose assemblies requiring up to 50 feet of capacity within the published 5/8-inch maximum hose O.D.
FAQs:
- Q: Does the Coxreels TSHL-N-350 include a hose?
A: No. The "L" in TSHL identifies this as a less-hose model. A compatible hose must be selected and installed separately. - Q: What hose size can this reel hold?
A: The reel provides capacity for up to 50 feet of 3/8-inch I.D. hose. Coxreels specifies a maximum hose outside diameter of 5/8 inch for the full published capacity. - Q: Which fluids can be used with this less-hose reel?
A: Coxreels states that T Series low-pressure models supplied less hose can be used for air, water, or oil. The selected hose must also be compatible with the fluid, pressure, and temperature of the system. - Q: What is the reel's maximum working pressure?
A: The TSHL-N-350 is rated for a maximum working pressure of 300 PSI. Do not exceed the rating of the reel, hose, fittings, or any other system component. - Q: Is a controlled-retraction version available?
A: Yes. Coxreels lists EZ-Coil availability for this configuration by adding the "EZ-" prefix to the less-hose model number.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- T Series
- Hose Inside Diameter (in.)
- 3/8
- Hose Outside Diameter (in.)
- 5/8
- Hose Length (ft.)
- 50
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 300
- Width (in.)
- 9.38
- Height (in.)
- 25.25
- Length (in.)
- 19.5
- Mounting Pattern (in.)
- 7M
- Mounting Pattern (in.)
- 8N
- Base (in.)
- 8X
- Base (in.)
- 9Y
