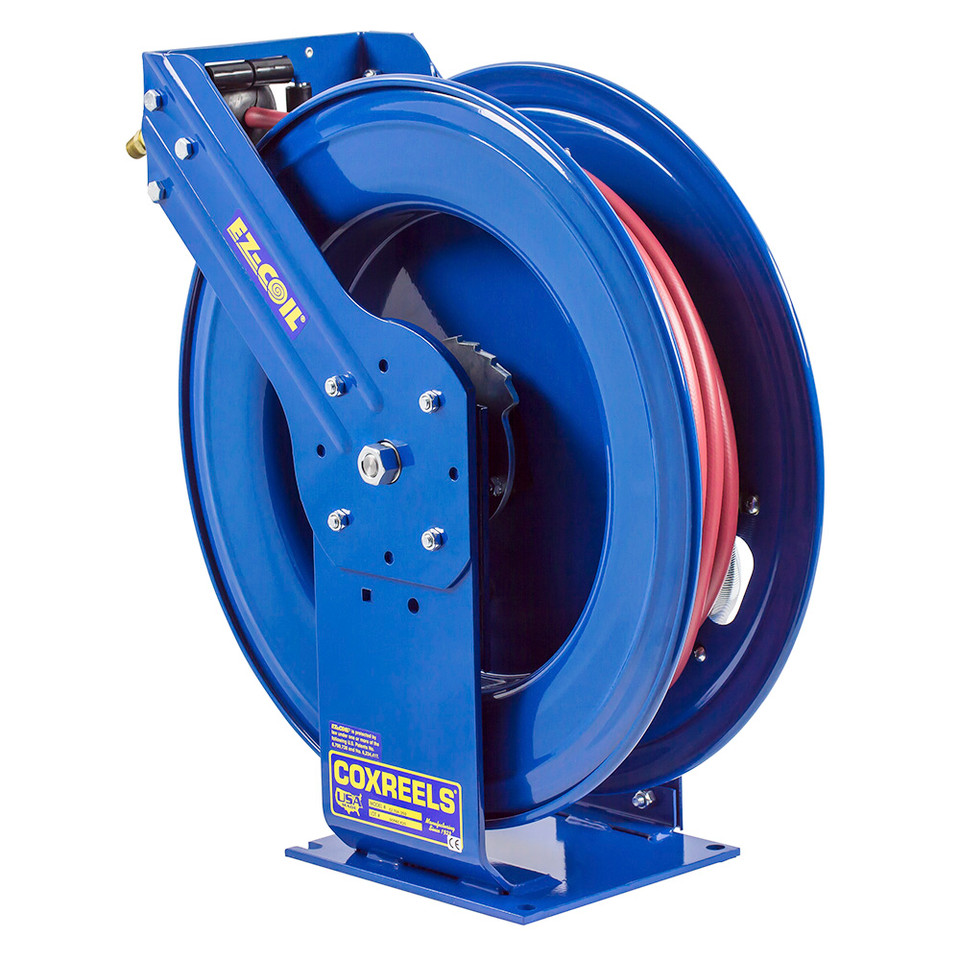

Built for lubrication trucks, hydraulic service vehicles, and field maintenance operations, the Coxreels EZ-THP-375 Truck Mount Spring Rewind Hose Reel manages a 3/8" I.D. x 75 ft hose for high-pressure grease and hydraulic oil service. With a 4,000 PSI maximum pressure rating, this EZ-T Series reel supports demanding mobile service work where hose length, pressure capability, and controlled rewind all affect jobsite efficiency and operator safety. The EZ-Coil controlled rewind system retracts up to 80% slower than conventional spring driven reels, helping reduce hose whip as the hose returns to the drum. The truck mount frame uses Coxreels’ extra-large T Series chassis, dual pedestal-style arms, and Super Hub™ triple axle support system to help reduce vibration and reinforce the reel structure in vehicle-mounted and rough-service environments.
Type: Truck Mount Spring Rewind Hose Reel | Series: EZ-T Series | Model: EZ-THP-375 | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Length: 75 ft | Max Pressure: 4,000 PSI | Service: Grease, Hydraulic Oil | Hose Type: S.A.E. 100R16 #1 or #2 wire braid hose | Max Temperature: 250°F | Approx. Weight: 98 lb | Size Index: 2
Features:
- EZ-Coil controlled rewind system retracts the hose up to 80% slower than conventional spring driven reels for more controlled hose return.
- Truck mount EZ-T Series frame uses an extra-large chassis with dual pedestal-style arms for mobile and off-road applications.
- Coxreels Super Hub triple axle support system helps reduce vibration and strengthens the reel structure.
- High-pressure hose configuration is furnished for grease and hydraulic oil applications.
- S.A.E. 100R16 #1 or #2 wire braid hose supports the reel’s high-pressure service rating.
- External fluid path keeps the media route accessible and helps simplify swivel and seal service.
- Nitrile swivel seals support compatibility with the listed grease and hydraulic oil service.
- Solid one-piece heavy-gauge 1/4" steel base and support posts provide stable mounting strength.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during repeated payout and rewind.
- Enclosed, factory-tuned cartridge-style spring motor keeps the rewind mechanism protected and serviceable.
- Non-corrosive stainless steel spring, pawl, and zinc-plated ratchet support reliable locking and rewind performance.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
Made in USA:
Applications:
- Lubrication trucks and lube skids: Managing high-pressure grease hose for mobile equipment service, fleet work, and scheduled maintenance routes.
- Hydraulic service vehicles: Keeping 75 ft of 3/8" hose organized on trucks used for hydraulic oil transfer and equipment support.
- Construction and off-road equipment maintenance: Supporting grease and hydraulic service around loaders, excavators, agricultural machines, and jobsite equipment.
- Industrial maintenance and MRO: Providing controlled high-pressure hose storage near machinery service points and plant lubrication areas.
- Fleet and heavy truck shops: Organizing grease or hydraulic oil hose in service bays where longer reach and controlled rewind help reduce floor clutter.
FAQs:
- Q: Does the EZ-THP-375 include hose?
A: Yes. This model is supplied with a 3/8" I.D. x 75 ft high-pressure hose installed on the reel. - Q: What media is this high-pressure reel intended for?
A: The EZ-THP high-pressure configuration is listed for grease and hydraulic oil applications. It should be used only when the hose, fittings, media, temperature, and system pressure are compatible with the reel rating. - Q: What does the 4,000 PSI rating mean?
A: The reel is rated for service up to 4,000 PSI. The complete system, including pump, hose, fittings, and connected equipment, must remain within that maximum pressure rating. - Q: What is the advantage of EZ-Coil controlled rewind?
A: EZ-Coil slows the spring rewind action compared with conventional spring driven reels. This helps reduce hose whip and gives the operator better control when retracting the hose. - Q: Why use a truck mount T Series reel for hydraulic or grease service?
A: The T Series truck mount frame uses a reinforced dual pedestal layout and Super Hub triple axle support system. That structure is useful on mobile service vehicles and other mounting locations exposed to vibration, movement, and rough operating conditions.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
