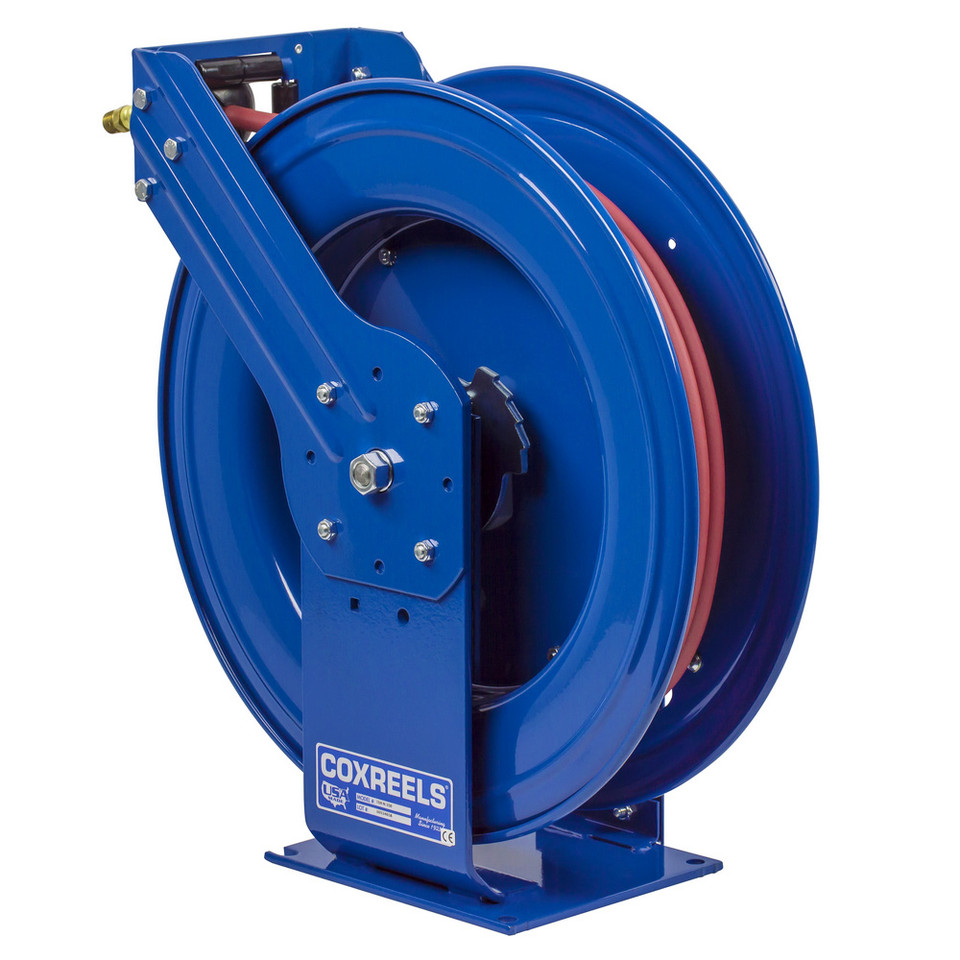

Coxreels TSH-N-450 Supreme Duty Spring Rewind Hose Reel is designed for heavy-use air and water applications where dependable hose management and automatic rewind improve efficiency. Equipped with 50 feet of 1/2-inch I.D. hose, this T Series reel features a 300 PSI maximum pressure rating, making it well suited for fleet maintenance facilities, service trucks, industrial workshops, and equipment maintenance operations.
Built with Coxreels' reinforced dual-pedestal construction, the TSH-N-450 incorporates the exclusive Super Hub dual-axle support system for increased structural strength and reduced vibration during operation. The enclosed spring motor automatically retracts the hose after use, while the multi-position locking ratchet allows the hose to remain extended at the desired working length until released.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T Series | Model: TSH-N-450 | Hose Included: Yes | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 50 ft | Service: Air and Water | Max Pressure: 300 PSI | Swivel Seal: Nitrile | Ship Weight: 63 lbs | Overall Dimensions: 9 3/8" W x 21 1/4" H x 19 1/2" L | Mounting Pattern: 7" M x 8" N | Base Dimensions: 8" X x 9" Y
Features:
- Supplied with 50 feet of 1/2-inch I.D. hose for compressed air and water applications.
- Automatic spring rewind retracts the hose smoothly after use to help reduce clutter and improve workplace safety.
- Dual-pedestal steel frame delivers increased rigidity for demanding commercial and mobile service environments.
- Exclusive Super Hub™ dual-axle support system helps reduce vibration while reinforcing the reel structure.

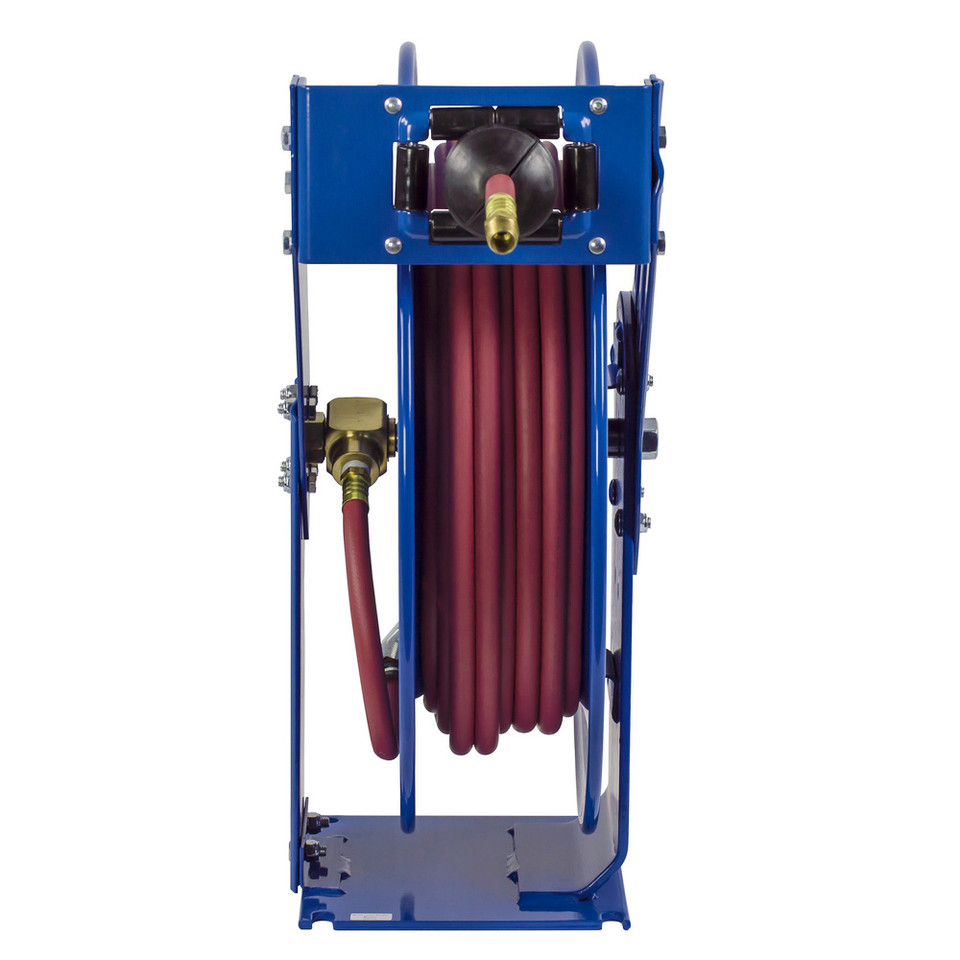

- External fluid path incorporates a machined solid brass 90° full-flow NPT swivel for efficient flow and simplified maintenance.
- Nitrile swivel seals provide reliable sealing performance for compatible air and water service.
- Multi-position locking ratchet secures the hose at the desired working length for convenient operation.
- Adjustable guide arm supports wall, ceiling, floor, bench, or vehicle mounting configurations.
- Precision lubricated bearings and a solid steel axle promote smooth hose payout and retrieval.
- Durable CPC powder coat finish helps protect the reel against corrosion, chipping, and everyday industrial wear.
Made in USA:
Applications:
- Compressed air systems in maintenance shops and industrial production facilities.
- Water supply and washdown stations for commercial and municipal operations.
- Fleet maintenance vehicles and mobile service trucks requiring automatic hose management.
- Automotive dealerships and repair facilities using pneumatic equipment.
- Wall, overhead, floor, bench, and vehicle-mounted installations where reliable hose storage is required.
FAQs:
- Q: Does the Coxreels TSH-N-450 include hose?
A: Yes. The reel comes equipped with 50 feet of 1/2-inch I.D. hose for air and water service. - Q: What is the maximum operating pressure?
A: This model has a maximum working pressure of 300 PSI when used with the supplied hose and compatible system components. - Q: Can the hose be locked at different lengths?
A: Yes. The multi-position ratchet mechanism allows the hose to be secured at various working lengths before automatically retracting when released. - Q: What is the advantage of the Super Hub™ design?
A: The Super Hub™ dual-axle support system reinforces the reel, minimizes vibration, and provides greater structural stability, especially in vehicle-mounted applications. - Q: Can this reel be mounted in different orientations?
A: Yes. The adjustable guide arm allows installation on walls, ceilings, floors, workbenches, and service vehicles while maintaining proper hose payout.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- T Series
- Hose Inside Diameter (in.)
- 1/2
- Hose Outside Diameter (in.)
- 3/4
- Hose Length (ft.)
- 50
- Maximum Working Pressure (PSI)
- 300
- Hose Included
- Yes
- Width (in.)
- 9.38
- Height (in.)
- 21.25
- Length (in.)
- 19.5
- Mounting Pattern (in.)
- 7M
- Mounting Pattern (in.)
- 8N
- Base (in.)
- 8X
- Base (in.)
- 9Y
