Built for mobile service vehicles and fixed maintenance stations requiring larger-diameter hose storage, the Coxreels TSHL-N-550 Supreme Duty Spring Rewind Hose Reel provides capacity for 50 feet of 3/4-inch I.D. hose. This T Series bare reel supports compatible air, water, or oil applications at pressures up to 300 PSI, allowing the buyer to select hose that matches the intended fluid, operating temperature, and working environment.
The dual-pedestal configuration uses a solid one-piece steel base and Coxreels Super Hub triple-axle support system to reinforce the reel structure. Its enclosed cartridge-style spring motor automatically retrieves the hose, while the adjustable guide arm permits wall, floor, ceiling, or vehicle mounting. Because this model is supplied without hose, the published 3/4-inch I.D., 1-1/16-inch O.D., and 50-foot measurements describe the reel's hose capacity.

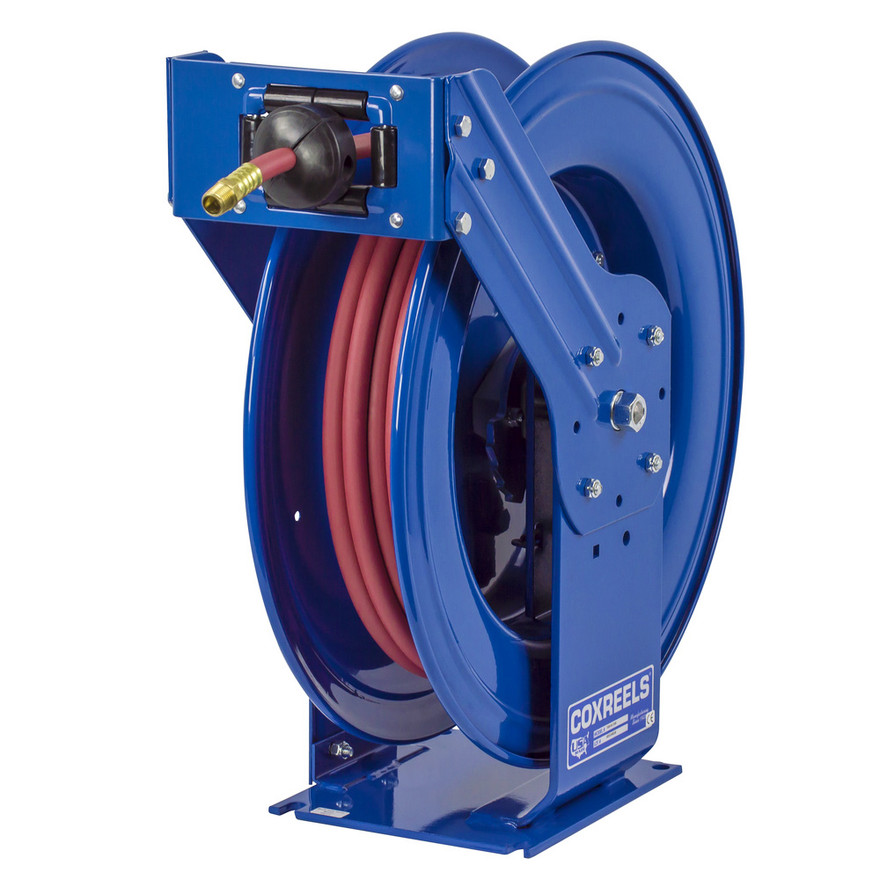

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T Series | Model: TSHL-N-550 | Pressure Classification: Low Pressure | Configuration: Less Hose | Hose Included: No | Hose I.D. Capacity: 3/4" | Hose O.D. Capacity: 1-1/16" | Hose Capacity: 50 ft | Max Pressure: 300 PSI | Service: Air, Water, or Oil | Ship Weight: 70 lbs | Overall Width: 9.88" | Overall Height: 25.5" | Overall Length: 24" | Mounting Pattern: 7" M x 8" N | Base Dimensions: 8" X x 9" Y
Features:
- Less-hose configuration lets the buyer install compatible 3/4-inch I.D. hose for the required air, water, or oil application.
- Solid one-piece 1/4-inch steel base and dual-pedestal support posts provide a stable mounting structure without welded base joints.
- Super Hub triple-axle support, 1-inch solid steel axle, and lubricated precision bearings promote smooth reel rotation.
- Machined solid-brass 90-degree full-flow NPT swivel provides an external fluid path and allows seal service without removing the reel from its mount.
- Enclosed, lubricated cartridge-style spring motor can be removed for convenient reel maintenance.
- Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, while stainless steel rollers accommodate the 3/4-inch hose configuration.
Made in USA:
Applications:
- Service trucks and utility vehicles requiring storage for buyer-selected 3/4-inch air, water, or oil hose.
- Fleet and equipment maintenance stations using compatible low-pressure fluid-delivery systems.
- Industrial plants organizing hose around machinery, work cells, and maintenance areas.
- Lubrication and fluid-transfer installations operating within the reel's 300 PSI limit.
- Wall, floor, ceiling, skid, and vehicle-mounted hose-management systems.
FAQs:
- Q: Does the Coxreels TSHL-N-550 include hose?
A: No. This is a less-hose reel, so compatible hose must be selected and installed separately. - Q: What hose size can this reel hold?
A: It has capacity for up to 50 feet of hose measuring 3/4 inch I.D. and 1-1/16 inches O.D. - Q: Can this reel be used for oil service?
A: Coxreels identifies less-hose T Series models for air, water, or oil service. The separately purchased hose and fittings must also be compatible with the selected fluid and operating conditions. - Q: What is the reel's maximum pressure rating?
A: The TSHL-N-550 is rated for a maximum operating pressure of 300 PSI. - Q: What mounting space is required?
A: The reel measures 9.38 inches wide, 25.5 inches high, and 24 inches long. Its base measures 8 by 9 inches with a 7-by-8-inch mounting pattern.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
