Built for truck-mounted air and water service, fleet maintenance, construction support, and shop hose management, the Coxreels TSHL-N-3125 Supreme Duty spring rewind hose reel provides high-capacity storage for 3/8" I.D. hose up to 125 ft long. Its 300 PSI maximum pressure rating supports low-pressure air, water, and oil applications where longer reach is more important than high-pressure hydraulic capability. As a less hose model, this reel lets buyers select the hose material, temperature range, end fittings, and service compatibility that match the system already in use. The T Series is Coxreels’ Supreme Duty truck mount reel family, built with a larger chassis, dual pedestal-style arms, and a heavy-duty frame for frequent pull-out and rewind cycles in mobile and fixed installations. The multi-position guide arm supports wall, floor, vehicle, and overhead mounting, while the spring rewind mechanism helps keep long hose runs organized between jobs. For maintenance trucks, equipment yards, plant service areas, and industrial washdown stations, the TSHL-N-3125 gives technicians a durable reel platform without forcing a pre-selected hose into the application.

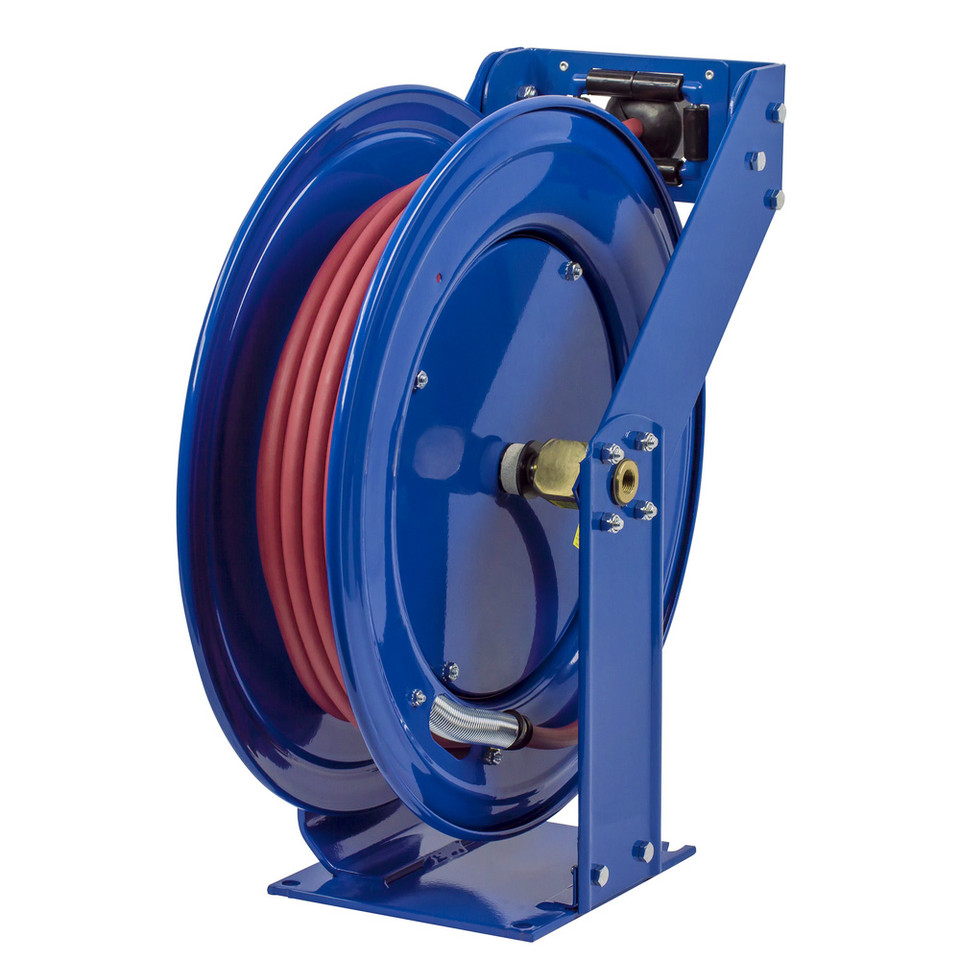

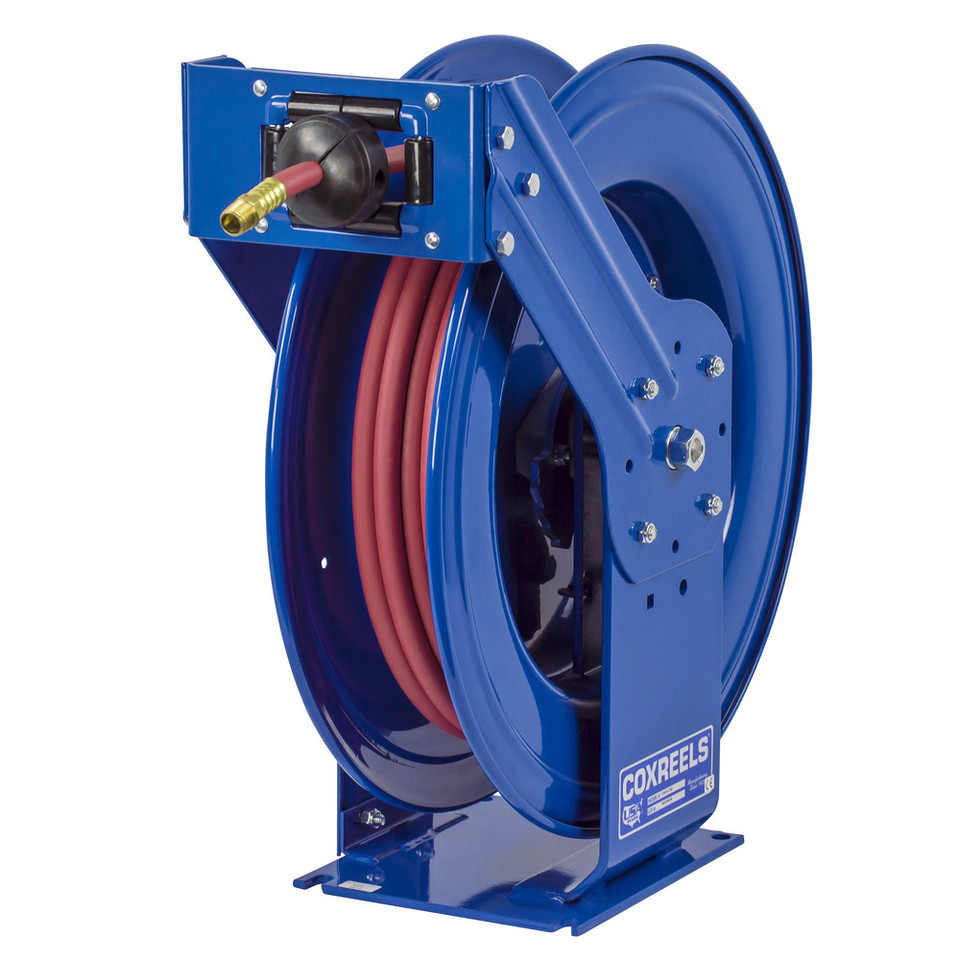

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T Series | Configuration: Less Hose | Hose I.D.: 3/8" | Hose Capacity: 125 ft | Max Pressure: 300 PSI | Service: Air, Water, Oil | Swivel Material: Brass | Swivel Seals: Nitrile | Overall Dimensions: 9-3/8" W x 25-1/2" H x 24" L
Features:
- Supreme Duty T Series construction uses a larger reel frame for truck mount, shop, and maintenance applications that require longer hose capacity.
- Less hose configuration allows the buyer to install a compatible 3/8" hose selected for the required media, temperature, fittings, and working environment.
- Dual pedestal-style arms provide added reel support during repeated hose pull-out and rewind cycles.
- External fluid path with machined from solid brass 90° full-flow NPT swivel inlet supports efficient low-pressure air, water, or oil flow through the reel.
- Nitrile swivel seals support many common air, water, and oil service applications when used within the reel’s pressure and media ratings.
- Multi-position guide arm supports wall, floor, vehicle, and overhead mounting positions for installation flexibility.
- 1" solid steel axle with lubricated precision bearings helps the reel rotate smoothly under hose load.
- Spring rewind mechanism and lock ratchet help keep long hose runs controlled, stored, and ready for the next service task.
Applications:
- Service trucks and mobile maintenance vehicles needing a long-reach reel for air, water, or oil hose selected separately by the user.
- Fleet shops and truck repair bays where 125 ft hose capacity helps reach around larger vehicles and work areas.
- Industrial maintenance departments managing low-pressure air or fluid transfer hose near machinery, compressors, pumps, or washdown points.
- Construction yards and equipment service areas where a truck mount reel keeps hose organized between repair and cleanup tasks.
- Plant MRO stations that need a reel-only setup so hose material and fittings can be matched to the site’s standard components.
FAQs:
- Q: What does “less hose” mean on the TSHL-N-3125?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/8" I.D. hose separately and confirm the hose pressure rating, outside diameter, media compatibility, and fittings before use. - Q: What type of service is this reel used for?
A: This low-pressure T Series model is used for air, water, and oil applications within the 300 PSI maximum pressure rating. It is not a high-pressure hydraulic or grease reel. - Q: Can this reel be mounted on a truck?
A: Yes. The T Series is commonly used for truck mount applications, and the guide arm supports vehicle mounting along with wall, floor, and overhead positions. The mounting surface and fasteners must be rated for the reel, hose, fluid load, and pull forces. - Q: Why choose a less hose model instead of a reel with hose included?
A: A less hose reel is useful when the customer already has a preferred hose brand, needs a specific fitting arrangement, or must match site requirements for temperature, oil resistance, abrasion resistance, or color coding. - Q: What hose outside diameter should be checked before installation?
A: The hose outside diameter should not exceed the reel’s listed capacity requirements for 125 ft of 3/8" hose. Oversized hose may reduce the amount of hose that can be stored on the reel.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
