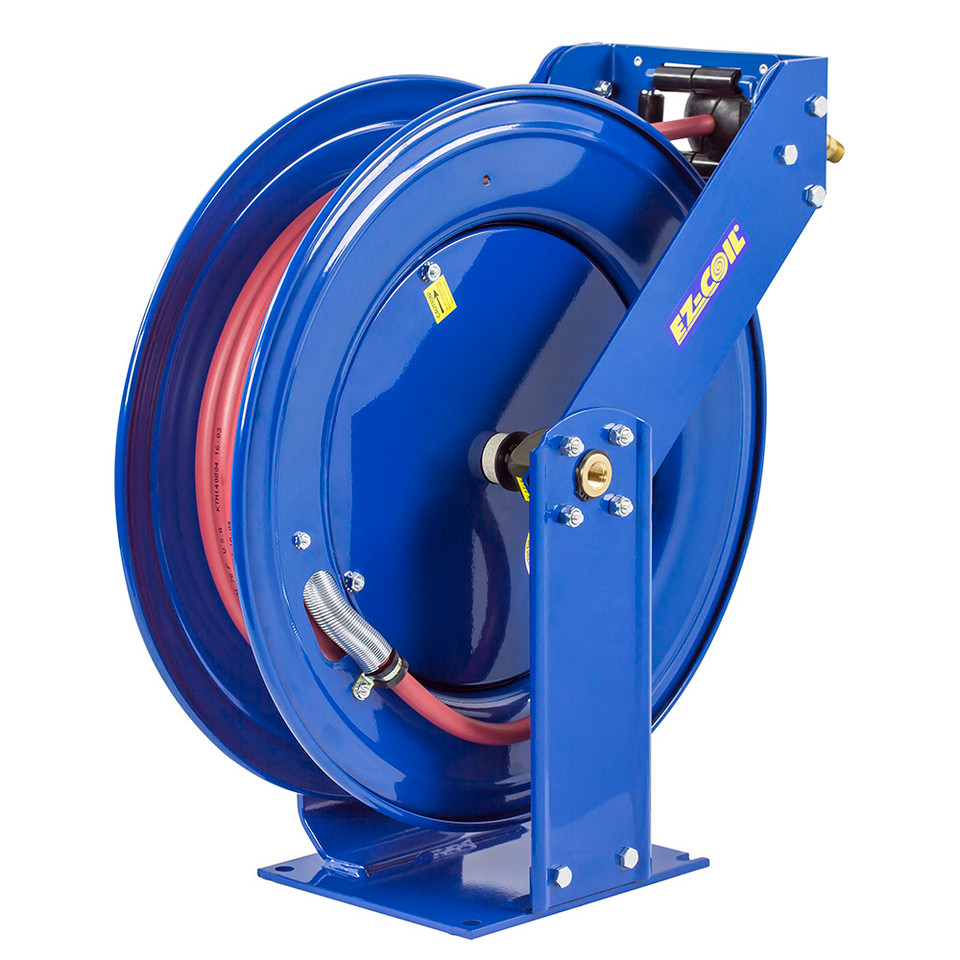

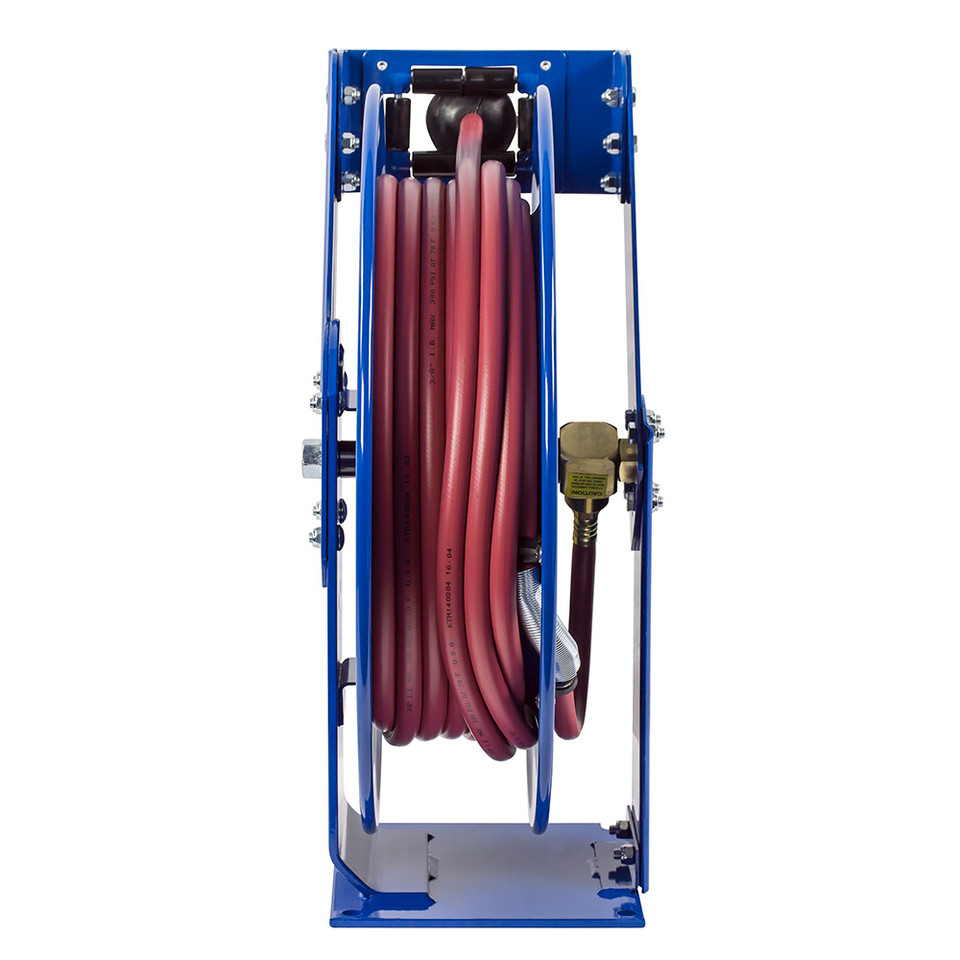

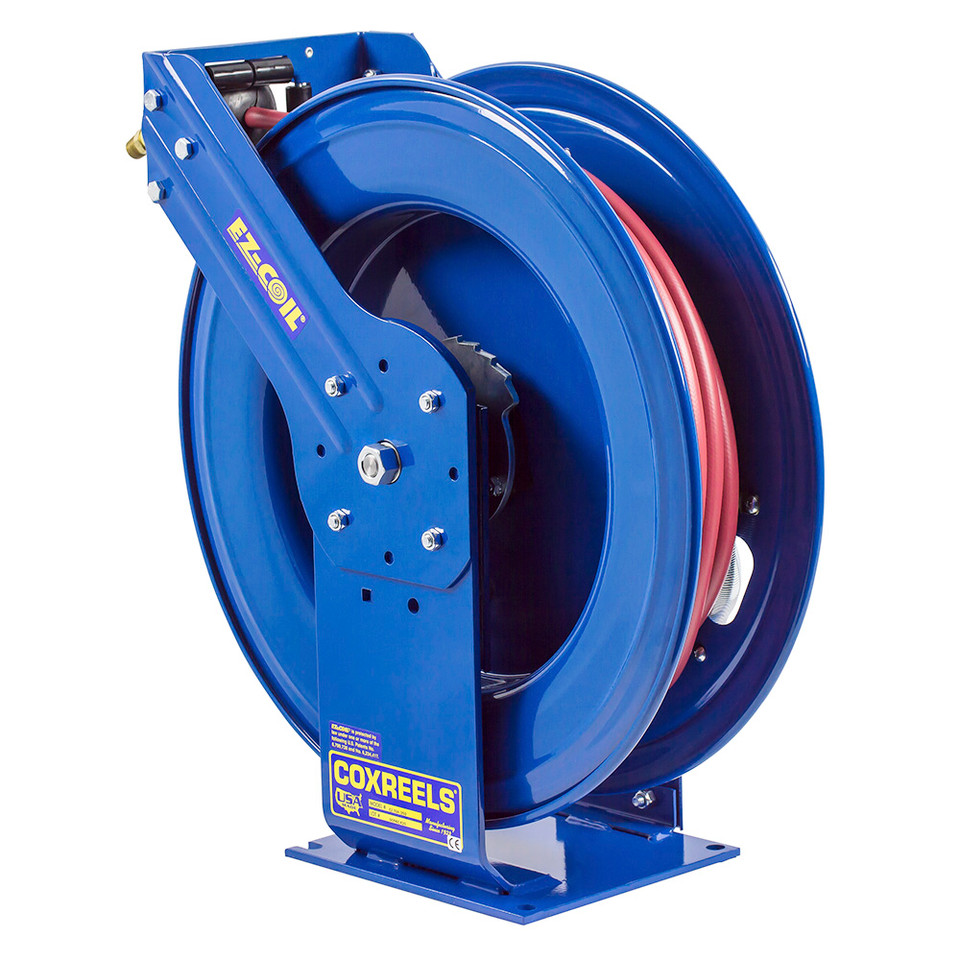

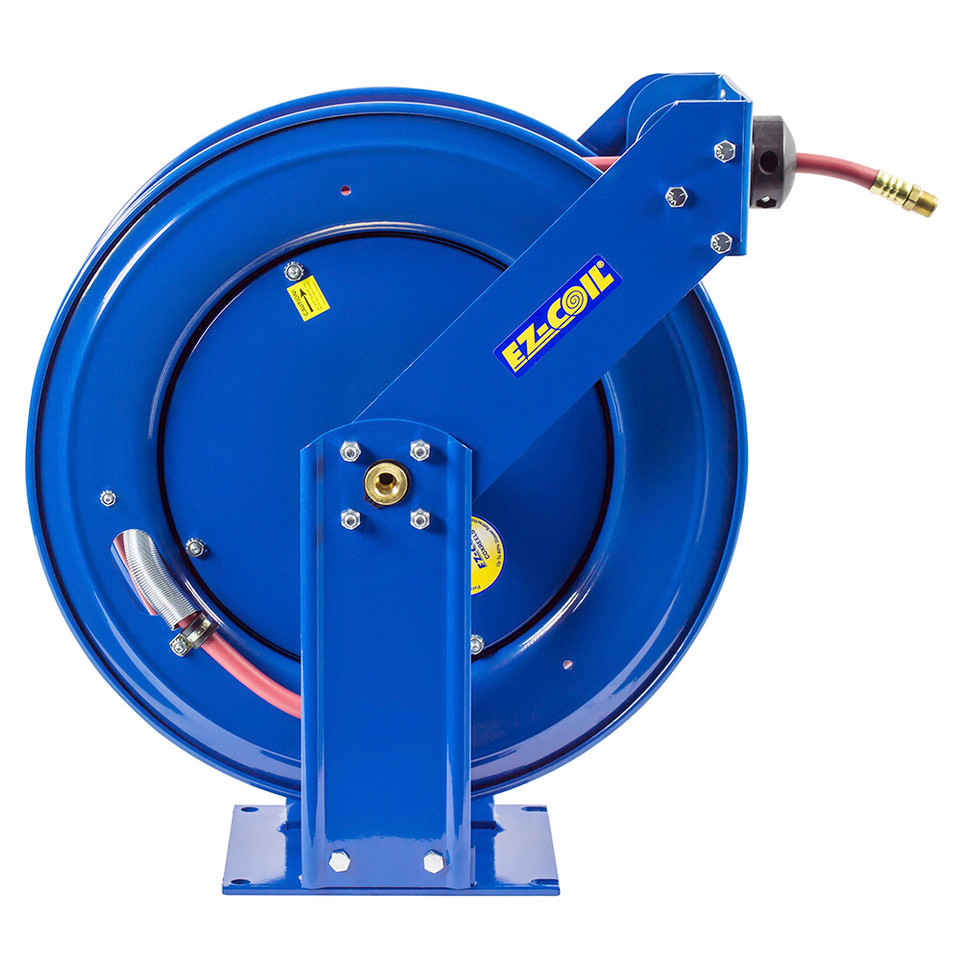

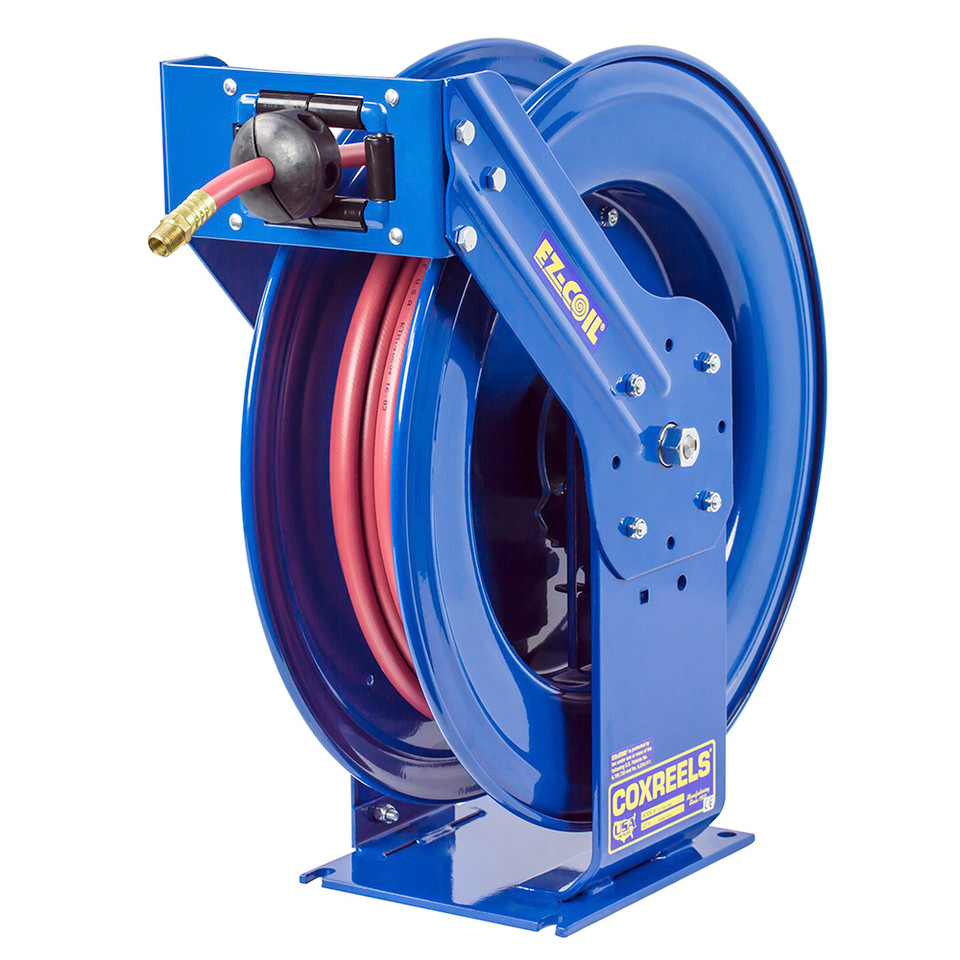

Built for mobile hydraulic service, grease delivery, and high-pressure maintenance work, the Coxreels EZ-THP-1100 EZ-Coil truck mount spring rewind hose reel manages 100 ft of 1/4" I.D. hose with a 5,000 PSI maximum pressure rating. This EZ-T Series reel is part of Coxreels’ truck mount reel family, giving service crews a compact but reinforced reel platform for routing high-pressure hose on trucks, trailers, lube skids, repair bays, and equipment service areas. The EZ-Coil controlled rewind system retracts up to 80% slower than conventional spring driven reels, helping reduce hose whip and giving technicians better control when returning the hose to the reel. The EZ-THP-1100 is furnished with S.A.E. 100R16 #1 or #2 wire braid hose for grease and hydraulic oil applications, making it a practical choice where longer reach is needed without moving the service vehicle or equipment. Its extra-large dual pedestal chassis, Coxreels Super Hub triple axle support system, solid steel axle, and lubricated precision bearings help support daily use in mobile and stationary high-pressure service environments.
Type: EZ-Coil Truck Mount Spring Rewind Hose Reel | Series: EZ-T Series | Model: EZ-THP-1100 | Hose Included: Yes | Hose I.D.: 1/4" | Hose O.D.: 9/16" | Hose Length: 100 ft | Max Pressure: 5,000 PSI | Service: Grease, Hydraulic Oil | Hose Type: S.A.E. 100R16 #1 or #2 Wire Braid Hose | Maximum Temperature: 250°F | Swivel: Zinc Plated Steel Full-Flow NPT Swivel Inlet on HP Models | Swivel Seals: Nitrile | Ship Weight: 104 lbs
Features:
- EZ-Coil patented safety system retracts up to 80% slower than conventional spring driven reels for more controlled hose return.
- Truck mount dual pedestal chassis provides a stable reel structure for service vehicles, shop installations, and mobile equipment platforms.
- Coxreels Super Hub triple axle support system reduces vibration and strengthens the structural integrity of the reel.
- External fluid path with zinc plated steel full-flow NPT swivel inlet on HP models supports high-pressure grease and hydraulic oil service.
- Nitrile swivel seals provide compatibility with common petroleum-based service fluids within the reel and hose ratings.
- Guide arm adjusts to wall, floor, vehicle, and overhead positions so installers can align hose pull direction with the work area.
- Solid one-piece heavy gauge 1/4" steel base and support posts provide a rigid mounting platform for repeat hose pull-out and rewind cycles.
- Enclosed factory tuned and matched cartridge-style spring motor helps deliver consistent spring rewind performance.
- Non-corrosive stainless steel spring and pawl with zinc plated ratchet improve durability in demanding work environments.
- Multi-position lock ratchet mechanism secures the hose at the desired working length during service tasks.
Made in USA:
Applications:
- Mobile hydraulic service trucks — dispensing 100 ft of 1/4" high-pressure hose for equipment service, hydraulic maintenance, and field repairs.
- Grease and lubrication systems — routing high-pressure grease hose around lube skids, maintenance carts, and equipment service stations.
- Fleet and heavy equipment maintenance — supporting service work on trucks, construction equipment, agricultural machinery, and utility vehicles.
- Industrial MRO departments — keeping high-pressure hose organized in repair bays, hydraulic service areas, and plant maintenance work zones.
- Vehicle-mounted service equipment — mounting to trucks, trailers, or service bodies where reinforced reel construction helps manage vibration and daily use.
FAQs:
- Q: Does the Coxreels EZ-THP-1100 include hose?
A: Yes. The EZ-THP-1100 is supplied with 100 ft of 1/4" I.D. high-pressure hose rated for 5,000 PSI. - Q: What fluids is this reel intended for?
A: Coxreels lists the high-pressure EZ-T models as furnished with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Always verify the installed fittings, fluid temperature, and system pressure before use. - Q: What is the advantage of EZ-Coil rewind?
A: EZ-Coil slows hose retraction up to 80% compared with conventional spring driven reels. This helps reduce uncontrolled rewind speed and makes the reel easier to manage in busy service areas. - Q: Can this reel be mounted on a truck or trailer?
A: Yes. The EZ-T Series is a truck mount reel family, and the guide arm adjusts for wall, floor, vehicle, and overhead mounting positions. - Q: How does the EZ-T Series differ from lighter reel frames?
A: The EZ-T Series uses an extra-large dual pedestal chassis with Coxreels’ Super Hub triple axle support system. That construction helps reduce vibration and improves structural support in mobile and high-use environments.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Truck Mount Spring Rewind Hose Reel
- Series
- EZ-T Series
- Hose Inside Diameter (in.)
- 1/4
- Hose Outside Diameter (in.)
- 9/16
- Hose Length (ft.)
- 100
- Hose Included
- Yes
- Maximum Working Pressure (PSI)
- 5000
