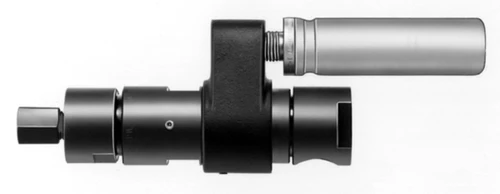

Ingersoll Rand 000 Series Milling Motors


The 000-Series Milling Motors can withstand harsh environments and are ideal for increased side loading applications such as milling and sawing. Designed with stackable gearing to allow additional gear reductions, Ingersoll Rand's 000 Series In-Line Planetary Gear Multi-Vane Air Motors have a free speed of 300 to 20,000 RPM. The compact size gets a maximum horsepower of 0.25 HP and are able to utilize a wide range of speeds with a simple valve on the input air supply line. These air motors can be stalled or overloaded for long periods without burning out or damaging. Cut stress to your environment with an air cushioned start-up. Ideal for use in flammable or explosive applications, these pneumatic motors don't experience heat build up or sparks.

Features:

  • Steel motor housing
  • Flush-type grease fittings at rotation points for gear and bearing lubrication
  • Exhaust manifold rotatable within 360°
  • Muffler
  • Integral collet spindle with 31812-8 1/4” capacity collet for end mills and Woodruff key slot cutters
  • Duplex bearing on drive spindle for maximum radial support


Tech Tip: To increase tool performance, extend tool life and lessen repair cost use it with a Filter-Regulator-Lubricator (Click Here To Shop FRLs)

blog-post-icon.jpg Need more information about Filter Regulator Lubricators (FRLs)? - Click here to read our Guide on Proper Conditioning of Compressed Air

industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Air Motors? Click here to view the Ingersoll Rand Air Motors Catalog

Don't see what you're looking for? Feel free to contact us with your requirements via phone at 800-608-5210 or e-mail at info@intlairtool.com
