Coxreels TSHL-N-450 Supreme Duty Spring Rewind Hose Reel is a less-hose model engineered to accommodate up to 50 feet of 1/2" I.D. hose. As part of the T Series, this reel is built for demanding truck-mounted and stationary applications where reliable hose management is essential. With a 300 PSI maximum working pressure, it is intended for compatible low-pressure air, water, and oil systems while allowing users to install the hose best suited to their specific application.
The T Series incorporates Coxreels' heavy-duty dual pedestal frame and exclusive Super Hub system, which provides triple axle support for increased structural strength and reduced vibration during operation. The TSHL-N-450 features a factory-tuned spring motor for dependable automatic hose rewind, an adjustable guide arm for multiple mounting positions, and a multi-position locking ratchet that secures the hose at the desired working length. Its less-hose configuration provides the flexibility to pair the reel with a compatible 1/2-inch hose that meets the system's operating requirements.

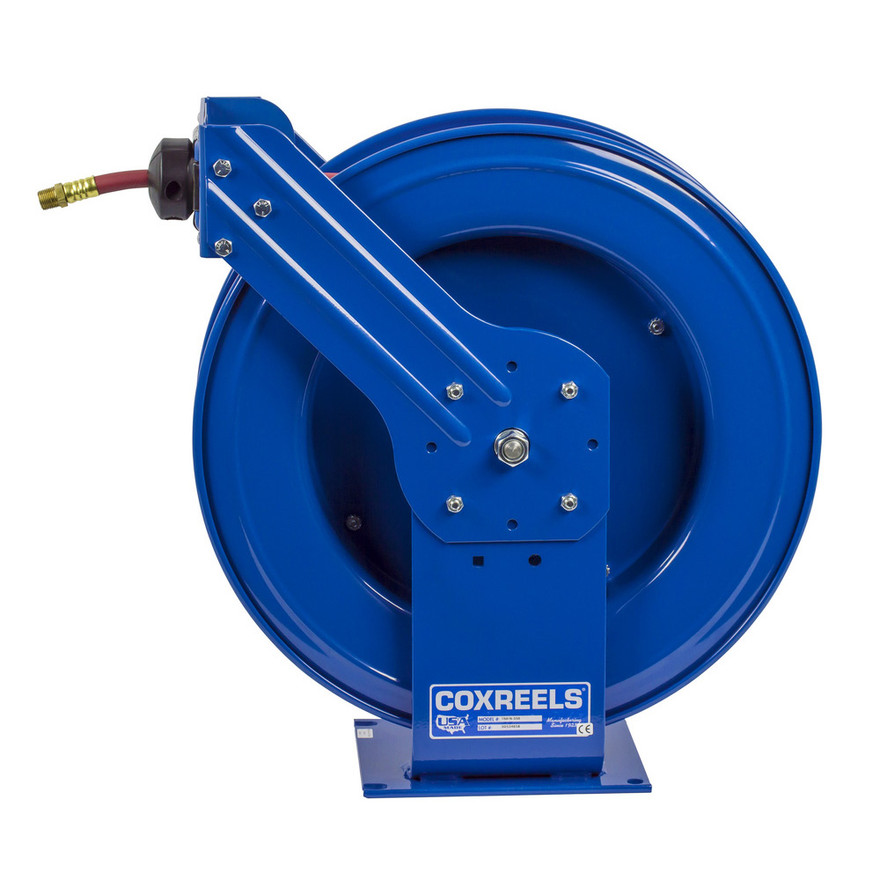

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Hose Reel | Duty Classification: Supreme Duty | Series: T Series | Model: TSHL-N-450 | Configuration: Less Hose | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Capacity: 50 ft | Maximum Working Pressure: 300 PSI | Service: Air, Water, Oil | Approximate Weight: 55 lbs
Features:
- Heavy-duty T Series construction with dual pedestal-style arms for demanding industrial and mobile hose applications.
- Super Hub triple axle support system strengthens the reel structure while minimizing vibration during operation.
- Enclosed cartridge-style spring motor provides automatic hose rewind and simplified spring maintenance.
- Multi-position locking ratchet holds the hose securely at the required working length.
- Adjustable guide arm supports wall, floor, overhead, and vehicle mounting configurations.
- Solid steel base and reinforced steel components provide dependable performance in challenging work environments.
- Less-hose configuration allows users to install a compatible 1/2-inch hose that matches their system requirements.
- Designed to accommodate up to 50 feet of hose with a maximum outside diameter of 25/32 inch.
Made in USA:
Applications:
- Service trucks and utility vehicles requiring a retractable 1/2-inch hose reel.
- Maintenance shops using compatible low-pressure air, water, or oil hose systems.
- Manufacturing facilities requiring organized hose storage and controlled hose deployment.
- Construction and equipment service operations where a customer-selected hose is preferred.
- Industrial workstations needing dependable spring-rewind hose management.
FAQs:
- Q: Does the TSHL-N-450 include a hose?
A: No. This model is supplied less hose, allowing the installer to select a compatible 1/2-inch hose separately. - Q: What hose capacity does this reel provide?
A: The reel is designed to accommodate up to 50 feet of 1/2-inch I.D. hose with a maximum outside diameter of 25/32 inch. - Q: Which applications is this reel intended for?
A: According to Coxreels, this reel is intended for compatible air, water, and oil service within its published 300 PSI maximum working pressure. - Q: Can the guide arm be repositioned?
A: Yes. The adjustable guide arm supports multiple mounting orientations including wall, floor, overhead, and vehicle installations. - Q: Why choose the less-hose configuration?
A: The less-hose model allows users to install a hose that best matches their required fluid, fittings, pressure rating, and operating conditions.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- T Series
- Hose Inside Diameter (in.)
- 1/2
- Hose Outside Diameter (in.)
- 3/4
- Hose Length (ft.)
- 50
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 300
- Width (in.)
- 9.38
- Height (in.)
- 21.25
- Length (in.)
- 19.5
- Mounting Pattern (in.)
- 7M
- Mounting Pattern (in.)
- 8N
- Base (in.)
- 8X
- Base (in.)
- 9Y
