Coxreels TSHL-N-475 Supreme Duty Spring Rewind Hose Reel provides storage capacity for up to 75 feet of 1/2" I.D. hose. Supplied less hose, this T Series reel allows buyers to select a compatible hose for their air, water, or oil application. Its 300 PSI maximum working pressure supports low-pressure systems when the installed hose, fittings, and connected equipment remain within their respective operating limits.
Coxreels T Series "Truck Mount" reels feature an extra-large chassis supported by dual pedestal-style arms extending from the roller guide bracket to the mounting base. The Super Hub™ system provides triple axle support to help reduce vibration and reinforce the reel structure. A spring-driven rewind mechanism retrieves the hose after use, while the locking ratchet holds the hose at the selected working length.

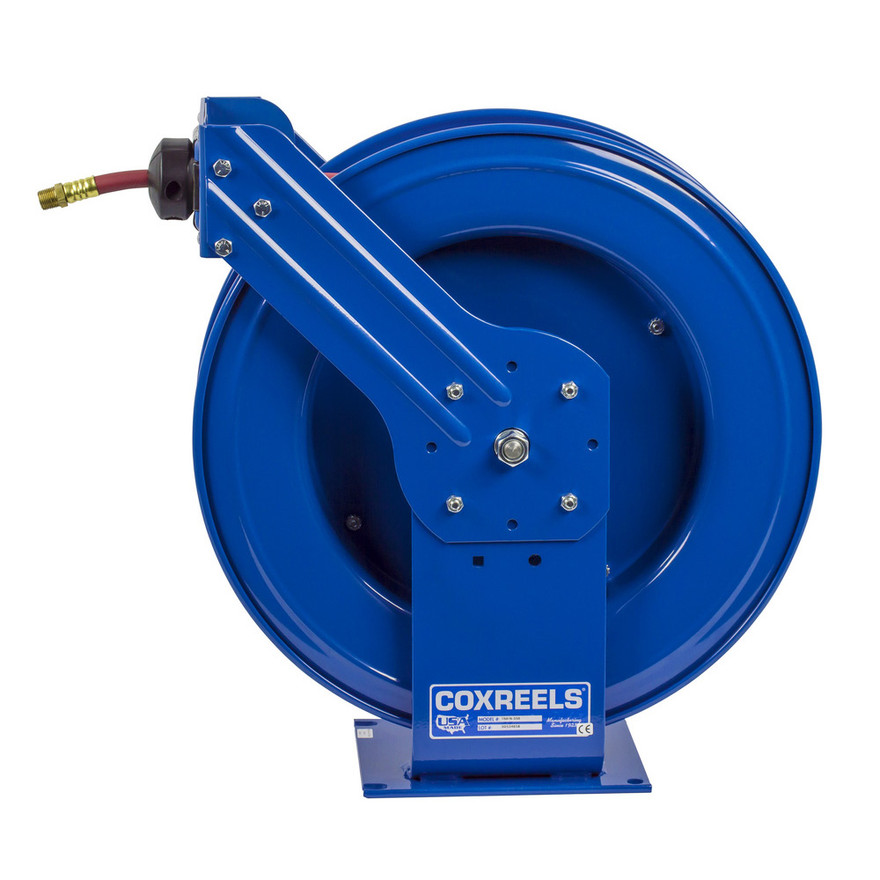

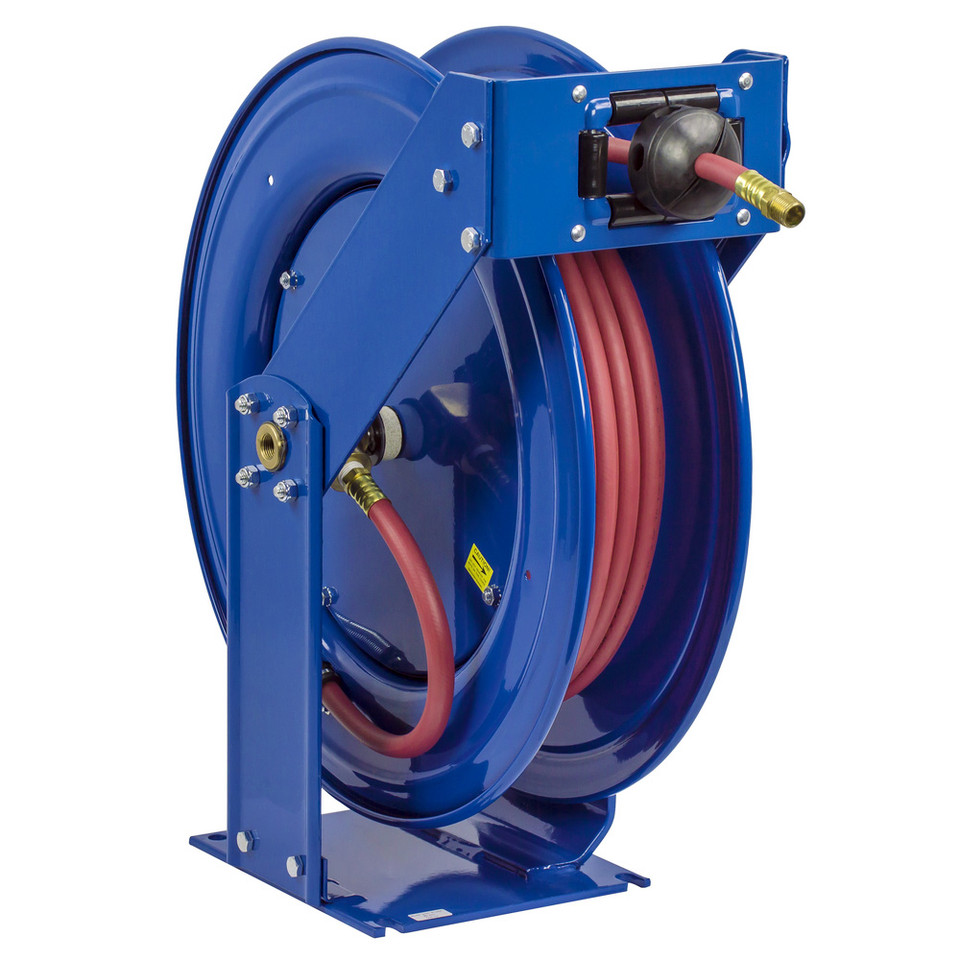

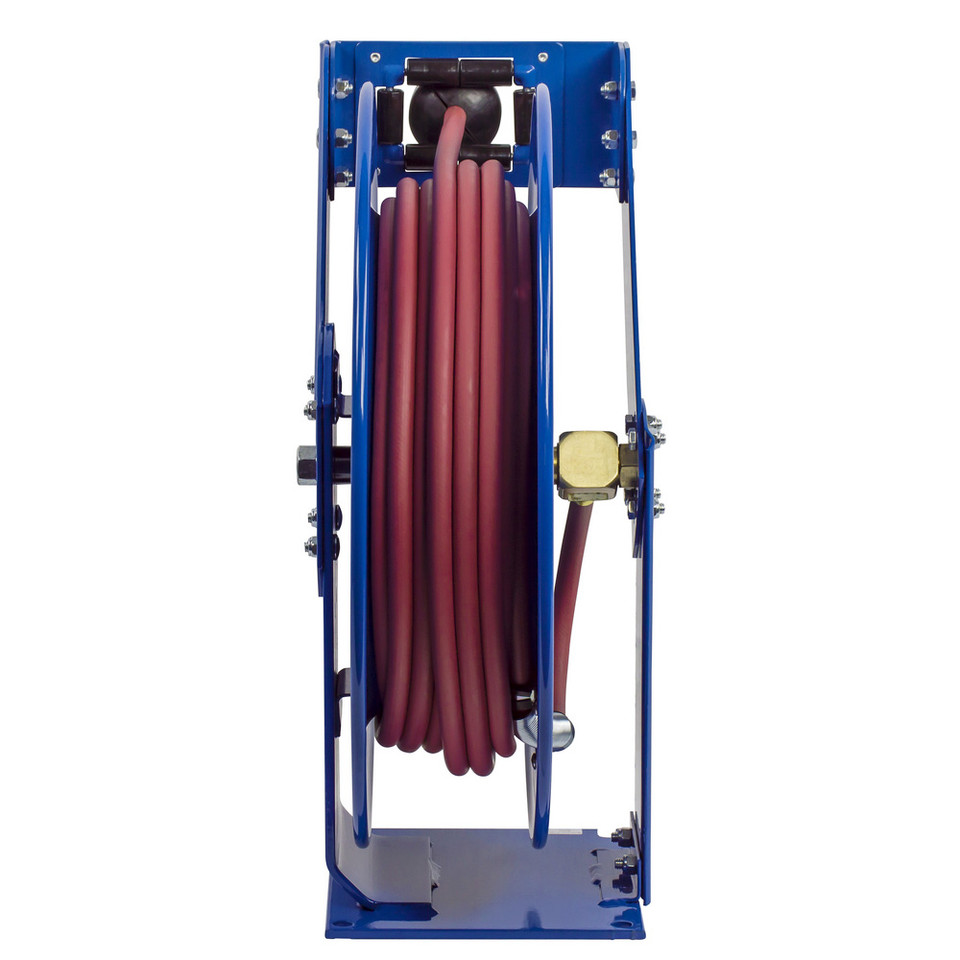

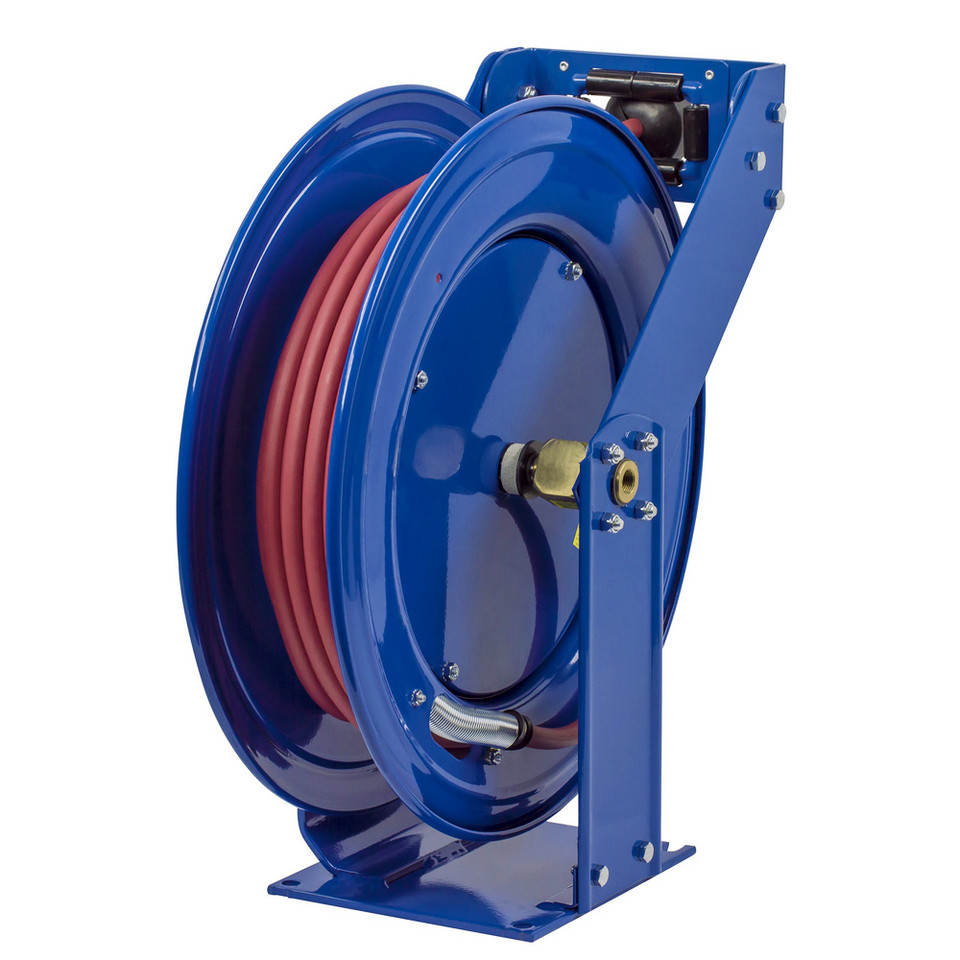

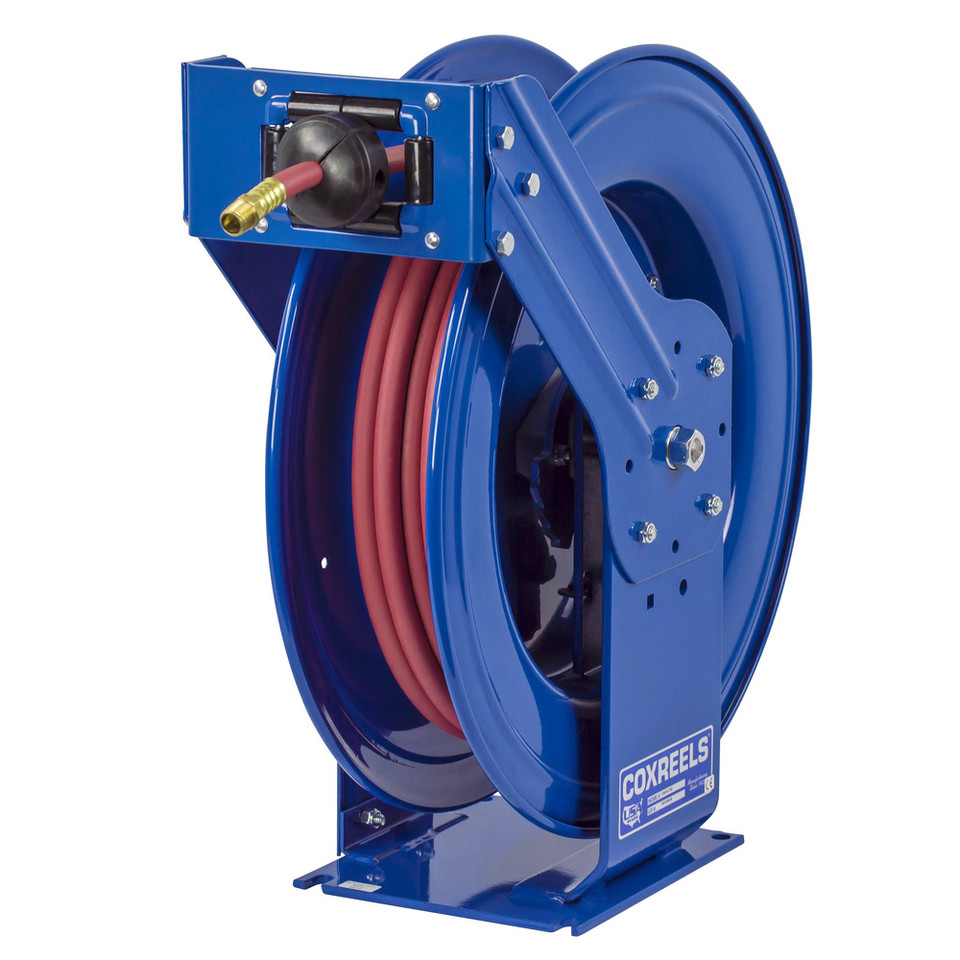

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Hose Reel | Duty Classification: Supreme Duty | Series: T Series | Model: TSHL-N-475 | Configuration: Less Hose | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Capacity: 75 ft | Maximum Working Pressure: 300 PSI | Service: Air, Water, Oil | Shipping Weight: 71 lbs
Features:
- Extra-large T Series chassis is supported by dual pedestal-style arms for demanding mobile and stationary installations.
- Super Hub provides triple axle support to reduce vibration and strengthen the reel's structural integrity.
- Spring-powered rewind returns the installed hose to the reel after use for organized storage.
- Multi-position locking ratchet holds the hose at the required working length during operation.
- Adjustable guide arm supports multiple reel mounting positions and hose payout directions.
- Less-hose configuration allows the installer to select a hose compatible with the intended air, water, or oil service.
- Reel accommodates up to 75 feet of 1/2-inch I.D. hose when the hose outside diameter does not exceed 3/4 inch.
- Rolled reel-disc edges help protect the hose and reduce sharp exposed edges around the reel.
Made in USA:
Applications:
- Service and utility vehicles requiring retractable storage for a separately selected 1/2-inch hose.
- Maintenance facilities using compatible low-pressure air, water, or oil systems.
- Off-road equipment installations that benefit from the reinforced T Series dual-pedestal frame.
- Industrial work areas requiring up to 75 feet of hose reach from a fixed reel location.
- Custom hose assemblies that remain within the reel's published diameter, capacity, and pressure limits.
FAQs:
- Q: Is a hose supplied with the Coxreels TSHL-N-475?
A: No. The TSHL-N-475 is a less-hose reel, so the hose must be selected and installed separately. - Q: What hose capacity does this reel provide?
A: It accommodates up to 75 feet of 1/2-inch I.D. hose with a maximum outside diameter of 3/4 inch. - Q: Can the TSHL-N-475 be used for oil?
A: Yes. Coxreels identifies its less-hose low-pressure T Series models for air, water, or oil service. The installed hose must also be compatible with the selected fluid and operating conditions. - Q: What is the maximum working pressure?
A: The reel is rated for a maximum working pressure of 300 PSI. The complete system must not exceed the rating of its lowest-rated component. - Q: What does the locking ratchet do?
A: The locking ratchet holds the hose at the selected extension so the operator can use the required length without continuous rewind tension.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- T Series
- Hose Inside Diameter (in.)
- 1/2
- Hose Outside Diameter (in.)
- 3/4
- Hose Length (ft.)
- 75
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 300
- Width (in.)
- 9.38
- Height (in.)
- 25.5
- Length (in.)
- 24
- Mounting Pattern (in.)
- 7M
- Mounting Pattern (in.)
- 8N
- Base (in.)
- 8X
- Base (in.)
- 9Y
