Built for truck-mounted hose storage, lube skids, fleet service vehicles, and rugged shop installations, the Coxreels TMPL-N-525 Supreme Duty Spring Rewind Hose Reel gives buyers a T Series reel platform for applications where hose selection must be matched to the job. This less hose model is sized for 3/4" hose I.D., supports up to 25 ft hose capacity, and is rated for 1,500 PSI maximum pressure, making it a practical choice for air, water, or oil service when fitted with compatible hose. The T Series “Truck Mount” design uses an extra-large chassis with dual pedestal-style arms and Coxreels’ Super Hub support system to help reduce vibration and strengthen the reel structure in mobile environments. Because the TMPL-N-525 is supplied without hose, it is suited for buyers who need to specify hose material, fittings, length, or media compatibility separately before installation.

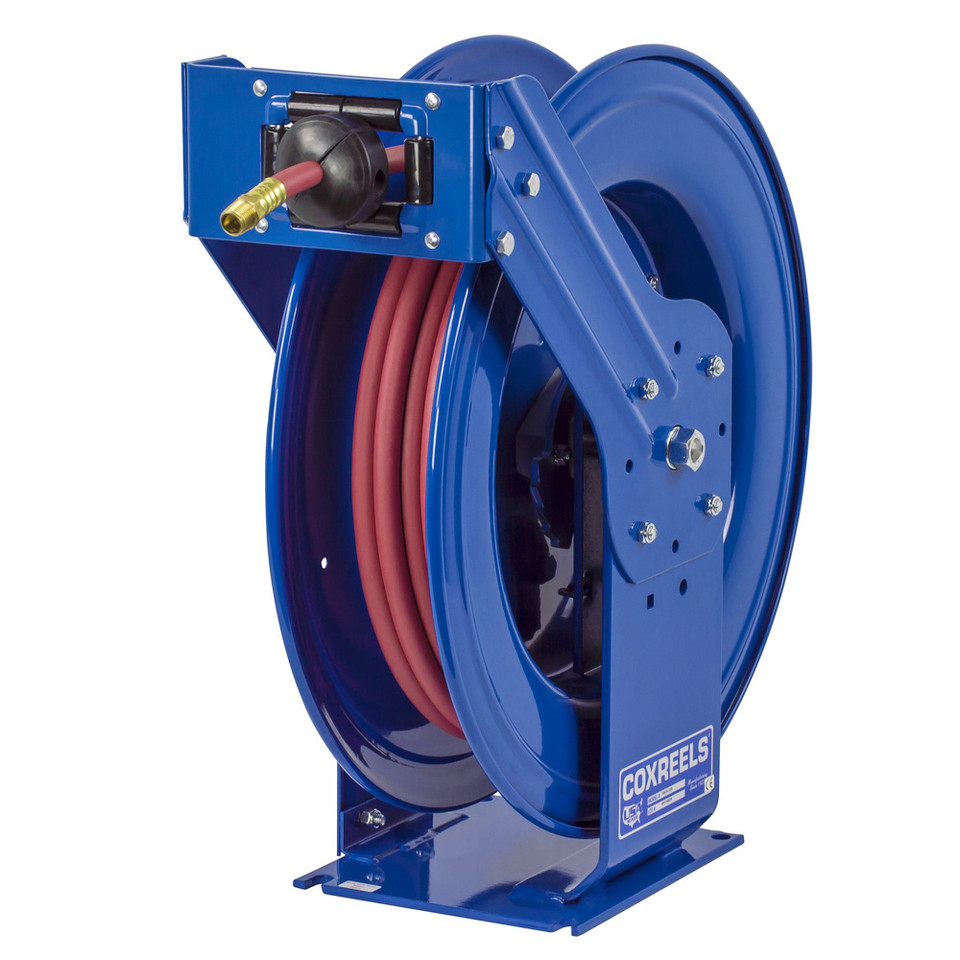

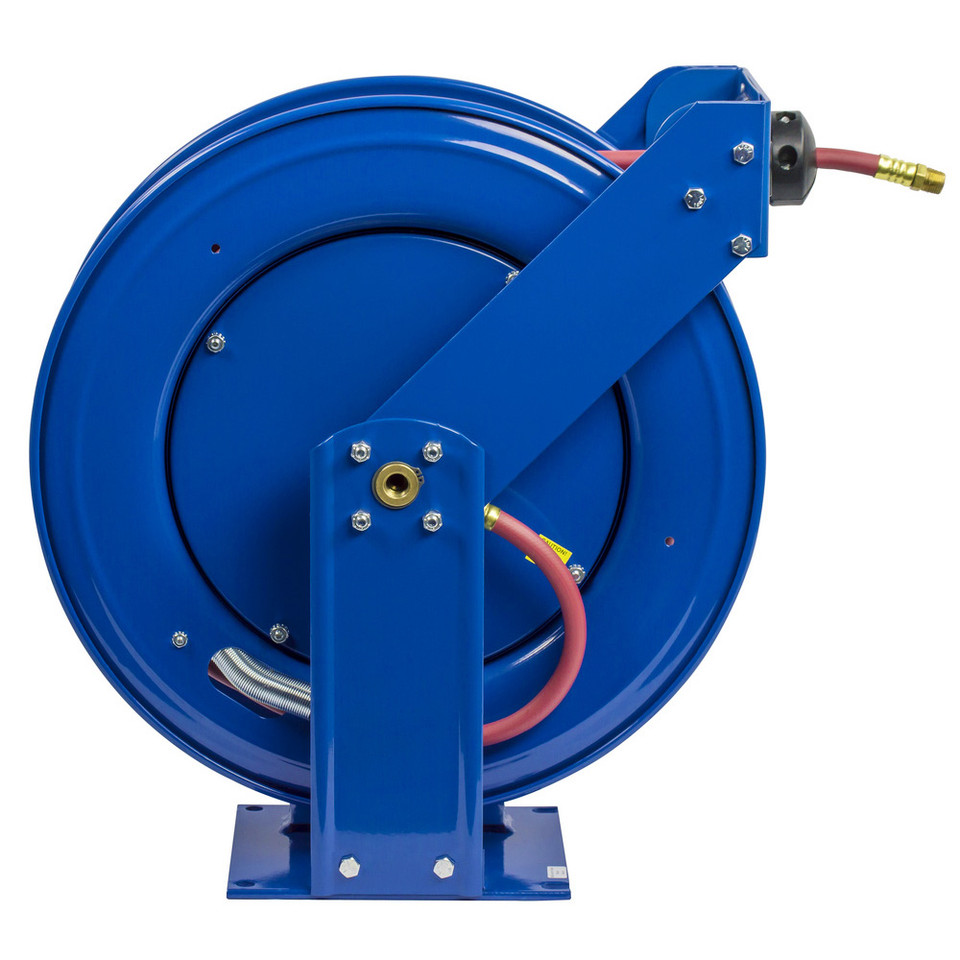

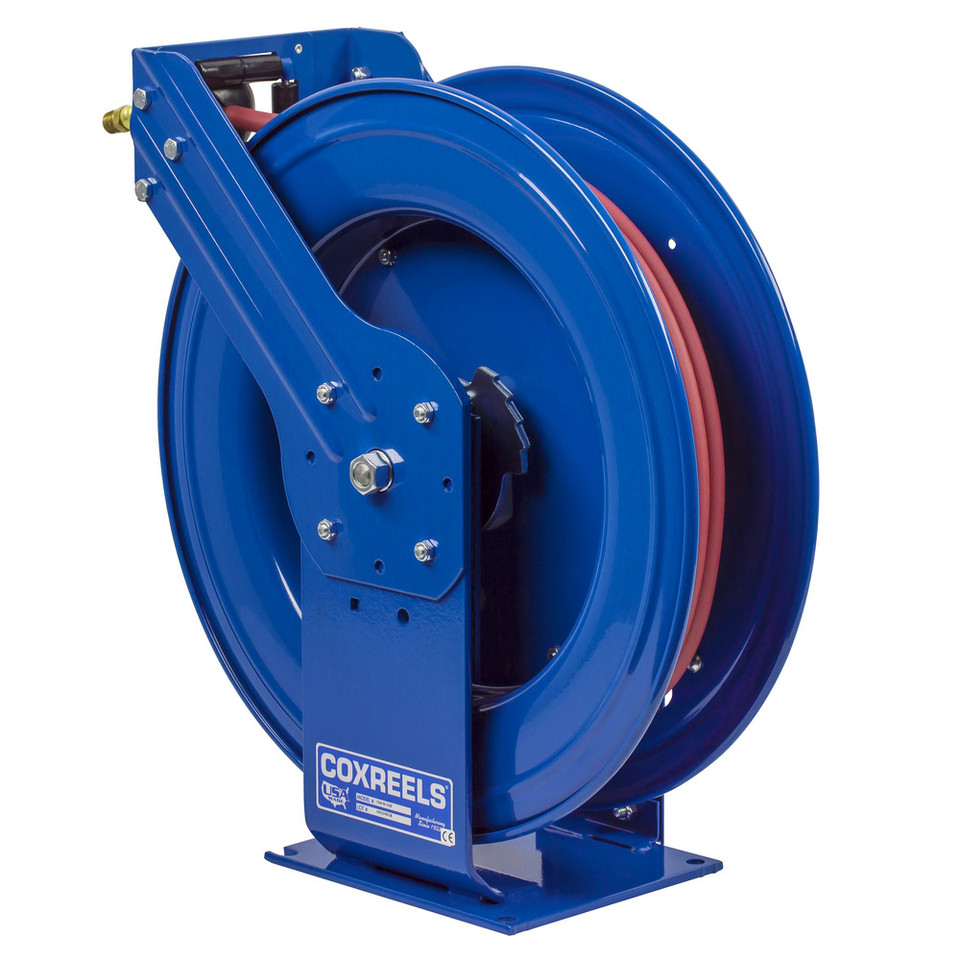

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T Series | Model: TMPL-N-525 | Configuration: Less Hose | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Capacity: 25 ft | Max Pressure: 1,500 PSI | Service: Air, Water, Oil | Approx. Weight: 57 lbs.
Features:
- Supreme Duty T Series truck-mount frame is built for mobile service vehicles, lube trucks, and rugged shop installations.
- Dual pedestal-style reel structure with Coxreels’ Super Hub™ support helps reduce vibration and strengthen the reel assembly.
- Less hose configuration lets the buyer select the correct 3/4" hose material, fittings, and media compatibility for the application.
- External fluid path with machined-from-solid brass 90° full-flow NPT swivel inlet supports efficient flow through the reel.
- Nitrile swivel seals support compatible air, water, and oil service applications.
- Adjustable guide arm allows wall, floor, vehicle, and overhead mounting positions for flexible installation.
- Stainless steel rollers on 3/4" models help guide hose during payout and rewind.
- Solid one-piece heavy gauge 1/4" steel base and support posts provide a strong mounting foundation.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
Made in USA:
Applications:
- Service and mechanic vehicles — adding organized 3/4" hose storage to mobile repair trucks and utility bodies.
- Lube skids and trucks — routing oil or service hose where the hose specification must be selected separately.
- Industrial maintenance areas — keeping larger-diameter hose managed near equipment service points and MRO workstations.
- Fleet and automotive shops — storing hose off the floor around service bays, wash areas, or lubrication stations.
- Construction, mining, and railroad operations — supporting rugged mobile installations where reel structure and mounting stability matter.
FAQs:
- Q: Does the TMPL-N-525 include hose?
A: No. This model is supplied less hose. The buyer must provide compatible 3/4" I.D. hose separately and confirm the hose outside diameter, fittings, pressure rating, temperature rating, and media compatibility before installation. - Q: What does “Supreme Duty” mean on the Coxreels T Series?
A: Coxreels uses the T Series for its truck-mount spring driven reel platform. The series uses an extra-large chassis, dual pedestal-style arms, and the Super Hub™ support system for mobile and rugged mounting environments. - Q: Can this reel be used for oil service?
A: Yes, models less hose in this T Series configuration can be used for air, water, or oil when the installed hose, fittings, and system conditions are compatible with the application. - Q: Why choose a less-hose reel instead of a hose-equipped model?
A: A less-hose reel is useful when the job requires a specific hose material, fitting style, or compatibility requirement that may not match a standard factory hose. It also gives maintenance teams more control over replacement hose selection. - Q: How can this reel be mounted?
A: The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions. Use the listed dimensions and appropriate hardware for the mounting surface and operating load.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Supreme Duty Spring Rewind Hose Reel
- Series
- T Series
- Hose Inside Diameter (in.)
- 3/4
- Hose Outside Diameter (in.)
- 1-1/16
- Hose Length (ft.)
- 25
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 1500
