Coxreels TSHL-N-650 Supreme Duty Spring Rewind Hose Reel is a less-hose model in the T Series, engineered for rugged mobile installations and demanding hose-management environments. It accommodates up to 50 feet of 1-inch I.D. hose with a maximum hose O.D. of 1-1/2 inches and supports a maximum working pressure of 300 PSI.
An extra-large chassis, dual-pedestal-style arms, and Coxreels' Super Hub triple-axle support help reduce vibration and strengthen the reel structure. The 1-inch configuration also incorporates an electroless nickel-plated swivel and stainless steel rollers, while the adjustable guide arm allows the reel to be positioned for wall, floor, vehicle, or overhead installation.

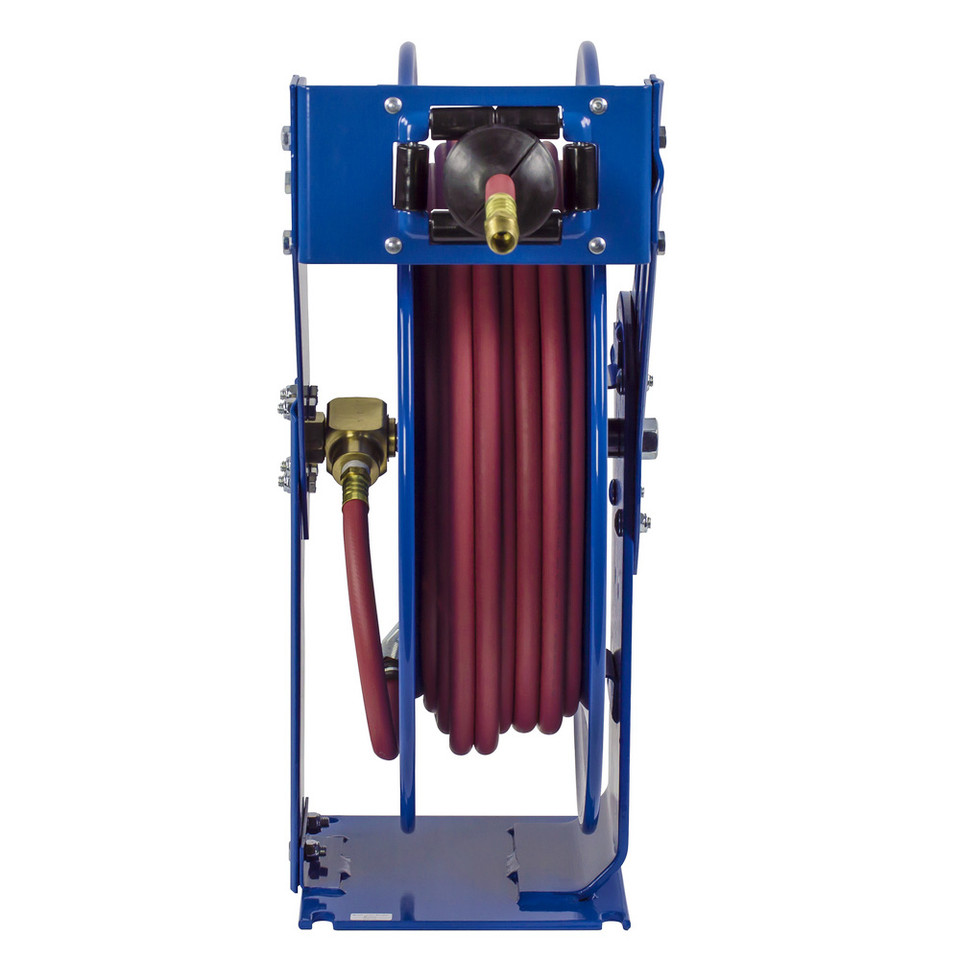

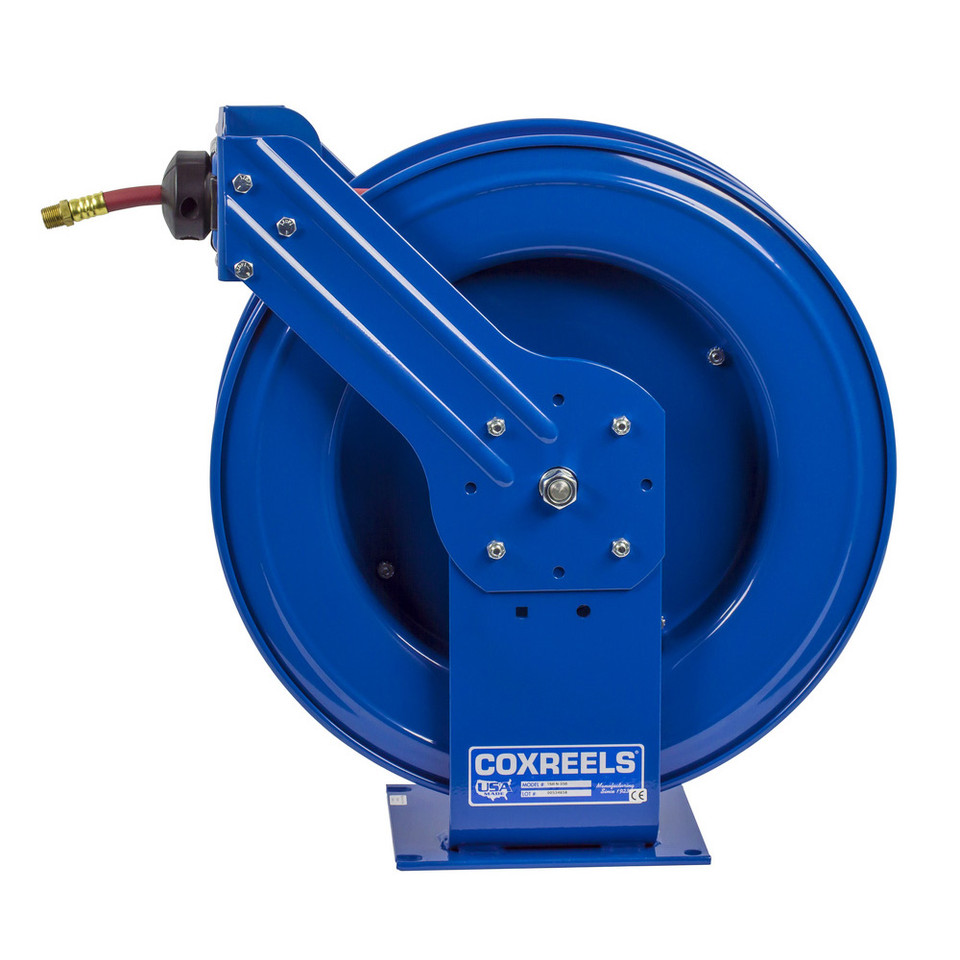

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T Series | Model: TSHL-N-650 | Pressure Classification: Low Pressure | Configuration: Less Hose | Hose Included: No | Hose I.D. Capacity: 1" | Maximum Hose O.D.: 1-1/2" | Hose Capacity: 50 ft | Max Pressure: 300 PSI | Ship Weight: 77 lbs | Overall Width: 12" | Overall Height: 25.5" | Overall Length: 24" | Mounting Pattern: 7" M x 8" N | Base Dimensions: 8" X x 9" Y
Features:
- Extra-large chassis with dual-pedestal-style arms and Super Hub triple-axle support reduces vibration and reinforces the reel structure.
- Electroless nickel-plated swivel on the 1-inch model provides an external fluid path with a 90° full-flow NPT inlet.
- Stainless steel rollers guide the larger-diameter hose during extension and automatic rewind.
- Enclosed, factory-tuned cartridge-style spring motor provides automatic hose retraction and can be removed for convenient maintenance.
- Multi-position lock ratchet secures the hose at the required working length, while the guide arm adjusts for wall, floor, vehicle, and overhead mounting.
- Heavy-gauge 1/4-inch steel construction, ribbed discs with rolled edges, a CPC powder-coat finish, and permanently lubricated precision bearings support durable operation.
Made in USA:
Applications:
- Truck- and service-vehicle-mounted hose-management systems.
- Off-road equipment installations exposed to vibration and demanding operating conditions.
- Wall- or floor-mounted systems requiring capacity for 50 feet of 1-inch hose.
- Overhead installations where automatic spring rewind helps keep hose organized.
- Low-pressure applications operating within the reel's 300 PSI maximum rating.
FAQs:
- Q: Does the Coxreels TSHL-N-650 include hose?
A: No. This is a less-hose reel, so compatible hose must be selected and installed separately. - Q: What hose size will this reel accommodate?
A: Coxreels lists capacity for up to 50 feet of 1-inch I.D. hose with a maximum O.D. of 1-1/2 inches. - Q: What is the reel's maximum working pressure?
A: The TSHL-N-650 is rated for a maximum working pressure of 300 PSI. - Q: What type of swivel is used on this model?
A: Coxreels specifies an electroless nickel-plated swivel for its 1-inch T Series models. - Q: Can the guide arm be repositioned?
A: Yes. The guide arm adjusts for wall, floor, vehicle, and overhead mounting positions.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
