Coxreels TSHL-N-635 Supreme Duty Spring Rewind Hose Reel is a less-hose model designed to accommodate up to 35 feet of 1" I.D. hose. As part of the T Series "Truck Mount" lineup, this reel is intended for demanding mobile and stationary applications requiring reliable hose management. With a 300 PSI maximum working pressure, it is designed for compatible low-pressure air, water, and oil systems while allowing users to install the hose best suited to their application.
The T Series features an extra-large chassis with dual pedestal-style arms extending from the roller guide bracket to the mounting base for added structural support. Coxreels' exclusive Super Hub provides triple axle support to help reduce vibration and strengthen the reel during operation. An enclosed spring motor automatically rewinds the hose after use, while the multi-position locking ratchet and adjustable guide arm provide controlled hose payout and flexible installation options.

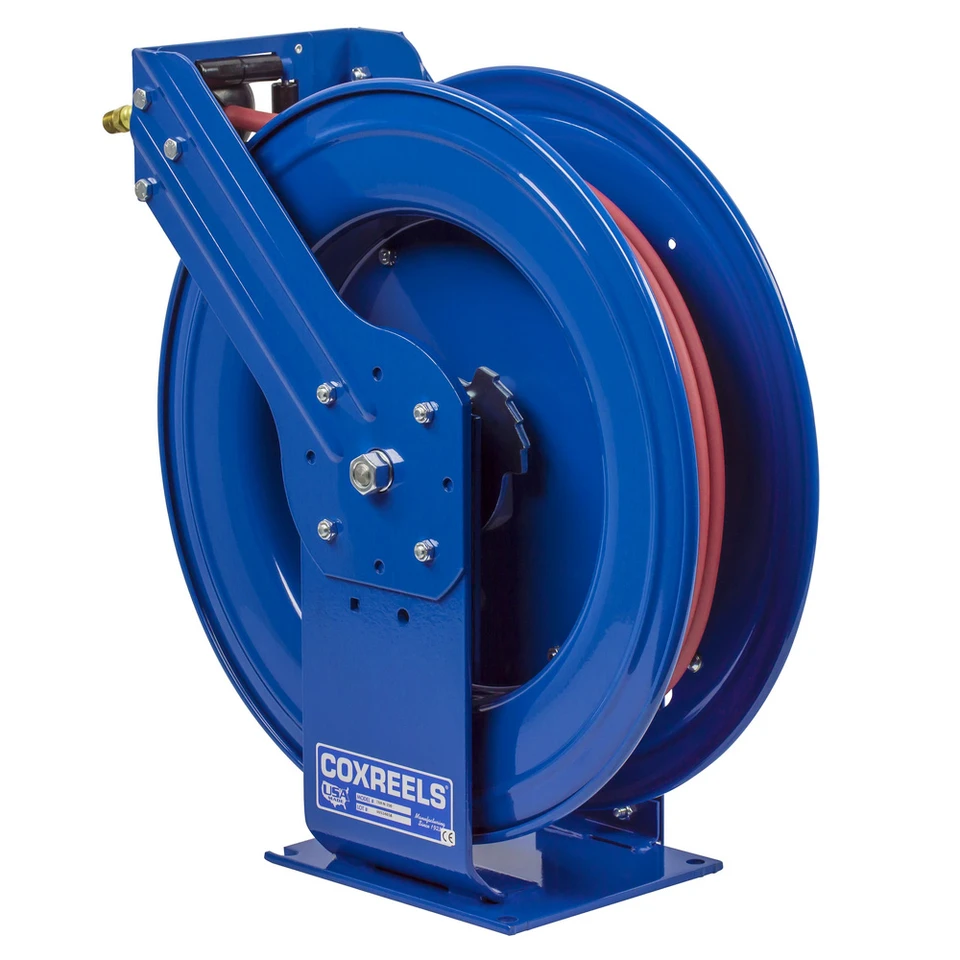

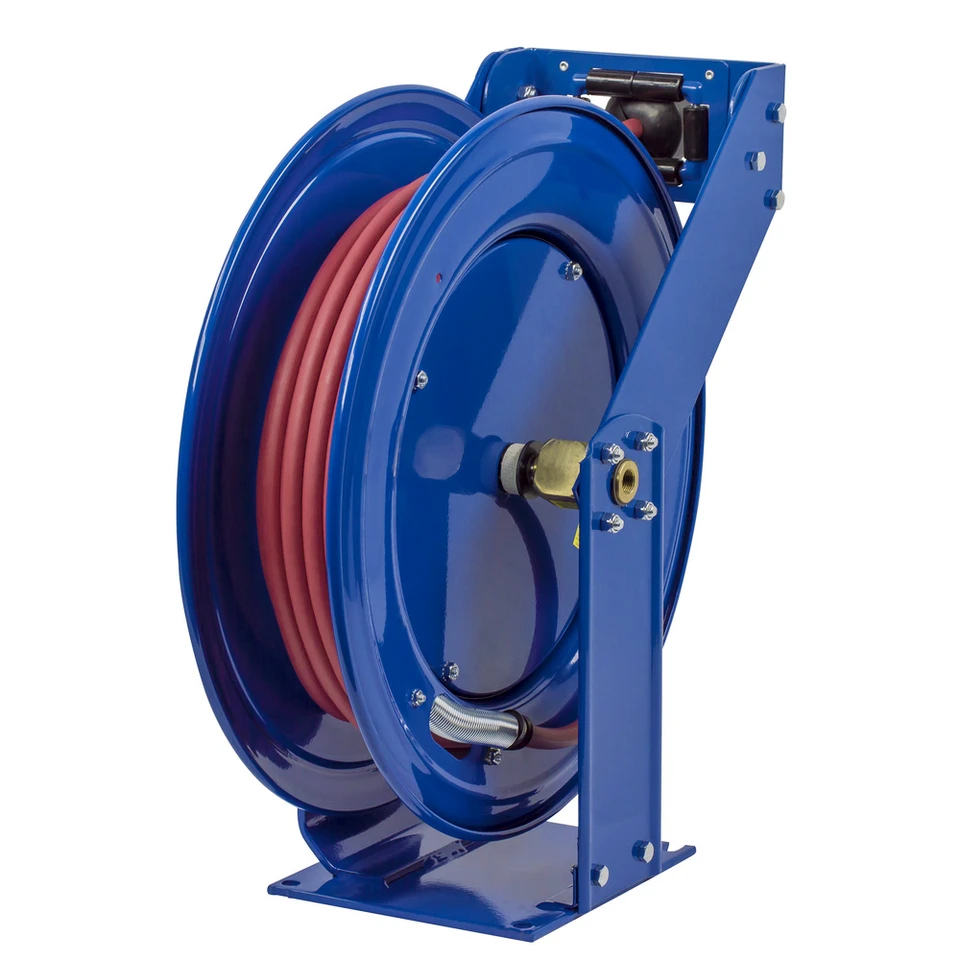

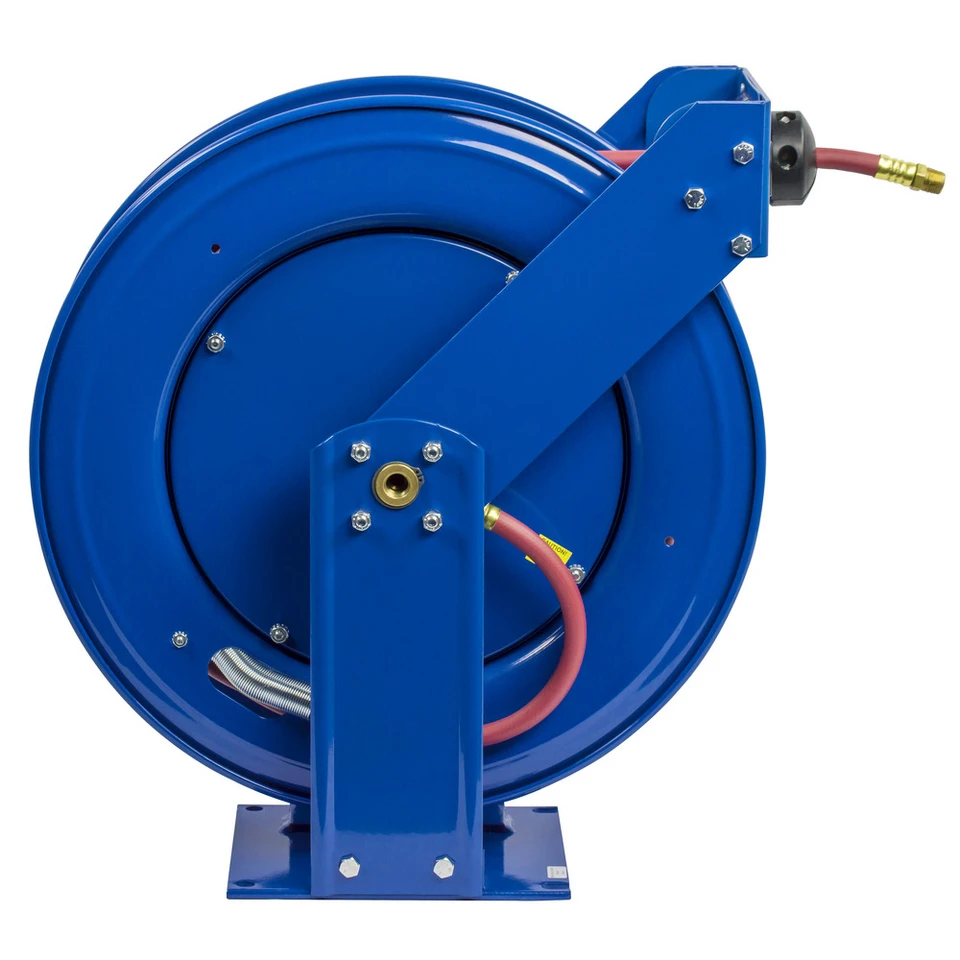

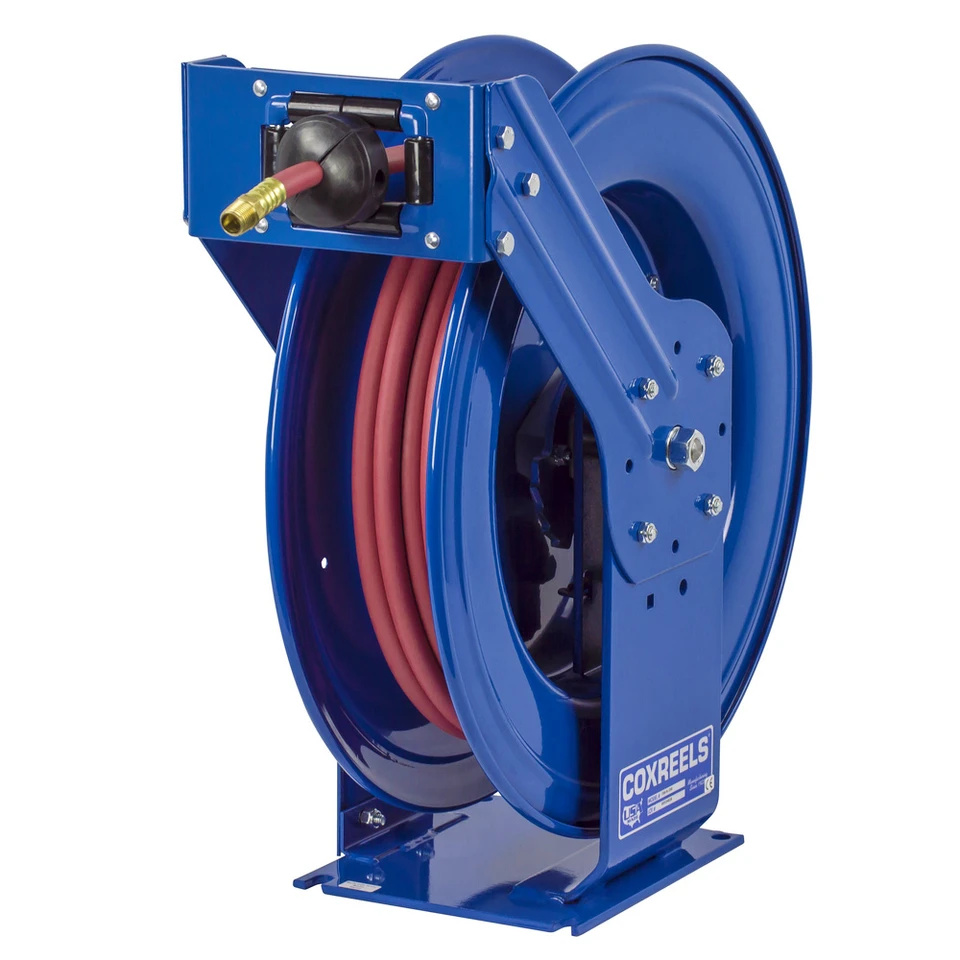

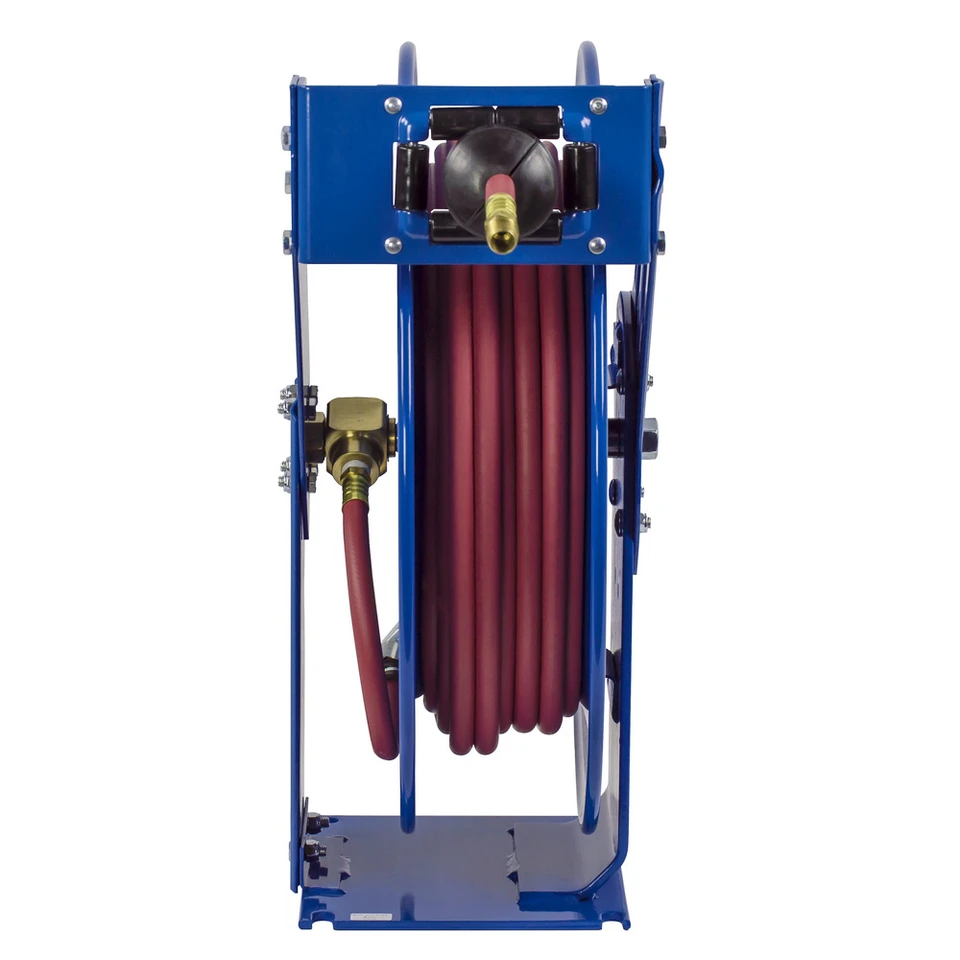

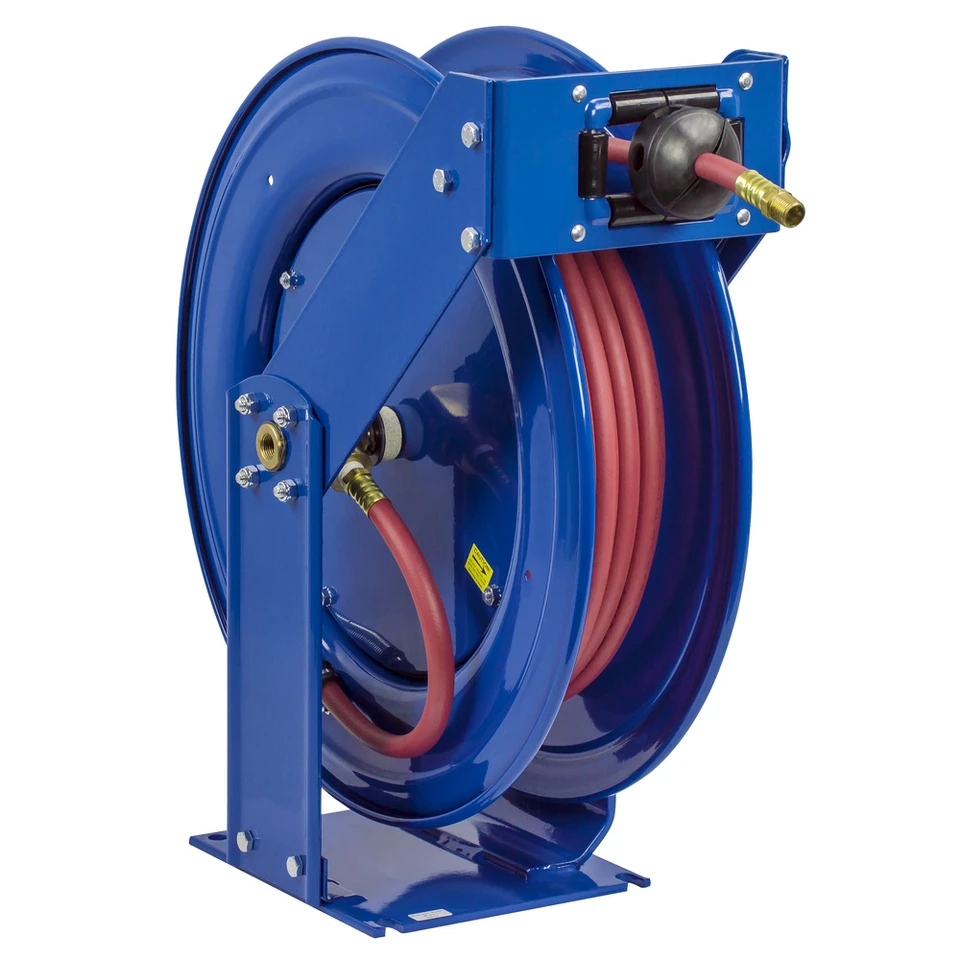

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Hose Reel | Duty Classification: Supreme Duty | Series: T Series | Model: TSHL-N-635 | Configuration: Less Hose | Hose I.D.: 1" | Hose O.D.: 1-1/2" | Hose Capacity: 35 ft | Maximum Working Pressure: 300 PSI | Service: Air, Water, Oil | Approximate Weight: 71 lbs
Features:
- Heavy-duty T Series construction with dual pedestal-style arms provides added strength for mobile and stationary hose management.
- Super Hub triple axle support system helps minimize vibration while reinforcing the reel structure.
- Enclosed cartridge-style spring motor delivers dependable automatic hose rewind.
- Multi-position locking ratchet secures the hose at the desired working length during operation.
- Adjustable guide arm supports wall, floor, overhead, and vehicle mounting configurations.
- Less-hose configuration allows users to install a hose that matches their specific air, water, or oil application.
- Designed to hold up to 35 feet of 1-inch I.D. hose with a maximum outside diameter of 1-5/16 inches.
- Rolled reel-disc edges and reinforced steel components help protect the hose and enhance durability.
Made in USA:
Applications:
- Truck-mounted service equipment requiring retractable storage for a customer-supplied 1-inch hose.
- Maintenance facilities using compatible low-pressure air, water, or oil systems.
- Construction, mining, and industrial service vehicles where organized hose storage is important.
- Manufacturing operations requiring controlled hose deployment and automatic spring rewind.
- Custom hose installations designed within the reel's published hose capacity and pressure rating.
FAQs:
- Q: Does the Coxreels TSHL-N-635 include a hose?
A: No. This is a less-hose model and is supplied without hose. A compatible hose must be installed separately. - Q: What hose size is this reel designed to accommodate?
A: The reel is designed for up to 35 feet of 1-inch I.D. hose with a maximum outside diameter of 1-5/16 inches. - Q: Which fluids is this reel intended for?
A: According to Coxreels, this low-pressure T Series reel is intended for compatible air, water, and oil service when equipped with an appropriate hose. - Q: What is the maximum working pressure?
A: The TSHL-N-635 has a maximum working pressure rating of 300 PSI. The complete hose system should never exceed the rating of its lowest-rated component. - Q: Why choose a less-hose reel?
A: A less-hose configuration allows users to select a hose that matches the application's pressure, fluid compatibility, fittings, and operating requirements.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
