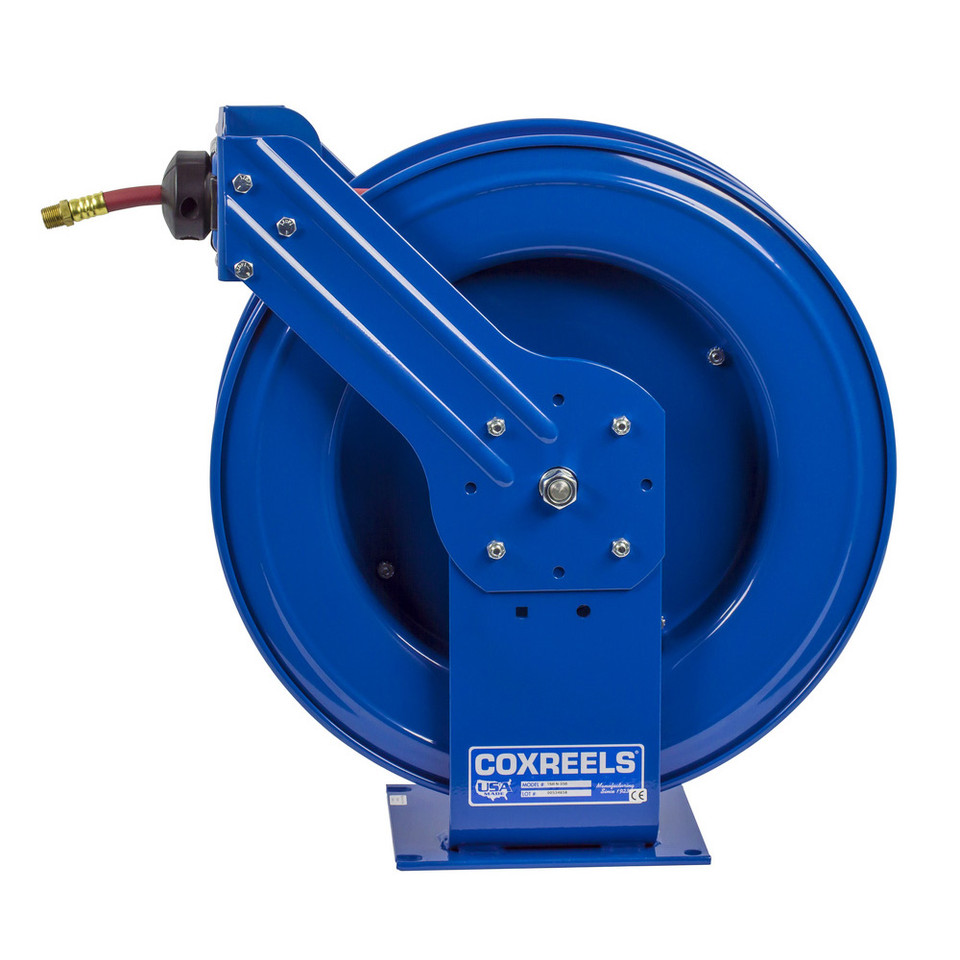

Built for medium-pressure air, water, and oil delivery, the Coxreels TMP-N-3100 Supreme Duty Spring Rewind Hose Reel combines 100 feet of 3/8-inch I.D. hose with a 3,000 PSI maximum pressure rating. The long hose reach supports hydraulic equipment service, lubrication work, mobile repair, and plant maintenance while allowing the reel to remain mounted in a fixed location.
This T Series model is supplied with one-wire-braid hose that exceeds SAE R1 specifications and is suitable for compatible air, water, or oil applications. Its dual-pedestal frame and Super Hub triple-axle support reinforce the reel for mobile and stationary installations, while the spring-driven motor automatically retrieves the hose after use. The supplied hose has a maximum operating temperature of 250°F.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T Series | Model: TMP-N-3100 | Pressure Classification: Medium Pressure | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Length: 100 ft | Max Pressure: 3,000 PSI | Service: Air, Water, or Oil | Swivel: Machined Solid-Brass 90° Full-Flow NPT | Ship Weight: 106 lbs | Overall Width: 9.38" | Overall Height: 25.5" | Overall Length: 24" | Mounting Pattern: 7" M x 8" N | Base Dimensions: 8" X x 9" Y
Features:
- Includes 100 feet of 3/8-inch I.D. one-wire-braid hose for compatible air, water, and oil service up to 3,000 PSI.
- Dual-pedestal frame with Super Hub™ triple-axle support strengthens the reel and helps reduce vibration in vehicle-mounted installations.
- Machined solid-brass 90-degree full-flow NPT swivel provides an external fluid path for efficient flow and accessible seal maintenance.
- Enclosed, lubricated cartridge-style spring motor automatically retrieves the hose and can be removed for service.
- Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions.
- One-piece 1/4-inch steel base, CNC-spun ribbed discs, permanently lubricated bearings, and CPC powder-coat finish support stable operation and hose protection.
Made in USA:
Applications:
- Hydraulic equipment maintenance using compatible oil within the reel's pressure and temperature limits.
- Service trucks and mobile repair vehicles requiring extended hose reach from a fixed reel location.
- Industrial plants supplying air, water, or oil to machinery and maintenance stations.
- Fleet, construction, and agricultural equipment service involving medium-pressure fluid delivery.
- Wall, floor, ceiling, skid, and vehicle-mounted hose storage systems.
FAQs:
- Q: Does the Coxreels TMP-N-3100 include hose?
A: Yes. It is supplied with 100 feet of 3/8-inch I.D. one-wire-braid hose with an 11/16-inch outside diameter. - Q: What fluids can be used with this hose reel?
A: The manufacturer specifies the supplied hose for compatible air, water, or oil applications. Fluid compatibility should also be checked against the hose, swivel, seals, and fittings before use. - Q: What is the maximum operating pressure?
A: The TMP-N-3100 is rated for a maximum pressure of 3,000 PSI. - Q: What is the maximum hose temperature?
A: The supplied medium-pressure hose has a maximum temperature rating of 250°F. - Q: How much mounting space does the reel require?
A: The reel measures 9.38 inches wide, 25.5 inches high, and 24 inches long. Its base measures 8 by 9 inches with a 7-by-8-inch mounting pattern.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- T Series
- Hose Inside Diameter (in.)
- 3/8
- Hose Outside Diameter (in.)
- 11/16
- Hose Length (ft.)
- 100
- Maximum Working Pressure (PSI)
- 3000
- Hose Included
- Yes
- Width (in.)
- 9.38
- Height (in.)
- 25.5
- Length (in.)
- 24
- Mounting Pattern (in.)
- 7
- Mounting Pattern (in.)
- 8
- Base (in.)
- 8X
- Base (in.)
- 9Y
