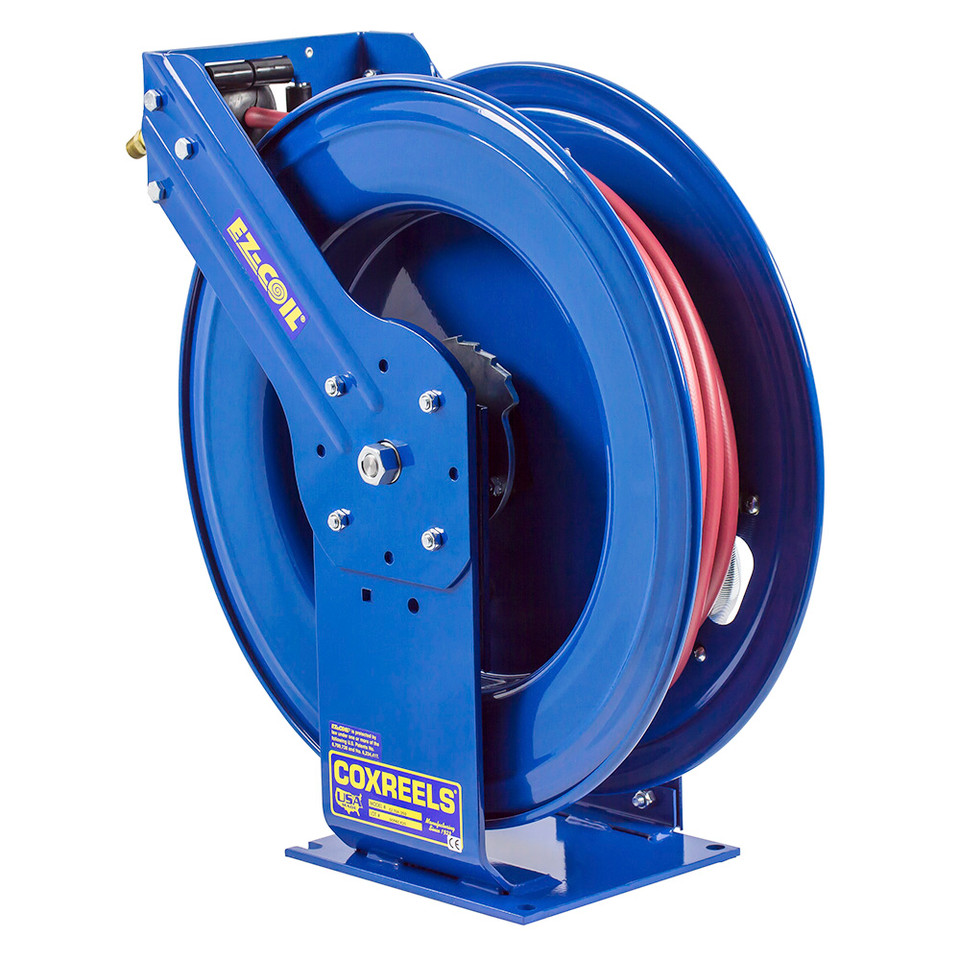

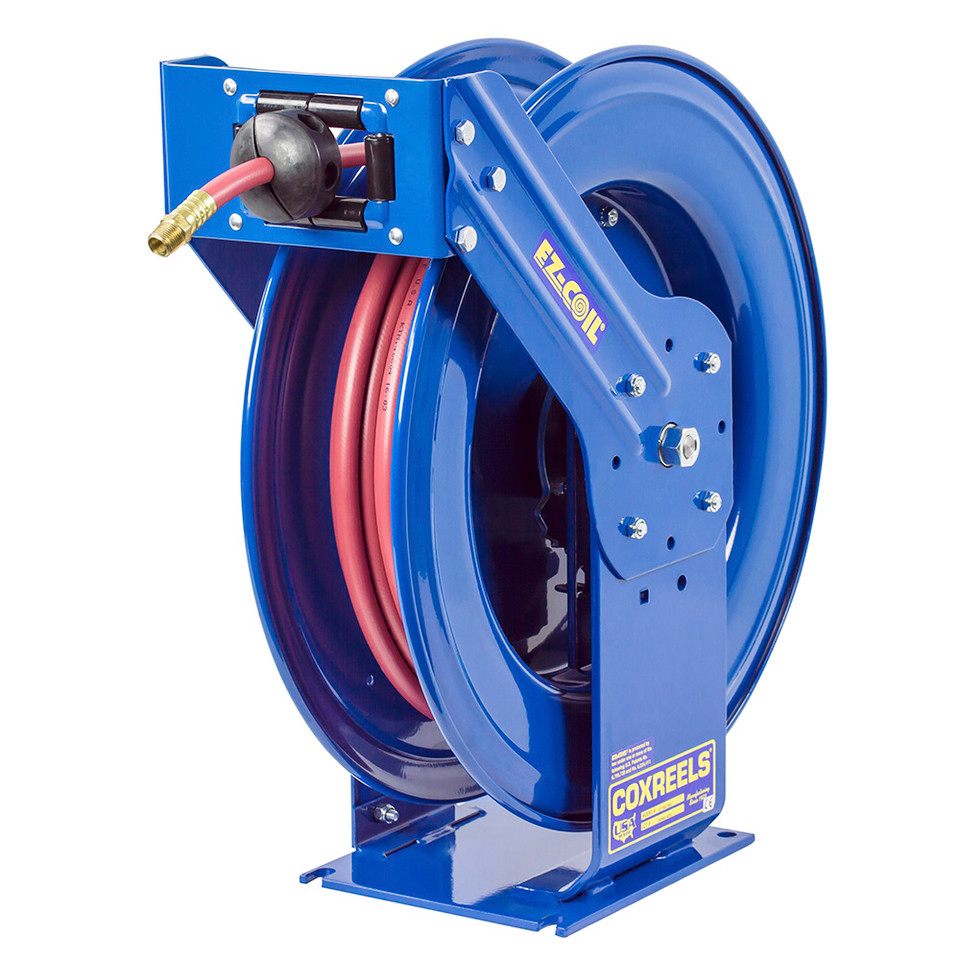

Coxreels EZ-TSH-350 Truck Mount Spring Rewind Hose Reel provides controlled hose retrieval for mobile and stationary air or water systems. Supplied with 50 feet of 3/8-inch I.D. hose, this EZ-T Series reel carries a 300 PSI maximum pressure rating and offers practical reach for pneumatic tools, equipment servicing, washdown, and general water delivery.
Coxreels patented EZ-Coil safety system retracts the hose at up to 80% slower than a conventional spring-driven reel, helping reduce whipping during retrieval. The dual-pedestal chassis and Super Hub™ triple-axle support system reinforce the reel while reducing vibration, making this model well suited for service trucks, utility vehicles, and other rugged installations.
Type: Truck Mount Spring Rewind Hose Reel | Series: EZ-T Series | Model: EZ-TSH-350 | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 50 ft | Service: Air and Water | Max Pressure: 300 PSI | Swivel Seal: Nitrile | Ship Weight: 61 lbs | Overall Dimensions: 9 3/8" W x 21 1/4" H x 19 1/2" L | Mounting Pattern: 7" M x 8" N | Base Dimensions: 8" X x 9" Y
Features:
- Includes 50 feet of 3/8-inch I.D. hose for compatible compressed-air and water applications.
- Patented EZ-Coil controlled-retraction system rewinds the hose at up to 80% slower than conventional spring-driven reels.
- Dual-pedestal chassis supports both sides of the drum for increased stability in rugged mobile installations.
- Super Hub™ triple-axle support system helps reduce vibration while strengthening the reel structure.
- External fluid path uses a machined solid-brass 90-degree full-flow NPT swivel inlet for efficient flow and accessible seal maintenance.
- Nitrile swivel seals support compatible air and water service within the reel's published operating limits.
- Adjustable guide arm allows the reel to be positioned for wall, floor, vehicle, or overhead mounting.
- Enclosed, factory-tuned cartridge-style spring motor supports consistent controlled retrieval and convenient servicing.
- Multi-position locking ratchet secures the hose at the selected working length until released for rewind.
- Non-corrosive stainless steel spring and pawl, together with a zinc-plated ratchet, support reliable operation in frequently used installations.
- Solid one-piece 1/4-inch steel base, one-inch steel axle, and lubricated precision bearings provide a stable mounting platform and smooth drum rotation.
Made in USA:
Applications:
- Service trucks and utility vehicles supplying compressed air to pneumatic tools and equipment.
- Fleet maintenance bays requiring automatic storage for frequently used air hose.
- Industrial workshops and repair facilities using air or water within the reel's pressure and temperature limits.
- Equipment washdown and general water-service stations requiring a 50-foot working range.
- Wall, floor, overhead, skid, and vehicle-mounted installations where slower, controlled hose retrieval is preferred.
FAQs:
- Q: Does the Coxreels EZ-TSH-350 include hose?
A: Yes. This reel is supplied with 50 feet of 3/8-inch I.D. hose for compatible air and water service. - Q: What is the benefit of the EZ-Coil system?
A: EZ-Coil slows hose retrieval by up to 80% compared with a conventional spring-driven reel, helping reduce whipping as the hose returns to the drum. - Q: Can the hose remain extended while equipment is being serviced?
A: Yes. The multi-position ratchet holds the hose at the selected working length. A brief additional pull releases the ratchet for controlled spring rewind. - Q: Is this reel suitable for oil service?
A: The hose-equipped EZ-TSH-350 is specified for air and water service. It should not be used for oil unless Coxreels confirms compatibility with the supplied hose, seals, and complete system. - Q: Can the reel be mounted on a service vehicle?
A: Yes. Its dual-pedestal frame, Super Hub support system, and adjustable guide arm are designed for rugged mobile installations, including truck mounting. - Q: How much installation space is required?
A: The reel measures approximately 9 3/8 inches wide, 21 1/4 inches high, and 19 1/2 inches long. Its mounting pattern is 7 by 8 inches, with an 8-by-9-inch base.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
