Built for mobile service vehicles, lube trucks, and rugged plant maintenance areas, the Coxreels TMPL-N-650 Supreme Duty Spring Rewind Hose Reel provides reel-only storage capacity for a 1" I.D. hose up to 50 ft long. This T Series reel is rated for 1,250 PSI medium-pressure service and is supplied less hose, giving buyers the flexibility to install a compatible hose for air, water, or oil applications based on their exact pressure, temperature, fluid, and fitting requirements. The T Series is Coxreels’ truck mount spring rewind platform, using an extra-large chassis, dual pedestal-style arms, and the Super Hub™ triple axle support system to strengthen the reel structure and help reduce vibration. For crews working from service trucks, off-road equipment support vehicles, or fixed maintenance stations, the TMPL-N-650 helps keep larger 1" hose organized, protected, and ready for repeated pullout and rewind.

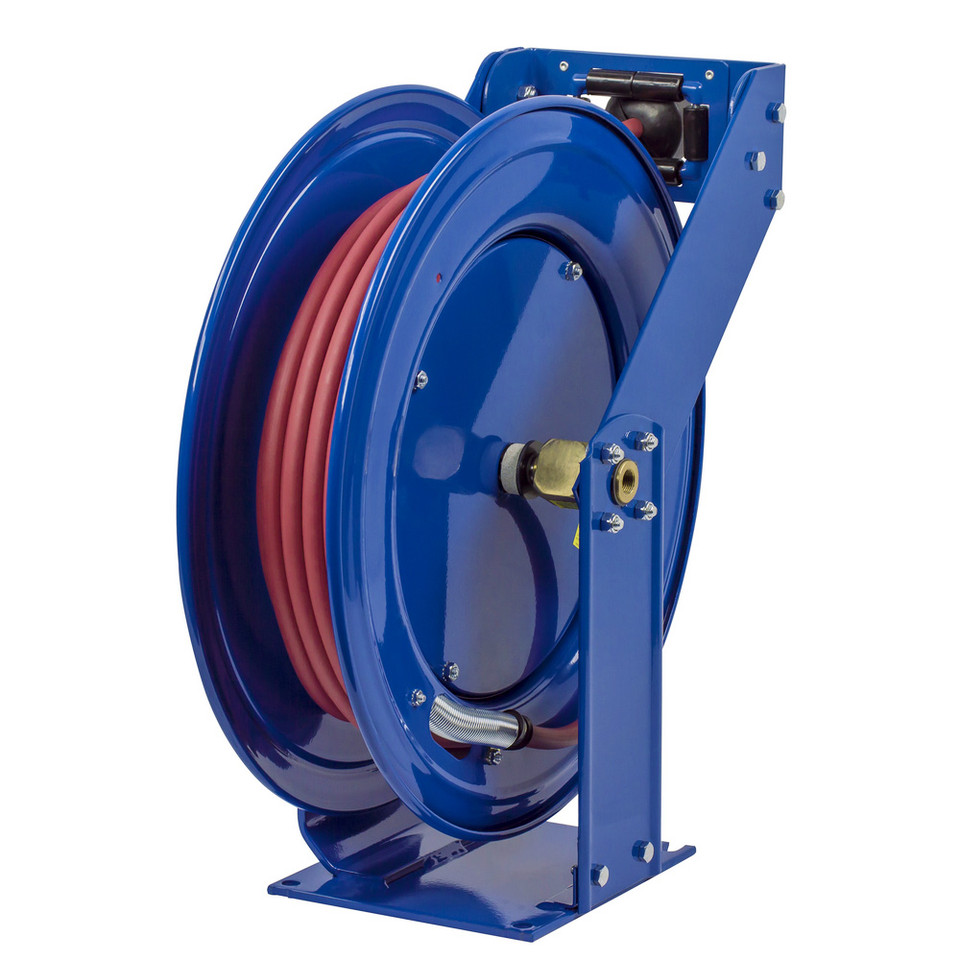

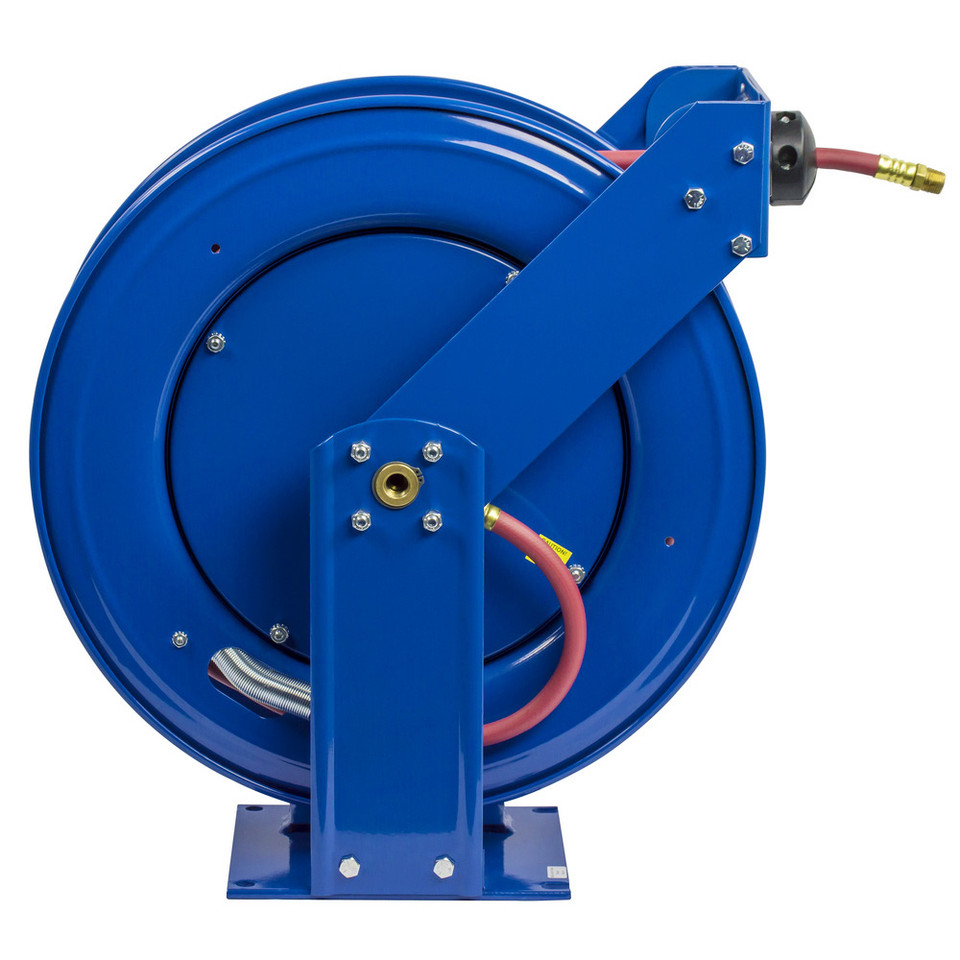

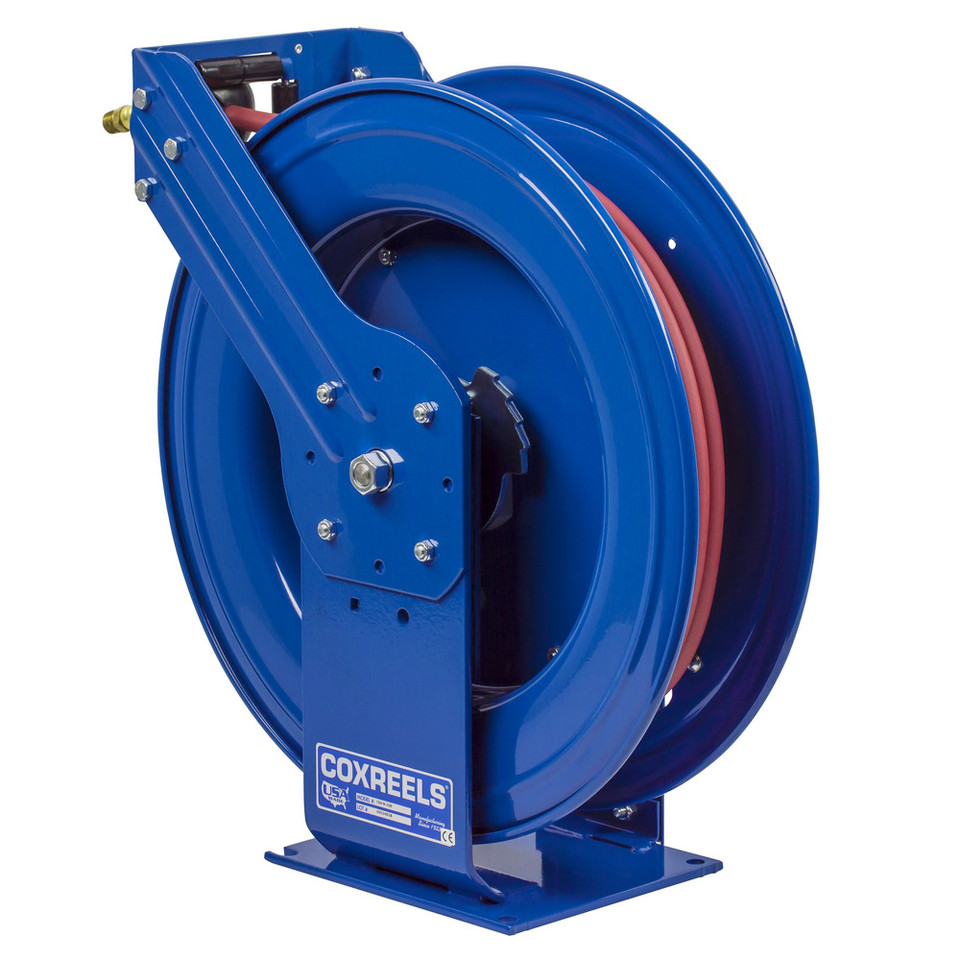

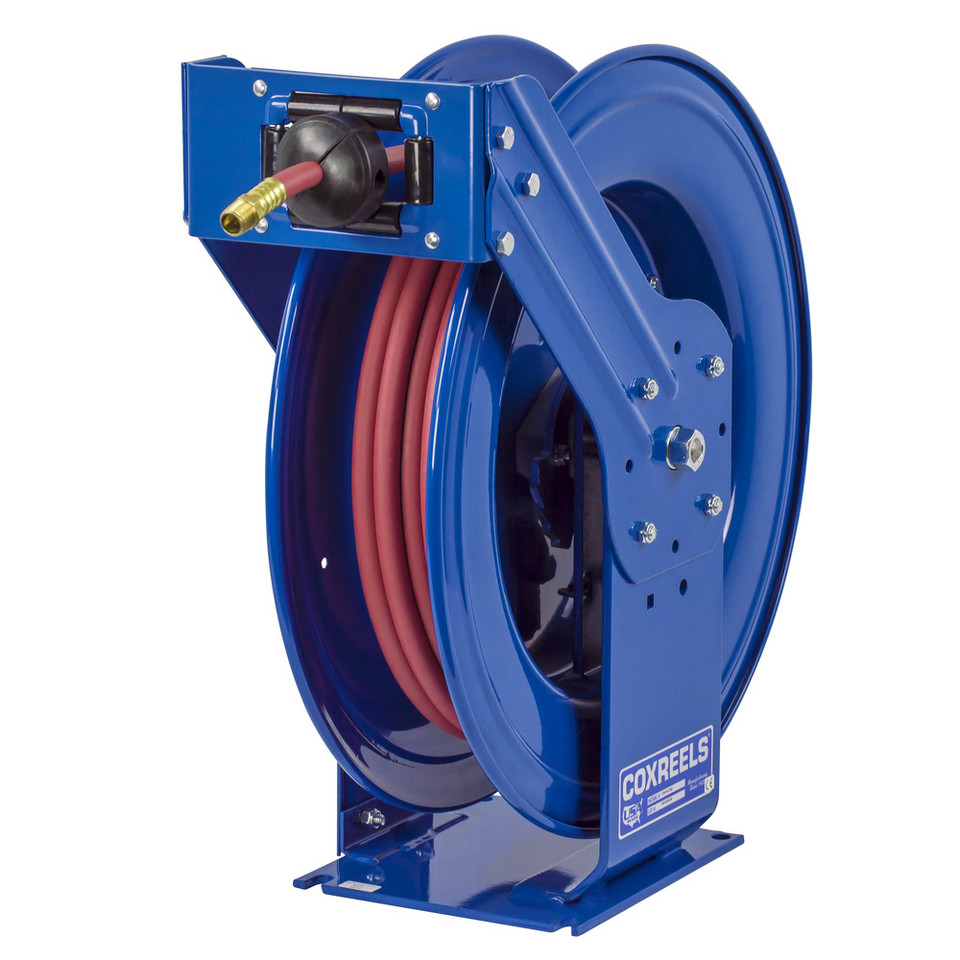

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Truck Mount Spring Rewind Hose Reel | Series: T Series | Model: TMPL-N-650 | Configuration: Less Hose | Hose I.D.: 1" | Hose O.D.: 1-3/8" | Hose Capacity: 50 ft | Max Pressure: 1,250 PSI | Service: Air, Water, Oil | Approx. Weight: 81 lb
Features:
- Truck mount T Series frame uses an extra-large chassis with dual pedestal-style arms for mobile and off-road applications.
- Coxreels Super Hub triple axle support system helps reduce vibration and strengthens the structural integrity of the reel.
- Less-hose configuration allows the user to install a compatible 1" hose selected for the required media, pressure, temperature, and fittings.
- External fluid path with machined-from-solid brass 90° full-flow NPT swivel inlet supports efficient flow and service access.
- Nitrile swivel seals support compatibility with listed medium-pressure air, water, and oil service.
- Solid one-piece heavy-gauge 1/4" steel base and support posts provide stable mounting strength.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
- Enclosed, factory-tuned cartridge-style spring motor keeps the rewind mechanism protected and serviceable.
- Non-corrosive stainless steel spring, pawl, and zinc-plated ratchet support reliable locking and rewind performance.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
Made in USA:
Applications:
- Fleet and mobile service trucks: Managing 1" medium-pressure hose on vehicles used for field maintenance, repair, and equipment support.
- Lubrication and utility service: Supporting air, water, or oil hose setups where the user needs to select a specific hose construction before installation.
- Construction and off-road maintenance: Keeping hose organized on service platforms exposed to movement, vibration, and outdoor work conditions.
- Industrial maintenance and MRO: Providing controlled hose storage near machinery service points, repair bays, and plant utility stations.
- Truck shops and equipment yards: Reducing loose hose clutter while maintaining access to longer 1" hose runs for service work.
FAQs:
- Q: What does “less hose” mean on the TMPL-N-650?
A: It means the reel is supplied without hose installed. The buyer must provide a compatible 1" hose separately and should not exceed the listed hose outside diameter if the full 50 ft capacity is required. - Q: What media can this reel be used with?
A: Coxreels lists this less-hose medium-pressure configuration for air, water, or oil service. The installed hose, fittings, seals, pressure rating, and temperature rating must all match the application. - Q: Is this the same as the TMP-N-650 model?
A: No. TMP-N-650 is the hose-included version, while TMPL-N-650 is the less-hose version. Choose TMPL-N-650 when you want to install your own compatible hose. - Q: Why use a T Series truck mount reel?
A: The T Series uses a reinforced dual pedestal frame and Coxreels’ Super Hub triple axle support system. That layout is useful for service trucks, equipment yards, and other mounting locations exposed to vibration and movement. - Q: What pressure rating should the replacement hose have?
A: The hose selected for this reel should be rated for the intended application and must not exceed the reel’s 1,250 PSI maximum working pressure. Always verify hose, fitting, and system compatibility before use.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
