Coxreels TMPL-N-450 Supreme Duty Spring Rewind Hose Reel is a medium-pressure, less-hose model in the T Series designed for demanding mobile and stationary hose-management installations. It accommodates up to 50 feet of 1/2-inch I.D. hose with a maximum hose O.D. of 13/16 inch and is rated for a maximum working pressure of 2,500 PSI.
The TMPL-N-450 combines an extra-large chassis, dual-pedestal-style arms, and Coxreels' Super Hub™ triple-axle support to reinforce the reel structure and reduce vibration. Its spring-driven rewind automatically retrieves compatible hose after use, while the adjustable guide arm supports wall, floor, vehicle, and overhead mounting configurations.

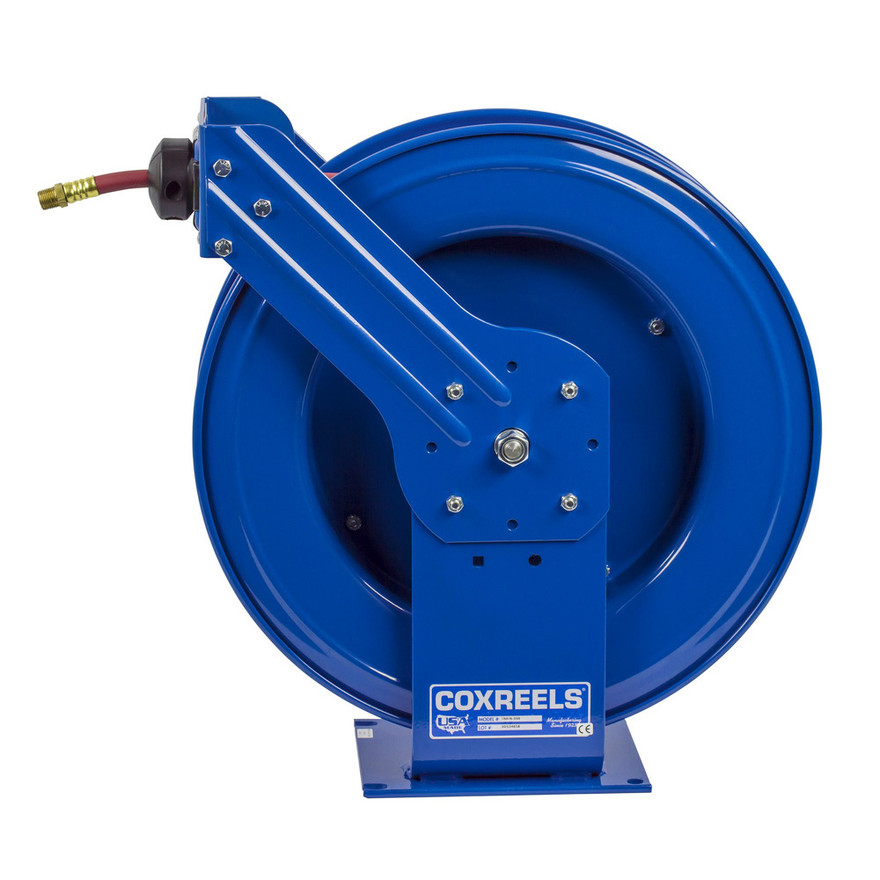

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T Series | Model: TMPL-N-450 | Pressure Classification: Medium Pressure | Configuration: Less Hose | Hose Included: No | Hose I.D. Capacity: 1/2" | Hose O.D.: 13/16" | Hose Capacity: 50 ft | Max Pressure: 2,500 PSI | Ship Weight: 64 lbs | Overall Width: 9.38" | Overall Height: 21.25" | Overall Length: 19.5" | Mounting Pattern: 7" M x 8" N | Base Dimensions: 8" X x 9" Y
Features:
- Extra-large chassis with dual-pedestal-style arms provides a reinforced frame for rugged mobile and fixed installations.
- Super Hub triple-axle support helps reduce vibration while strengthening the structural integrity of the reel assembly.
- External fluid path incorporates a machined solid-brass 90-degree full-flow NPT swivel inlet with nitrile swivel seals.
- Factory-tuned, enclosed cartridge-style spring motor provides automatic hose retraction and can be removed for convenient servicing.
- Multi-position lock ratchet holds the hose at the selected working length, while the adjustable guide arm supports wall, floor, vehicle, and overhead mounting.
- Heavy-gauge steel construction, CNC-spun ribbed discs with rolled edges, CPC powder-coat finish, adjustable hose stop, and permanently lubricated bearings support reliable operation.
Made in USA:
Applications:
- Truck- and service-vehicle-mounted hose-management systems.
- Off-road equipment installations requiring reinforced reel construction.
- Wall- or floor-mounted systems using up to 50 feet of 1/2-inch hose.
- Overhead installations where automatic rewind helps keep unused hose organized.
- Medium-pressure systems operating within the reel's 2,500 PSI maximum rating.
FAQs:
- Q: Does the Coxreels TMPL-N-450 include hose?
A: No. This less-hose model is supplied as a reel only, so compatible hose must be purchased and installed separately. - Q: What hose size can the TMPL-N-450 accommodate?
A: It holds up to 50 feet of 1/2-inch I.D. hose with a maximum outside diameter of 13/16 inch. - Q: What is the reel's maximum working pressure?
A: The TMPL-N-450 is rated for a maximum working pressure of 2,500 PSI. - Q: Can this hose reel be mounted on a service vehicle?
A: Yes. The adjustable guide arm supports vehicle mounting along with wall, floor, and overhead installation positions. - Q: What should be checked before selecting hose for this reel?
A: Verify the hose inside diameter, outside diameter, length, working-pressure rating, fittings, bend characteristics, and compatibility with the intended media.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
