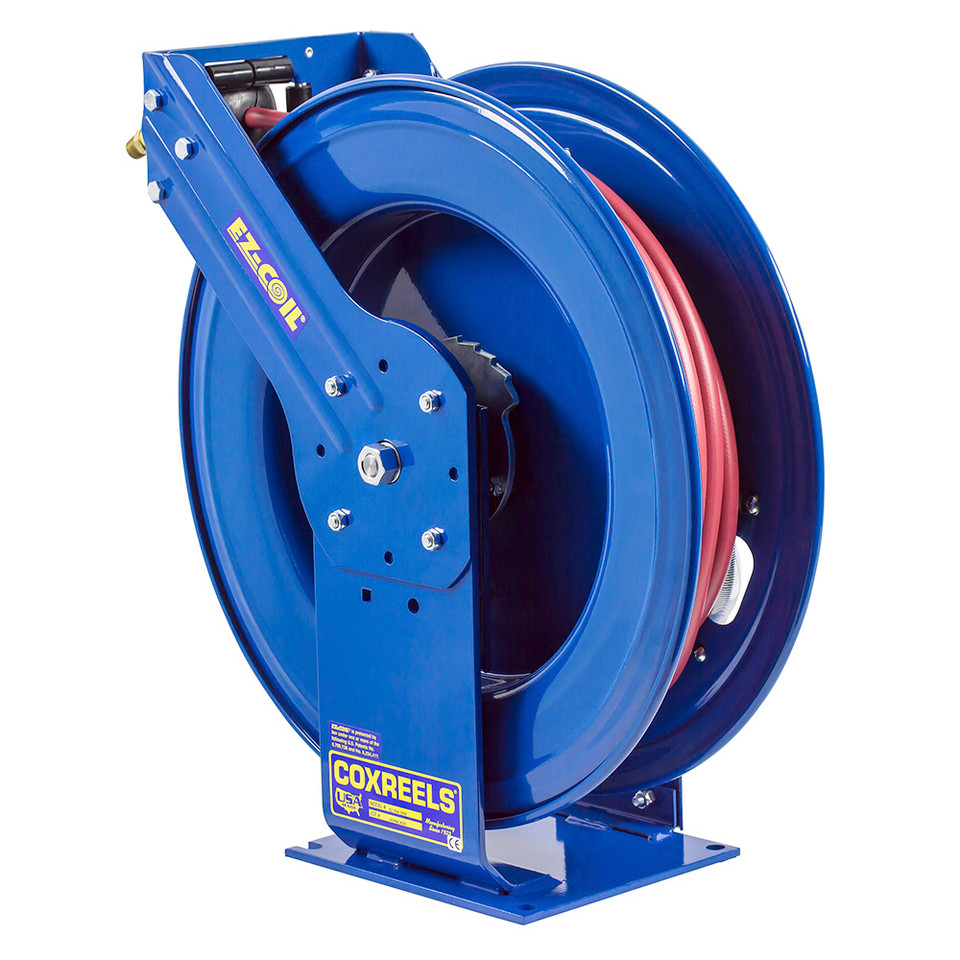

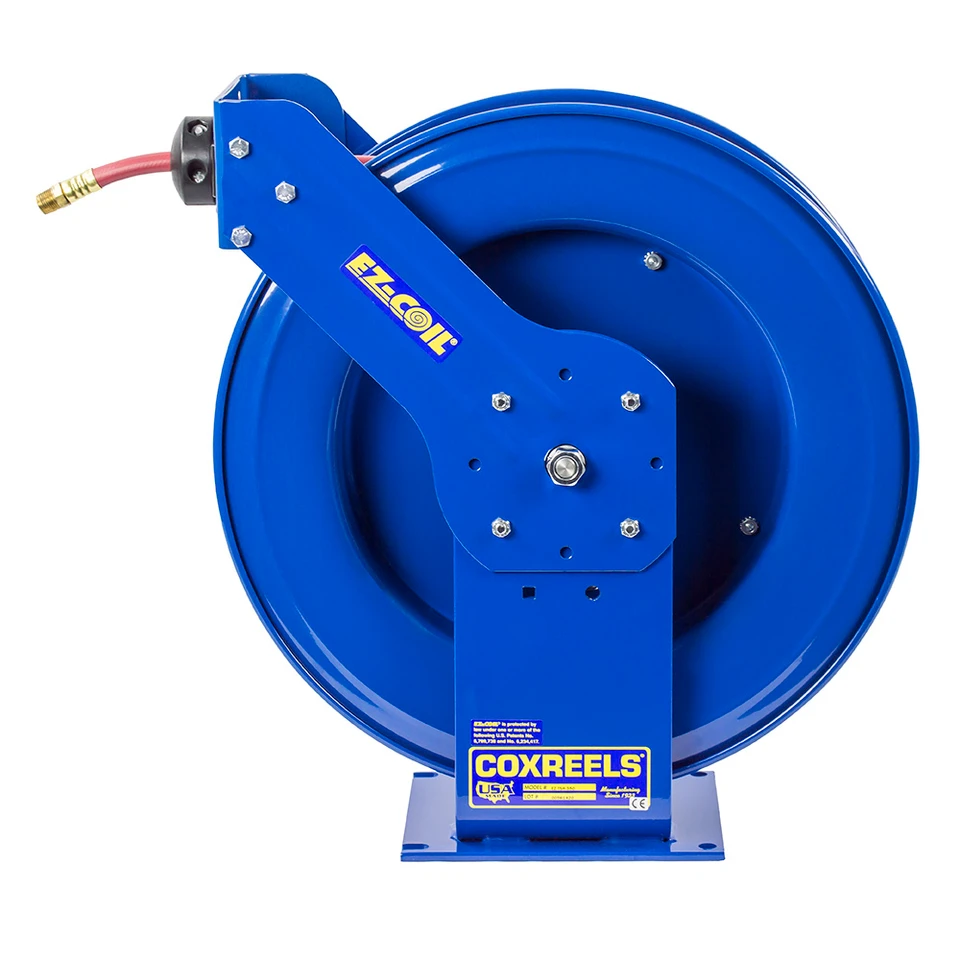

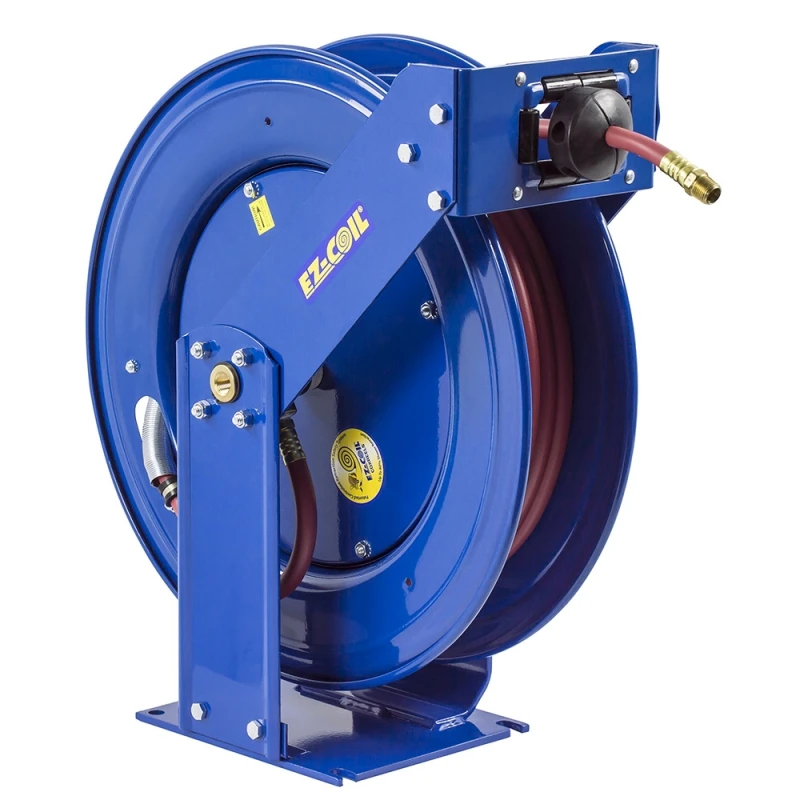

Built for mobile service rigs, fleet maintenance trucks, and rugged shop environments, the Coxreels EZ-TMP-550 Truck Mount Spring Rewind Hose Reel provides controlled storage for a 3/4" I.D. x 50 ft hose in medium-pressure air, water, and oil applications. With a 1,500 PSI pressure rating and a standard one-wire braid hose that exceeds SAE R1 specifications, this EZ-T Series reel gives maintenance crews a safer, cleaner way to handle larger-diameter hose on vehicles, service bays, and equipment support stations. The EZ-Coil controlled rewind system retracts up to 80% slower than conventional spring driven reels, helping reduce hose whip and giving the operator better control as the hose returns to the reel. The truck mount frame uses an extra-large chassis, dual pedestal-style arms, and Coxreels’ Super Hub™ triple axle support system to reduce vibration and strengthen the reel structure in mobile and off-road service conditions.
Type: Truck Mount Spring Rewind Hose Reel | Series: EZ-T Series | Model: EZ-TMP-550 | Hose Included: Yes | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Length: 50 ft | Max Pressure: 1,500 PSI | Service: Air, Water, Oil | Hose Type: Standard one wire braid hose | Hose Specification: Exceeds SAE R1 | Max Temperature: 250°F | Approx. Weight: 94 lb
Features:
- EZ-Coil controlled rewind system retracts up to 80% slower than conventional spring driven reels for more controlled hose return.
- Truck mount EZ-T Series frame uses an extra-large chassis with dual pedestal-style arms for rugged mobile applications.
- Coxreels Super Hub triple axle support system helps reduce vibration while strengthening the reel structure.
- External fluid path with machined-from-solid brass 90° full-flow NPT swivel inlet supports efficient flow and easier seal maintenance.
- Nitrile swivel seals support compatibility with the listed medium-pressure air, water, and oil service.
- Standard one wire braid hose is furnished with the reel and exceeds SAE R1 specifications.
- Stainless steel rollers on 3/4" models help guide the larger hose during payout and rewind.
- Solid one-piece heavy-gauge 1/4" steel base and support posts provide stable mounting strength.
- 1" solid steel axle and lubricated precision bearings help the reel rotate smoothly during repeated use.
- Enclosed, factory-tuned cartridge-style spring motor keeps the rewind mechanism protected and serviceable.
- Non-corrosive stainless steel spring, pawl, and zinc-plated ratchet support reliable locking and rewind performance.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
Made in USA:
Applications:
- Fleet and service trucks: Managing 3/4" medium-pressure hose on mobile maintenance vehicles, lube trucks, and field repair setups.
- Industrial maintenance and MRO: Supplying air, water, or oil hose access near equipment service areas, repair stations, and plant utility points.
- Construction and off-road equipment support: Keeping hose organized on vehicles and field service platforms exposed to movement, vibration, and outdoor work.
- Automotive and heavy truck shops: Supporting medium-pressure fluid or utility hose handling where a larger 3/4" hose is required.
- Manufacturing and fabrication facilities: Providing controlled hose payout and rewind near work cells, machinery service points, and general shop maintenance zones.
FAQs:
- Q: Does the EZ-TMP-550 include hose?
A: Yes. This model is supplied with a 3/4" I.D. x 50 ft medium-pressure hose installed on the reel. - Q: What does the 1,500 PSI rating mean for this reel?
A: The reel is rated for medium-pressure service up to 1,500 PSI. The system pressure, hose, fittings, and media must all remain within the reel’s published rating. - Q: Can this reel be used for oil as well as air and water?
A: Yes. Coxreels lists the medium-pressure EZ-TMP reels with standard one wire braid hose suitable for air, water, or oil applications. - Q: What is EZ-Coil controlled rewind?
A: EZ-Coil is Coxreels’ patented safety rewind system that retracts the hose up to 80% slower than conventional spring driven reels. This helps reduce hose whip and gives the operator more control during rewind. - Q: Why choose the EZ-T Series truck mount frame?
A: The EZ-T Series uses a dual pedestal truck mount structure and Coxreels’ Super Hub triple axle support system. That layout is useful for mobile service, off-road work, and vibration-prone mounting locations.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
