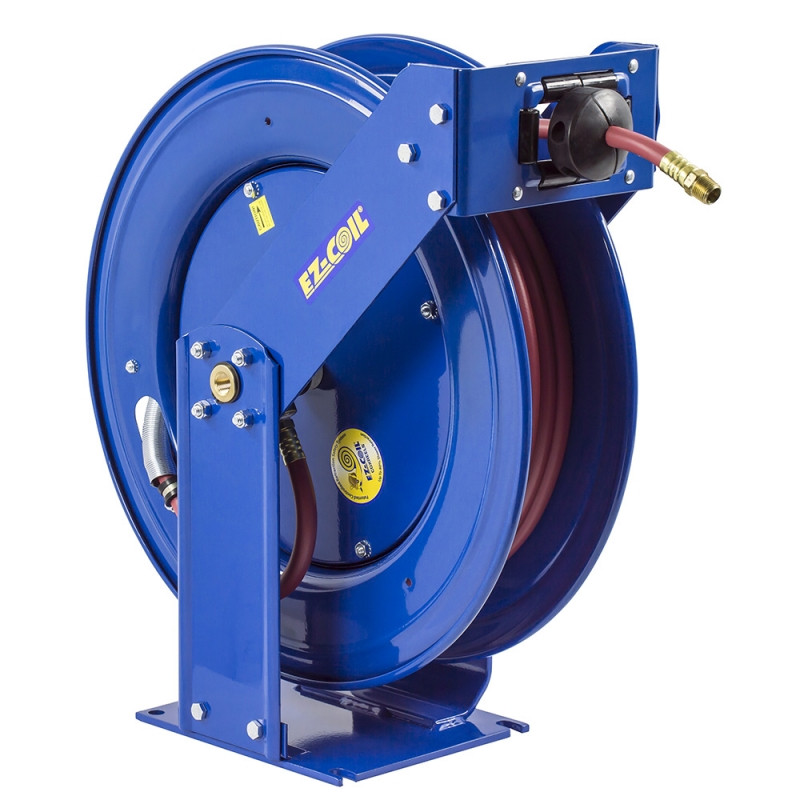

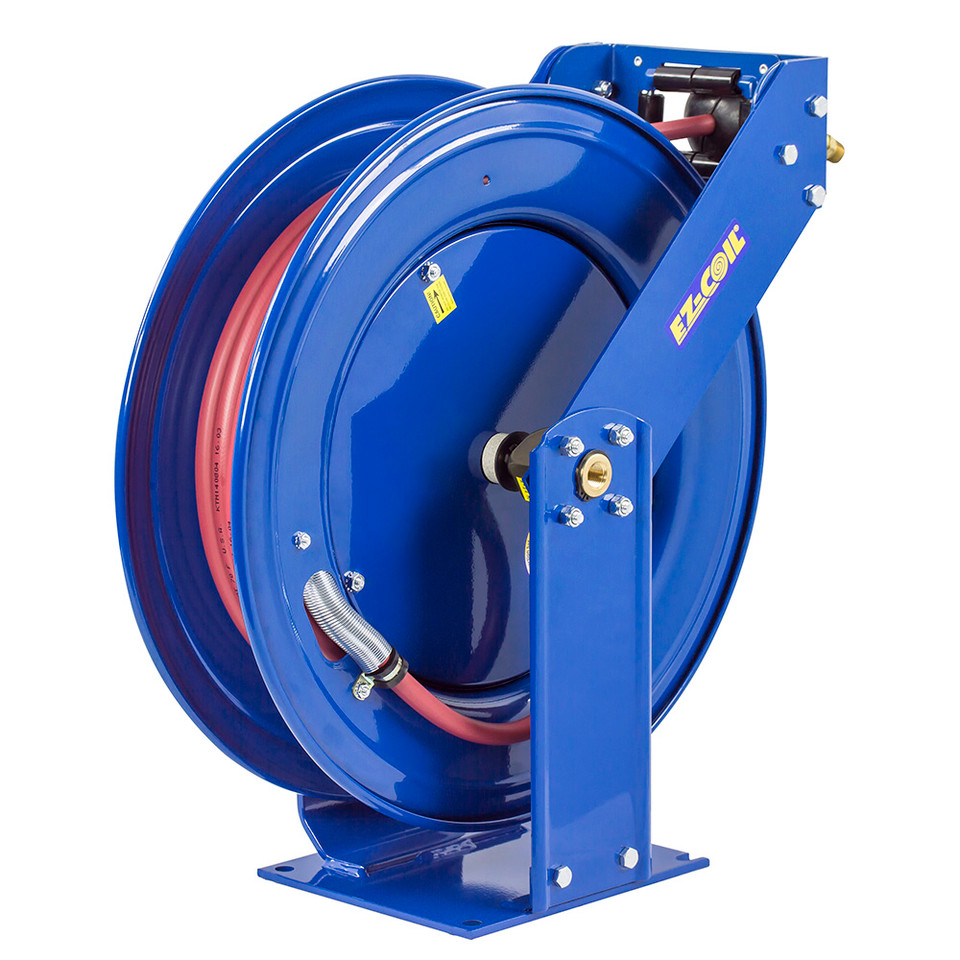

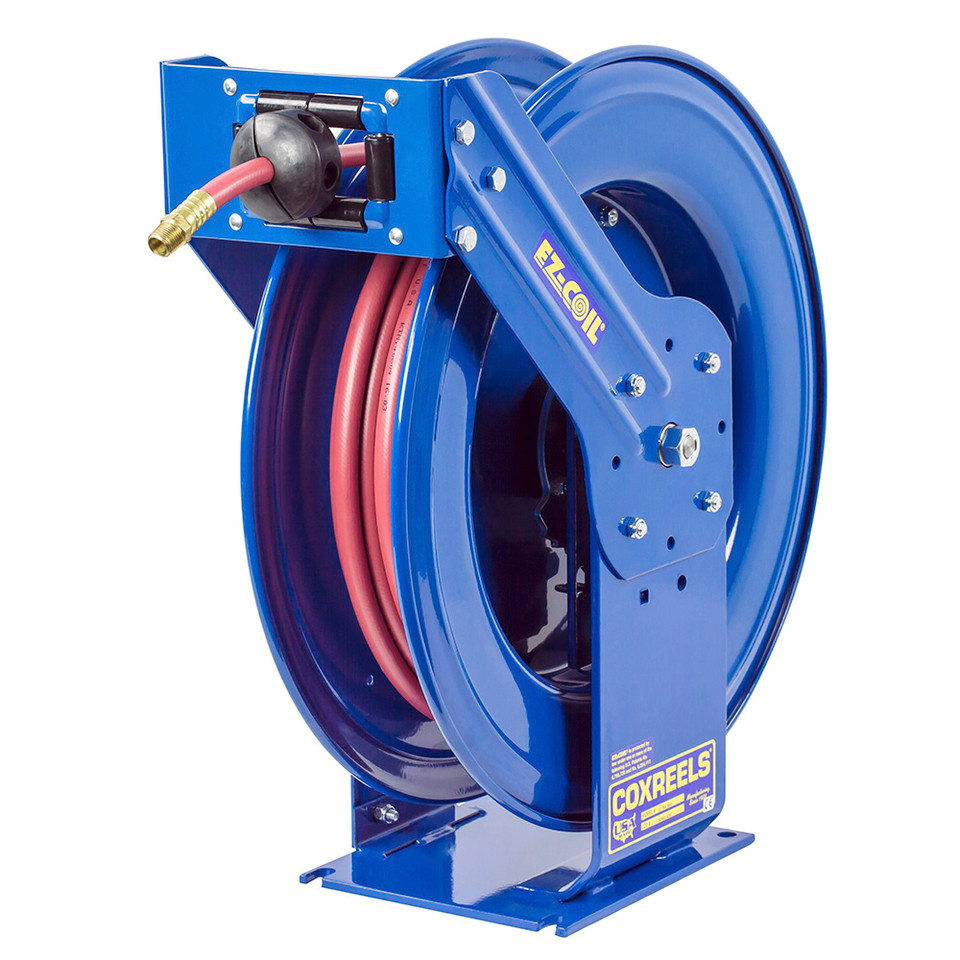

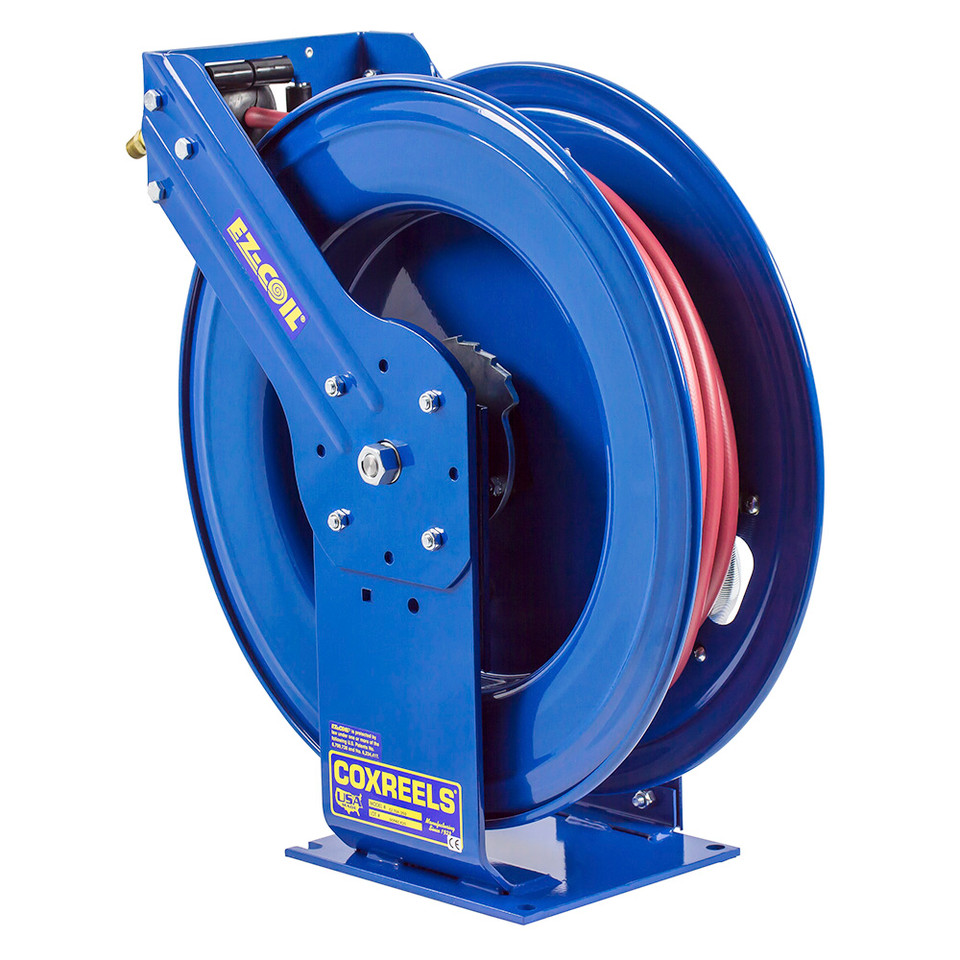

Built for service trucks, lube trucks, fleet shops, and mobile maintenance rigs, the Coxreels EZ-TMP-475 Truck Mount spring rewind hose reel manages a supplied 1/2" I.D. x 75 ft medium pressure hose for air, water, or oil delivery. As part of the EZ-T Series, this reel uses Coxreels’ EZ-Coil controlled retraction system, a patented rewind design that retracts up to 80% slower than conventional spring driven reels to help reduce hose whip and improve control during rewind. Rated for 2,500 PSI, the EZ-TMP-475 is sized for longer hose reach around vehicles, equipment, skids, and shop bays while maintaining a rugged truck-mount frame. Its dual pedestal construction, Super Hub triple axle support system, full-frame layout, and 1" solid steel axle help support mobile use where vibration, road movement, and frequent hose pulls can shorten the life of lighter reel designs.
Type: EZ-Coil Truck Mount Spring Rewind Hose Reel | Series: EZ-T Series | Model: EZ-TMP-475 | Configuration: Hose Included | Hose I.D.: 1/2" | Hose O.D.: 13/16" | Hose Length: 75 ft | Max Pressure: 2,500 PSI | Hose Type: One wire braid medium pressure hose | Service: Air, Water, Oil | Maximum Temperature: 250°F | Approx. Ship Weight: 100 lbs
Features:
- EZ-Coil controlled rewind system retracts up to 80% slower than conventional spring driven reels for more controlled hose return.
- Supplied with standard one wire braid medium pressure hose suitable for air, water, or oil applications.
- Hose exceeds SAE R1 specifications, supporting use in medium pressure service environments.
- External fluid path uses a machined from solid brass 90° full-flow NPT swivel inlet for efficient fluid movement through the reel.
- Nitrile swivel seals provide oil-resistant sealing performance for compatible air, water, and oil service.
- Dual pedestal reel construction with Coxreels’ Super Hub™ triple axle support system helps reduce vibration and strengthen the reel structure.
- Guide arm adjusts to wall, floor, vehicle, and overhead positions for flexible mounting on trucks, skids, benches, or fixed work areas.
- Enclosed factory tuned and matched cartridge-style spring motor supports consistent spring rewind operation.
- Non-corrosive stainless steel spring and pawl with zinc plated ratchet help protect key rewind and locking components.
- Multi-position lock ratchet mechanism secures the hose at the desired working length during use.
Made in USA:
Applications:
- Service trucks and mobile maintenance units — managing air, water, or oil hose on lube trucks, mechanic trucks, and field service skids.
- Fleet and transportation shops — reaching around trucks, trailers, buses, and off-road equipment during routine maintenance work.
- Industrial MRO areas — keeping medium pressure hose stored off the floor near compressors, oil service points, wash areas, and equipment bays.
- Construction and equipment yards — supporting hose handling for field repair, cleaning, lubrication, and general service tasks.
- Repair garages and utility shops — organizing a 75 ft hose where longer reach is needed without leaving loose hose across the work area.
FAQs:
- Q: Does the Coxreels EZ-TMP-475 include hose?
A: Yes. The EZ-TMP-475 is supplied with a 1/2" I.D. x 75 ft medium pressure hose. The related less-hose model is used when the buyer wants to install a separate compatible hose. - Q: What is the benefit of EZ-Coil controlled rewind?
A: EZ-Coil slows the spring rewind action compared with conventional spring driven reels. This helps reduce sudden hose snap-back and gives the user more control when returning hose to the reel. - Q: Can this reel be used on a service truck?
A: Yes. The EZ-T Series is built for rugged mobile applications, and the guide arm can be adjusted for vehicle mounting. Always mount the reel to a structure capable of supporting the reel, hose, fluid load, and pull forces during use. - Q: What fluids can the supplied hose handle?
A: The medium pressure hose supplied with this reel is suitable for air, water, or oil applications when used within the reel’s pressure and temperature limits. Confirm fluid compatibility if the application involves chemicals, solvents, or specialty oils. - Q: Is 2,500 PSI the hose pressure rating or the reel pressure rating?
A: The EZ-TMP-475 listing identifies 2,500 PSI as the maximum pressure for the reel and supplied hose assembly. Do not exceed the rated pressure of the reel, hose, fittings, or system components.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
