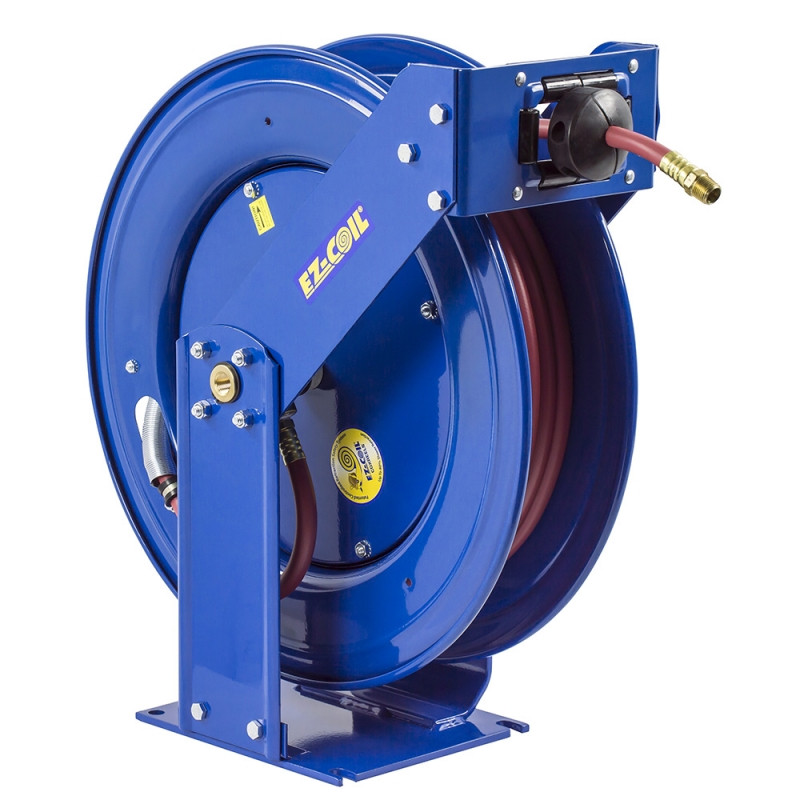

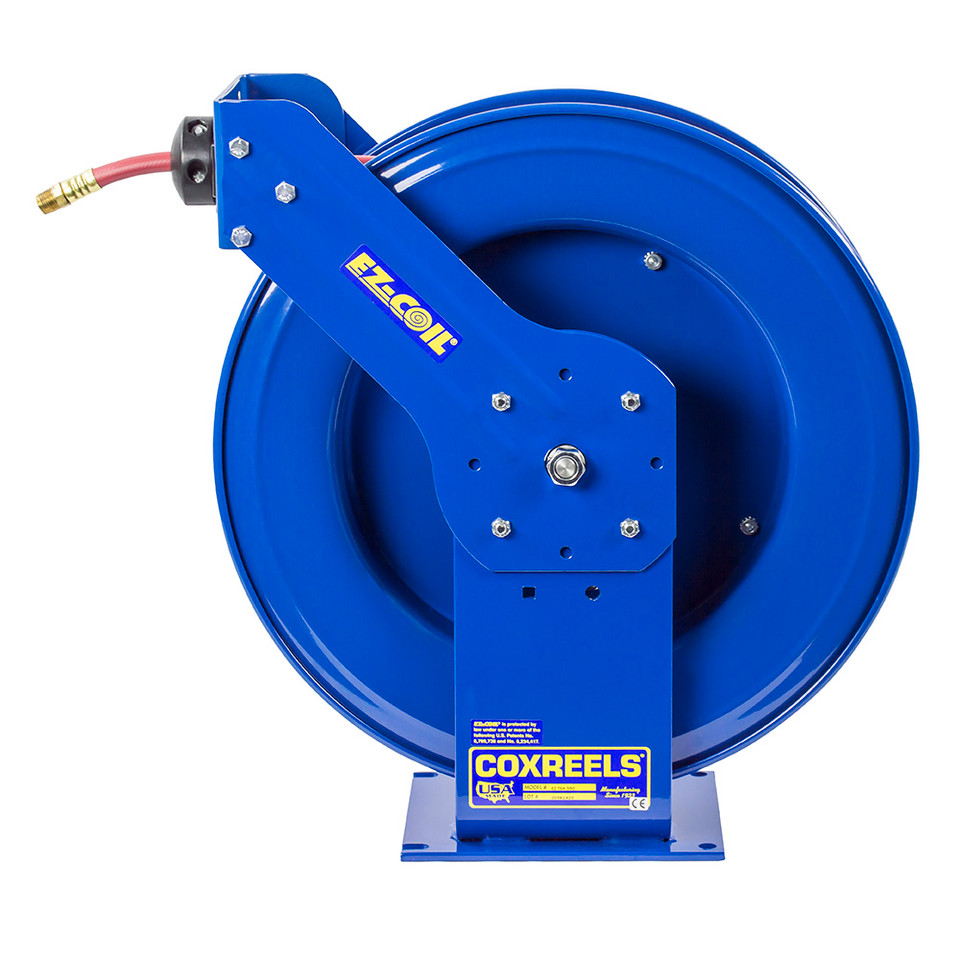

Built for service trucks, lubrication skids, fleet maintenance vehicles, and high-pressure shop hose stations, the Coxreels EZ-THP-175 Truck Mount Spring Rewind Hose Reel combines the rugged EZ-T Series truck-mount frame with Coxreels’ controlled EZ-Coil retraction system. This model is furnished with 1/4" I.D. hose, a 75 ft hose length, and a 5,000 PSI maximum pressure rating, giving technicians the reach and pressure capacity needed for grease and hydraulic oil applications where loose hose can slow down service work or create floor clutter. The EZ-T Series uses a dual-pedestal frame and Coxreels’ Super Hub triple axle support system, which helps strengthen the reel structure and reduce vibration in mobile environments. EZ-Coil is Coxreels’ controlled rewind system, retracting hose up to 80% slower than conventional spring driven reels so the hose returns in a more controlled manner around vehicles, equipment, and operators.
Type: Truck Mount Spring Rewind Hose Reel | Series: EZ-T Series | Model: EZ-THP-175 | Hose Included: Yes | Hose I.D.: 1/4" | Hose O.D.: 9/16" | Hose Length: 75 ft | Max Pressure: 5,000 PSI | Service: Grease, Hydraulic Oil | Hose Type: S.A.E. 100R16 wire braid hose | Max Temperature: 250°F | Approx. Weight: 88 lbs.
Features:
- EZ-Coil controlled rewind system retracts up to 80% slower than conventional spring driven reels for more controlled hose return.
- Truck-mount dual-pedestal frame supports mobile service, fleet maintenance, and high-use shop installations.
- Coxreels Super Hub™ triple axle support system helps reduce vibration and strengthen the structural integrity of the reel.
- High-pressure configuration is furnished with S.A.E. 100R16 wire braid hose suitable for grease and hydraulic oil applications.
- External fluid path with zinc plated steel full-flow NPT swivel inlet supports high-pressure fluid transfer through the reel assembly.
- Nitrile swivel seals are used for compatibility with supported high-pressure service applications.
- Adjustable guide arm allows wall, floor, vehicle, and overhead mounting positions to match the installation layout.
- Solid one-piece heavy gauge 1/4" steel base and support posts provide a stable mounting foundation.
- Multi-position lock ratchet mechanism secures the hose at the desired working length during service work.
Made in USA:
Applications:
- Mobile lubrication trucks — dispensing grease or hydraulic oil during field service calls while keeping 75 ft of hose organized.
- Fleet maintenance facilities — supporting high-pressure hose access around buses, trucks, trailers, and service bays.
- Construction and off-road equipment service — routing hose near loaders, excavators, graders, and agricultural machinery.
- Industrial maintenance shops — managing high-pressure hose for lubrication and hydraulic service points without loose hose on the floor.
- Vehicle-mounted service bodies — adding a compact, controlled-rewind hose station to mobile repair equipment.
FAQs:
- Q: Does the EZ-THP-175 include hose?
A: Yes. The EZ-THP-175 is furnished with 1/4" I.D. hose, 75 ft length, and a 5,000 PSI maximum pressure rating. - Q: What type of service is this high-pressure reel used for?
A: This high-pressure EZ-T Series model is furnished with S.A.E. 100R16 wire braid hose suitable for grease and hydraulic oil applications. Always confirm fluid compatibility, pressure, temperature, and fitting requirements before installation. - Q: What does EZ-Coil do on this hose reel?
A: EZ-Coil is Coxreels’ controlled rewind system. It retracts the hose up to 80% slower than a conventional spring driven reel, helping reduce whip-back and giving the operator better control during rewind. - Q: Can the EZ-THP-175 be installed on a service truck?
A: Yes. The EZ-T Series is a truck-mount reel line, and the adjustable guide arm allows vehicle, wall, floor, or overhead mounting when installed with appropriate hardware and support. - Q: Is this the right reel for general shop air or water?
A: This THP high-pressure model is intended for grease and hydraulic oil service with the supplied high-pressure hose. For general air or water service, a lower-pressure Coxreels EZ-T configuration may be a better match.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
