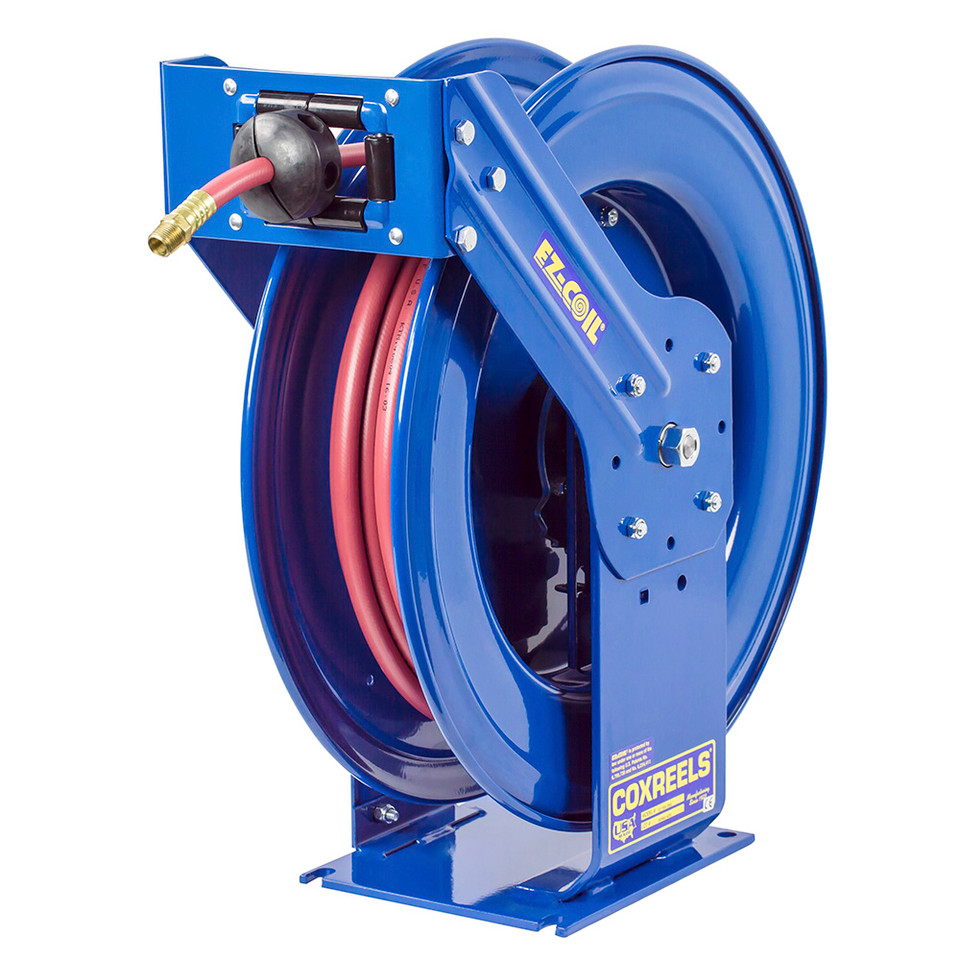

Built for truck-mounted air and water service where extended reach and controlled hose retrieval are important, the Coxreels EZ-TSH-4100 Truck Mount Spring Rewind Hose Reel includes 100 feet of 1/2-inch I.D. hose and operates at up to 300 PSI. The longer hose capacity allows technicians to work around service vehicles, machinery, and maintenance areas without frequently repositioning the reel.
This EZ-T Series reel uses Coxreels patented EZ-Coil safety system, which retracts the hose up to 80% slower than a conventional spring-driven reel. Its dual-pedestal chassis and Super Hub triple-axle support strengthen the reel structure while helping reduce vibration in mobile installations. The supplied hose is rated for air and water service at temperatures up to 150°F.
Type: Truck Mount Spring Rewind Hose Reel | Series: EZ-T Series | Model: EZ-TSH-4100 | Pressure Classification: Low Pressure | Hose Included: Yes | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 100 ft | Max Pressure: 300 PSI | Service: Air and Water | Swivel Inlet: Machined Solid-Brass 90° Full-Flow NPT | Swivel Seal: Nitrile | Ship Weight: 95 lbs | Overall Width: 9-3/8" | Overall Height: 25-1/2" | Overall Length: 24" | Base Dimensions: 8" X x 9" Y | Mounting Pattern: 7" M x 8" N
Features:
- Patented EZ-Coil safety system retracts the hose up to 80% slower than conventional spring-driven reels for more controlled retrieval.
- Dual-pedestal construction with Coxreels Super Hub triple-axle support helps reduce vibration and reinforce the reel chassis.
- External fluid path incorporates a machined solid-brass 90-degree full-flow NPT swivel inlet with nitrile swivel seals.
- Adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions.
- Enclosed, factory-tuned cartridge-style spring motor and multi-position locking ratchet secure the hose at the selected working length.
- Solid one-piece 1/4-inch steel base, 1-inch solid steel axle, and lubricated precision bearings support stable mounting and smooth drum rotation.
Made in USA:
Applications:
- Service trucks and utility vehicles requiring up to 100 feet of air or water hose reach.
- Fleet maintenance bays supplying compressed air to tools and service equipment.
- Industrial maintenance areas where controlled spring rewind helps organize frequently used hose.
- Equipment cleaning and general water delivery within the reel's 300 PSI and 150°F limits.
- Wall, floor, overhead, skid, and vehicle-mounted hose storage installations.
FAQs:
- Q: Does the Coxreels EZ-TSH-4100 include hose?
A: Yes. The reel includes 100 feet of 1/2-inch I.D. hose with a 3/4-inch outside diameter. - Q: What services can this reel handle?
A: The supplied low-pressure hose is specified for air and water service up to 300 PSI and 150°F. - Q: How quickly does the EZ-Coil system retract the hose?
A: Coxreels states that the EZ-Coil safety system retracts up to 80% slower than conventional spring-driven reels. - Q: Can the EZ-TSH-4100 be mounted overhead?
A: Yes. Its adjustable guide arm can be positioned for wall, floor, vehicle, or overhead installation. - Q: What mounting space is required?
A: The reel measures 9-3/8 inches wide, 25-1/2 inches high, and 24 inches long. It has an 8-by-9-inch base and a 7-by-8-inch mounting pattern.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
