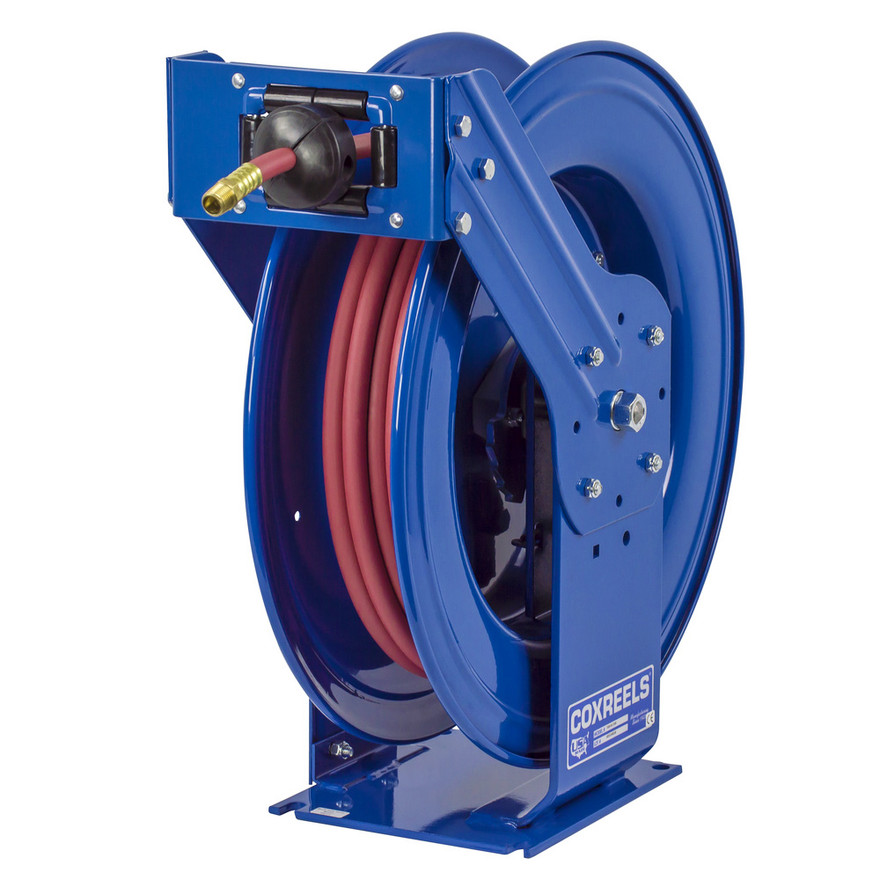

Coxreels TSH-N-3100 Supreme Duty Spring Rewind Hose Reel provides extended working reach for compressed-air and water systems in mobile service, fleet maintenance, and industrial environments. This T Series reel includes 100 feet of 3/8-inch I.D. hose and is rated for a 300 PSI maximum working pressure, giving technicians access to equipment across larger work areas while keeping unused hose stored on the reel.
Designed for rugged truck-mounted and stationary installations, the TSH-N-3100 uses a dual-pedestal frame with Coxreels Super Hub triple-axle support system to reinforce the reel and help reduce vibration. Its spring-powered rewind retrieves the hose after use, while the multi-position ratchet holds the hose at the selected working length until the operator releases it for retraction.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T Series | Model: TSH-N-3100 | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 100 ft | Service: Air and Water | Max Pressure: 300 PSI | Swivel Seal: Nitrile | Ship Weight: 85 lbs | Overall Dimensions: 9 3/8" W x 25 1/2" H x 24" L | Mounting Pattern: 8" M x 9" N | Base Dimensions: 7" X x 8" Y
Features:
- Includes 100 feet of 3/8-inch I.D. hose for long-reach compressed-air and water service.
- Spring-driven rewind retrieves the hose automatically to reduce manual winding and keep work areas organized.
- Dual-pedestal frame supports both sides of the drum for added stability in mobile and frequently used installations.
- Super Hub™ triple-axle support system reinforces the reel structure and helps minimize vibration during operation.
- External fluid path incorporates a machined solid-brass 90-degree full-flow NPT swivel inlet for accessible seal maintenance and efficient flow.
- Nitrile swivel seals accommodate compatible air and water applications within the reel's published operating limits.
- Multi-position locking ratchet secures the hose at the desired working length and releases it for spring-powered retrieval.
- Adjustable guide arm supports wall, floor, overhead, and vehicle mounting orientations.
- Solid one-piece, heavy-gauge steel base and support posts provide a stable mounting platform without welded base joints.
- One-inch solid steel axle and lubricated precision bearings promote smooth drum rotation during hose payout and rewind.
- Adjustable solid-rubber hose stop sets the desired lead length outside the reel.
- Chip-resistant CPC powder-coat finish helps protect the steel reel components during regular shop and mobile use.
Made in USA:
Applications:
- Service trucks and utility vehicles supplying compressed air to tools and equipment.
- Fleet maintenance bays requiring hose access across multiple vehicle work positions.
- Industrial plants and repair shops using air or water within the reel's pressure and temperature limits.
- Equipment maintenance areas where a 100-foot hose reduces the need to relocate the air or water source.
- Wall, floor, overhead, skid, and vehicle-mounted hose-management installations.
FAQs:
- Q: Is hose included with the Coxreels TSH-N-3100?
A: Yes. The reel is furnished with 100 feet of 3/8-inch I.D. hose for compatible air and water service. - Q: Is the TSH-N-3100 suitable for oil service?
A: The hose-equipped model is specified for air and water. It should not be used for oil unless Coxreels confirms that the supplied hose, seals, fittings, and operating conditions are compatible. - Q: How does the reel keep the hose extended during use?
A: A multi-position ratchet locks the drum at the selected hose length. A brief additional pull releases the ratchet and allows the spring motor to retrieve the hose. - Q: What is the purpose of the Super Hub system?
A: The Super Hub provides triple-axle support that reinforces the reel structure and helps reduce vibration, particularly in truck-mounted applications. - Q: Can the guide arm be adjusted for different mounting positions?
A: Yes. The guide arm can be repositioned for wall, floor, overhead, or vehicle mounting so the hose exits in the required direction. - Q: How much installation space does this reel require?
A: The reel measures approximately 9 3/8 inches wide, 25 1/2 inches high, and 24 inches long. Its listed mounting pattern is 8 by 9 inches.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
