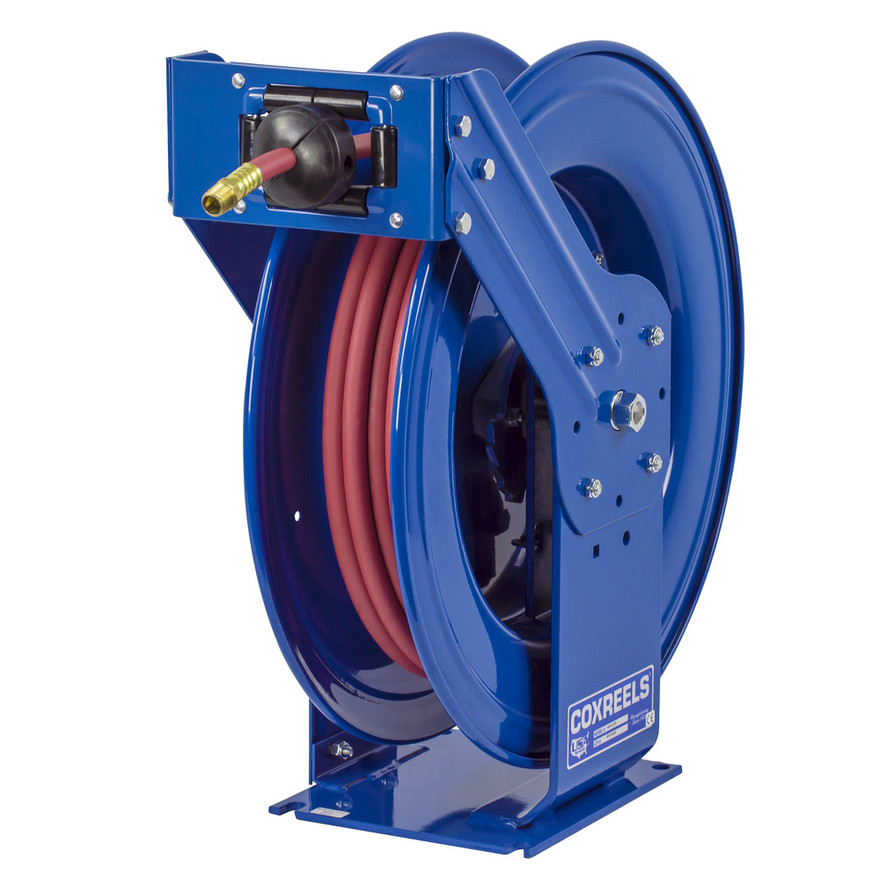

Coxreels TSH-N-550 Supreme Duty Spring Rewind Hose Reel manages large-diameter hose in mobile and stationary air or water systems where higher flow and automatic storage are required. This T Series reel is supplied with 50 feet of 3/4-inch I.D. hose and has a 300 PSI maximum pressure rating, providing practical reach for equipment washdown, compressed-air distribution, fleet service, and general water delivery.
An extra-large dual-pedestal chassis supports both sides of the drum, while Coxreels Super Hub triple-axle system reinforces the reel and helps reduce vibration in truck-mounted and off-road installations. Stainless steel rollers guide the 3/4-inch hose during payout and retrieval, and the spring-driven mechanism automatically returns the hose to the drum after use.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T Series | Model: TSH-N-550 | Hose Included: Yes | Hose I.D.: 3/4" | Hose O.D.: 1 1/16" | Hose Length: 50 ft | Service: Air and Water | Max Pressure: 300 PSI | Swivel Seal: Nitrile | Ship Weight: 83 lbs | Overall Dimensions: 9.88" W x 25.5" H x 24" L | Mounting Pattern: 7" M x 8" N | Base Dimensions: 8" X x 9" Y
Features:
- Includes 50 feet of 3/4-inch I.D. hose for compatible air and water applications requiring increased flow capacity.
- Spring-driven rewind automatically retrieves the hose after use to reduce manual handling and keep the installation organized.
- Extra-large dual-pedestal chassis supports both sides of the drum for demanding mobile and stationary applications.
- Super Hub™ triple-axle support system helps reduce vibration while strengthening the reel structure.
- Stainless steel rollers guide the large-diameter hose during extension and rewind while helping protect the hose exterior.
- External fluid path uses a machined solid-brass 90-degree full-flow NPT swivel inlet for efficient flow and accessible seal maintenance.
- Nitrile swivel seals support compatible air and water service within the reel's published operating limits.
- Enclosed, factory-tuned cartridge-style spring motor is removable for convenient servicing.
- Multi-position locking ratchet secures the hose at the required working length until released for automatic retrieval.
- Adjustable guide arm accommodates wall, floor, overhead, and vehicle mounting positions.
- Solid one-piece 1/4-inch steel base and support posts provide a stable mounting platform without welded base joints.
- One-inch solid steel axle and lubricated precision bearings promote smooth drum rotation during hose payout and rewind.
- Rolled disc edges, ribbed steel construction, an adjustable rubber hose stop, and a chip-resistant CPC powder-coat finish support long-term reel and hose protection.
Made in USA:
Applications:
- Service trucks and utility vehicles requiring automatic storage for large-diameter air or water hose.
- Industrial and municipal washdown systems operating within the reel's pressure and temperature limits.
- Fleet maintenance facilities supplying compressed air across vehicle service areas.
- Construction, agricultural, mining, and off-road equipment exposed to vibration and frequent hose use.
- Plant maintenance stations requiring higher-volume air or water delivery over a 50-foot working range.
- Wall, floor, overhead, skid, and vehicle-mounted installations where spring-powered retrieval is preferred.
FAQs:
- Q: Is hose included with the Coxreels TSH-N-550?
A: Yes. This reel is supplied with 50 feet of 3/4-inch I.D. hose for compatible air and water service. - Q: Why choose a 3/4-inch hose reel instead of a smaller model?
A: A 3/4-inch hose can support greater air or water flow than smaller-diameter hose when the supply system, fittings, and operating conditions are properly matched. - Q: What is the purpose of the stainless steel rollers?
A: The rollers guide the large-diameter hose as it moves on and off the drum, helping maintain alignment and limit contact with the reel frame. - Q: How does the hose remain extended during use?
A: A multi-position ratchet locks the drum at the selected hose length. A brief additional pull releases the mechanism so the spring motor can retrieve the hose. - Q: What does the Super Hub system provide?
A: The Super Hub™ gives the reel triple-axle support, reinforcing the chassis and helping reduce vibration in mobile and off-road installations. - Q: Is the TSH-N-550 suitable for oil or hydraulic service?
A: This hose-equipped model is specified for air and water. It should not be used for oil or hydraulic fluids unless Coxreels confirms compatibility with the supplied hose, seals, fittings, and operating conditions.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
