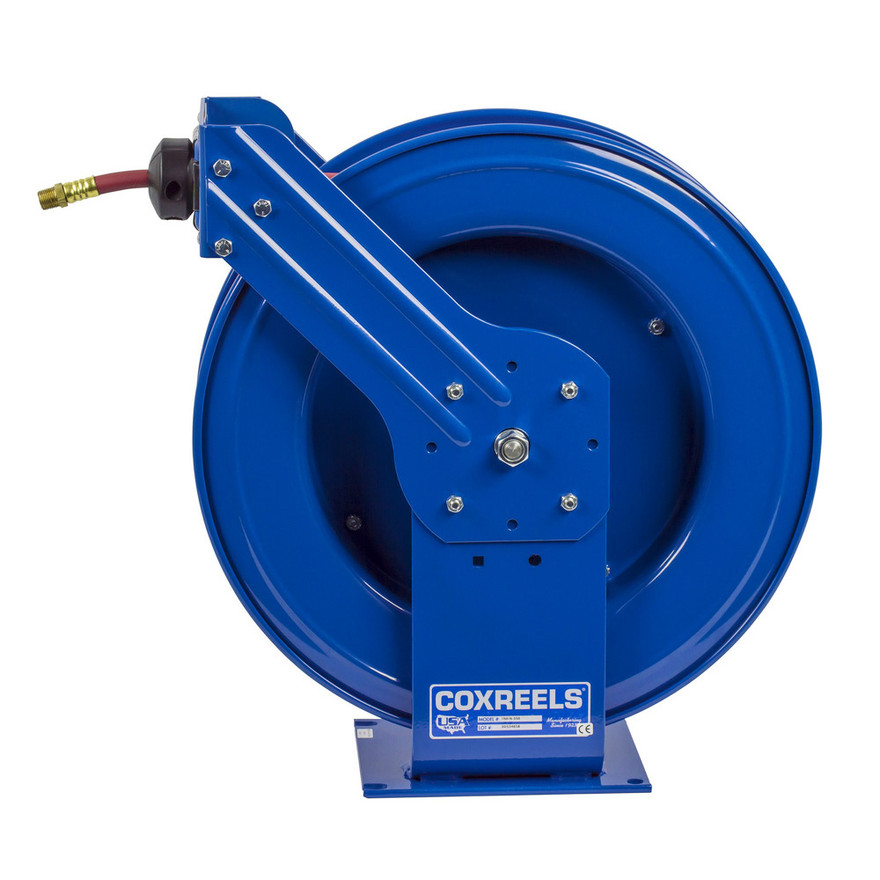

Built for mobile equipment, lubrication systems, and other applications where longer hose reach must be combined with elevated working pressure, the Coxreels TMP-N-575 Supreme Duty Spring Rewind Hose Reel provides a 75-foot hose with a 3/4-inch inside diameter and a 1,500 PSI maximum working pressure. This T Series "Truck Mount" reel uses an extra-large chassis with dual pedestal-style arms to support frequent hose deployment and automatic spring-powered retraction in rugged operating environments.
Coxreels equips the T Series with its Super Hub support system, which provides triple axle support to reduce vibration and strengthen the reel structure. The TMP-N-575 includes a one-wire-braid hose suitable for air, water, or oil applications and rated for temperatures up to 250°F. Its adjustable guide arm accommodates wall, floor, vehicle, and overhead mounting positions, while the multi-position locking ratchet holds the hose at the required working length. With an overall size of 12-1/2" wide x 25-1/2" high x 24" long, the reel also gives installers published dimensions for planning mounting space on service vehicles, lube skids, and fixed equipment.
Type: Spring Rewind Hose Reel | Duty Classification: Supreme Duty | Series: T Series | Model: TMP-N-575 | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Length: 75 ft | Hose Included: Yes | Maximum Working Pressure: 1,500 PSI | Approximate Weight: 100 lbs | Overall Dimensions: 12-1/2" W x 25-1/2" H x 24" L
Features:
- Extra-large T Series chassis with dual pedestal-style arms supports rugged mobile and stationary hose-handling applications.
- Coxreels Super Hub provides triple axle support to reduce vibration and strengthen the reel's structural integrity.
- External fluid path uses a machined-from-solid-brass 90-degree full-flow NPT swivel inlet.
- Nitrile swivel seals support the air, water, and oil services specified for the supplied medium-pressure hose.
- Solid one-piece, heavy-gauge 1/4-inch steel base and support posts provide a stable reel structure.
- One-inch solid steel axle and lubricated precision bearings promote smooth drum rotation.
- Enclosed, factory-tuned and matched cartridge-style spring motor supports controlled automatic hose retraction and service access.
- Multi-position locking ratchet secures the hose at the desired working length, while the guide arm adjusts for wall, floor, vehicle, and overhead mounting.
Made in USA:
Applications:
- Service, mechanic, and utility vehicles requiring organized storage for a 75-foot air, water, or oil hose.
- Lube skids and trucks used for dispensing lubricants during fleet and equipment service.
- Automotive, fleet, and aircraft maintenance operations requiring extended hose reach from a fixed reel location.
- Mining, construction, and railroad operations using hose systems within the reel's published pressure and temperature limits.
- Manufacturing plants and general industrial facilities managing medium-pressure fluid-transfer hoses.
FAQs:
- Q: Does the Coxreels TMP-N-575 include a hose?
A: Yes. The TMP-N-575 is furnished with a 75-foot, one-wire-braid hose with a 3/4-inch inside diameter. - Q: Which services are approved for the supplied hose?
A: Coxreels specifies the supplied medium-pressure hose for air, water, or oil applications. The hose exceeds SAE R1 specifications and has a maximum temperature rating of 250°F. - Q: Can the TMP-N-575 be mounted on a service vehicle?
A: Yes. The T Series is built for rugged mobile applications, and its guide arm adjusts for vehicle mounting as well as wall, floor, and overhead positions. - Q: What is the difference between TMP-N-575 and TMPL-N-575?
A: The TMP-N-575 includes the specified 75-foot hose. The TMPL-N-575 is the corresponding less-hose reel configuration. - Q: Does this model include EZ-Coil controlled retraction?
A: No EZ-Coil version is listed for the TMP-N-575 in the manufacturer's model table.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
