Coxreels TSHL-N-4100 Supreme Duty Spring Rewind Hose Reel is a T Series truck-mount model built for rugged mobile applications. This less-hose reel accommodates up to 100 feet of 1/2-inch I.D. hose with a maximum hose O.D. of 3/4 inch and is rated for a maximum working pressure of 300 PSI. Coxreels specifies less-hose low-pressure T Series models for air, water, or oil service.
The TSHL-N-4100 uses an extra-large chassis with dual-pedestal arms and Coxreels Super Hub triple-axle support to reduce vibration and reinforce the reel structure. Its adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions, making the reel suitable for fixed or mobile hose-management installations.

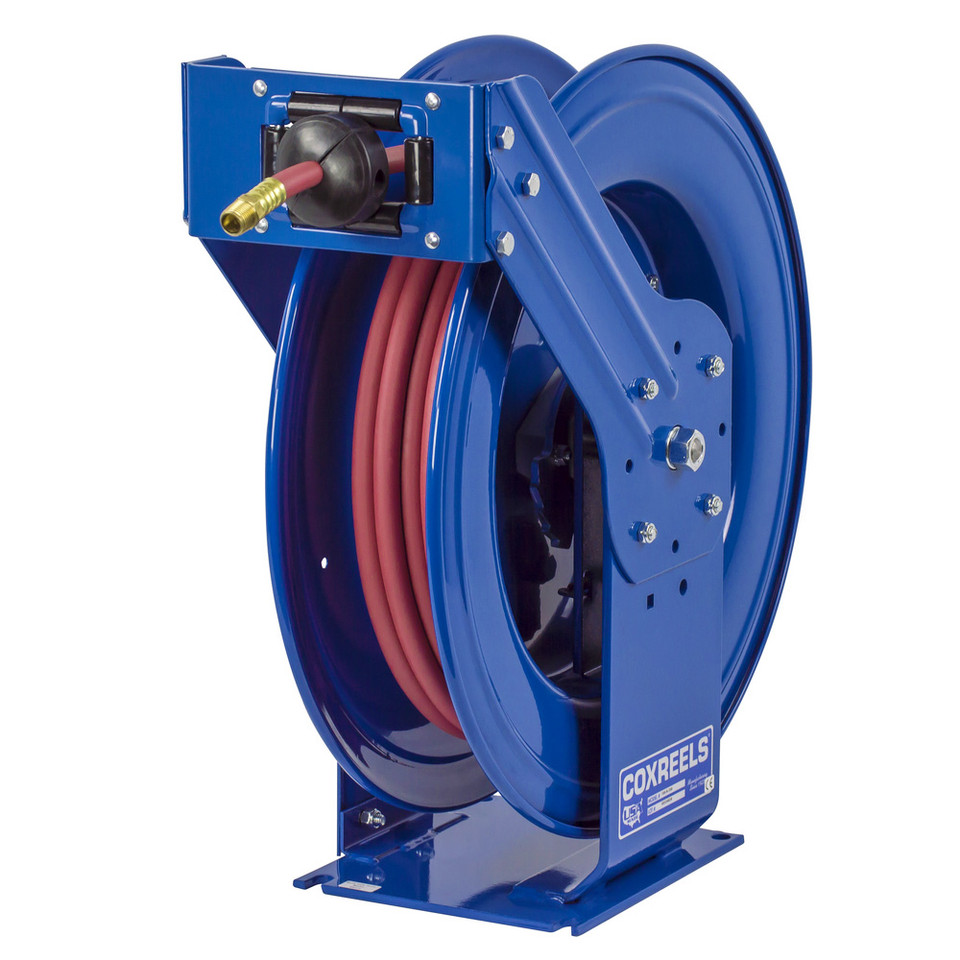

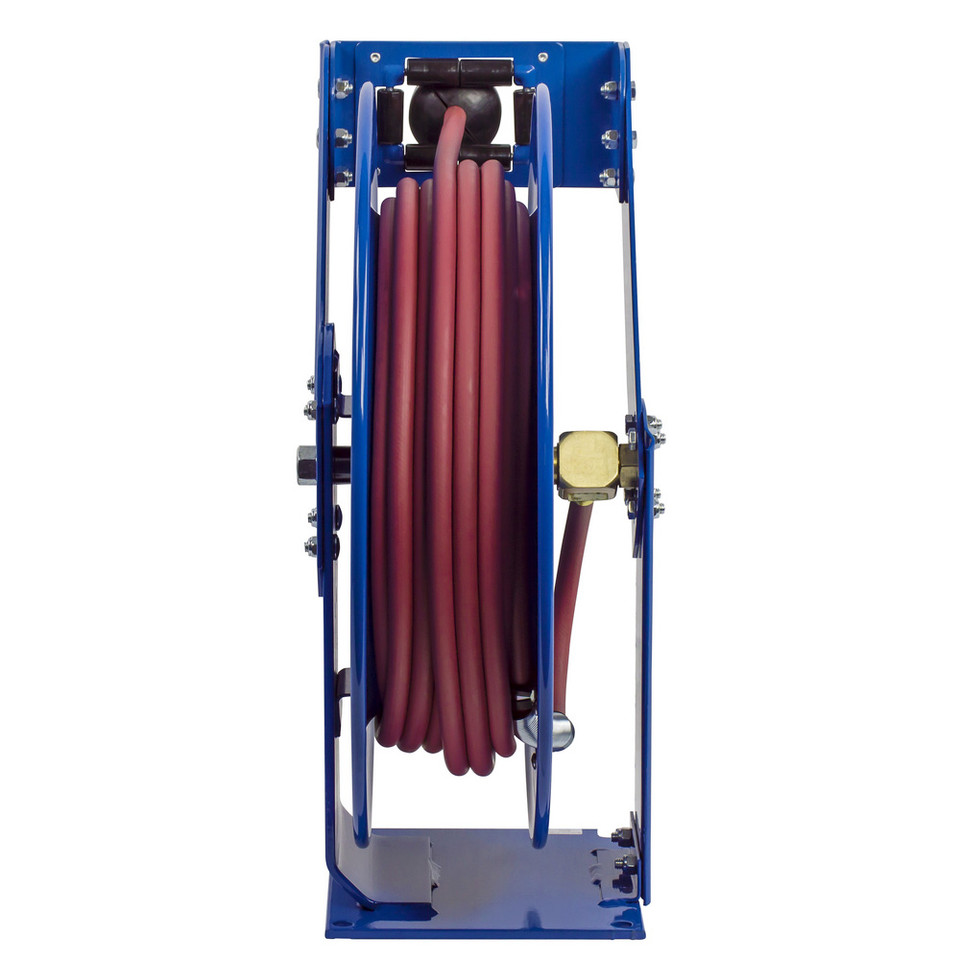

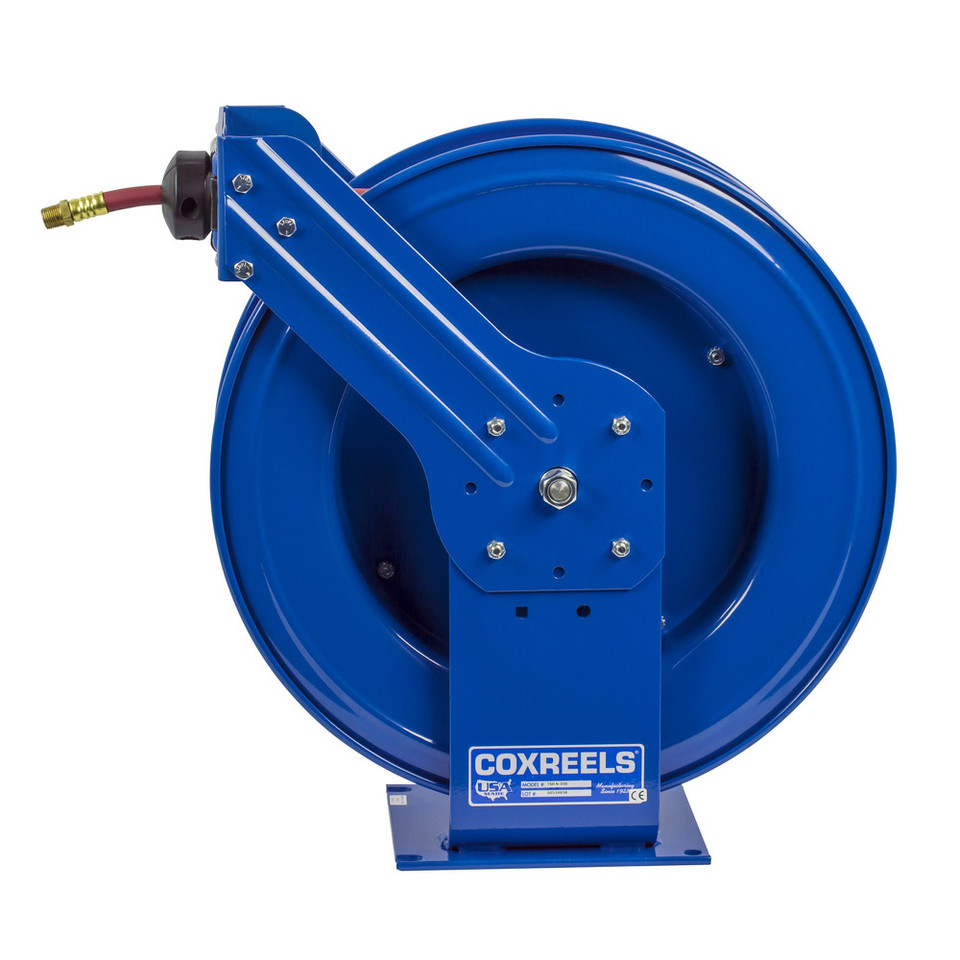

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T Series | Model: TSHL-N-4100 | Pressure Classification: Low Pressure | Configuration: Less Hose | Hose Included: No | Hose I.D. Capacity: 1/2" | Hose O.D.: 3/4" | Hose Capacity: 100 ft | Max Pressure: 300 PSI | Service: Air, Water, or Oil | Ship Weight: 80 lbs | Overall Width: 9.38" | Overall Height: 25.5" | Overall Length: 24" | Mounting Pattern: 7" M x 8" N | Base Dimensions: 8" X x 9" Y
Features:
- Extra-large chassis with dual-pedestal arms and Super Hub triple-axle support reduces vibration and strengthens the reel structure.
- Solid one-piece, heavy-gauge 1/4-inch steel base and support posts provide a stable mounting foundation.
- Machined solid-brass 90° full-flow NPT swivel inlet provides an external fluid path and simplifies hose installation.
- Enclosed, factory-tuned cartridge-style spring motor provides automatic hose retraction and can be removed for maintenance.
- Multi-position lock ratchet secures the hose at the desired working length, while the guide arm adjusts for wall, floor, vehicle, and overhead mounting.
- Rolled-edge ribbed steel discs, CPC powder-coat finish, adjustable solid-rubber hose stop, and permanently lubricated precision bearings support durable operation.
Made in USA:
2 Year Manufacturer's Limited Warranty
Applications:
- Truck-mounted air, water, or oil hose systems.
- Mobile service vehicles and off-road equipment.
- Wall- or floor-mounted hose-management installations.
- Vehicle and overhead reel installations requiring up to 100 feet of 1/2-inch hose capacity.
- Applications operating within the reel's 300 PSI maximum pressure rating.
FAQs:
- Q: Does the Coxreels TSHL-N-4100 include hose?
A: No. This model is supplied as a reel only, and compatible hose must be purchased separately. - Q: What hose size can this reel accommodate?
A: Coxreels lists a capacity of up to 100 feet of 1/2-inch I.D. hose with a maximum hose O.D. of 3/4 inch. - Q: What is the maximum working pressure?
A: The TSHL-N-4100 is rated for a maximum working pressure of 300 PSI. - Q: Which services can be used with this less-hose reel?
A: Coxreels specifies less-hose low-pressure models for air, water, or oil service. - Q: Can the reel be mounted in different positions?
A: Yes. The guide arm adjusts for wall, floor, vehicle, and overhead mounting positions.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
