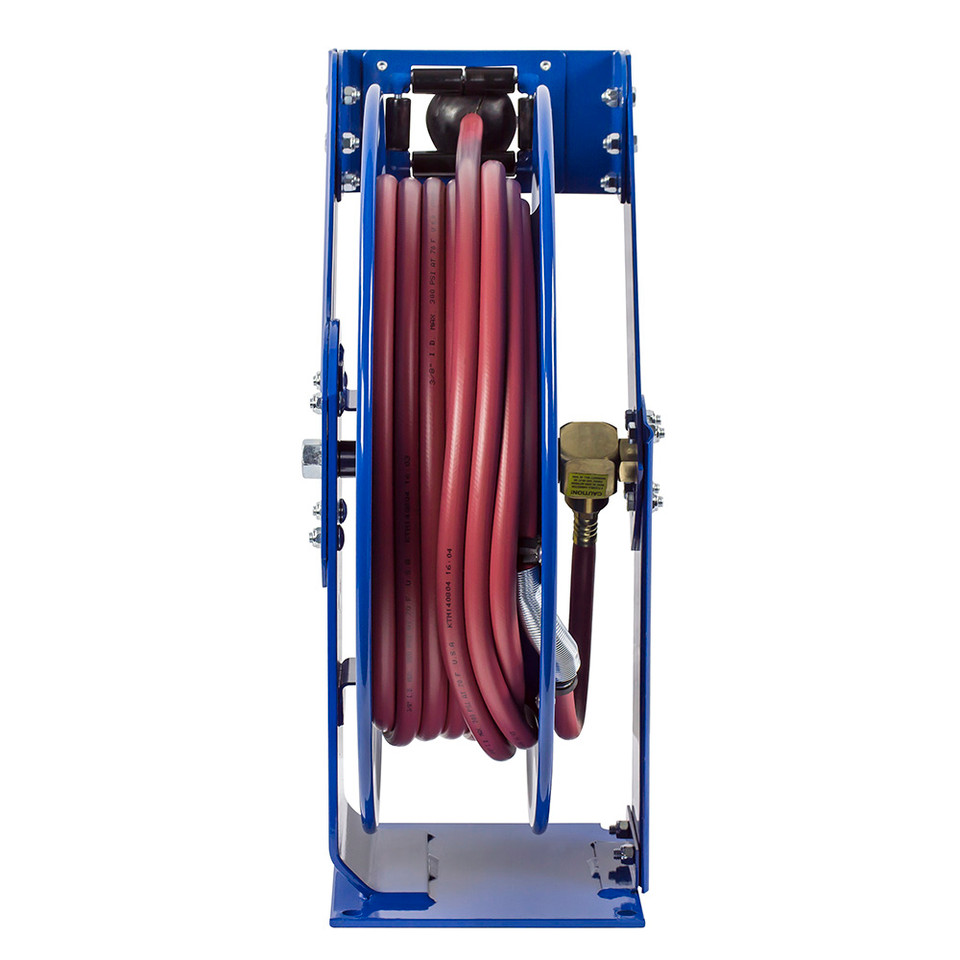

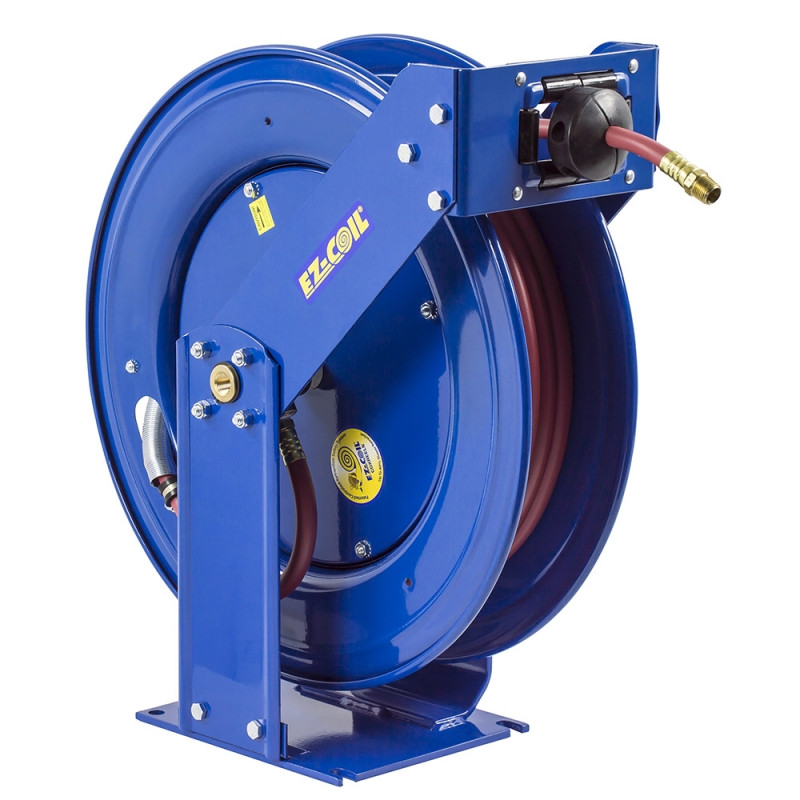

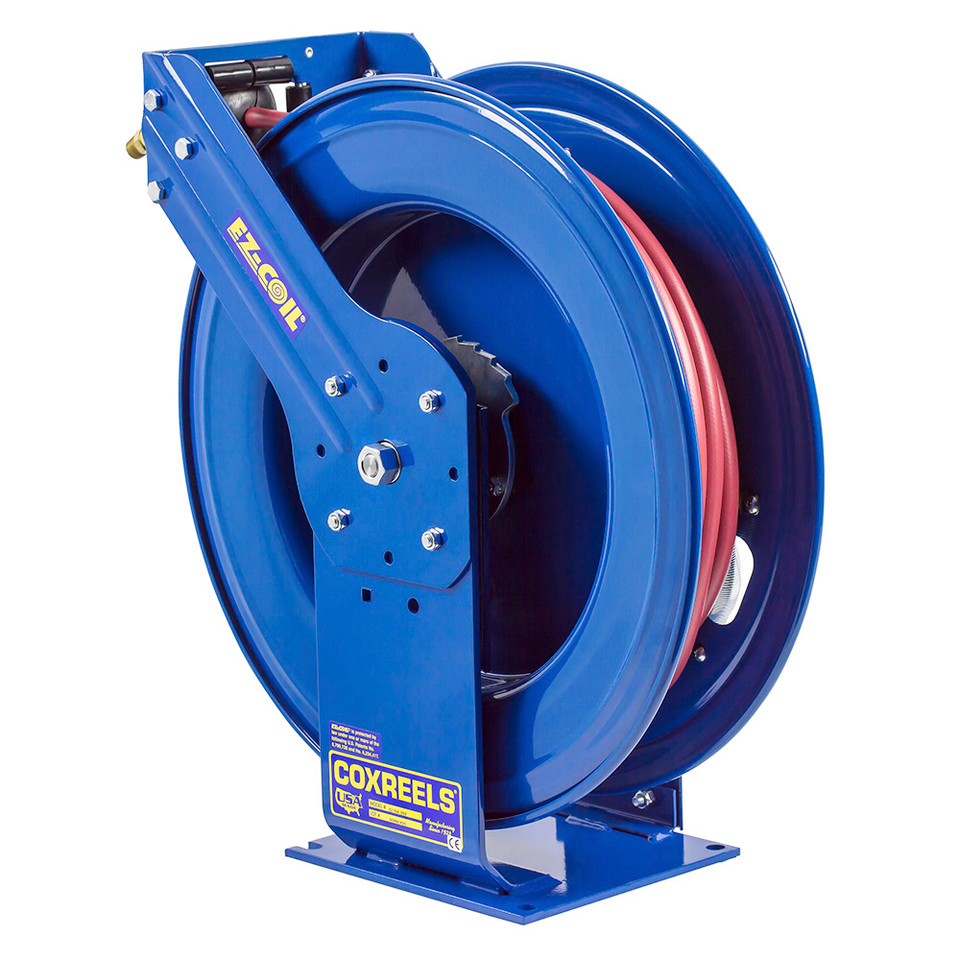

Built for mobile service, fleet maintenance, and off-road utility work, the Coxreels EZ-TSH-535 Truck Mount Spring Rewind Hose Reel keeps a 3/4" I.D. x 35 ft hose controlled, accessible, and protected between jobs. This EZ-T Series reel is rated for 300 PSI low-pressure air and water service, making it a strong fit for truck-mounted systems, maintenance vehicles, service bays, and equipment support areas where hose storage must stand up to vibration, movement, and repeated daily use. The EZ-Coil controlled rewind system retracts up to 80% slower than conventional spring driven reels, helping reduce hose whip and giving the operator more control as the hose returns to the reel. The T Series truck mount frame uses dual pedestal-style arms and Coxreels’ Super Hub triple axle support system to help reduce vibration and strengthen the reel structure in mobile and rough-service environments.
Type: Truck Mount Spring Rewind Hose Reel | Series: EZ-T Series | Model: EZ-TSH-535 | Hose Included: Yes | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Length: 35 ft | Max Pressure: 300 PSI | Service: Air, Water | Max Temperature: 150°F | Approx. Ship Weight: 77 lb
Features:
- EZ-Coil controlled retraction system slows rewind speed up to 80% compared with conventional spring driven reels.
- Truck mount T Series frame uses an extra-large chassis with dual pedestal-style arms for mobile and off-road applications.
- Coxreels Super Hub triple axle support system helps reduce vibration and strengthens the structural integrity of the reel.
- External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports efficient flow and straightforward seal maintenance.
- Nitrile swivel seals support the reel’s listed low-pressure air and water service.
- Stainless steel rollers on 3/4" models help guide the hose smoothly during payout and rewind.
- Solid one-piece heavy-gauge 1/4" steel base and support posts provide stable mounting strength.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation.
- Enclosed, factory-tuned cartridge-style spring motor helps keep the rewind mechanism protected and serviceable.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
Made in USA:
Applications:
- Utility and fleet service trucks: Managing 3/4" air or water hose on mobile maintenance vehicles where controlled rewind and secure hose storage matter.
- Off-road equipment support: Supplying hose access around construction, agricultural, and field service equipment exposed to vibration and movement.
- Industrial maintenance and MRO: Keeping low-pressure hose organized near repair areas, service stations, and equipment maintenance zones.
- Automotive and truck shops: Supporting service bay hose management for air or water applications where larger hose diameter is required.
- Shop and facility washdown support: Storing 35 ft of 3/4" hose in a controlled footprint when the application stays within the reel’s pressure and media ratings.
FAQs:
- Q: Does the EZ-TSH-535 include hose?
A: Yes. This model is listed with hose included and is built for a 3/4" I.D. x 35 ft hose configuration. - Q: What media can this reel handle?
A: The low-pressure hose-included EZ-TSH models are for air and water service. For oil service, confirm the proper less-hose configuration and compatible hose before ordering. - Q: Why choose the EZ-T Series instead of a lighter hose reel?
A: The EZ-T Series is the truck mount version with a dual pedestal frame and Super Hub triple axle support. Those features make it better suited for mobile service vehicles, vibration-prone mounting locations, and rougher operating conditions. - Q: What does EZ-Coil do?
A: EZ-Coil is Coxreels’ controlled rewind system. It slows the spring rewind action, helping reduce hose whip and giving the operator better control as the hose returns to the reel. - Q: Can this reel be mounted on a wall, floor, ceiling, or vehicle?
A: Yes. The guide arm adjusts for wall, floor, vehicle, and overhead mounting positions, allowing the hose payout direction to be matched to the installation location.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
