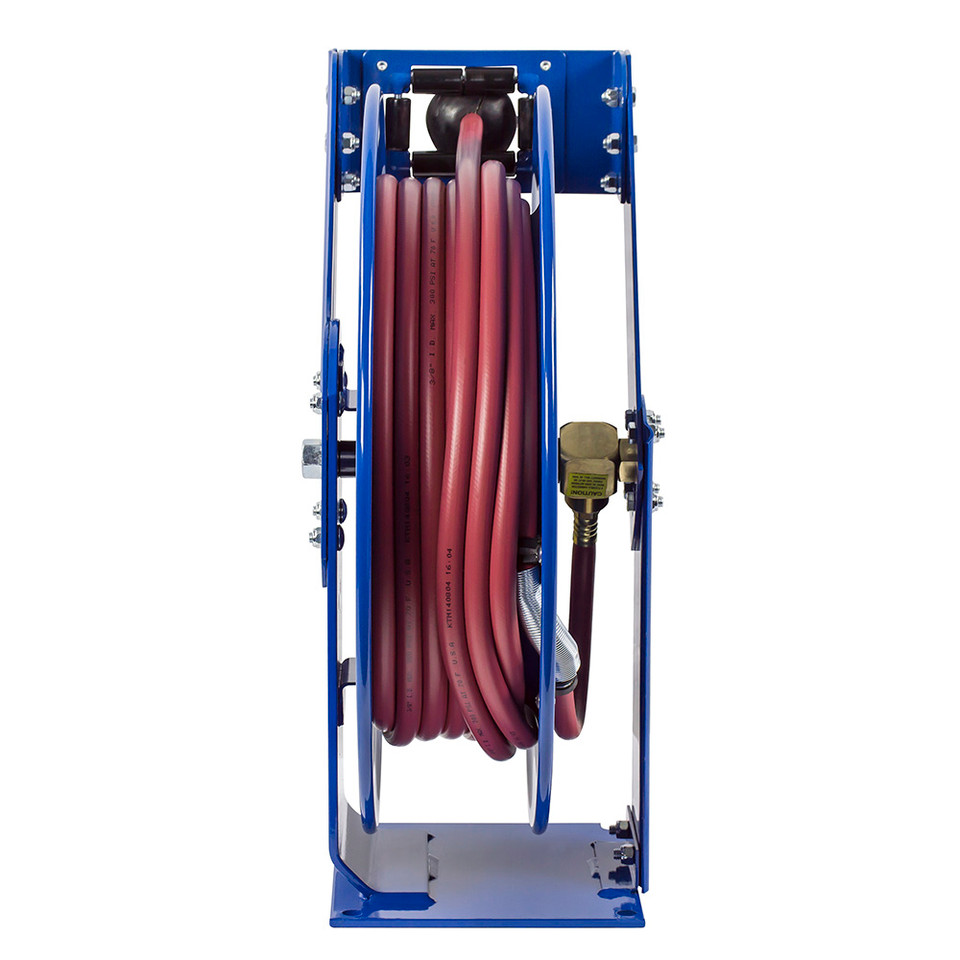

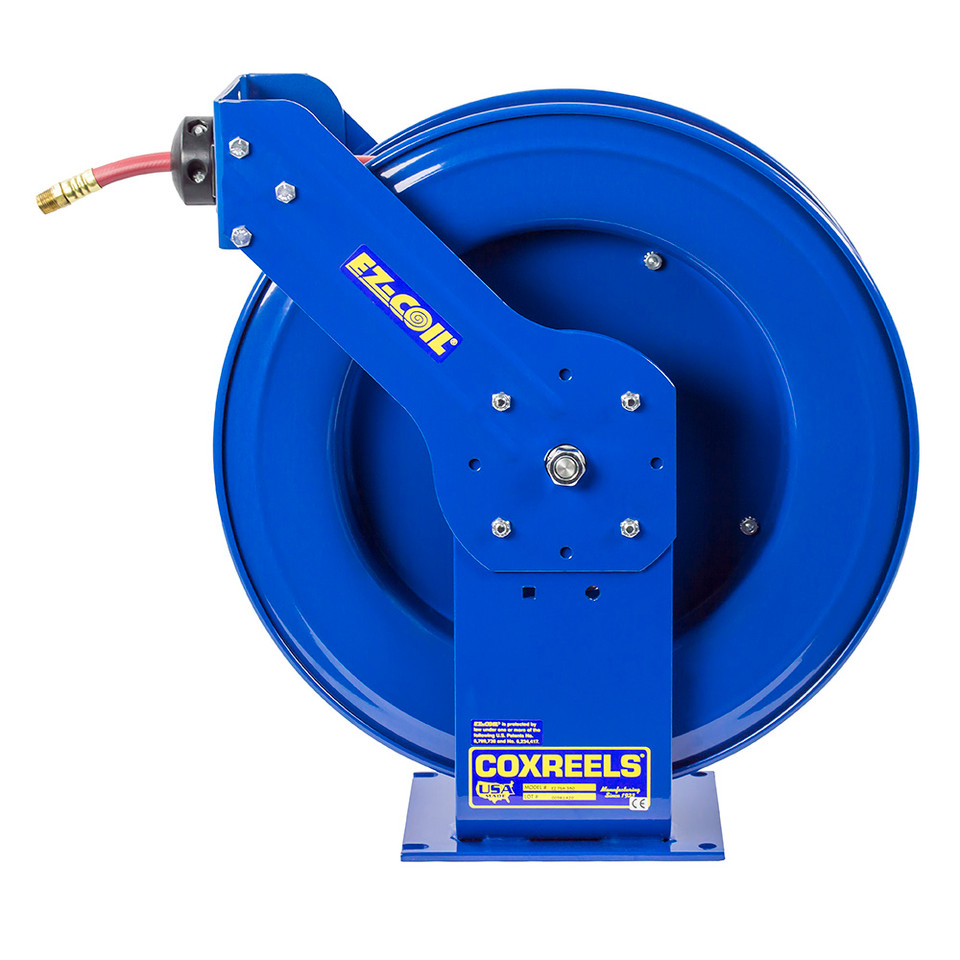

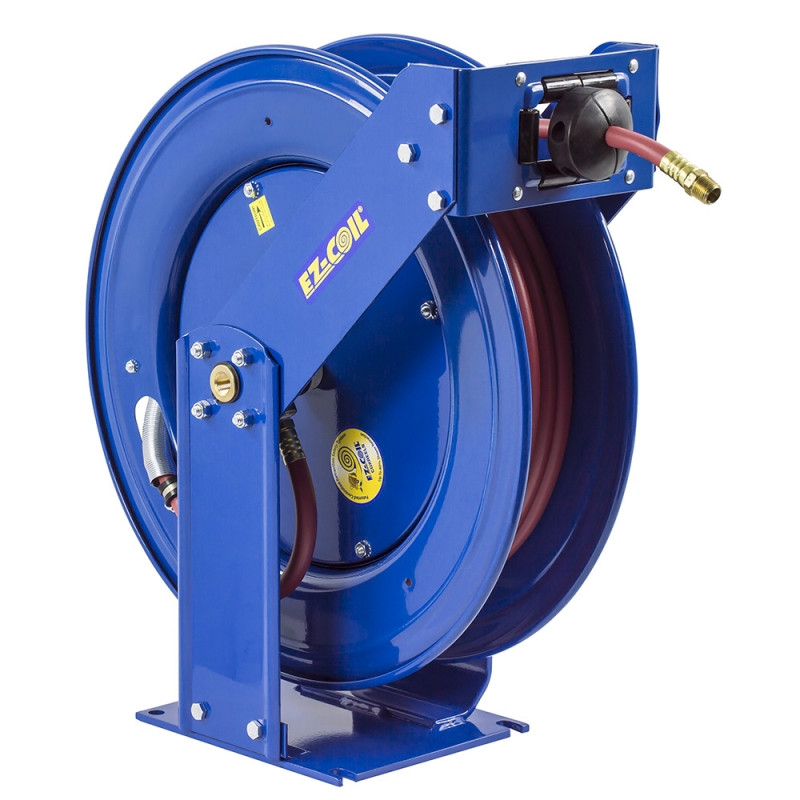

Built for mobile service trucks, fleet maintenance, construction support vehicles, and off-road field repair, the Coxreels EZ-TMP-350 Truck Mount spring rewind hose reel manages 50 ft of 3/8" I.D. medium-pressure hose in a compact, controlled-rewind package. Its 3,000 PSI rating supports air, water, and oil service where a standard low-pressure shop reel is not enough. The EZ Coil safety rewind system retracts the hose up to 80% slower than conventional spring driven reels, helping reduce hose whip and giving the operator better control during rewind. The EZ-T Series is Coxreels’ Truck Mount reel family, built around an extra-large chassis with dual pedestal-style arms and Coxreels’ Super Hub triple axle support system. That structure helps reduce vibration and strengthen the reel body in vehicle-mounted and outdoor service environments. The EZ-TMP-350 is furnished with standard one-wire braid hose suitable for air, water, or oil applications, making it a practical choice for lube skids, mechanic trucks, utility vehicles, and industrial maintenance stations that need dependable hose control away from a fixed shop wall.
Type: Truck Mount Spring Rewind Hose Reel | Series: EZ-T Series | Rewind: EZ Coil Safety Rewind | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Length: 50 ft | Max Pressure: 3,000 PSI | Service: Air, Water, Oil | Swivel Seals: Nitrile | Approx. Ship Weight: 74 lbs
Features:
- EZ Coil patented safety rewind system retracts up to 80% slower than conventional spring driven reels for more controlled hose return.
- Truck Mount reel construction uses an extra-large chassis with dual pedestal-style arms for rugged mobile applications.
- Coxreels’ Super Hub™ triple axle support system helps reduce vibration and strengthen the reel’s structural integrity.
- External fluid path with machined from solid brass 90° full-flow NPT swivel inlet supports efficient fluid movement through the reel.
- Nitrile swivel seals are suitable for many air, water, and oil service applications when used within the reel and hose ratings.
- Guide arm adjusts to wall, floor, vehicle, and overhead positions for flexible mounting on service trucks, skids, benches, or shop structures.
- Solid one-piece, heavy-gauge 1/4" steel base and support posts provide a stable mounting platform.
- Enclosed, factory-tuned cartridge-style spring motor and multi-position lock ratchet mechanism help secure the hose at the desired working length.
Applications:
- Service and mechanic trucks handling oil, water, or air hose in field repair environments.
- Fleet maintenance shops using a medium-pressure hose reel for vehicle service, lubrication tasks, and general MRO work.
- Construction and utility vehicles where hose storage must tolerate vibration, outdoor use, and frequent deployment.
- Lube skids and mobile maintenance trailers requiring a controlled spring rewind reel with 50 ft hose reach.
- Industrial plants and maintenance bays needing a truck-mount style reel for shop air, washdown, or oil transfer within the rated pressure range.
FAQs:
- Q: Does the Coxreels EZ-TMP-350 include hose?
A: Yes. This model is furnished with 50 ft of 3/8" I.D. medium-pressure hose. The hose is listed for air, water, or oil applications within the reel’s 3,000 PSI pressure rating. - Q: What makes the EZ-T Series different from a standard shop hose reel?
A: The EZ-T Series is built as a Truck Mount reel family with a larger chassis, dual pedestal-style arms, and Coxreels’ Super Hub™ triple axle support system. This construction is useful for vehicles, skids, and off-road service environments where vibration and movement are part of daily use. - Q: What is EZ Coil rewind?
A: EZ Coil is Coxreels’ controlled-retraction safety system. It rewinds up to 80% slower than a conventional spring driven reel, helping the operator manage hose return more safely and reducing sudden hose snap-back. - Q: Can this reel be mounted on a service truck?
A: Yes. The adjustable guide arm supports vehicle mounting as well as wall, floor, and overhead positions. Always mount the reel to a surface strong enough to support the reel weight, hose load, and pull forces during use. - Q: What fluids can be used with this reel?
A: The medium-pressure EZ-TMP models are furnished with one-wire braid hose suitable for air, water, or oil applications. Confirm chemical compatibility, temperature range, fittings, and system pressure before installation.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Truck Mount Spring Rewind Hose Reel
- Series
- EZ-T Series
- Hose Inside Diameter (in.)
- 3/8
- Hose Outside Diameter (in.)
- 11/16
- Hose Length (ft.)
- 50
- Hose Included
- Yes
- Maximum Working Pressure (PSI)
- 3000
