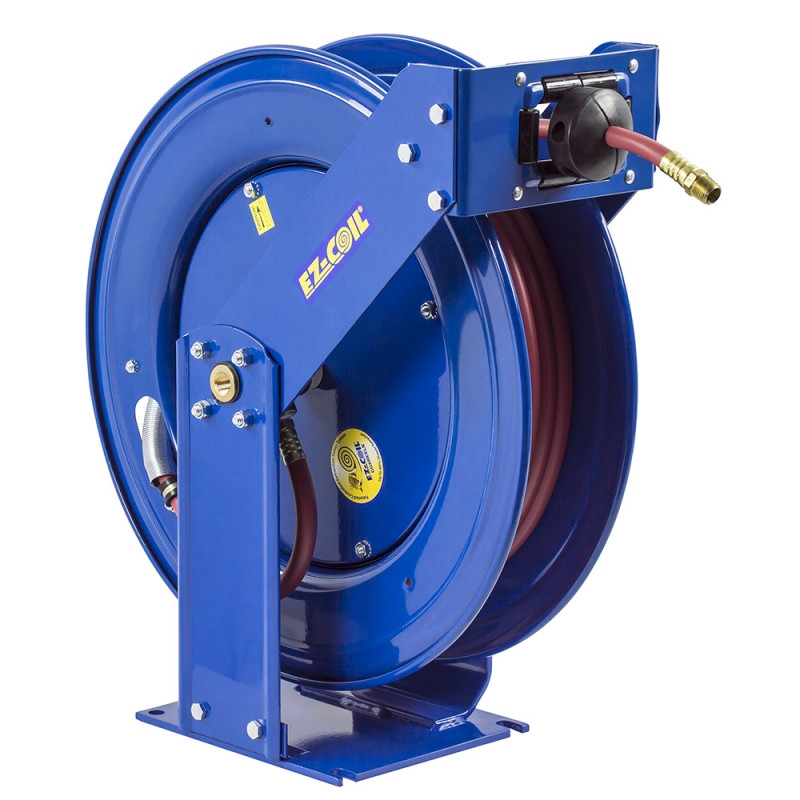

Built for mobile lubrication, hydraulic service, field maintenance, and truck-mounted repair setups, the Coxreels EZ-THP-150 Truck Mount spring rewind hose reel provides controlled handling for 50 ft of 1/4" I.D. high-pressure hose. Its 5,000 PSI maximum pressure rating supports grease and hydraulic oil applications where standard air or water reels are not appropriate. The EZ Coil safety rewind system retracts the hose up to 80% slower than conventional spring driven reels, helping reduce sudden hose return and giving technicians better control at the end of the job. Part of the Coxreels EZ-T Series, the EZ-THP-150 uses a Truck Mount frame with a dual pedestal-style reel structure and Coxreels’ Super Hub™ triple axle support system. This construction is well suited for service trucks, lube skids, maintenance trailers, and plant repair stations where vibration, repeated pull-out cycles, and high-pressure hose handling are part of daily work. This model is furnished with high-pressure S.A.E. 100R16 wire braid hose for grease and hydraulic oil service.
Type: Truck Mount Spring Rewind Hose Reel | Series: EZ-T Series | Rewind: EZ Coil Safety Rewind | Hose Included: Yes | Hose I.D.: 1/4" | Hose O.D.: 9/16" | Hose Length: 50 ft | Max Pressure: 5,000 PSI | Service: Grease, Hydraulic Oil | Swivel Seals: Nitrile | Approx. Ship Weight: 74 lbs
Features:
- EZ Coil patented safety rewind system retracts up to 80% slower than conventional spring driven reels for controlled hose return.
- Truck Mount reel configuration supports service vehicle, skid, trailer, and fixed maintenance station installations.
- High-pressure hose package is furnished for grease and hydraulic oil applications within the reel and hose ratings.
- S.A.E. 100R16 wire braid hose construction supports high-pressure fluid transfer in lubrication and hydraulic service work.
- Coxreels’ Super Hub™ triple axle support system helps reduce vibration and reinforce the reel structure during mobile use.
- Dual pedestal-style reel frame provides added support for repeated hose pull-out and rewind cycles.
- Zinc plated steel 90° full-flow NPT swivel inlet is used on high-pressure models for fluid transfer through the reel.
- Multi-position lock ratchet mechanism secures the hose at the required working length during service tasks.
Applications:
- Mobile lubrication trucks dispensing grease or hydraulic oil in fleet, construction, and equipment service environments.
- Field mechanic trucks requiring a compact high-pressure hose reel for machinery repair and preventive maintenance routes.
- Industrial MRO stations where hydraulic oil or grease hose must stay organized, protected, and ready for repeated use.
- Maintenance trailers and lube skids supporting off-road equipment, agricultural machinery, and heavy vehicle service.
- Shop service bays that need a high-pressure spring rewind reel with controlled hose return and 50 ft working reach.
FAQs:
- Q: Does the Coxreels EZ-THP-150 include hose?
A: Yes. This model includes 50 ft of 1/4" I.D. high-pressure hose. The hose is furnished for grease and hydraulic oil service within the listed 5,000 PSI maximum pressure rating. - Q: What is the difference between the EZ-THP and EZ-TMP models?
A: EZ-THP models are high-pressure reels for grease and hydraulic oil applications. EZ-TMP models are medium-pressure reels typically used for air, water, or oil service at lower pressure ratings. - Q: What does EZ Coil safety rewind do?
A: EZ Coil is Coxreels’ controlled-retraction system. It rewinds the hose up to 80% slower than a conventional spring driven reel, helping reduce hose whip and giving the operator more control during rewind. - Q: Can this reel be mounted on a service truck?
A: Yes. The EZ-T Series is a Truck Mount reel family and is commonly used on service vehicles, lube trucks, and maintenance skids. The mounting surface must be strong enough to support the reel, hose, fluid load, and pull forces. - Q: Can this reel be used for shop air or water?
A: This high-pressure model is furnished for grease and hydraulic oil service. For air or water applications, choose a compatible Coxreels low-pressure or medium-pressure model with the correct hose, seals, and pressure rating.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
