Built for high-pressure lubrication, hydraulic oil delivery, mobile service trucks, and maintenance skids, the Coxreels THPL-N-175 Supreme Duty spring rewind hose reel provides storage capacity for 75 ft of 1/4" I.D. hose. Its 5,000 PSI maximum pressure rating supports grease and hydraulic oil applications where low-pressure air or water reels are not suitable. As a less hose model, this reel gives the buyer control over hose selection, fitting style, temperature rating, and fluid compatibility before installation. Part of the Coxreels T Series, the THPL-N-175 uses a Supreme Duty truck mount frame with dual pedestal-style support arms and Coxreels’ Super Hub™ dual axle support system. This construction is suited for service vehicles, equipment yards, fleet shops, lube trucks, and industrial MRO areas where high-pressure hose must be stored securely and deployed repeatedly. The spring rewind design helps keep hose organized between service points, while the adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions.

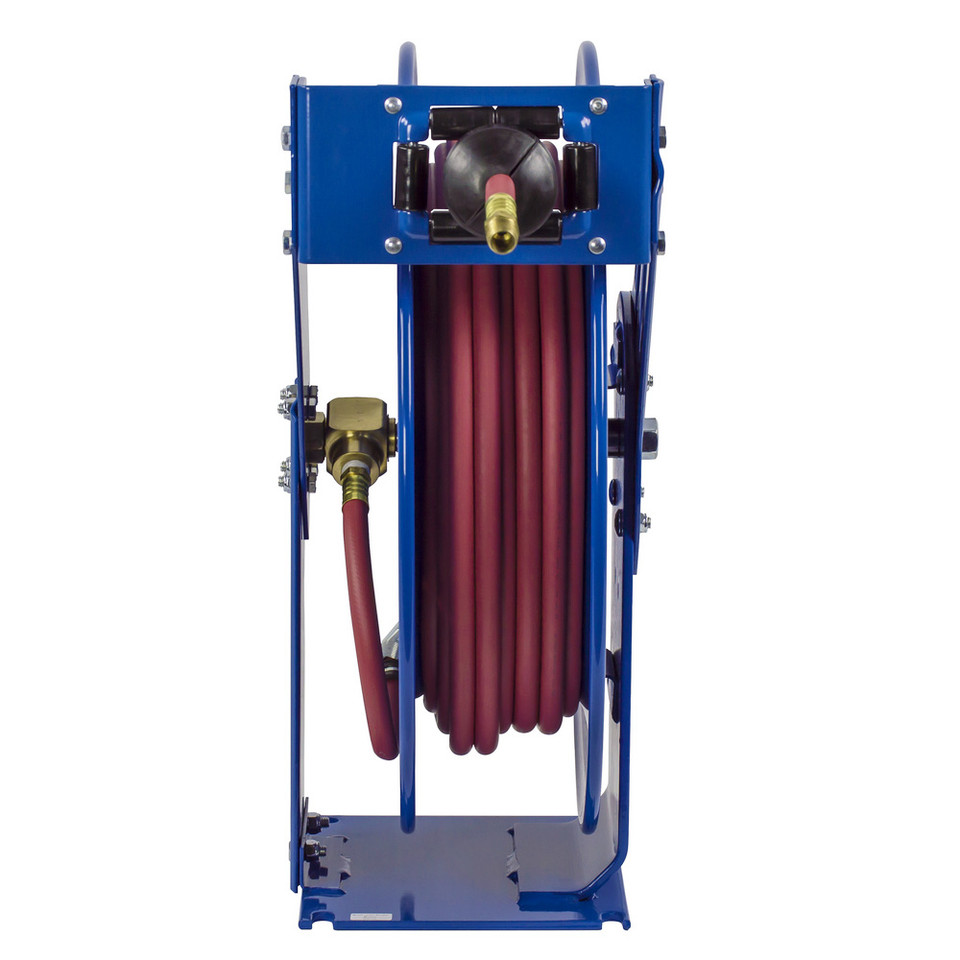

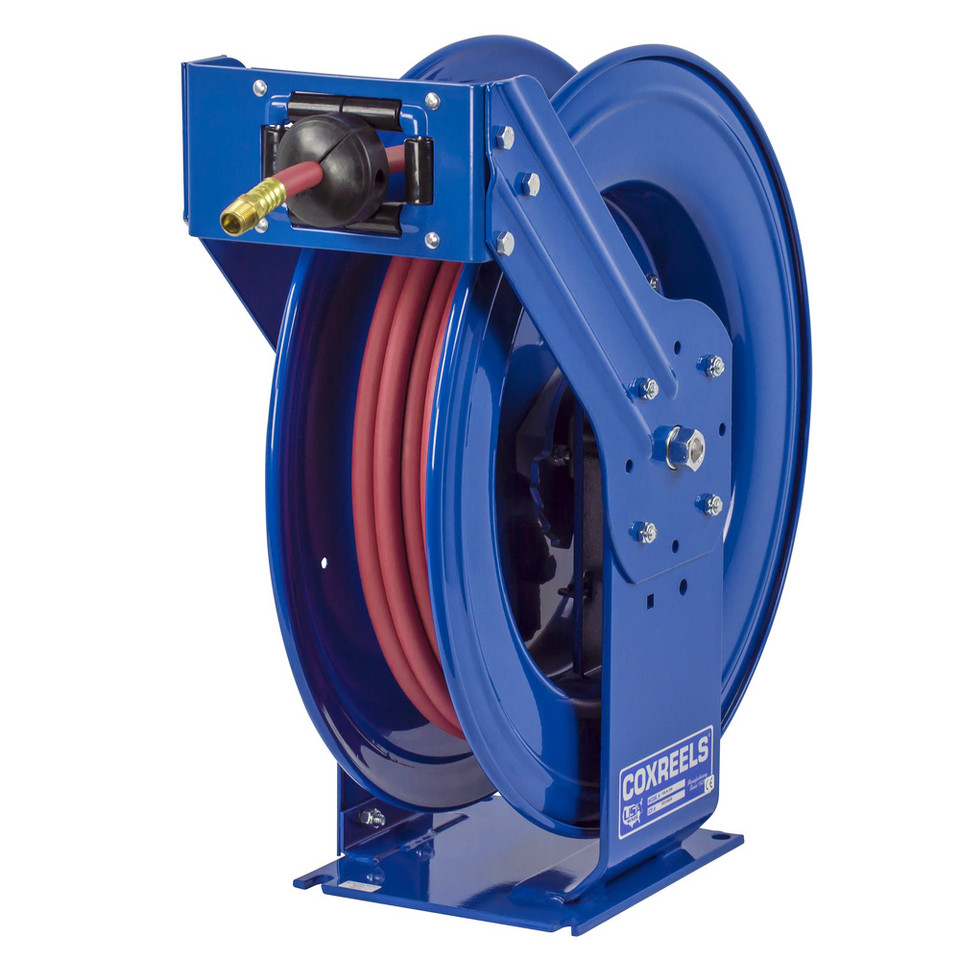

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T Series | Configuration: Less Hose | Hose I.D.: 1/4" | Hose O.D.: 9/16" | Hose Capacity: 75 ft | Max Pressure: 5,000 PSI | Service: Grease, Hydraulic Oil | Swivel Material: Zinc Plated Steel | Swivel Seals: Nitrile | Max Temperature: 250°F | Approx. Ship Weight: 71 lbs
Features:
- Supreme Duty T Series construction supports high-pressure hose management in truck mount, service vehicle, lube skid, and fixed maintenance applications.
- Less hose configuration allows the user to install compatible 1/4" hose selected for grease or hydraulic oil service requirements.
- Dual pedestal-style arms support the reel chassis during repeated pull-out and rewind cycles.
- Coxreels’ Super Hub™ dual axle support system reinforces the reel structure and helps reduce stress on the center shaft.
- Zinc plated steel 90° full-flow NPT swivel inlet is used on high-pressure models for fluid transfer through the reel.
- Nitrile swivel seals support grease and hydraulic oil service when the reel is used within its listed ratings.
- Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for flexible placement on trucks, benches, skids, or shop structures.
- Spring rewind mechanism with locking ratchet helps keep long high-pressure hose runs stored, protected, and ready for the next service task.
Made in USA:
Applications:
- Mobile lube trucks and service vehicles dispensing grease or hydraulic oil in the field.
- Fleet maintenance shops organizing high-pressure hose near vehicle lifts, lubrication stations, and equipment service bays.
- Construction and off-road equipment service where long hose reach is needed around machinery, trailers, and repair areas.
- Industrial MRO stations handling hydraulic oil delivery, grease service, and preventive maintenance tasks.
- Maintenance skids and shop benches where hose selection must match site-specific fluid, fitting, and temperature requirements.
FAQs:
- Q: Does the Coxreels THPL-N-175 include hose?
A: No. This is a less hose model, meaning the reel is supplied without hose installed. A compatible 1/4" I.D. hose must be purchased separately and matched to the required pressure, fluid, temperature, and fittings. - Q: What type of media is this reel intended for?
A: This high-pressure T Series model is intended for grease and hydraulic oil service within the 5,000 PSI maximum pressure rating. It should not be treated as a general low-pressure air or water reel. - Q: Why choose the THPL-N-175 instead of a reel with hose already installed?
A: A less hose reel is useful when the user needs a specific hose construction, fitting arrangement, hose brand, abrasion rating, or temperature rating. It also works well for facilities that standardize hose across multiple service trucks or maintenance bays. - Q: Can this reel be mounted on a truck or service skid?
A: Yes. The T Series is commonly used in vehicle and truck mount environments, and the guide arm adjusts for vehicle, wall, floor, and overhead installations. The mounting surface and hardware must be suitable for the reel weight, hose load, and pull forces. - Q: What hose size should be used with this reel?
A: This model is listed for 1/4" I.D. hose with a 9/16" hose O.D. and 75 ft capacity. Oversized hose may reduce the amount of hose that can fit on the reel.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
