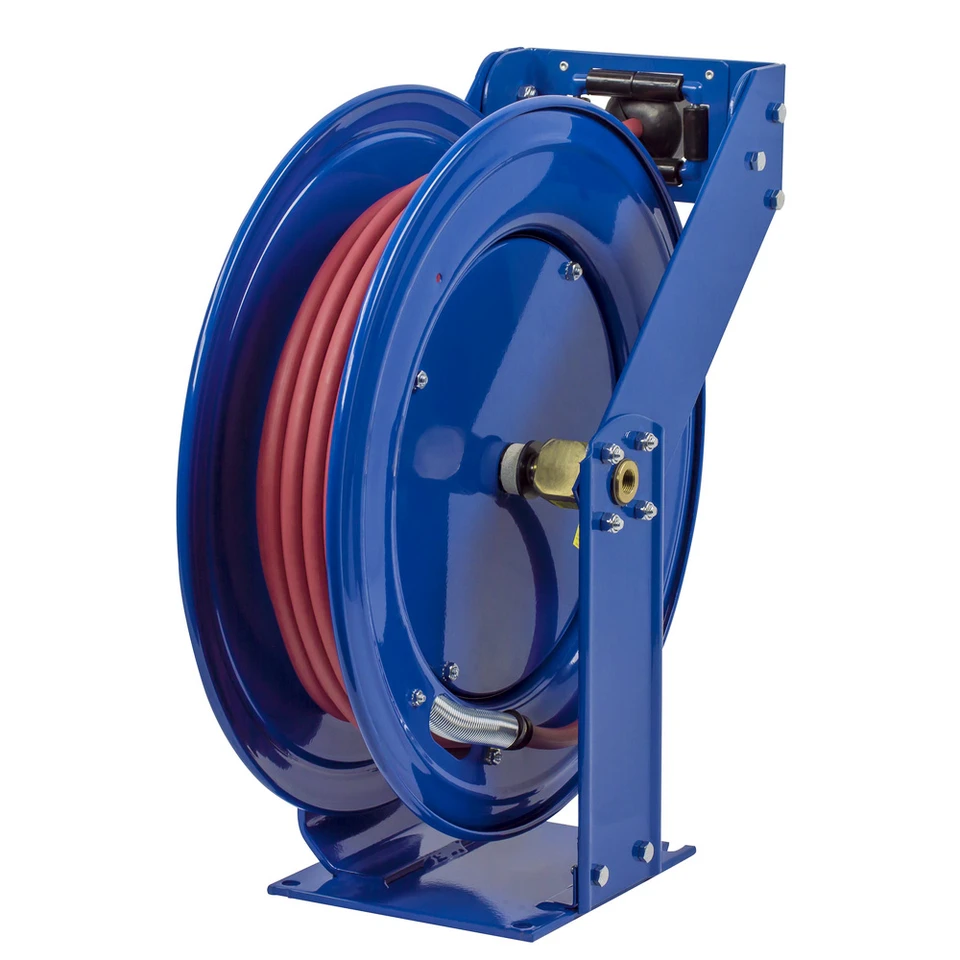

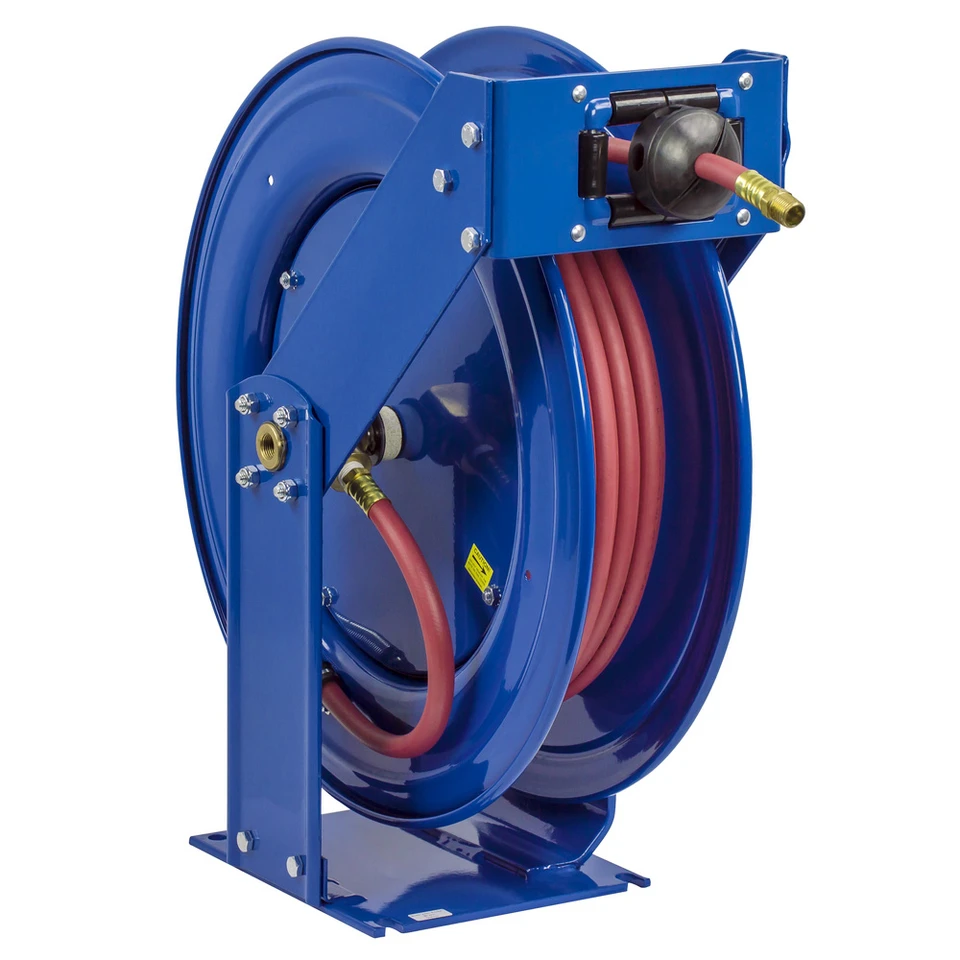

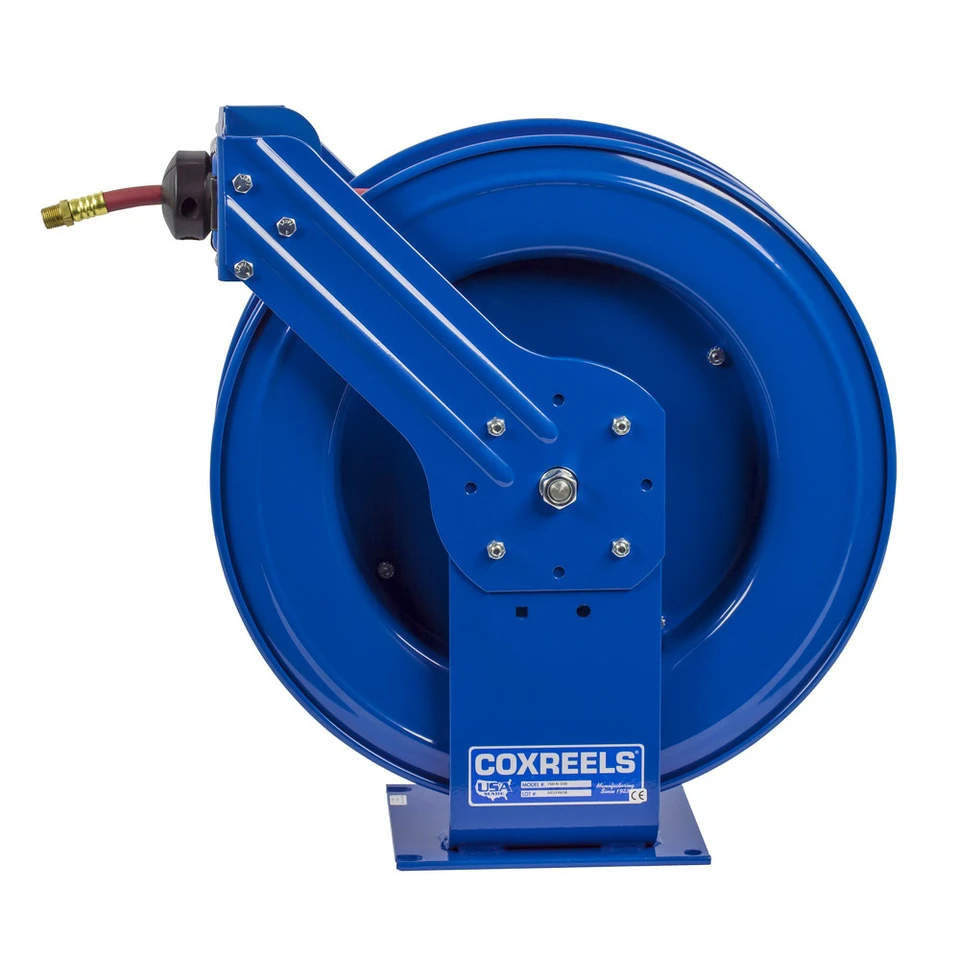

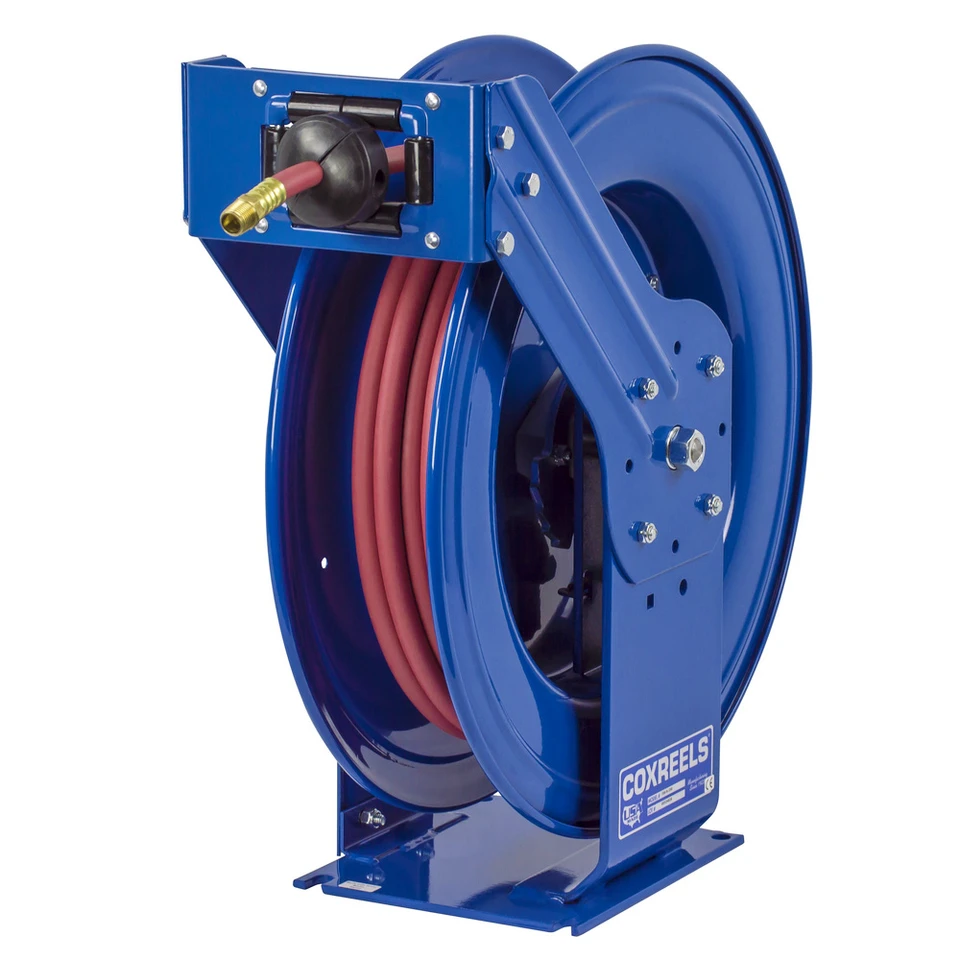

Coxreels TSH-N-650 Supreme Duty Spring Rewind Hose Reel is supplied with a 50-foot hose featuring a 1" inside diameter and is rated for a 300 PSI maximum working pressure. As part of the T Series, this spring rewind reel is designed for demanding truck-mounted and stationary hose management applications requiring reliable hose deployment, controlled retraction, and organized hose storage for compatible low-pressure service.
Engineered with Coxreels' extra-large dual-pedestal frame, the TSH-N-650 incorporates the exclusive Super Hub™ triple axle support system for added strength and reduced vibration. An enclosed cartridge-style spring motor provides dependable automatic hose rewind, while the adjustable guide arm and multi-position locking ratchet allow flexible installation and secure hose positioning during operation. The factory-installed hose creates a complete, ready-to-use reel assembly for applications operating within the manufacturer's published limits.
Type: Spring Rewind Hose Reel | Duty Classification: Supreme Duty | Series: T Series | Model: TSH-N-650 | Hose I.D.: 1" | Hose O.D.: 1-1/2" | Hose Length: 50 ft | Hose Included: Yes | Maximum Working Pressure: 300 PSI | Service: Air, Water | Approximate Weight: 98 lbs
Features:
- Supplied with a 50-foot, 1-inch I.D. hose for immediate installation and operation.
- Heavy-duty T Series construction features dual pedestal-style arms for increased structural support.
- Super Hub triple axle support system reinforces the reel while helping reduce vibration during operation.
- Machined-from-solid brass full-flow 90° NPT swivel promotes efficient fluid transfer and simplified maintenance.
- Factory-tuned enclosed cartridge-style spring motor delivers dependable automatic hose rewind and can be removed for servicing.
- Multi-position locking ratchet secures the hose at the desired working length.
- Adjustable guide arm supports wall, floor, overhead, and vehicle mounting configurations.
- Robotically spun ribbed steel discs with rolled edges help improve strength while protecting the hose during use.
- Chip-resistant CPC powder coat finish helps resist corrosion in demanding work environments.
- Permanently lubricated precision bearings provide smooth and consistent drum rotation.
Made in USA:
Applications:
- Truck-mounted service and utility vehicles requiring retractable storage for a 1-inch hose.
- Maintenance facilities operating compatible low-pressure air and water systems.
- Industrial production areas requiring organized hose management with automatic spring rewind.
- Fleet maintenance, equipment service, and manufacturing facilities.
- Wall-, floor-, ceiling-, or vehicle-mounted hose stations operating within the manufacturer's published pressure limits.
FAQs:
- Q: Does the Coxreels TSH-N-650 include a hose?
A: Yes. This model is supplied with a 50-foot hose featuring a 1-inch inside diameter. - Q: What media is this reel designed for?
A: According to the manufacturer, the supplied hose is intended for compatible air and water service. - Q: What is the maximum working pressure?
A: The TSH-N-650 has a maximum working pressure rating of 300 PSI. The complete hose system should never exceed the rating of its lowest-rated component. - Q: Can the guide arm be repositioned?
A: Yes. The adjustable guide arm supports wall, floor, overhead, and vehicle mounting configurations. - Q: What helps improve reel durability?
A: The reinforced dual-pedestal frame, Super Hub™ triple axle support system, ribbed steel discs, and CPC powder coat finish are designed to enhance structural strength and long-term performance.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
|||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- T Series
- Hose Inside Diameter (in.)
- 1
- Hose Outside Diameter (in.)
- 1-1/2
- Hose Length (ft.)
- 50
- Hose Included
- Yes
- Maximum Working Pressure (PSI)
- 300
- Width (in.)
- 12
- Height (in.)
- 25.5
- Length (in.)
- 24
- Mounting Pattern (in.)
- 7M
- Mounting Pattern (in.)
- 8N
- Base (in.)
- 8X
- Base (in.)
- 9Y
