Built for truck-mounted hose storage, lube skids, service vehicles, and fixed maintenance stations, the Coxreels TMPL-N-575 Supreme Duty spring rewind hose reel provides reel capacity for a compatible 3/4" I.D. hose up to 75 ft. As part of the T Series, this reel uses a full-frame truck mount design with dual pedestal-style arms and Coxreels’ Super Hub axle support system, which helps reinforce the reel structure for mobile and off-road service environments. Rated for 1,500 PSI, the TMPL-N-575 is a less hose reel for buyers who want to install their own compatible 3/4" hose for air, water, or oil applications. The large chassis, adjustable guide arm, stainless steel rollers, cartridge-style spring motor, and multi-position lock ratchet help keep hose organized, protected, and positioned at the working length needed for maintenance, lubrication, utility vehicle, and general shop service.

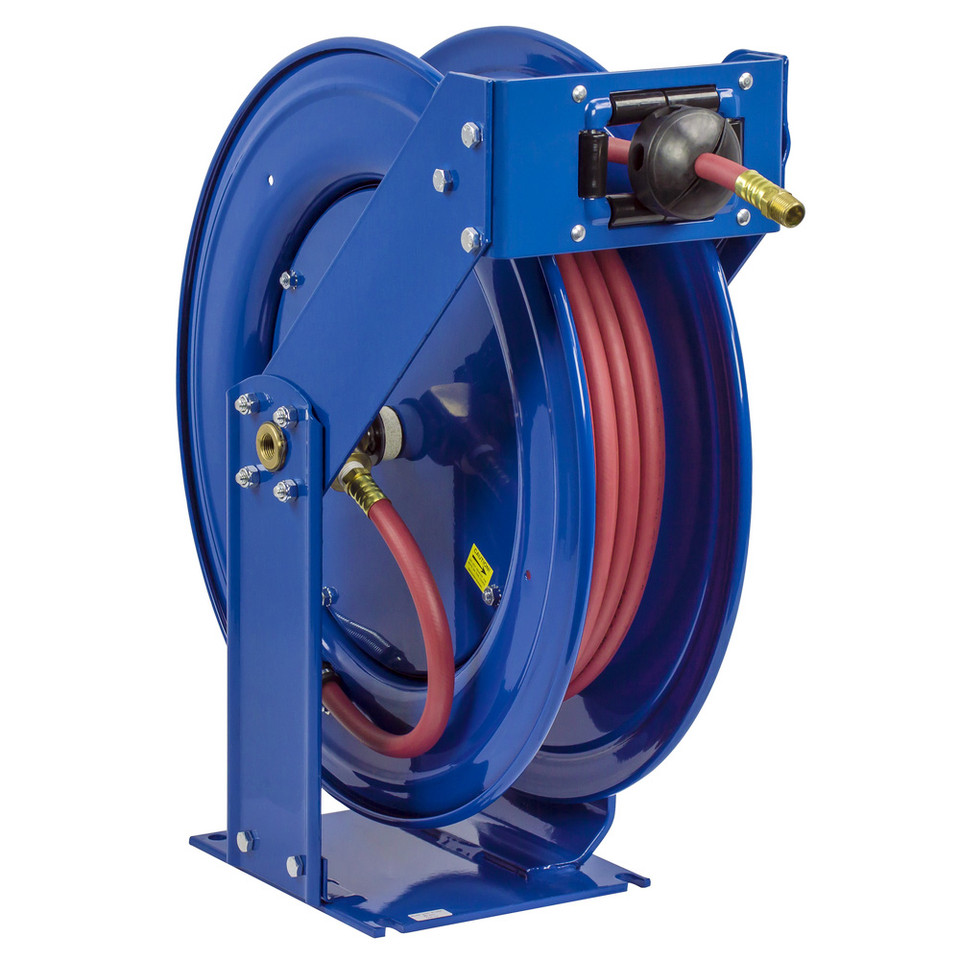

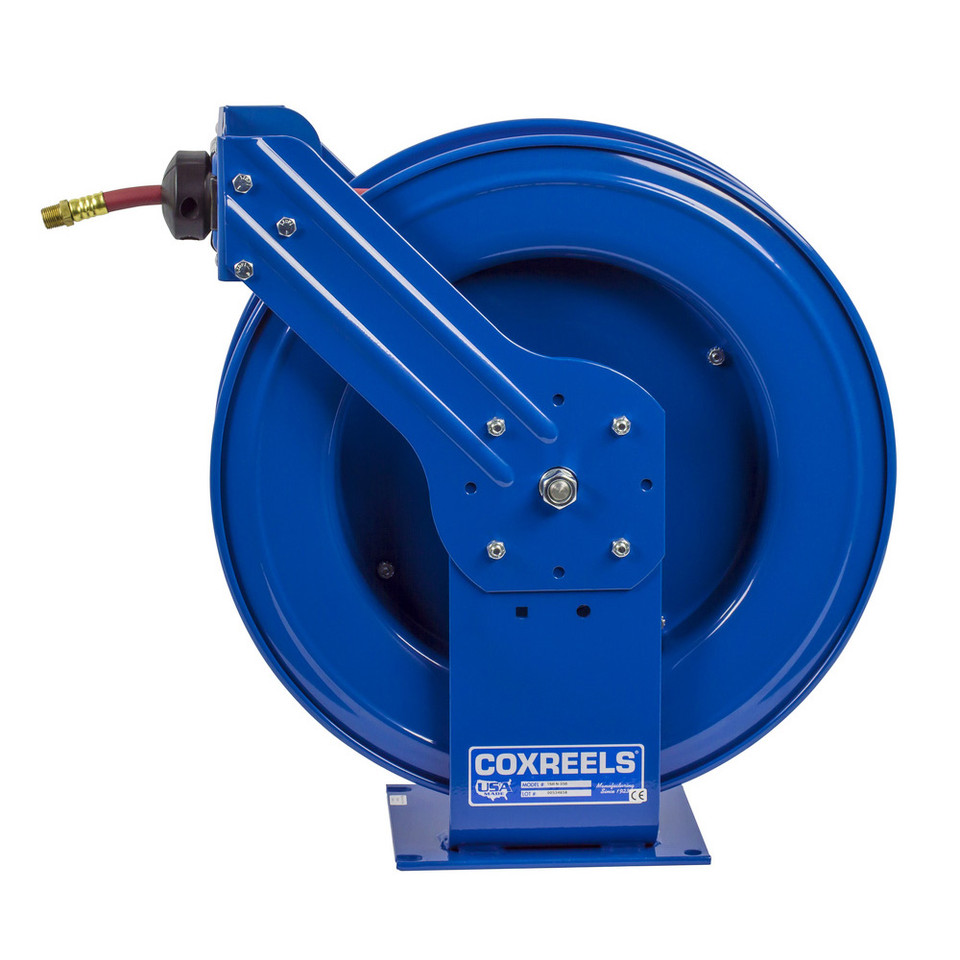

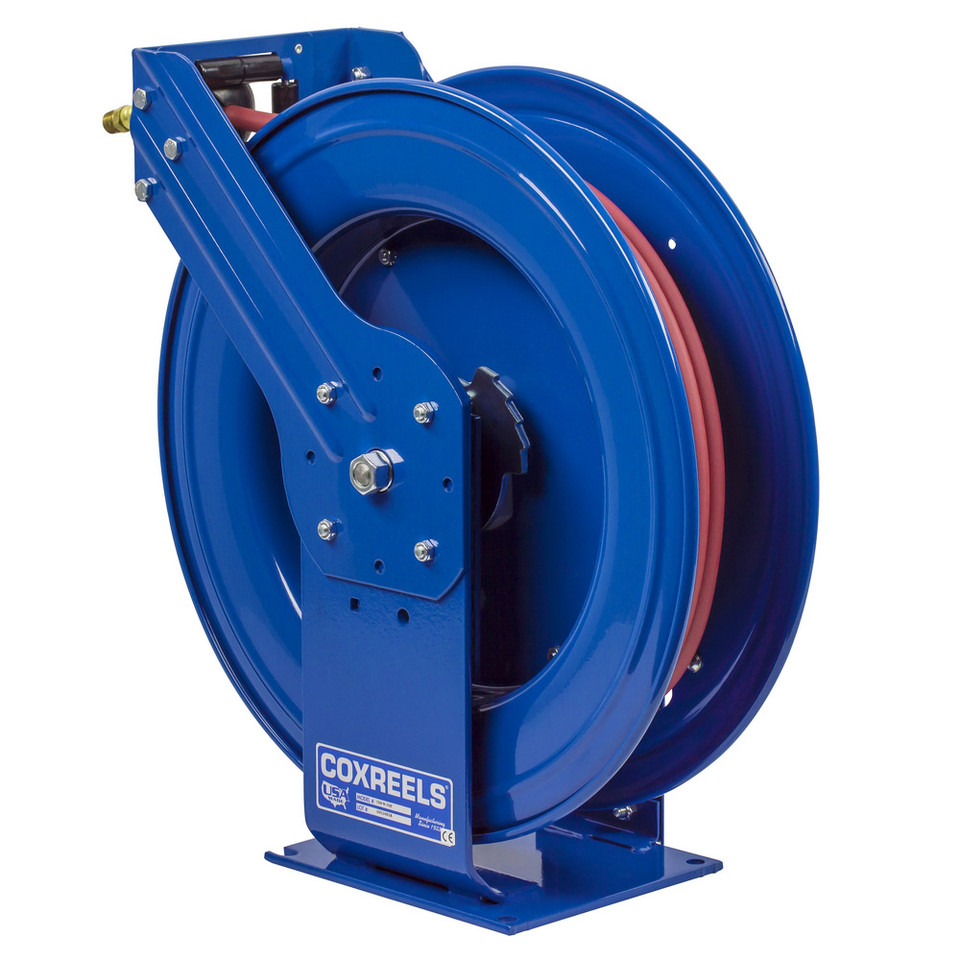

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T Series | Model: TMPL-N-575 | Configuration: Less Hose | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Capacity: 75 ft | Max Pressure: 1,500 PSI | Hose Included: No | Inlet: 3/4" FNPT | Swivel Material: Machined Brass | Swivel Seals: Nitrile | Service: Air, Water, Oil | Maximum Temperature: 250°F | Approx. Ship Weight: 77 lbs
Features:
- Supreme Duty T Series truck mount design uses an extra-large chassis with dual pedestal-style arms for rugged mobile and fixed installations.
- Coxreels’ Super Hub™ triple axle support system reinforces the center shaft area and helps reduce vibration during hose payout and rewind.
- External fluid path with machined from solid brass 90° full-flow NPT swivel inlet supports efficient fluid movement through the reel.
- Nitrile swivel seals provide compatibility with many air, water, and oil service applications when used with the proper hose.
- Guide arm adjusts to wall, floor, vehicle, and overhead positions so the reel can be oriented to match the hose pull direction.
- Stainless steel rollers on 3/4" models help guide the hose during payout and rewind.
- Solid one-piece heavy gauge 1/4" steel base and support posts provide a strong mounting foundation.
- 1" solid steel axle with lubricated precision bearings supports smooth reel rotation.
- Enclosed factory tuned and matched cartridge-style spring motor supports reliable spring rewind operation.
- Multi-position lock ratchet mechanism secures the hose at the desired working length during use.
Made in USA:
Applications:
- Service and mechanic vehicles — mounting a large-capacity 3/4" hose reel on utility trucks, field service rigs, and mobile maintenance units.
- Lube skids and trucks — organizing compatible air, water, or oil hose for equipment service, lubrication work, and mobile fluid handling.
- Industrial maintenance areas — keeping hose stored off the floor near compressors, oil service points, equipment bays, and plant utility stations.
- Mining, construction, and railroad operations — supporting hose management on equipment yards, mobile repair stations, and rugged service sites.
- Automotive, fleet, and aircraft maintenance — providing longer hose reach around vehicles, machinery, and shop bays while reducing loose hose clutter.
FAQs:
- Q: What does “less hose” mean for the Coxreels TMPL-N-575?
A: It means the reel is supplied without hose installed. The buyer must provide a compatible 3/4" I.D. hose that fits the reel capacity and matches the pressure, fluid, fitting, and temperature requirements of the application. - Q: What type of service is this reel used for?
A: The TMPL-N-575 is a medium pressure less-hose reel that can be used for air, water, or oil when equipped with the correct hose. Always confirm hose construction and fluid compatibility before installation. - Q: Is this an EZ-Coil controlled rewind reel?
A: No. This SKU is the standard T Series spring rewind model, not the EZ-Coil version. EZ-Coil models use an “EZ-” prefix and have controlled retraction speed; this TMPL-N-575 uses conventional spring rewind. - Q: Can this reel be mounted on a service truck?
A: Yes. The T Series is a truck mount reel line built for rugged mobile applications, and the guide arm adjusts for vehicle, wall, floor, and overhead mounting. The mounting surface must be strong enough for the reel, hose, fluid load, and pull forces. - Q: What hose size should be used with this reel?
A: This reel is listed for 3/4" I.D. hose with a maximum 1-1/16" O.D. and up to 75 ft capacity. Do not exceed the listed hose outside diameter if the full hose length capacity is required.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| TSH-N-350 | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350 | TSHL-N-350 | 55 | 1 |
| TSH-N-375 | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375 | TSHL-N-375 | 73 | 2 |
| TSH-N-3100 | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100 | TSHL-N-3100 | 74 | 2 |
| TSH-N-3125 | 3/8" | 5/8" | 125 | 300 | 103 | TSHL-N-3125 | 90 | 2 | |
| TSH-N-450 | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450 | TSHL-N-450 | 55 | 1 |
| TSH-N-475 | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475 | TSHL-N-475 | 71 | 2 |
| TSH-N-4100 | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100 | TSHL-N-4100 | 80 | 2 |
| TSH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 77 | EZ-TSH-535 | TSHL-N-535 | 67 | 3 |
| TSH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 83 | EZ-TSH-550 | TSHL-N-550 | 70 | 3 |
| TSH-N-575 | 3/4" | 1-1/16" | 75 | 300 | 93 | TSHL-N-575 | 73 | 4 | |
| TSH-N-635 | 1" | 1-1/2" | 35 | 300 | 92 | TSHL-N-635 | 71 | 5 | |
| TSH-N-650 | 1" | 1-1/2" | 50 | 300 | 98 | TSHL-N-650 | 77 | 4 | |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| TMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 74 | EZ-TMP-350 | TMPL-N-350 | 61 | 1 |
| TMP-N-375 | 3/8" | 11/16" | 75 | 3,000 | 99 | EZ-TMP-375 | TMPL-N-375 | 80 | 2 |
| TMP-N-3100 | 3/8" | 11/16" | 100 | 3,000 | 106 | TMPL-N-3100 | 82 | 2 | |
| TMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 77 | EZ-TMP-450 | TMPL-N-450 | 64 | 1 |
| TMP-N-475 | 1/2" | 13/16" | 75 | 2,500 | 100 | EZ-TMP-475 | TMPL-N-475 | 80 | 2 |
| TMP-N-4100 | 1/2" | 13/16" | 100 | 2,500 | 106 | TMPL-N-4100 | 80 | 2 | |
| TMP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 67 | TMPL-N-525 | 57 | 6 | |
| TMP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 88 | TMPL-N-535 | 74 | 3 | |
| TMP-N-550 | 3/4" | 1-1/16" | 50 | 1,500 | 94 | EZ-TMP-550 | TMPL-N-550 | 74 | 3 |
| TMP-N-575 | 3/4" | 1-1/16" | 75 | 1,500 | 100 | TMPL-N-575 | 77 | 7 | |
| TMP-N-650 | 1" | 1-3/8" | 50 | 1,250 | 116 | TMPL-N-650 | 81 | 7 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| THP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 74 | EZ-THP-150 | THPL-N-150 | 62 | 1 |
| THP-N-175 | 1/4" | 9/16" | 75 | 5,000 | 88 | EZ-THP-175 | THPL-N-175 | 71 | 2 |
| THP-N-1100 | 1/4" | 9/16" | 100 | 5,000 | 104 | EZ-THP-1100 | THPL-N-1100 | 82 | 2 |
| THP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 78 | EZ-THP-350 | THPL-N-350 | 66 | 1 |
| THP-N-375 | 3/8" | 11/16" | 75 | 4,000 | 98 | EZ-THP-375 | THPL-N-375 | 80 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
