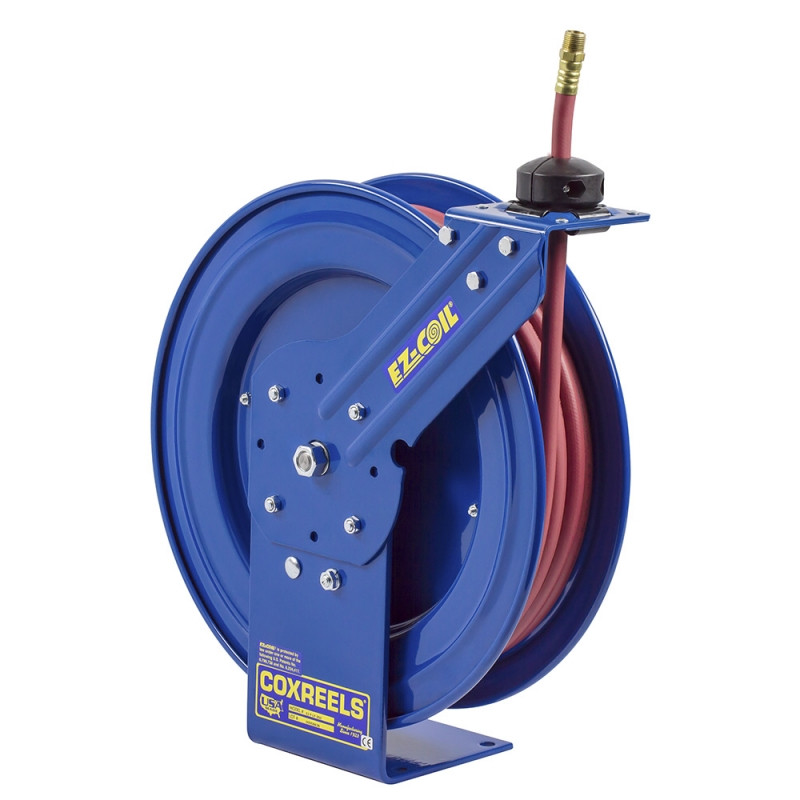

Coxreels EZ-P-LP-430 Low Pressure Spring Rewind Hose Reel | EZ-P Series | 1/2" Hose Diameter | 30' Hose Length | 300 Max PSI

When the tool at the end of the hose drinks serious CFM, the line that feeds it has to keep up. The Coxreels EZ-P-LP-430 Low Pressure Spring Rewind Hose Reel is built around 30 feet of 1/2-inch ID hose — the largest hose size in the P Series low-pressure lineup — and that larger flow path makes it a fit for high-consumption pneumatic tools that smaller reels can starve. Rated to 300 max PSI for air, water, and oil service up to 150°F, the EZ-P-LP-430 handles industrial impact wrenches, large die grinders, vertical sanders, and continuous-duty production tools that would choke on a 3/8-inch line. EZ-Coil controlled retraction (a patented safety mechanism that slows hose rewind across the final few feet) keeps the brass nozzle end from snapping back against the drum, the wall, or the operator. The spring rewind motor pulls the heavier hose home without complaint, and the heavy-gauge steel frame with powder-coat finish is built for the kind of duty cycle this reel was designed to serve — heavy fleet maintenance, industrial production, large fabrication shops, and any work environment where one reel feeds tools other reels can't.

Type: Spring Rewind Hose Reel | Series: EZ-Coil P Series (Low Pressure) | Hose ID (in.): 1/2 | Hose OD (in.): 3/4 | Hose Length (ft): 30 | Max Pressure (PSI): 300 | Max Temperature (°F): 150 | Service: Air, Water, Oil | Retraction: Spring Rewind with EZ-Coil Controlled Return | Approx. Weight (lbs): 45

Features

• EZ-Coil controlled retraction system slows hose rewind speed to prevent uncontrolled snap-back, protecting operators, hose ends, and surrounding equipment
• All-steel frame and base with durable powder-coat finish for long service in industrial, fleet, and production environments
• Pre-mounted 30-foot, 1/2-inch ID hose — the largest hose ID in the low-pressure P Series — passes maximum CFM to support high-consumption pneumatic tools without pressure drop
• 300 max PSI rating with service compatibility for air, water, and oil up to 150°F
• Multi-position adjustable guide arm directs hose payout at floor, bench, or overhead angles to match installation
• Heavy-duty spring motor delivers consistent rewind tension on the larger hose and is rebuildable in the field for extended service life
• CNC-machined brass swivel inlet provides a leak-resistant connection rated for the full pressure of the reel
• 47 lb body mounts to wall, ceiling, bench, floor, or vehicle with standard hardware

Made in USA:

2 Year Warranty

Applications

• Heavy fleet & truck maintenance — feeding industrial impact wrenches, large ratchets, and high-CFM air tools used on Class 7 and Class 8 trucks, trailers, and heavy equipment
• Industrial production & assembly — supplying continuous-duty pneumatic tools, air motors, and assembly fixtures where stable supply pressure matters
• Steel fabrication & welding shops — air feed for vertical grinders, large cut-off tools, plasma stations, and shop blow-off across large work areas
• Body shops & collision repair — high-volume air for large DA sanders, polishers, paint guns, and prep tools that need full flow to perform
• Large agricultural & equipment service — heavy-duty air and water delivery in equipment sheds, repair shops, and dealer service bays

FAQs

• Q: When do I actually need a 1/2-inch hose instead of a 3/8-inch hose?
  A: Any time the tool's rated air consumption pushes the limits of a 3/8-inch line. Industrial 3/4-inch and 1-inch impact wrenches, vertical grinders, large air motors, and continuous-duty production tools commonly draw 10 to 25+ CFM at load — at those flow rates, a 3/8-inch hose creates measurable pressure drop and the tool loses output. A 1/2-inch hose passes that volume without restricting the tool. For typical 1/2-inch impacts and DA sanders, 3/8-inch is fine; step up when the tool gets bigger.
• Q: What does the "EZ-Coil" feature actually do?
  A: EZ-Coil is Coxreels' patented controlled retraction system. As the hose rewinds, an internal dampener slows the return speed across the last few feet so the brass nozzle end doesn't whip back and strike the operator, the wall, or the reel housing. With a heavier 1/2-inch hose, an uncontrolled snap-back hits even harder than on smaller reels — making EZ-Coil especially worth having on this size.
• Q: Can this reel be used for diesel or gasoline?
  A: No. The EZ-P-LP-430 is rated for air, water, and oil service only. For fuel delivery (gasoline, diesel, E85, kerosene) you need a reel with Viton or fuel-rated seals — Coxreels offers dedicated fuel reels for that service.
• Q: How is the reel mounted, and can it go on a ceiling?
  A: The EZ-P-LP-430 has a multi-position guide arm and a mounting base designed for wall, ceiling, bench, floor, or vehicle mounting. At 47 lbs loaded, ceiling mounting is practical but requires fasteners and structure rated for the loaded weight plus dynamic load from the spring return. Confirm your mounting surface is up to it before installation.
• Q: What's the difference between the EZ-P-LP-430 and the standard P-LP-430?
  A: Both reels share the same hose, pressure, and service ratings. The EZ-P-LP-430 adds the EZ-Coil controlled retraction system, which is recommended anywhere operators are nearby during rewind — and is especially valuable on a heavier 1/2-inch reel where the rewind force is greater. The standard P-LP-430 is a conventional spring rewind without the dampener.
