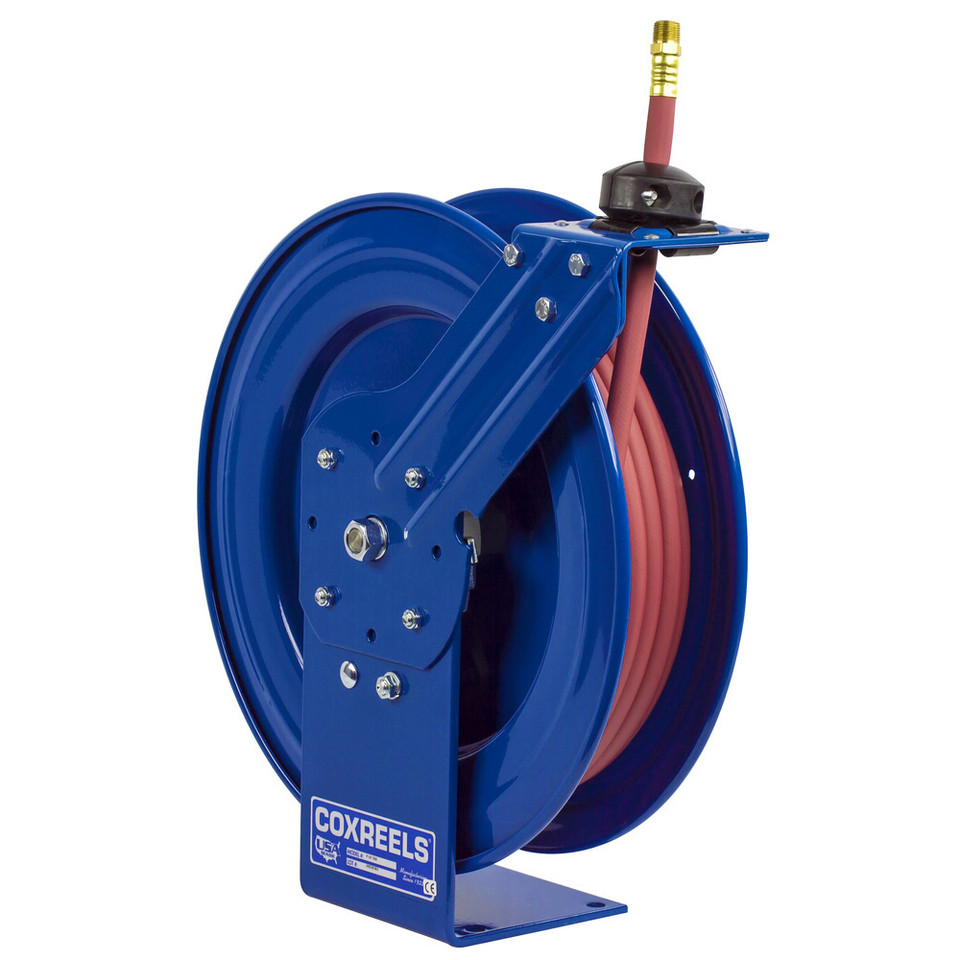

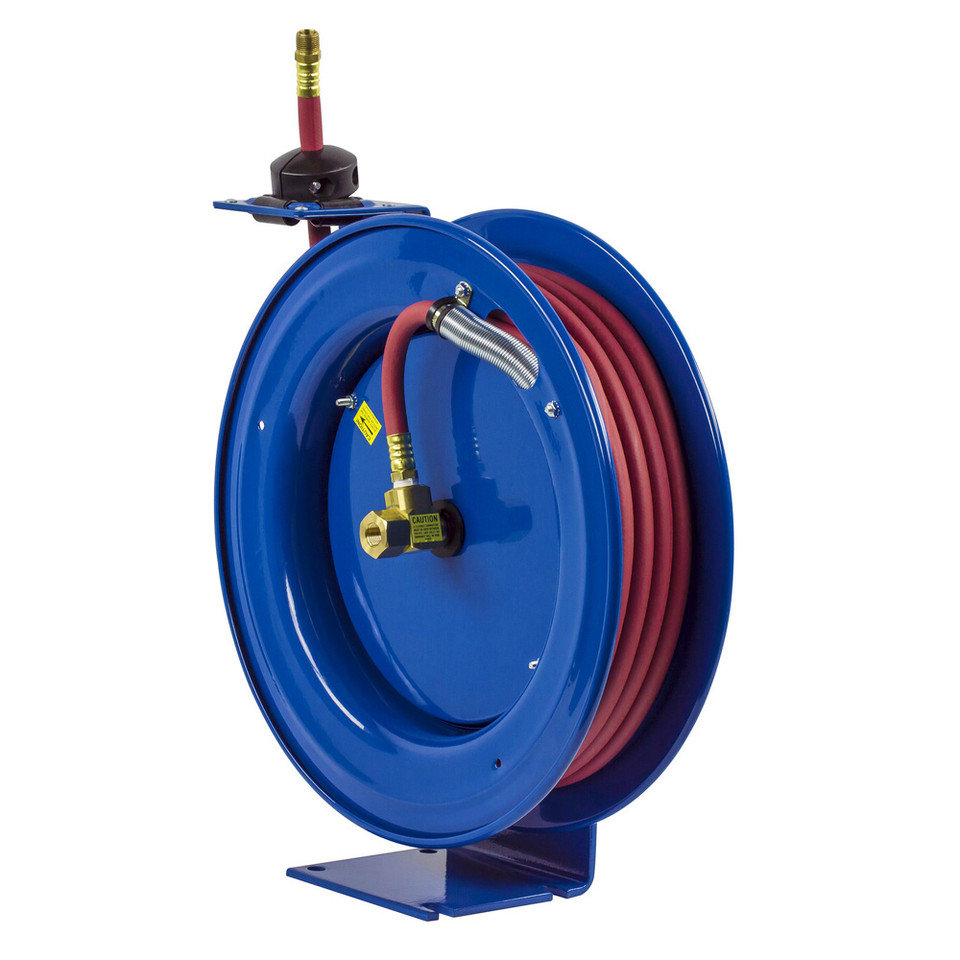

For low-pressure air and water work that needs a larger hose diameter than 3/8" reels provide, the Coxreels P-LP-450 Performance spring rewind hose reel delivers a hose-included storage solution for shops, service bays, maintenance areas, and washdown stations. Part of the P Series, this model includes 50 ft of 1/2" I.D. hose and is rated for 300 PSI, giving buyers a compact spring rewind reel for everyday hose access without leaving loose hose across floors, benches, or vehicle beds.
The P-LP-450 uses spring rewind, a spring-powered retraction system that returns the hose to the reel after use. A multi-position lock ratchet lets the operator hold the hose at the desired working length, while the adjustable guide arm supports floor, wall, ceiling, vehicle, and overhead mounting positions. Its single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, brass 90° full-flow NPT swivel, nitrile swivel seals, adjustable rubber hose stop, and CPC powder coat finish support clean hose handling in commercial, facility maintenance, garage, and light industrial environments.
Type: Spring Rewind Hose Reel | Series: P Series | SKU: P-LP-450 | Hose Included: Yes | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 50 ft | Max Pressure: 300 PSI | Service: Air, Water | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 50 lb | Overall Dimensions: 7" W x 18.63" H x 17.13" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- Spring rewind design retracts hose after use to help reduce floor clutter and improve hose storage at the workstation.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient service.
- External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
- Single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post provides a stable mounting platform.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during payout and rewind.
- Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
- CPC powder coat finish, adjustable solid rubber hose stop, and rolled ribbed discs support routine hose handling in shop and maintenance environments.
Made in USA:
Applications:
- Shop air stations where 50 ft of 1/2" hose provides reach for compatible low-pressure air tools, blow-off tasks, and inflation work.
- Maintenance bays and facility service areas where automatic hose return helps keep walkways and work areas cleaner between jobs.
- Low-pressure water and washdown points where the 300 PSI pressure rating matches the system requirements.
- Vehicle, bench, cart, wall, floor, ceiling, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.
- Garage, fleet, and light industrial workstations that need a hose-included spring rewind reel with a larger 1/2" hose size.
FAQs:
- Q: Does the Coxreels P-LP-450 include hose?
A: Yes. This model includes 50 ft of 1/2" I.D. hose and is rated for 300 PSI low-pressure air and water service. - Q: What is the difference between the P-LP-450 and P-LP-350?
A: The P-LP-450 includes 1/2" I.D. hose, while the P-LP-350 includes 3/8" I.D. hose. Choose the P-LP-450 when the application benefits from the larger hose diameter and the same 50 ft hose length. - Q: Can this reel be mounted on a wall or ceiling?
A: Yes. The multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions. The mounting surface must be strong enough to support the reel, hose, and operating load. - Q: Can the hose lock at different working lengths?
A: Yes. The multi-position lock ratchet mechanism secures the hose at the desired length so the operator can work without holding constant pull tension on the hose. - Q: Is the P-LP-450 suitable for pressure washing?
A: No. This reel is rated for 300 PSI low-pressure service. For pressure washing, choose a reel and hose assembly rated for the pressure washer's operating pressure.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LP-125 | P-LPL-125 | 24 | 1 |
| P-LP-130 | 1/4" | 1/2" | 30 | 300 | 27 | - | P-LPL-130 | 24 | 1 |
| P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LP-135 | P-LPL-135 | 25 | 1 |
| P-LP-140 | 1/4" | 1/2" | 40 | 300 | 38 | - | P-LPL-140 | 34 | 3 |
| P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LP-150 | P-LPL-150 | 35 | 3 |
| P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325 | P-LPL-325 | 25 | 2 |
| P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LP-330 | P-LPL-330 | 33 | 3 |
| P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LP-335 | P-LPL-335 | 34 | 3 |
| P-LP-340 | 3/8" | 5/8" | 40 | 300 | 39 | - | P-LPL-340 | 34 | 3 |
| P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350 | P-LPL-350 | 36 | 3 |
| P-LP-415 | 1/2" | 3/4" | 15 | 300 | 41 | - | P-LPL-415 | 38 | 4 |
| P-LP-425 | 1/2" | 3/4" | 25 | 300 | 44 | - | P-LPL-425 | 39 | 4 |
| P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LP-430 | P-LPL-430 | 40 | 4 |
| P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450 | P-LPL-450 | 43 | 4 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-MP-320 | 3/8" | 1-1/16" | 20 | 3,000 | 46 | - | P-MPL-320 | 41 | 4 |
| P-MP-325 | 3/8" | 1-1/16" | 25 | 3,000 | 49 | - | P-MPL-325 | 42 | 4 |
| P-MP-330 | 3/8" | 1-1/16" | 30 | 3,000 | 51 | - | P-MPL-330 | 43 | 4 |
| P-MP-335 | 3/8" | 1-1/16" | 35 | 3,000 | 52 | - | P-MPL-335 | 43 | 4 |
| P-MP-420 | 1/2" | 13/16" | 20 | 2,500 | 47 | - | P-MPL-420 | 41 | 4 |
| P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MP-425 | P-MPL-425 | 42 | 4 |
| P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MP-430 | P-MPL-430 | 43 | 4 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-HP-120 | 1/4" | 9/16" | 20 | 5,000 | 46 | - | P-HPL-120 | 41 | 4 |
| P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HP-125 | P-HPL-125 | 42 | 4 |
| P-HP-130 | 1/4" | 9/16" | 30 | 5,000 | 50 | - | P-HPL-130 | 43 | 4 |
| P-HP-135 | 1/4" | 9/16" | 35 | 5,000 | 51 | - | P-HPL-135 | 43 | 4 |
| P-HP-320 | 3/8" | 1-1/16" | 20 | 4,000 | 47 | - | P-HPL-320 | 41 | 4 |
| P-HP-325 | 3/8" | 1-1/16" | 25 | 4,000 | 49 | EZ-P-HP-325 | P-HPL-325 | 42 | 4 |
| P-HP-330 | 3/8" | 1-1/16" | 30 | 4,000 | 51 | - | P-HPL-330 | 43 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
