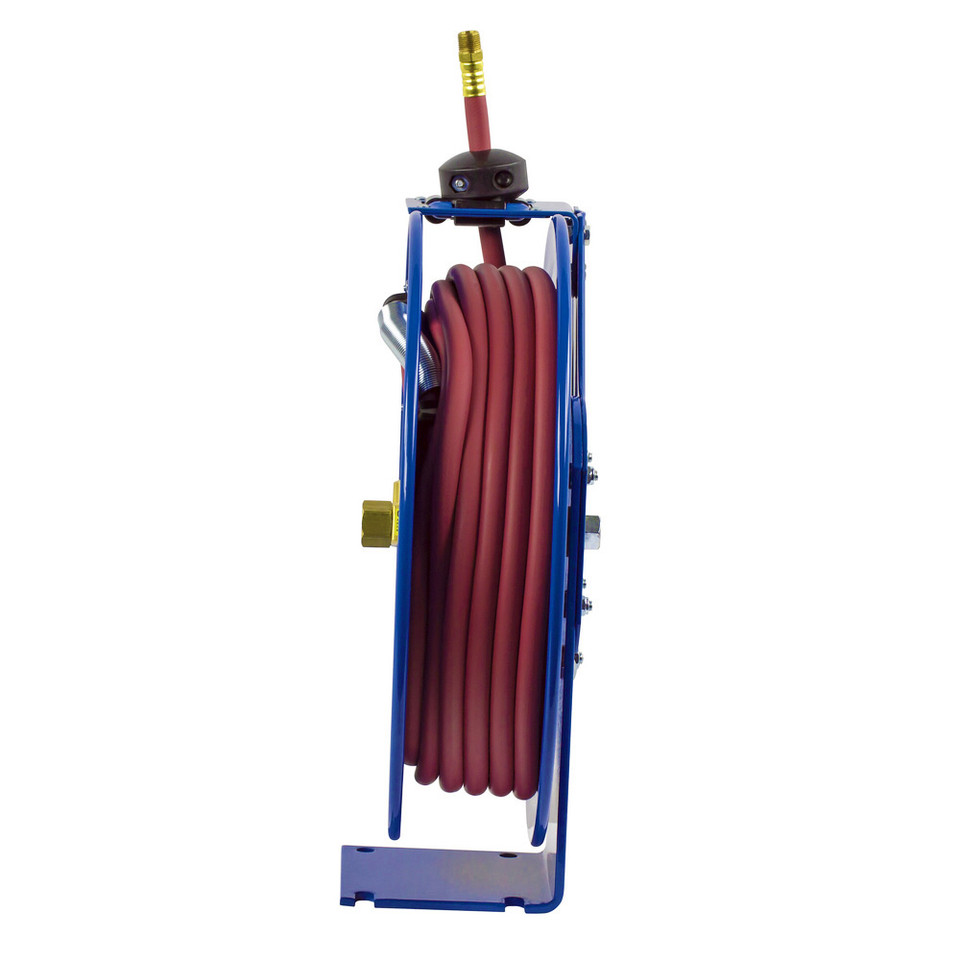

Coxreels P-LP-150 Performance Spring Rewind Hose Reel | P Series | 1/4" Hose Diameter | 50' Hose Length | 300 Max PSI

For compact point-of-use air and water stations that need a full 50 ft of reach in a smaller hose size, the Coxreels P-LP-150 Performance spring rewind hose reel keeps low-pressure hose organized and ready between tasks. Part of the P Series, this model includes 50 ft of 1/4" I.D. hose and is rated for 300 PSI, making it a practical choice for benches, service bays, maintenance workstations, garages, fleet shops, and light washdown areas where hose needs to retract neatly after use.

The P-LP-150 uses spring rewind, a spring-powered retraction system that returns the hose to the reel after use. A multi-position lock ratchet lets the operator stop the hose at the desired working length, while the adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions. Its single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, solid brass 90° full-flow NPT swivel, nitrile swivel seals, adjustable rubber hose stop, and CPC powder coat finish help keep work areas cleaner and hose handling more controlled.

Type: Spring Rewind Hose Reel | Series: P Series | SKU: P-LP-150 | Hose Included: Yes | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Length: 50 ft | Max Pressure: 300 PSI | Service: Air, Water | Maximum Temperature: 150°F | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 40 lb | Overall Dimensions: 6.75" W x 18.63" H x 17.13" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y

Features:

• Spring rewind design retracts hose after use to help reduce loose hose around benches, bays, walkways, and vehicle work areas.
• Multi-position lock ratchet mechanism secures the hose at the desired working length.
• Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient service.
• External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
• Sturdy single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post provides mounting stability.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation during payout and rewind.
• Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
• CPC powder coat finish, adjustable solid rubber hose stop, and rolled ribbed discs support routine hose handling in shop and maintenance environments.

Made in USA:

2 Year Warranty

Applications:

• Point-of-use shop air stations where 50 ft of 1/4" hose supports inflation, blow-off work, and connection to compatible low-pressure accessories.
• Maintenance benches and service bays where automatic hose return helps keep the immediate work area cleaner between tasks.
• Low-pressure water and light washdown points when the 300 PSI rating and 150°F maximum temperature match the system requirements.
• Garage, fleet, and facility workstations that need a smaller hose diameter with enough reach for everyday service work.
• Wall, floor, ceiling, vehicle, bench, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.

FAQs:

• Q: Does the Coxreels P-LP-150 include hose?
  A: Yes. This model includes 50 ft of 1/4" I.D. hose and is rated for 300 PSI low-pressure air and water service.
• Q: What is the difference between the P-LP-150 and P-LP-350?
  A: The P-LP-150 includes 1/4" I.D. hose, while the P-LP-350 includes 3/8" I.D. hose. Choose the P-LP-150 when a smaller hose size fits the air or water task and the 50 ft hose length is still needed.
• Q: Can the hose lock at different working lengths?
  A: Yes. The multi-position lock ratchet mechanism allows the operator to stop the hose at the desired length instead of having it retract immediately.
• Q: Can this reel be mounted on a wall or ceiling?
  A: Yes. The multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions. Always mount the reel securely to a surface that can support the reel, hose, and operating load.
• Q: Is the P-LP-150 suitable for pressure washing?
  A: No. This reel is rated for 300 PSI low-pressure service. For pressure washing, choose a reel and hose assembly rated for the pressure washer's operating pressure.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
