For low-pressure hose stations where the buyer wants to choose the hose separately, the Coxreels P-LPL-350 Performance spring rewind hose reel provides compact retractable storage without a factory-installed hose. Part of the P Series, this reel is sized for 3/8" I.D. hose with a 50 ft hose capacity and a 300 PSI maximum pressure rating, making it a practical reel-only option for compatible air, water, washdown, and general low-pressure fluid handling layouts.
The P-LPL-350 uses spring rewind, a spring-powered retraction system that pulls the hose back onto the reel after use. A multi-position lock ratchet allows the operator to hold the hose at the desired working length, while the adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions. Its single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, solid brass 90° full-flow NPT swivel, nitrile swivel seals, adjustable rubber hose stop, and CPC powder coat finish help keep work areas cleaner and hose handling more controlled.

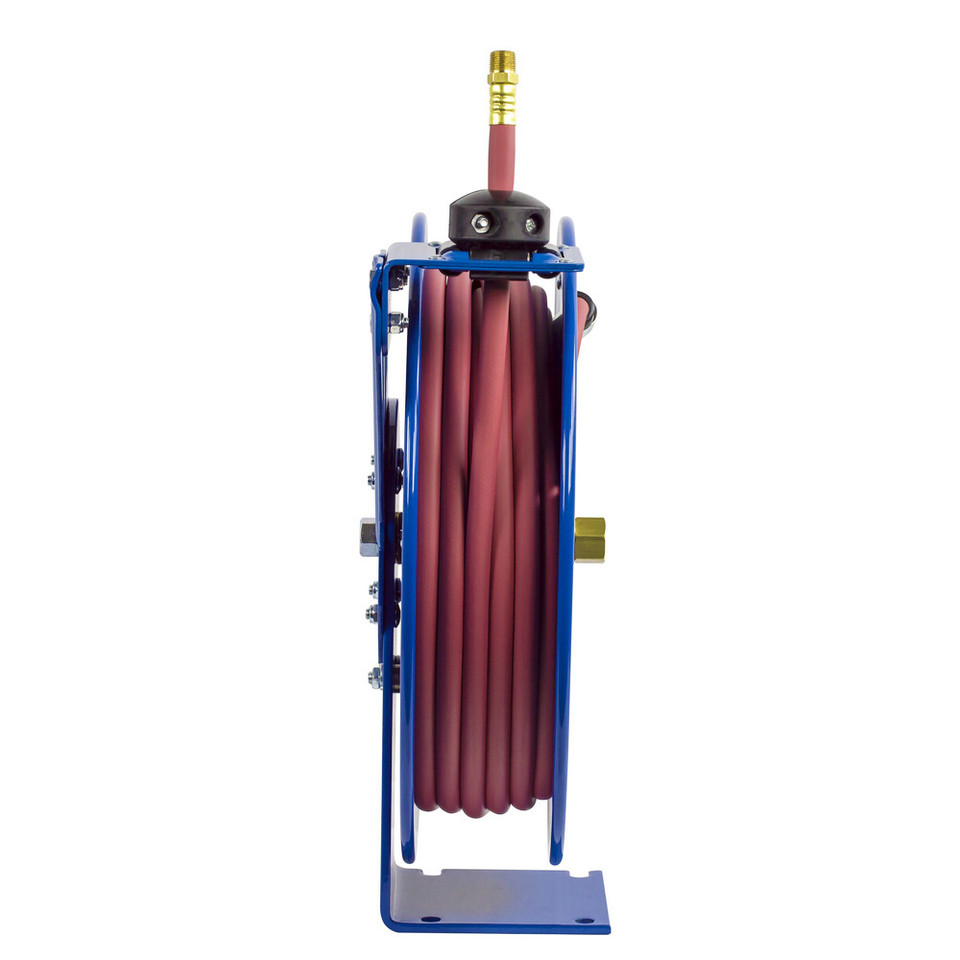

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Hose Reel | Series: P Series | SKU: P-LPL-350 | Configuration: Less Hose | Hose Included: No | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 50 ft | Max Pressure: 300 PSI | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 36 lb | Overall Dimensions: 6.75" W x 18.63" H x 17.13" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- Spring rewind design helps retract compatible hose after use, reducing loose hose around workstations and walkways.
- Multi-position lock ratchet mechanism secures the hose at the desired working length during use.
- Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient maintenance.
- External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
- Sturdy single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post provides mounting stability.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during payout and rewind.
- Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
- CPC powder coat finish, adjustable solid rubber hose stop, and rolled ribbed discs support daily use in shop, maintenance, and service environments.
Made in USA:
Applications:
- Shop air stations where the buyer wants to install a specific 3/8" hose for low-pressure air service.
- Maintenance bays and service departments that need spring rewind hose storage without a pre-installed hose assembly.
- Low-pressure water and washdown points when the selected hose, fittings, seals, and pressure rating match the application.
- Vehicle, cart, bench, wall, floor, ceiling, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.
- Facility, garage, and light industrial work areas where reel-only purchasing allows hose selection based on fluid, temperature, and connection requirements.
FAQs:
- Q: Does the Coxreels P-LPL-350 include hose?
A: No. The L in P-LPL indicates a less-hose configuration, so this reel is supplied without hose installed. - Q: What hose size is this reel built to accept?
A: This model is sized for up to 50 ft of 3/8" I.D. hose with a 5/8" hose O.D. Using hose with a different outside diameter may affect how much hose the reel can hold. - Q: How is the P-LPL-350 different from the P-LP-350?
A: The P-LPL-350 is supplied less hose, while the P-LP-350 includes hose. Choose the P-LPL-350 when you want to select or install your own compatible hose. - Q: Can this reel lock the hose at different lengths?
A: Yes. The multi-position lock ratchet mechanism secures the hose at the desired working length so the operator does not need to hold constant pull tension. - Q: Is this reel suitable for pressure washing?
A: No. This is a 300 PSI low-pressure reel. For pressure washing, choose a reel and hose assembly rated for the pressure washer's operating pressure.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LP-125 | P-LPL-125 | 24 | 1 |
| P-LP-130 | 1/4" | 1/2" | 30 | 300 | 27 | - | P-LPL-130 | 24 | 1 |
| P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LP-135 | P-LPL-135 | 25 | 1 |
| P-LP-140 | 1/4" | 1/2" | 40 | 300 | 38 | - | P-LPL-140 | 34 | 3 |
| P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LP-150 | P-LPL-150 | 35 | 3 |
| P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325 | P-LPL-325 | 25 | 2 |
| P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LP-330 | P-LPL-330 | 33 | 3 |
| P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LP-335 | P-LPL-335 | 34 | 3 |
| P-LP-340 | 3/8" | 5/8" | 40 | 300 | 39 | - | P-LPL-340 | 34 | 3 |
| P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350 | P-LPL-350 | 36 | 3 |
| P-LP-415 | 1/2" | 3/4" | 15 | 300 | 41 | - | P-LPL-415 | 38 | 4 |
| P-LP-425 | 1/2" | 3/4" | 25 | 300 | 44 | - | P-LPL-425 | 39 | 4 |
| P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LP-430 | P-LPL-430 | 40 | 4 |
| P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450 | P-LPL-450 | 43 | 4 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-MP-320 | 3/8" | 1-1/16" | 20 | 3,000 | 46 | - | P-MPL-320 | 41 | 4 |
| P-MP-325 | 3/8" | 1-1/16" | 25 | 3,000 | 49 | - | P-MPL-325 | 42 | 4 |
| P-MP-330 | 3/8" | 1-1/16" | 30 | 3,000 | 51 | - | P-MPL-330 | 43 | 4 |
| P-MP-335 | 3/8" | 1-1/16" | 35 | 3,000 | 52 | - | P-MPL-335 | 43 | 4 |
| P-MP-420 | 1/2" | 13/16" | 20 | 2,500 | 47 | - | P-MPL-420 | 41 | 4 |
| P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MP-425 | P-MPL-425 | 42 | 4 |
| P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MP-430 | P-MPL-430 | 43 | 4 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-HP-120 | 1/4" | 9/16" | 20 | 5,000 | 46 | - | P-HPL-120 | 41 | 4 |
| P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HP-125 | P-HPL-125 | 42 | 4 |
| P-HP-130 | 1/4" | 9/16" | 30 | 5,000 | 50 | - | P-HPL-130 | 43 | 4 |
| P-HP-135 | 1/4" | 9/16" | 35 | 5,000 | 51 | - | P-HPL-135 | 43 | 4 |
| P-HP-320 | 3/8" | 1-1/16" | 20 | 4,000 | 47 | - | P-HPL-320 | 41 | 4 |
| P-HP-325 | 3/8" | 1-1/16" | 25 | 4,000 | 49 | EZ-P-HP-325 | P-HPL-325 | 42 | 4 |
| P-HP-330 | 3/8" | 1-1/16" | 30 | 4,000 | 51 | - | P-HPL-330 | 43 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
