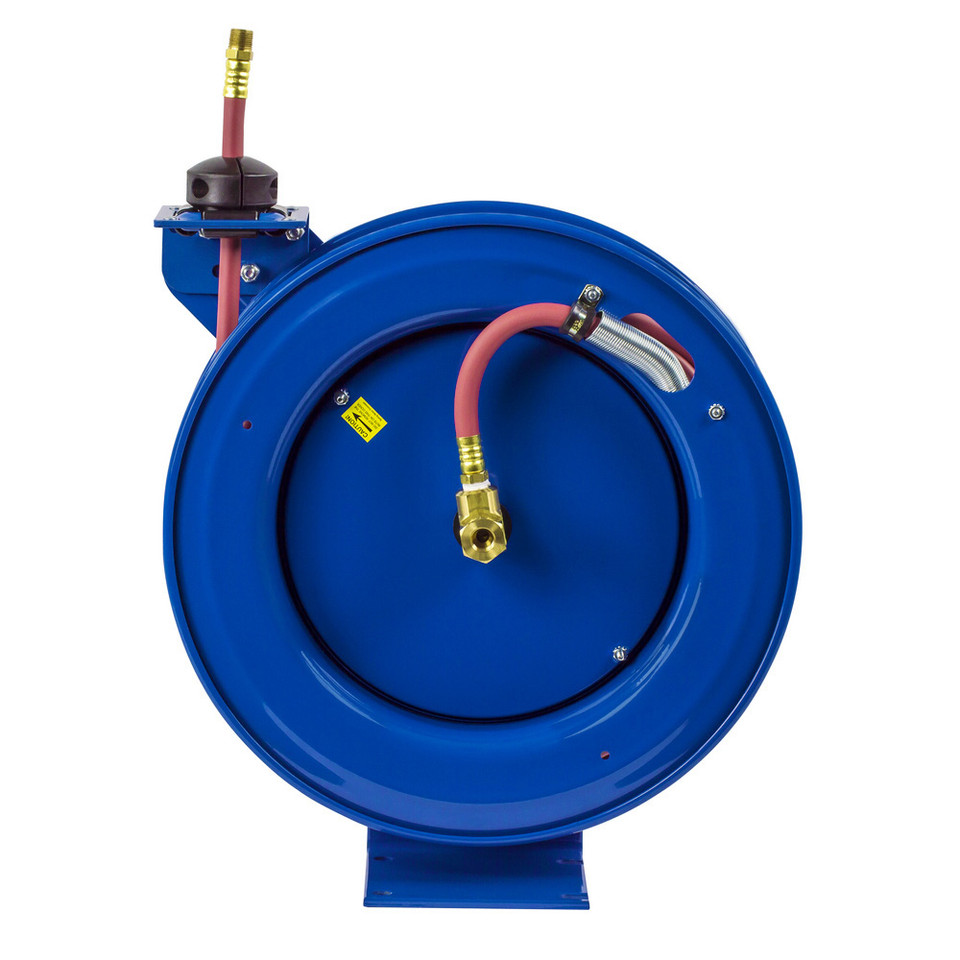

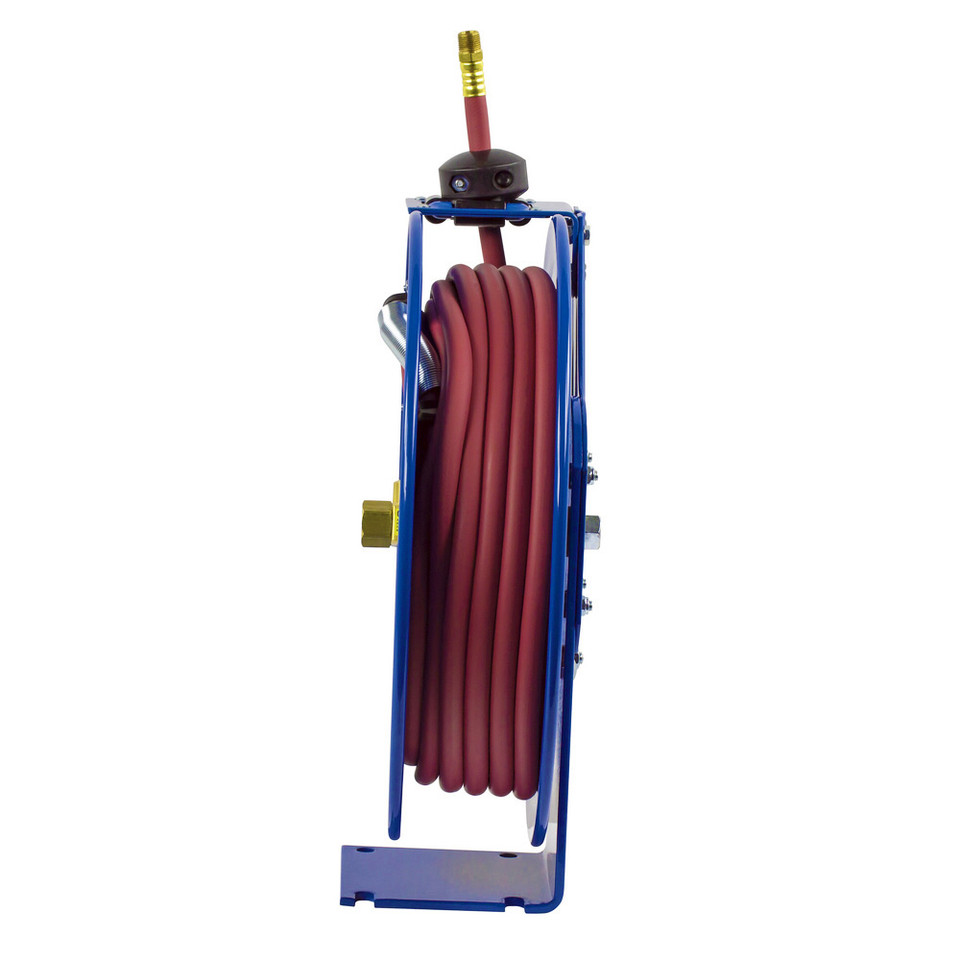

For low-pressure air and water workstations that need 1/2" hose in a shorter 25 ft length, the Coxreels P-LP-425 Performance spring rewind hose reel keeps hose access close, organized, and ready for everyday use. Part of the P Series, this model includes 25 ft of 1/2" I.D. hose and is rated for 300 PSI, making it a practical choice for benches, service bays, fleet shops, garages, facility maintenance areas, and compatible light washdown points where a larger hose diameter is useful but a 50 ft reel is unnecessary.
The P-LP-425 uses spring rewind, a spring-powered retraction system that returns the hose to the reel after use. A multi-position lock ratchet secures the hose at the desired working length, while the adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions. Its single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, solid brass 90° full-flow NPT swivel, nitrile swivel seals, adjustable rubber hose stop, and CPC powder coat finish support cleaner hose handling in shop, garage, and maintenance environments.
Type: Spring Rewind Hose Reel | Series: P Series | SKU: P-LP-425 | Hose Included: Yes | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 25 ft | Max Pressure: 300 PSI | Service: Air, Water | Maximum Temperature: 150°F | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 44 lb | Overall Dimensions: 7" W x 18.63" H x 17.13" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- Spring rewind design retracts hose after use to help reduce loose hose around benches, bays, walkways, and service areas.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient service.
- External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
- Sturdy single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post provides mounting stability.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
- Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
- CPC powder coat finish, adjustable solid rubber hose stop, and rolled ribbed discs support routine hose handling in commercial and maintenance settings.
Made in USA:
Applications:
- Shop air stations where 25 ft of 1/2" hose supports compatible low-pressure air tools, blow-off work, and inflation tasks.
- Maintenance benches and fleet service bays where automatic hose return helps keep the immediate work area cleaner between uses.
- Low-pressure water and light washdown points when the 300 PSI rating and 150°F maximum temperature match the system requirements.
- Garage, facility, and light industrial workstations that need a larger hose diameter without the added reach of a 50 ft reel.
- Wall, floor, ceiling, vehicle, bench, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.
FAQs:
- Q: Does the Coxreels P-LP-425 include hose?
A: Yes. This model includes 25 ft of 1/2" I.D. hose and is rated for 300 PSI low-pressure air and water service. - Q: What is the difference between the P-LP-425 and P-LP-450?
A: The P-LP-425 includes 25 ft of 1/2" hose, while the P-LP-450 includes 50 ft of 1/2" hose. Choose the P-LP-425 when the workstation only needs shorter reach or when extra hose length would create clutter. - Q: How is the P-LP-425 different from the P-LP-325?
A: The P-LP-425 includes 1/2" I.D. hose, while the P-LP-325 includes 3/8" I.D. hose. Choose the 1/2" model when the application benefits from a larger hose diameter. - Q: Can this reel be mounted on a wall or ceiling?
A: Yes. The multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions. Always mount the reel securely to a surface that can support the reel, hose, and operating load. - Q: Is the P-LP-425 suitable for pressure washing?
A: No. This reel is rated for 300 PSI low-pressure service. For pressure washing, choose a reel and hose assembly rated for the pressure washer's operating pressure.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LP-125 | P-LPL-125 | 24 | 1 |
| P-LP-130 | 1/4" | 1/2" | 30 | 300 | 27 | - | P-LPL-130 | 24 | 1 |
| P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LP-135 | P-LPL-135 | 25 | 1 |
| P-LP-140 | 1/4" | 1/2" | 40 | 300 | 38 | - | P-LPL-140 | 34 | 3 |
| P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LP-150 | P-LPL-150 | 35 | 3 |
| P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325 | P-LPL-325 | 25 | 2 |
| P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LP-330 | P-LPL-330 | 33 | 3 |
| P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LP-335 | P-LPL-335 | 34 | 3 |
| P-LP-340 | 3/8" | 5/8" | 40 | 300 | 39 | - | P-LPL-340 | 34 | 3 |
| P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350 | P-LPL-350 | 36 | 3 |
| P-LP-415 | 1/2" | 3/4" | 15 | 300 | 41 | - | P-LPL-415 | 38 | 4 |
| P-LP-425 | 1/2" | 3/4" | 25 | 300 | 44 | - | P-LPL-425 | 39 | 4 |
| P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LP-430 | P-LPL-430 | 40 | 4 |
| P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450 | P-LPL-450 | 43 | 4 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-MP-320 | 3/8" | 1-1/16" | 20 | 3,000 | 46 | - | P-MPL-320 | 41 | 4 |
| P-MP-325 | 3/8" | 1-1/16" | 25 | 3,000 | 49 | - | P-MPL-325 | 42 | 4 |
| P-MP-330 | 3/8" | 1-1/16" | 30 | 3,000 | 51 | - | P-MPL-330 | 43 | 4 |
| P-MP-335 | 3/8" | 1-1/16" | 35 | 3,000 | 52 | - | P-MPL-335 | 43 | 4 |
| P-MP-420 | 1/2" | 13/16" | 20 | 2,500 | 47 | - | P-MPL-420 | 41 | 4 |
| P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MP-425 | P-MPL-425 | 42 | 4 |
| P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MP-430 | P-MPL-430 | 43 | 4 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-HP-120 | 1/4" | 9/16" | 20 | 5,000 | 46 | - | P-HPL-120 | 41 | 4 |
| P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HP-125 | P-HPL-125 | 42 | 4 |
| P-HP-130 | 1/4" | 9/16" | 30 | 5,000 | 50 | - | P-HPL-130 | 43 | 4 |
| P-HP-135 | 1/4" | 9/16" | 35 | 5,000 | 51 | - | P-HPL-135 | 43 | 4 |
| P-HP-320 | 3/8" | 1-1/16" | 20 | 4,000 | 47 | - | P-HPL-320 | 41 | 4 |
| P-HP-325 | 3/8" | 1-1/16" | 25 | 4,000 | 49 | EZ-P-HP-325 | P-HPL-325 | 42 | 4 |
| P-HP-330 | 3/8" | 1-1/16" | 30 | 4,000 | 51 | - | P-HPL-330 | 43 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
