Built for air, water, and oil service in shops, fleet bays, and light industrial settings, the Coxreels P-LPL-140 is a P Series Spring Rewind Hose Reel (a self-retracting reel that pulls hose back automatically when released) shipped without hose so you can fit your own. It accommodates up to 40 feet of 1/4-inch I.D. hose with a 1/2-inch O.D. — enough reach to cover a two-bay garage, a small machine cell, or a wash-down station from a single mount point. The 300 PSI maximum working pressure (suited to standard shop air and low-pressure fluid lines, well above the 90–125 PSI typical of compressed air systems) handles routine pneumatic and fluid applications up to 150°F. Spring rewind operation keeps the hose off the floor between uses, reducing trip hazards and extending hose life. The "less hose" configuration lets you match hose material, color, and fittings to your specific application rather than accepting a pre-installed default.

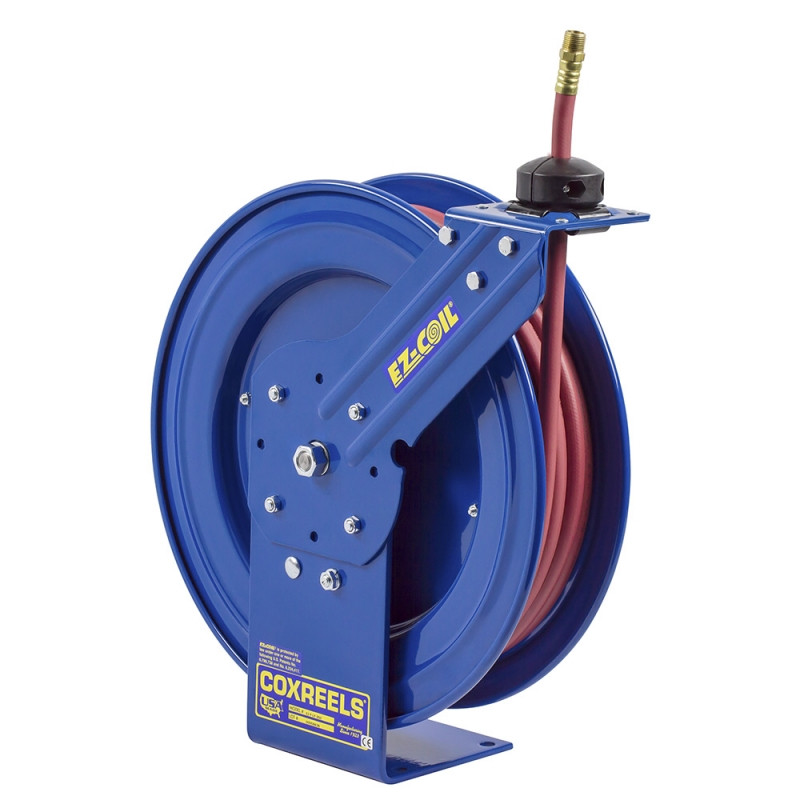

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Hose Reel | Series: P | Configuration: Less Hose | Pressure Class: Low Pressure | Hose I.D. (in.): 1/4 | Hose O.D. (in.): 1/2 | Hose Capacity (ft.): 40 | Max PSI: 300 | Max Temperature (°F): 150 | Service: Air / Water / Oil | Approx. Weight (lbs.): 34 | Size Index: 3
Features:
- Spring rewind retraction returns the hose to the reel automatically after use
- Compact P Series frame suited to wall, ceiling, bench, or truck-bed mounting
- Rated for air, water, and oil service up to 150°F operating temperature
300 PSI maximum working pressure covers standard shop air and low-pressure fluid lines - Shipped less hose — fit your own 1/4-inch I.D. hose with 1/2-inch O.D. up to 40 feet
- 34 lb. assembled weight allows single-person installation in most mounting positions
Made in USA:
Applications:
- Automotive & fleet service bays — overhead air drops for impact wrenches, ratchets, blow guns, and tire inflators across two- and three-bay shops
- Industrial maintenance & MRO — pneumatic tool supply at workstations, conveyor lines, and assembly cells where a fixed drop is impractical
- Wash-down & fluid transfer stations — low-pressure water or oil delivery in food processing prep areas, kennels, agricultural facilities, and small manufacturing
- Mobile service trucks & trailers — truck-mounted air supply for field service, tire repair rigs, and mobile detailing setups
- DIY garage & home workshop — wall-mounted air drop for hobby restoration, woodworking, and general DIY pneumatic work
FAQs:
- Q: Why does the model say "less hose" — what's in the box? A: "Less hose" means the reel ships bare without any hose installed. You purchase the hose separately and fit it to the reel. This lets you choose the exact hose material (rubber, PVC, polyurethane), color, and fitting type for your application. If you want a complete unit with hose pre-installed, the matching model is the P-LP-140.
- Q: What hose specs do I need to match? A: Fit a hose with 1/4-inch inside diameter, 1/2-inch outside diameter, and up to 40 feet in length. The hose must also meet or exceed the 300 PSI pressure rating and 150°F temperature limit. For oil service, confirm hose material compatibility with your specific fluid.
- Q: Can this reel handle fuel or gasoline? A: No — the P-LPL-140 is rated for air, water, and oil service only. For fuel delivery (gasoline, diesel, E85), select a Coxreels reel with fuel-compatible seals. Using this reel with fuel can damage the swivel seals and create a leak hazard.
- Q: What mounting orientations are supported? A: The P Series mounts to walls, ceilings, benches, and truck beds. Confirm the mounting surface can support the loaded weight (reel + hose + fluid in the line) and that the hose payout path is clear of obstructions. Check the Coxreels P Series mounting dimensions in the catalog for the bolt pattern.
- Q: Is the spring rewind tension adjustable? A: P Series spring rewind reels ship with factory-set tension matched to the rated hose capacity. Tension can be adjusted in the field per Coxreels' service instructions if the hose retracts too slowly or too aggressively for your installation.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LP-125 | P-LPL-125 | 24 | 1 |
| P-LP-130 | 1/4" | 1/2" | 30 | 300 | 27 | - | P-LPL-130 | 24 | 1 |
| P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LP-135 | P-LPL-135 | 25 | 1 |
| P-LP-140 | 1/4" | 1/2" | 40 | 300 | 38 | - | P-LPL-140 | 34 | 3 |
| P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LP-150 | P-LPL-150 | 35 | 3 |
| P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325 | P-LPL-325 | 25 | 2 |
| P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LP-330 | P-LPL-330 | 33 | 3 |
| P-LP-335 | 3/8" | 5/8" | 35 | 300 | 39 | EZ-P-LP-335 | P-LPL-335 | 34 | 3 |
| P-LP-340 | 3/8" | 5/8" | 40 | 300 | 39 | - | P-LPL-340 | 34 | 3 |
| P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350 | P-LPL-350 | 36 | 3 |
| P-LP-415 | 1/2" | 3/4" | 15 | 300 | 41 | - | P-LPL-415 | 38 | 4 |
| P-LP-425 | 1/2" | 3/4" | 25 | 300 | 44 | - | P-LPL-425 | 39 | 4 |
| P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LP-430 | P-LPL-430 | 40 | 4 |
| P-LP-450 | 1/2" | 3/4" | 50 | 300 | 50 | EZ-P-LP-450 | P-LPL-450 | 43 | 4 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | |||||||||
| P-MP-320 | 3/8" | 11/16" | 25 | 3,000 | 46 | - | P-MPL-320 | 41 | 4 |
| P-MP-325 | 3/8" | 11/16" | 25 | 3,000 | 49 | - | P-MPL-325 | 42 | 4 |
| P-MP-330 | 3/8" | 11/16" | 30 | 3,000 | 51 | - | P-MPL-330 | 43 | 4 |
| P-MP-335 | 3/8" | 11/16" | 35 | 3,000 | 52 | - | P-MPL-335 | 43 | 4 |
| P-MP-420 | 1/2" | 13/16" | 20 | 2,500 | 47 | - | P-MPL-420 | 41 | 4 |
| P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MP-425 | P-MPL-425 | 42 | 4 |
| P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MP-430 | P-MPL-430 | 43 | 4 |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | |||||||||
| P-HP-120 | 1/4" | 9/16" | 20 | 5,000 | 46 | - | P-HPL-120 | 41 | 4 |
| P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HP-125 | P-HPL-125 | 42 | 4 |
| P-HP-130 | 1/4" | 9/16" | 30 | 5,000 | 50 | - | P-HPL-130 | 43 | 4 |
| P-HP-135 | 1/4" | 9/16" | 35 | 5,000 | 51 | - | P-HPL-135 | 43 | 4 |
| P-HP-320 | 3/8" | 11/16" | 20 | 4,000 | 47 | - | P-HPL-320 | 41 | 4 |
| P-HP-325 | 3/8" | 11/16" | 25 | 4,000 | 49 | EZ-P-HP-325 | P-HPL-325 | 42 | 4 |
| P-HP-330 | 3/8" | 11/16" | 30 | 4,000 | 51 | - | P-HPL-330 | 43 | 4 |
Looking for more information about the Coxreels Hose Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Hose Reels, please call (800) 608-5210 or email info@intlairtool.com
