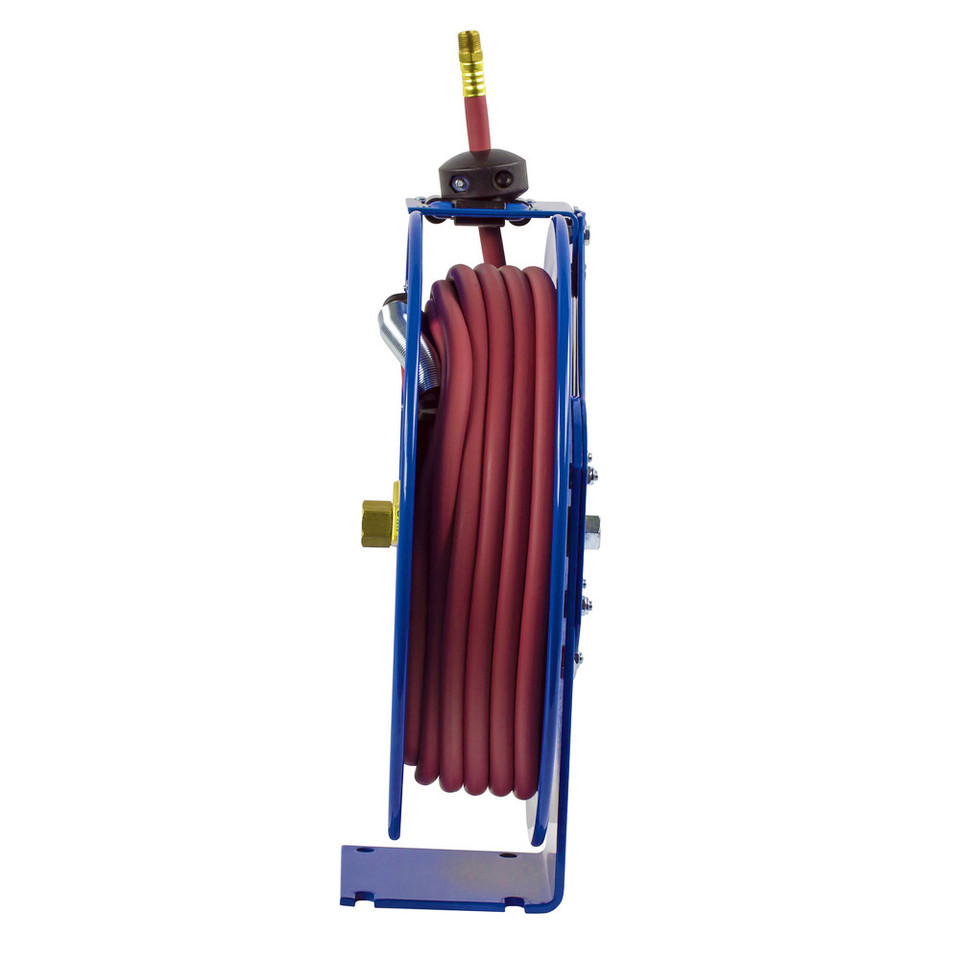

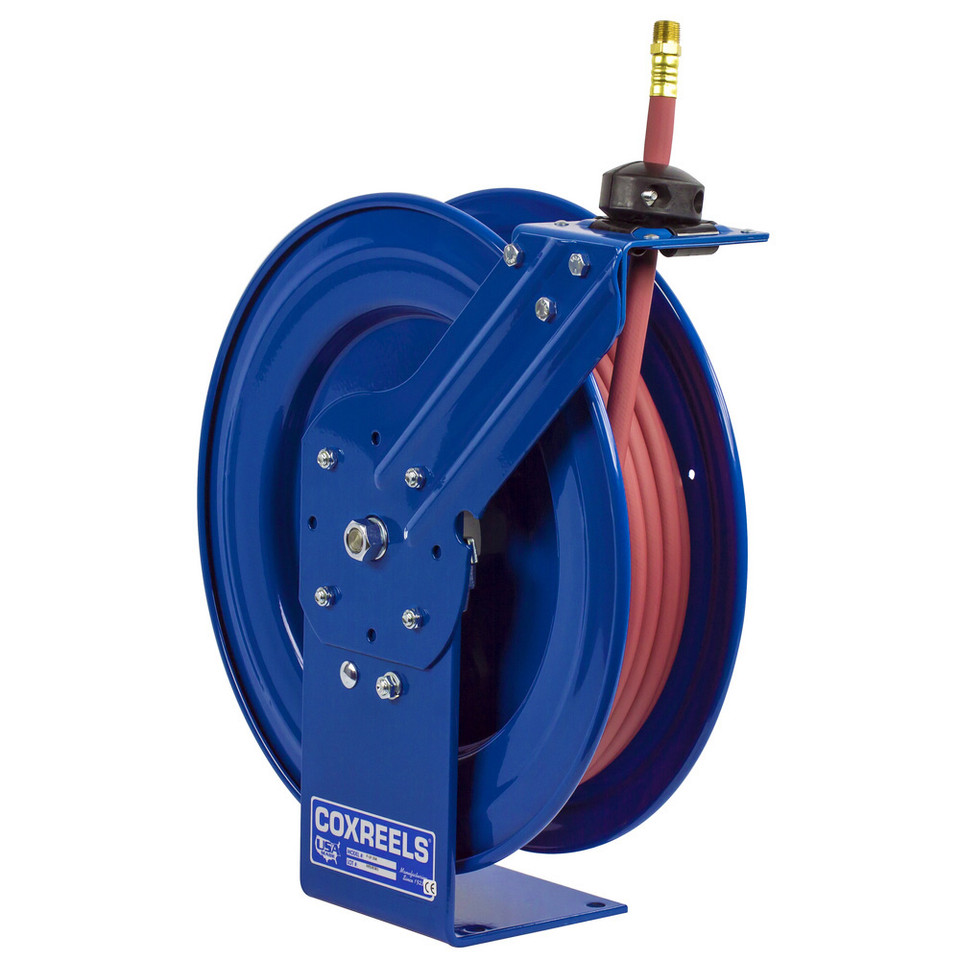

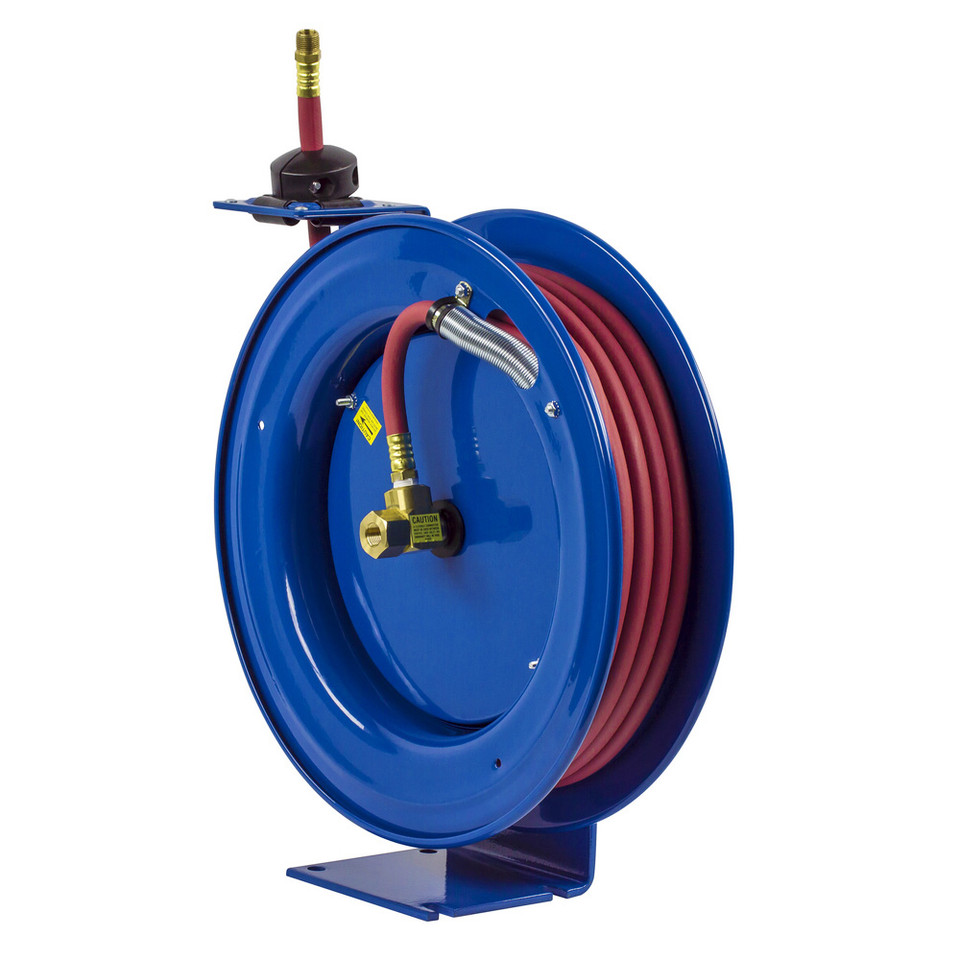

Coxreels P-LP-130 Low Pressure Spring Rewind Hose Reel | P Series | 1/4" Hose Diameter | 30' Hose Length | 300 Max PSI

For compact low-pressure air and water stations where 25 ft is not quite enough but a full 50 ft reel is unnecessary, the Coxreels P-LP-130 Low Pressure spring rewind hose reel keeps everyday hose access organized in a smaller P Series frame. This model includes 30 ft of 1/4" I.D. hose and is rated for 300 PSI, making it a practical choice for benches, service bays, garages, fleet shops, maintenance workstations, and light washdown points where hose needs to retract neatly after use.

The P-LP-130 uses spring rewind, a spring-powered retraction system that returns the hose to the reel after use. A multi-position lock ratchet secures the hose at the desired working length, while the adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions. Its single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, solid brass 90° full-flow NPT swivel, nitrile swivel seals, adjustable rubber hose stop, and CPC powder coat finish support cleaner hose handling in shop, facility, garage, and mobile service environments.

Type: Low Pressure Spring Rewind Hose Reel | Series: P Series | SKU: P-LP-130 | Hose Included: Yes | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Length: 30 ft | Max Pressure: 300 PSI | Service: Air, Water | Maximum Temperature: 150°F | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 27 lb | Overall Dimensions: 5.87" W x 14.87" H x 13.5" L | Mounting Pattern: 3" M x 5" N | Base: 5" X x 6" Y

Features:

• Spring rewind design retracts hose after use to help reduce loose hose around benches, bays, walkways, and compact workstations.
• Multi-position lock ratchet mechanism secures the hose at the desired working length.
• Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient service.
• External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
• Sturdy single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post provides mounting stability.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
• Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
• CPC powder coat finish, adjustable solid rubber hose stop, and rolled ribbed discs support routine hose handling in shop and maintenance environments.

Made in USA:

2 Year Warranty

Applications:

• Point-of-use shop air stations where 30 ft of 1/4" hose supports inflation, blow-off work, and connection to compatible low-pressure accessories.
• Maintenance benches and service bays where automatic hose return helps keep the immediate work area cleaner between tasks.
• Low-pressure water and light washdown points when the 300 PSI rating and 150°F maximum temperature match the system requirements.
• Garage, fleet, and facility workstations that need moderate reach in a smaller 1/4" hose size.
• Wall, floor, ceiling, vehicle, bench, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.

FAQs:

• Q: Does the Coxreels P-LP-130 include hose?
  A: Yes. This model includes 30 ft of 1/4" I.D. hose and is rated for 300 PSI low-pressure air and water service.
• Q: What is the difference between the P-LP-130 and P-LP-125?
  A: The P-LP-130 includes 30 ft of hose, while the P-LP-125 includes 25 ft. Choose the P-LP-130 when the workstation needs the same compact 1/4" hose format with five additional feet of reach.
• Q: How is the P-LP-130 different from the P-LP-150?
  A: The P-LP-130 includes 30 ft of 1/4" hose, while the P-LP-150 includes 50 ft. Choose the shorter model when the extra 20 ft of hose would add unnecessary bulk or floor clutter.
• Q: Can the hose lock at different working lengths?
  A: Yes. The multi-position lock ratchet mechanism allows the operator to stop the hose at the desired length instead of having it retract immediately.
• Q: Is the P-LP-130 suitable for pressure washing?
  A: No. This reel is rated for 300 PSI low-pressure service. For pressure washing, choose a reel and hose assembly rated for the pressure washer's operating pressure.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
