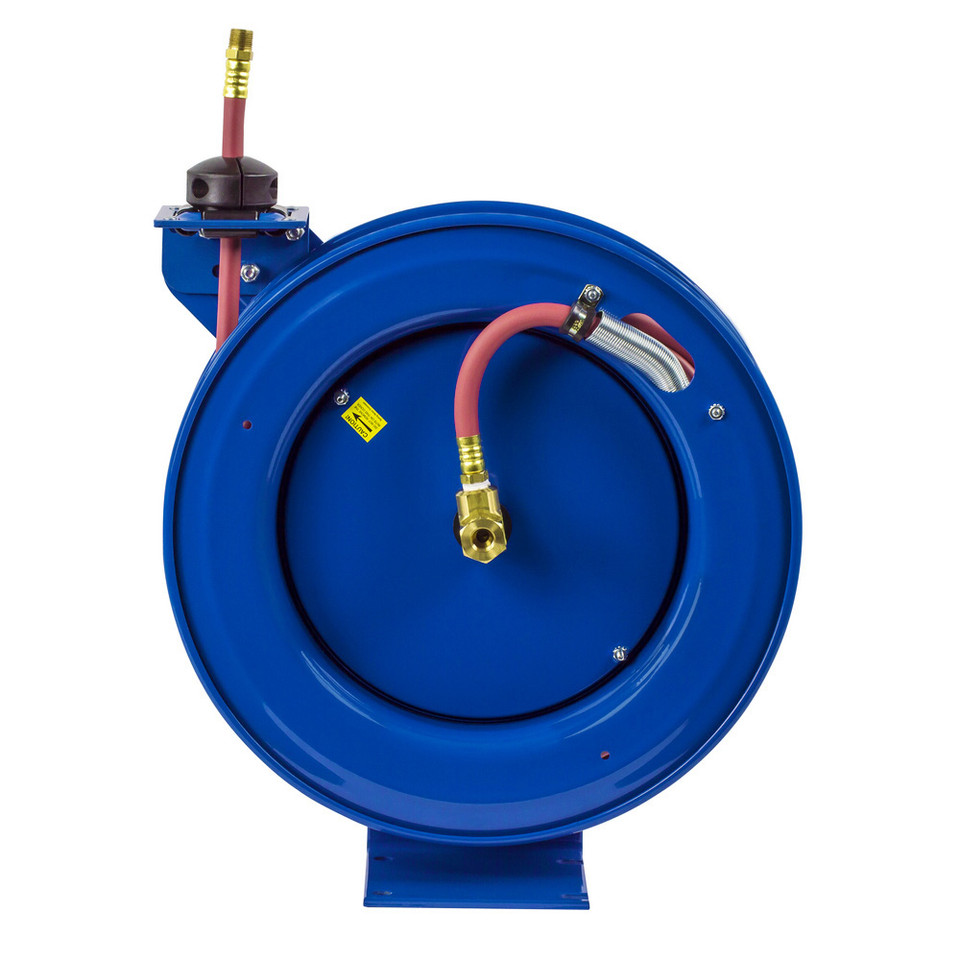

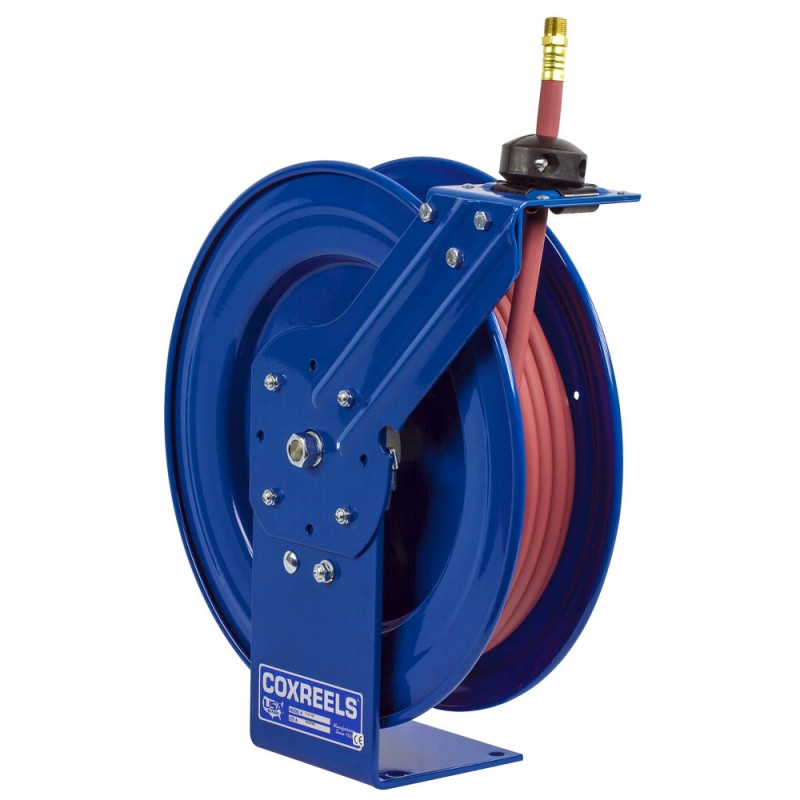

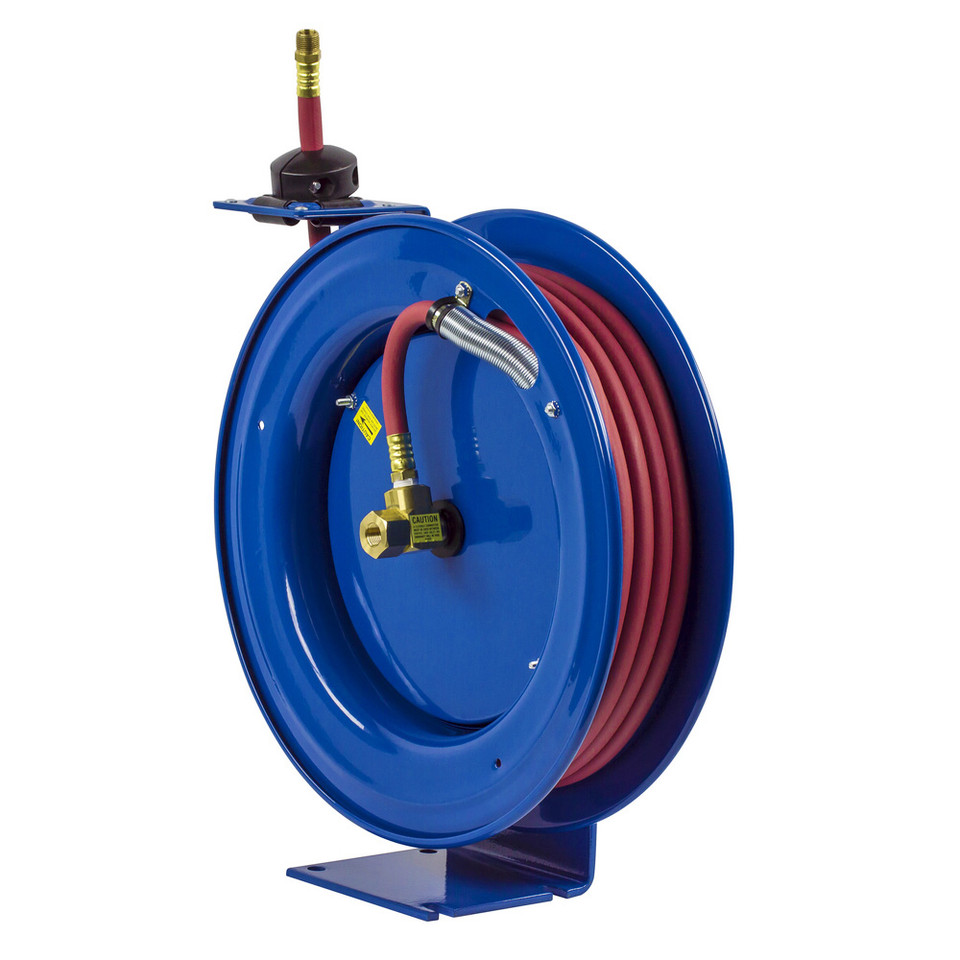

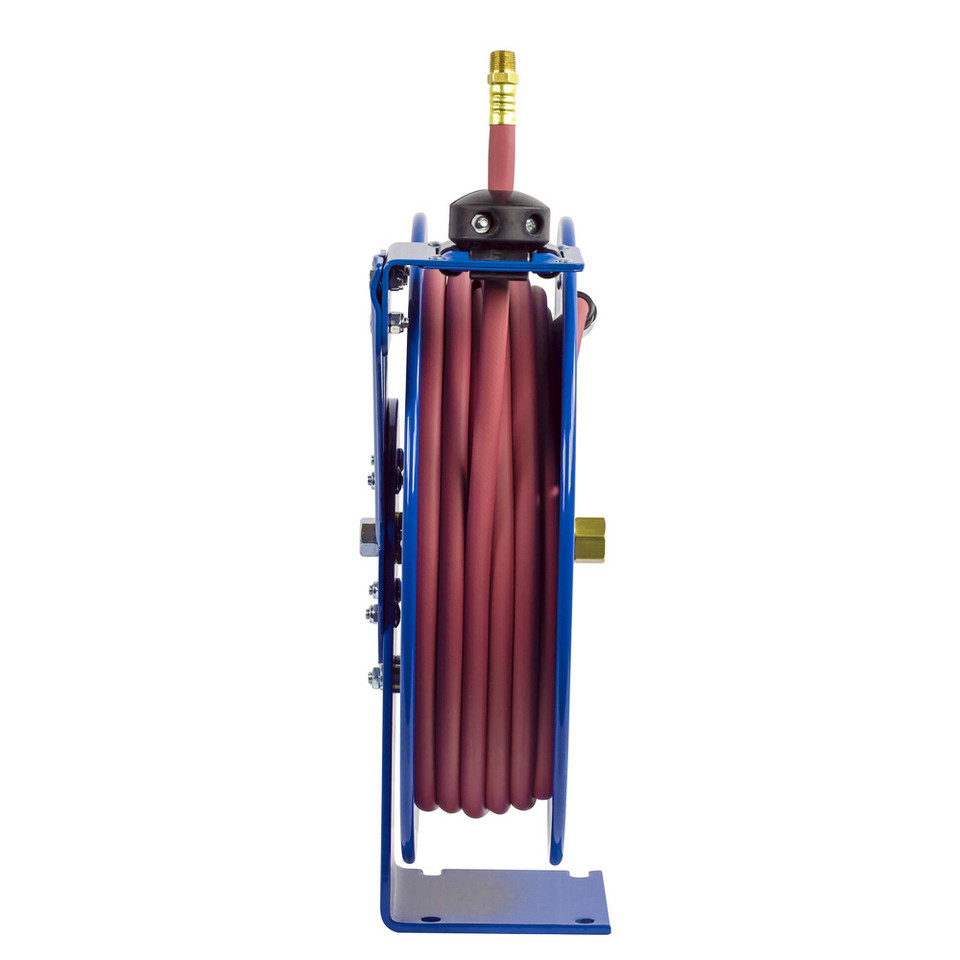

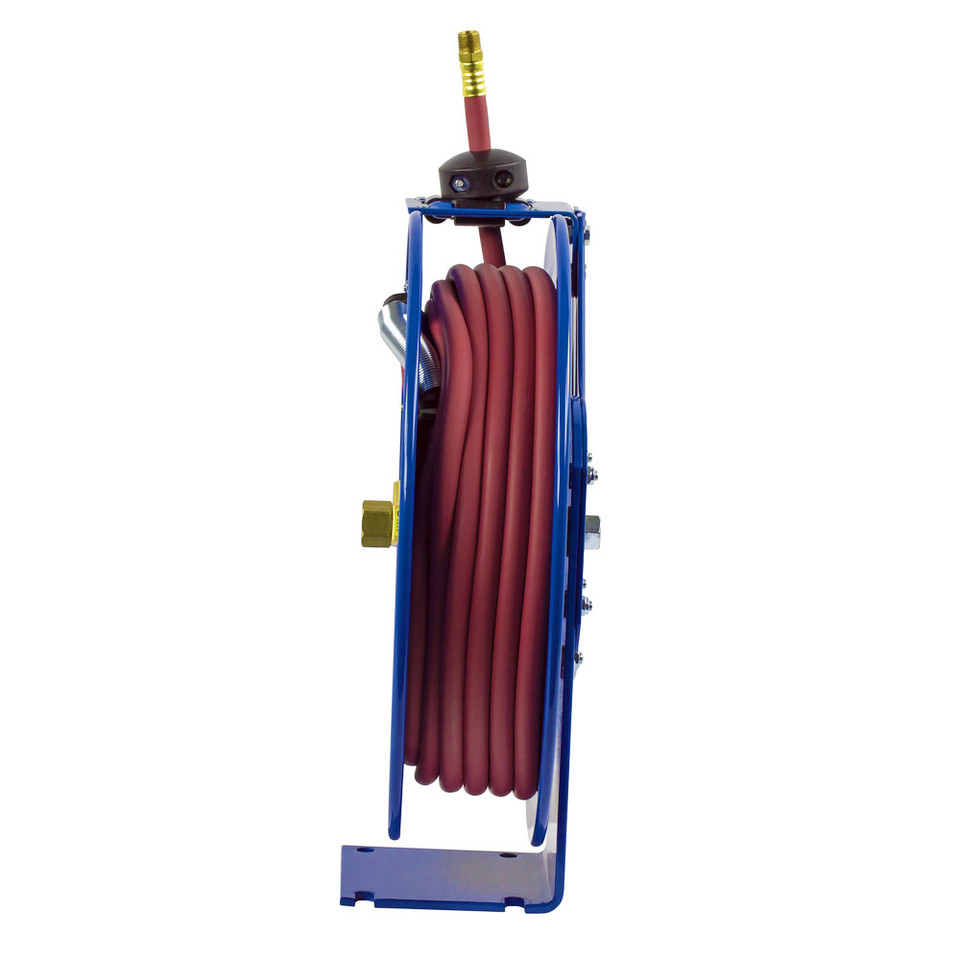

Coxreels P-LP-325 Performance Spring Rewind Hose Reel | P Series | 3/8" Hose Diameter | 25' Hose Length | 300 Max PSI

For compact low-pressure hose stations where 50 ft of hose is more than the job requires, the Coxreels P-LP-325 Performance spring rewind hose reel keeps everyday air and water hose organized in a smaller P Series frame. This P Series model includes 25 ft of 3/8" I.D. hose and is rated for 300 PSI, making it a practical choice for benches, service bays, maintenance workstations, garages, fleet shops, and light washdown points where hose needs to stay within reach and off the floor.

The P-LP-325 uses spring rewind, a spring-powered retraction system that returns the hose to the reel after use. A multi-position lock ratchet lets the operator stop the hose at the desired working length, while the adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions. Its single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, solid brass 90° full-flow NPT swivel, nitrile swivel seals, adjustable rubber hose stop, and CPC powder coat finish help keep hose handling cleaner and more controlled in daily shop and maintenance environments.

Type: Spring Rewind Hose Reel | Series: P Series | SKU: P-LP-325 | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 25 ft | Max Pressure: 300 PSI | Service: Air, Water | Hose Type: LP Red PVC | Hose Tube/Cover: PVC | Reinforcement: Yarn | Temperature Range: -15°F to +150°F | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 28 lb | Overall Dimensions: 6.5" W x 14.88" H x 13.5" L | Mounting Pattern: 3" M x 5" N | Base: 5" X x 6" Y

Features:

• Spring rewind design helps retract hose after use, reducing loose hose around benches, bays, walkways, and vehicle work areas.
• Multi-position lock ratchet mechanism secures the hose at the desired working length.
• Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient service.
• External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
• Sturdy single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post provides mounting stability.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation during payout and rewind.
• Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
• CPC powder coat finish, adjustable solid rubber hose stop, and rolled ribbed discs support routine hose handling in commercial and maintenance settings.

Made in USA:

2 Year Warranty

Applications:

• Shop air stations where 25 ft of 3/8" hose supports inflation, blow-off work, and connection to compatible low-pressure air tools or accessories.
• Maintenance benches and service bays where automatic hose return helps keep the immediate work area cleaner between tasks.
• Low-pressure water and light washdown points when the 300 PSI rating and hose temperature range match the application.
• Garage, fleet, and facility workstations that need compact hose storage without the added length of a 50 ft reel.
• Wall, floor, ceiling, vehicle, bench, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.

FAQs:

• Q: Does the Coxreels P-LP-325 include hose?
  A: Yes. This model includes 25 ft of 3/8" I.D. low-pressure red PVC hose and is rated for 300 PSI air and water service.
• Q: What is the difference between the P-LP-325 and P-LP-350?
  A: The P-LP-325 includes 25 ft of hose, while the P-LP-350 includes 50 ft of hose. Choose the P-LP-325 when the workstation only needs shorter reach or when a smaller reel frame fits the space better.
• Q: Can the hose lock at different lengths?
  A: Yes. The multi-position lock ratchet mechanism allows the operator to stop the hose at the desired working length instead of having it retract immediately.
• Q: Can this reel be mounted on a wall or ceiling?
  A: Yes. The multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions. Always mount the reel securely to a surface that can support the reel, hose, and operating load.
• Q: Is the P-LP-325 suitable for pressure washing?
  A: No. This reel is rated for 300 PSI low-pressure service. For pressure washing, choose a reel and hose assembly rated for the pressure washer's operating pressure.
