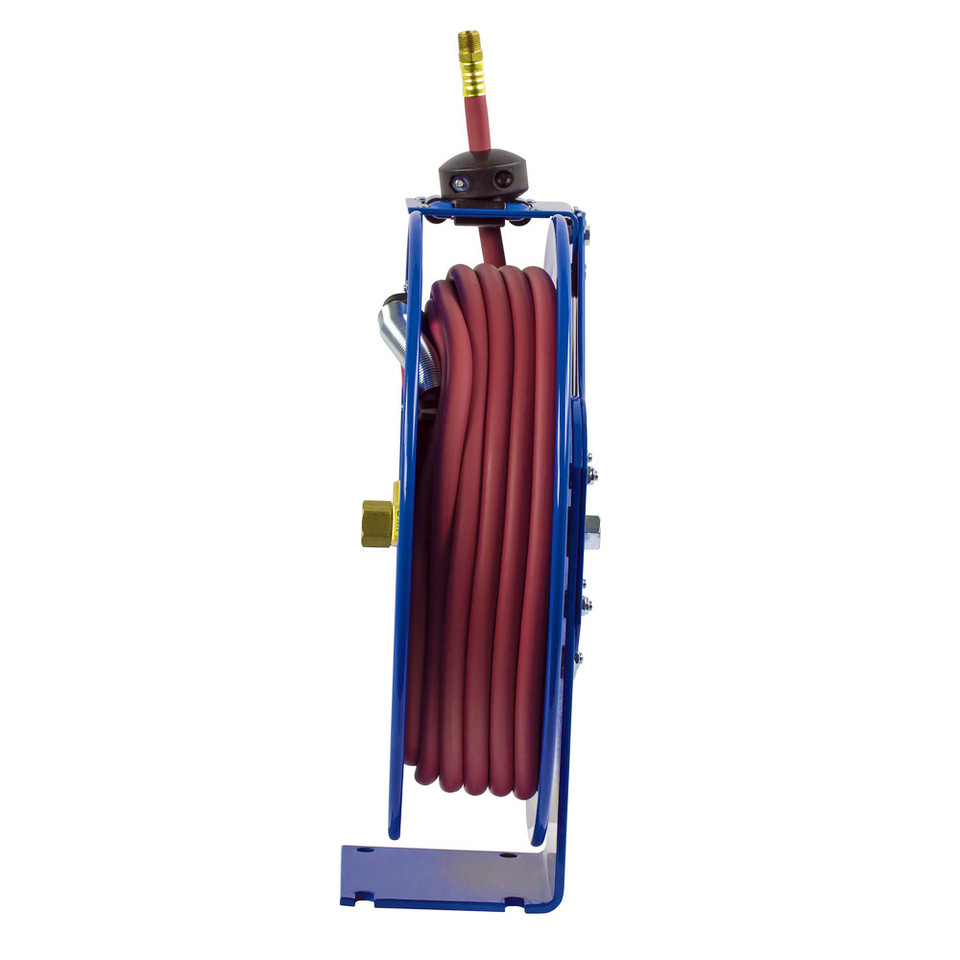

Coxreels P-LP-340 Low Pressure Spring Rewind Hose Reel | P Series | 3/8" Hose Diameter | 40' Hose Length | 300 Max PSI

For low-pressure air and water stations that need more reach than a 35 ft reel without stepping up to a full 50 ft hose length, the Coxreels P-LP-340 Low Pressure spring rewind hose reel keeps hose access organized in the P Series platform. This model includes 40 ft of 3/8" I.D. hose and is rated for 300 PSI, making it a practical choice for service bays, maintenance benches, fleet shops, garages, facility workstations, and light washdown points where hose needs to retract neatly after use.

The P-LP-340 uses spring rewind, a spring-powered retraction system that returns the hose to the reel after each task. A multi-position lock ratchet secures the hose at the desired working length, while the adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions. Its single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, solid brass 90° full-flow NPT swivel, nitrile swivel seals, adjustable rubber hose stop, and CPC powder coat finish help keep hose handling cleaner and more controlled in shop, garage, facility, and mobile service environments.

Type: Low Pressure Spring Rewind Hose Reel | Series: P Series | SKU: P-LP-340 | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 40 ft | Max Pressure: 300 PSI | Service: Air, Water | Hose Color: Red | Hose Cover: PVC | Hose Tube: PVC | Reinforcement: Yarn | Temperature Range: -15°F to +150°F | Swivel Material: Solid Brass | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 39 lb | Overall Dimensions: 6.75" W x 18.63" H x 17.13" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y

Features:

• Spring rewind design retracts hose after use to help reduce loose hose around benches, bays, walkways, and workstations.
• Multi-position lock ratchet mechanism secures the hose at the desired working length.
• Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient service.
• External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
• Sturdy single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post provides mounting stability.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
• Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
• CPC powder coat finish, adjustable solid rubber hose stop, and rolled ribbed discs support routine hose handling in commercial and maintenance settings.

Made in USA:

2 Year Warranty

Applications:

• Shop air stations where 40 ft of 3/8" hose supports inflation, blow-off work, and connection to compatible low-pressure air tools or accessories.
• Maintenance benches and service bays where automatic hose return helps keep the immediate work area cleaner between tasks.
• Low-pressure water and light washdown points when the 300 PSI rating and -15°F to +150°F hose temperature range match the system requirements.
• Garage, fleet, and facility workstations that need more reach than a 30 ft or 35 ft reel without moving to a full 50 ft hose length.
• Wall, floor, ceiling, vehicle, bench, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.

FAQs:

• Q: Does the Coxreels P-LP-340 include hose?
  A: Yes. This model includes 40 ft of 3/8" I.D. low-pressure red PVC hose and is rated for 300 PSI air and water service.
• Q: What is the difference between the P-LP-340 and P-LP-335?
  A: The P-LP-340 includes 40 ft of hose, while the P-LP-335 includes 35 ft. Choose the P-LP-340 when the workstation needs the same 3/8" hose size with five additional feet of reach.
• Q: How is the P-LP-340 different from the P-LP-350?
  A: The P-LP-340 includes 40 ft of 3/8" hose, while the P-LP-350 includes 50 ft. The 40 ft model is useful when extra reach is needed but a full 50 ft hose would add unnecessary bulk around the work area.
• Q: Can the hose lock at different working lengths?
  A: Yes. The multi-position lock ratchet mechanism allows the operator to stop the hose at the desired length instead of having it retract immediately.
• Q: Is the P-LP-340 suitable for pressure washing?
  A: No. This reel is rated for 300 PSI low-pressure service. For pressure washing, choose a reel and hose assembly rated for the pressure washer's operating pressure.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email <a hre
