When maintenance crews need additional hose reach without sacrificing pressure capability, the Coxreels P-HPL-330 High Pressure Spring Rewind Hose Reel provides organized hose control for hydraulic and industrial fluid service applications up to 4,000 PSI. Its 30-foot Hose Capacity gives technicians more working distance around large equipment, production machinery, and mobile service areas, helping reduce the need to reposition service vehicles or equipment during repairs. The spring rewind mechanism (an automatic hose retrieval system that retracts hose back onto the reel after use) keeps hoses contained and protected from kinks, abrasion, and traffic damage in busy maintenance environments. Built as part of the Coxreels P Series, this reel uses a “less hose” configuration, allowing buyers to install the exact hose assembly required for their pressure rating, fluid compatibility, and fitting specifications. The compact frame size also makes the P-HPL-330 well suited for service trucks, industrial maintenance stations, hydraulic repair operations, and manufacturing facilities where controlled hose storage improves both efficiency and workplace safety.

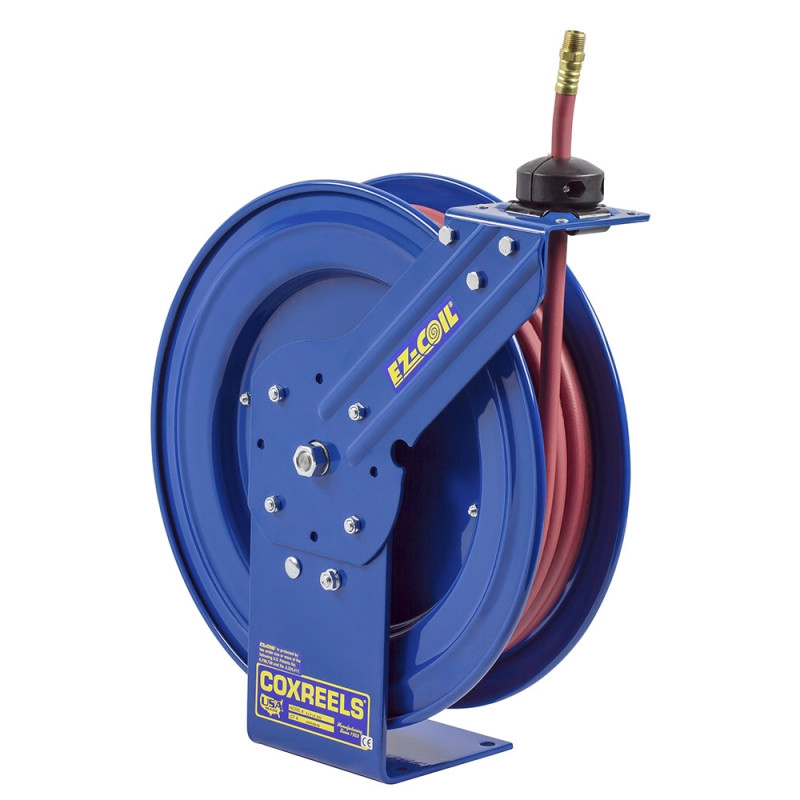

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: High Pressure Spring Rewind Hose Reel | Series: P Series | Model: P-HPL-330 | Hose I.D.: 3/8 in. | Hose Length Capacity: 30 ft. | Max PSI: 4,000 | Configuration: Less Hose | Approx. Weight: 43 lbs. | Hose O.D.: 11/16 in. | Size Index: 4
Features:
- Spring rewind system automatically retracts hose after use
- Rated for high-pressure applications up to 4,000 PSI
- “Less hose” configuration allows custom hose and fitting selection for application-specific requirements
- 30-foot hose capacity provides extended reach around large equipment and work areas
- Compact P Series frame supports wall, bench, or vehicle-mounted installations
- Organized hose management helps reduce hose wear, tangling, and trip hazards
- Built for repeated use in hydraulic maintenance and industrial fluid-transfer environments
Made in USA:
Applications
- Hydraulic system maintenance — servicing hydraulic cylinders, fluid lines, pumps, and industrial machinery
- Construction & heavy equipment repair — managing hose during maintenance on excavators, loaders, and earthmoving equipment
- Fleet maintenance operations — controlled hose deployment for truck service bays and mobile repair vehicles
- Industrial manufacturing facilities — supporting lubrication systems, maintenance stations, and production equipment servicing
- Mobile field service — improving hose organization and accessibility inside service trucks and repair trailers
FAQs:
- Q: Why would I choose the P-HPL-330 over a shorter hose reel?
A: The 30-foot hose capacity provides additional reach for larger equipment, wider maintenance bays, and field service applications where technicians need to move farther from the reel location. - Q: What does “less hose” mean on this reel model?
A: The reel is supplied without hose installed, allowing buyers to select the hose type, pressure rating, and fittings best suited to their hydraulic or industrial application. - Q: Is a 4,000 PSI reel necessary for hydraulic service?
A: Many hydraulic systems operate at pressures far above standard compressed air applications. A reel rated for 4,000 PSI helps ensure the reel assembly safely handles those higher operating pressures. - Q: Can this reel be used in mobile service trucks?
A: Yes. The compact P Series frame and spring rewind system make it well suited for truck-mounted and mobile maintenance applications where hose organization is important. - Q: What hose size is compatible with the P-HPL-330?
A: This reel is configured for 3/8-inch inside diameter hose with an approximate 11/16-inch outside diameter and a 30-foot hose capacity.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LP-125 | P-LPL-125 | 24 | 1 |
| P-LP-130 | 1/4" | 1/2" | 30 | 300 | 27 | - | P-LPL-130 | 24 | 1 |
| P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LP-135 | P-LPL-135 | 25 | 1 |
| P-LP-140 | 1/4" | 1/2" | 40 | 300 | 38 | - | P-LPL-140 | 34 | 3 |
| P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LP-150 | P-LPL-150 | 35 | 3 |
| P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325 | P-LPL-325 | 25 | 2 |
| P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LP-330 | P-LPL-330 | 33 | 3 |
| P-LP-335 | 3/8" | 5/8" | 35 | 300 | 39 | EZ-P-LP-335 | P-LPL-335 | 34 | 3 |
| P-LP-340 | 3/8" | 5/8" | 40 | 300 | 39 | - | P-LPL-340 | 34 | 3 |
| P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350 | P-LPL-350 | 36 | 3 |
| P-LP-415 | 1/2" | 3/4" | 15 | 300 | 41 | - | P-LPL-415 | 38 | 4 |
| P-LP-425 | 1/2" | 3/4" | 25 | 300 | 44 | - | P-LPL-425 | 39 | 4 |
| P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LP-430 | P-LPL-430 | 40 | 4 |
| P-LP-450 | 1/2" | 3/4" | 50 | 300 | 50 | EZ-P-LP-450 | P-LPL-450 | 43 | 4 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | |||||||||
| P-MP-320 | 3/8" | 11/16" | 25 | 3,000 | 46 | - | P-MPL-320 | 41 | 4 |
| P-MP-325 | 3/8" | 11/16" | 25 | 3,000 | 49 | - | P-MPL-325 | 42 | 4 |
| P-MP-330 | 3/8" | 11/16" | 30 | 3,000 | 51 | - | P-MPL-330 | 43 | 4 |
| P-MP-335 | 3/8" | 11/16" | 35 | 3,000 | 52 | - | P-MPL-335 | 43 | 4 |
| P-MP-420 | 1/2" | 13/16" | 20 | 2,500 | 47 | - | P-MPL-420 | 41 | 4 |
| P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MP-425 | P-MPL-425 | 42 | 4 |
| P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MP-430 | P-MPL-430 | 43 | 4 |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | |||||||||
| P-HP-120 | 1/4" | 9/16" | 20 | 5,000 | 46 | - | P-HPL-120 | 41 | 4 |
| P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HP-125 | P-HPL-125 | 42 | 4 |
| P-HP-130 | 1/4" | 9/16" | 30 | 5,000 | 50 | - | P-HPL-130 | 43 | 4 |
| P-HP-135 | 1/4" | 9/16" | 35 | 5,000 | 51 | - | P-HPL-135 | 43 | 4 |
| P-HP-320 | 3/8" | 11/16" | 20 | 4,000 | 47 | - | P-HPL-320 | 41 | 4 |
| P-HP-325 | 3/8" | 11/16" | 25 | 4,000 | 49 | EZ-P-HP-325 | P-HPL-325 | 42 | 4 |
| P-HP-330 | 3/8" | 11/16" | 30 | 4,000 | 51 | - | P-HPL-330 | 43 | 4 |
Looking for more information about the Coxreels Hose Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Hose Reels, please call (800) 608-5210 or email info@intlairtool.com
