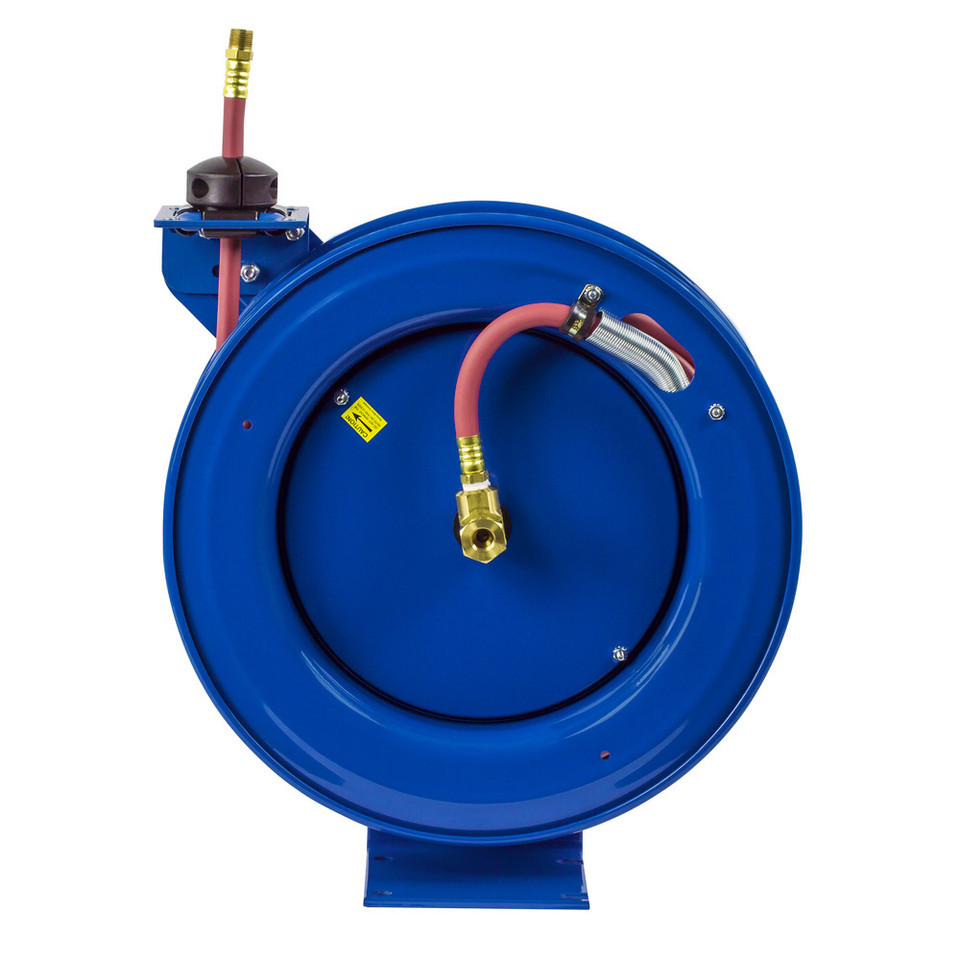

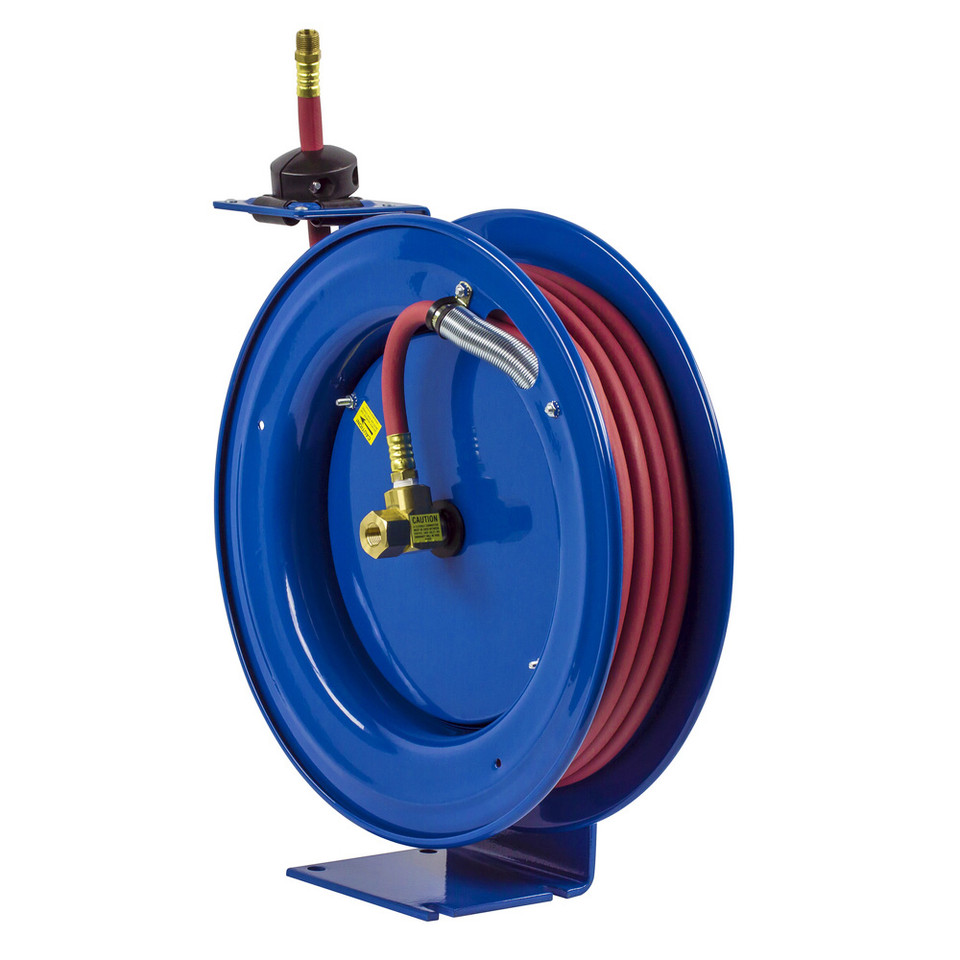

For medium-pressure lubrication and hydraulic service areas that need the longest 3/8" hose length in this P Series medium-pressure group, the Coxreels P-MP-335 Medium Pressure spring rewind hose reel provides retractable hose storage with hose already installed. This model includes 35 ft of 3/8" I.D. hose and is rated for 3,000 PSI, making it a practical choice for grease, hydraulic oil, lubrication, fleet maintenance, equipment service, and compatible medium-pressure fluid handling applications.
The P-MP-335 uses spring rewind, a spring-powered retraction system that returns the hose to the reel after use. A multi-position lock ratchet secures the hose at the desired working length, while the adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions. Its single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, full-flow NPT swivel, nitrile swivel seals, adjustable rubber hose stop, and CPC powder coat finish help keep medium-pressure hose handling cleaner and more controlled in shop, service truck, garage, and maintenance environments.
Type: Medium Pressure Spring Rewind Hose Reel | Series: P Series | SKU: P-MP-335 | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Length: 35 ft | Max Pressure: 3,000 PSI | Service: Grease, Hydraulic Oil, Lubrication | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 52 lb | Overall Dimensions: 7" W x 18.63" H x 17.13" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- Spring rewind design retracts hose after use to help reduce loose hose around service bays, vehicle lifts, lubrication points, and maintenance work areas.
- Medium-pressure configuration supports compatible lubrication, grease, and hydraulic oil systems when the system pressure and fluid requirements match the reel and hose ratings.
- Multi-position lock ratchet mechanism secures the hose at the desired working length during use.
- Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient service.
- External fluid path uses a full-flow NPT swivel with nitrile swivel seals for fluid transfer through the reel.
- Sturdy single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post provides mounting stability.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
- Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
Made in USA:
Applications:
- Grease and lubrication stations where 35 ft of 3/8" hose provides added reach around service points, fittings, pumps, and equipment.
- Hydraulic oil service areas where the 3,000 PSI rating, hose assembly, and fittings match the system requirements.
- Fleet, truck, and heavy equipment maintenance bays where spring rewind hose storage helps keep service areas cleaner between tasks.
- Industrial MRO workstations where medium-pressure hose needs to stay accessible, organized, and off the floor when not in use.
- Wall, floor, ceiling, vehicle, bench, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.
FAQs:
- Q: Does the Coxreels P-MP-335 include hose?
A: Yes. This model includes 35 ft of 3/8" I.D. hose and is rated for 3,000 PSI medium-pressure service. - Q: What does MP mean in the model number?
A: MP indicates a medium-pressure configuration. For this 3/8" model, the listed maximum pressure rating is 3,000 PSI. - Q: How is the P-MP-335 different from the P-MPL-335?
A: The P-MP-335 includes hose, while the P-MPL-335 is the less-hose version supplied as the reel only. Choose the P-MP model when a hose-installed reel is preferred. - Q: How is the P-MP-335 different from the P-MP-330?
A: The P-MP-335 includes 35 ft of hose, while the P-MP-330 includes 30 ft. Choose the 35 ft model when the workstation needs five additional feet of reach in the same 3/8" hose size. - Q: Is this reel intended for standard shop air or low-pressure water?
A: This model is built for medium-pressure fluid service. For typical shop air or low-pressure water applications, a P-LP Series reel may be the better match.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LP-125 | P-LPL-125 | 24 | 1 |
| P-LP-130 | 1/4" | 1/2" | 30 | 300 | 27 | - | P-LPL-130 | 24 | 1 |
| P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LP-135 | P-LPL-135 | 25 | 1 |
| P-LP-140 | 1/4" | 1/2" | 40 | 300 | 38 | - | P-LPL-140 | 34 | 3 |
| P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LP-150 | P-LPL-150 | 35 | 3 |
| P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325 | P-LPL-325 | 25 | 2 |
| P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LP-330 | P-LPL-330 | 33 | 3 |
| P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LP-335 | P-LPL-335 | 34 | 3 |
| P-LP-340 | 3/8" | 5/8" | 40 | 300 | 39 | - | P-LPL-340 | 34 | 3 |
| P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350 | P-LPL-350 | 36 | 3 |
| P-LP-415 | 1/2" | 3/4" | 15 | 300 | 41 | - | P-LPL-415 | 38 | 4 |
| P-LP-425 | 1/2" | 3/4" | 25 | 300 | 44 | - | P-LPL-425 | 39 | 4 |
| P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LP-430 | P-LPL-430 | 40 | 4 |
| P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450 | P-LPL-450 | 43 | 4 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-MP-320 | 3/8" | 1-1/16" | 20 | 3,000 | 46 | - | P-MPL-320 | 41 | 4 |
| P-MP-325 | 3/8" | 1-1/16" | 25 | 3,000 | 49 | - | P-MPL-325 | 42 | 4 |
| P-MP-330 | 3/8" | 1-1/16" | 30 | 3,000 | 51 | - | P-MPL-330 | 43 | 4 |
| P-MP-335 | 3/8" | 1-1/16" | 35 | 3,000 | 52 | - | P-MPL-335 | 43 | 4 |
| P-MP-420 | 1/2" | 13/16" | 20 | 2,500 | 47 | - | P-MPL-420 | 41 | 4 |
| P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MP-425 | P-MPL-425 | 42 | 4 |
| P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MP-430 | P-MPL-430 | 43 | 4 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-HP-120 | 1/4" | 9/16" | 20 | 5,000 | 46 | - | P-HPL-120 | 41 | 4 |
| P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HP-125 | P-HPL-125 | 42 | 4 |
| P-HP-130 | 1/4" | 9/16" | 30 | 5,000 | 50 | - | P-HPL-130 | 43 | 4 |
| P-HP-135 | 1/4" | 9/16" | 35 | 5,000 | 51 | - | P-HPL-135 | 43 | 4 |
| P-HP-320 | 3/8" | 1-1/16" | 20 | 4,000 | 47 | - | P-HPL-320 | 41 | 4 |
| P-HP-325 | 3/8" | 1-1/16" | 25 | 4,000 | 49 | EZ-P-HP-325 | P-HPL-325 | 42 | 4 |
| P-HP-330 | 3/8" | 1-1/16" | 30 | 4,000 | 51 | - | P-HPL-330 | 43 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
