For medium-pressure lubrication and hydraulic service areas where the hose needs to be selected separately, the Coxreels P-MPL-335 Medium Pressure spring rewind hose reel provides retractable storage in the P Series platform. This less-hose model is sized for 3/8" I.D. hose with a 35 ft hose capacity and a 3,000 PSI maximum pressure rating, making it a flexible reel-only choice for grease, hydraulic oil, lubrication, fleet maintenance, equipment service, and compatible medium-pressure fluid handling applications.
The P-MPL-335 uses spring rewind, a spring-powered retraction system that returns compatible hose to the reel after use. A multi-position lock ratchet helps hold the hose at the desired working length, while the adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions. Its single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, full-flow NPT swivel, nitrile swivel seals, adjustable rubber hose stop, and CPC powder coat finish help keep 3/8" medium-pressure hose installations organized and easier to manage.

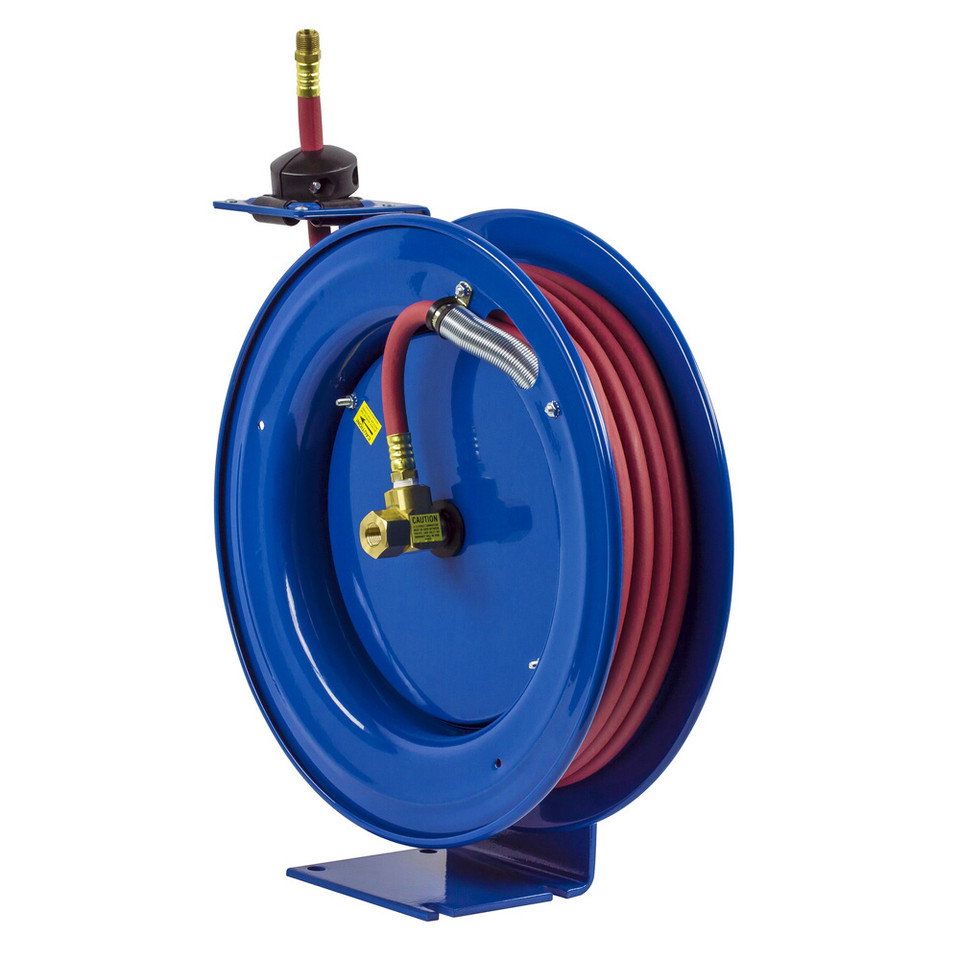

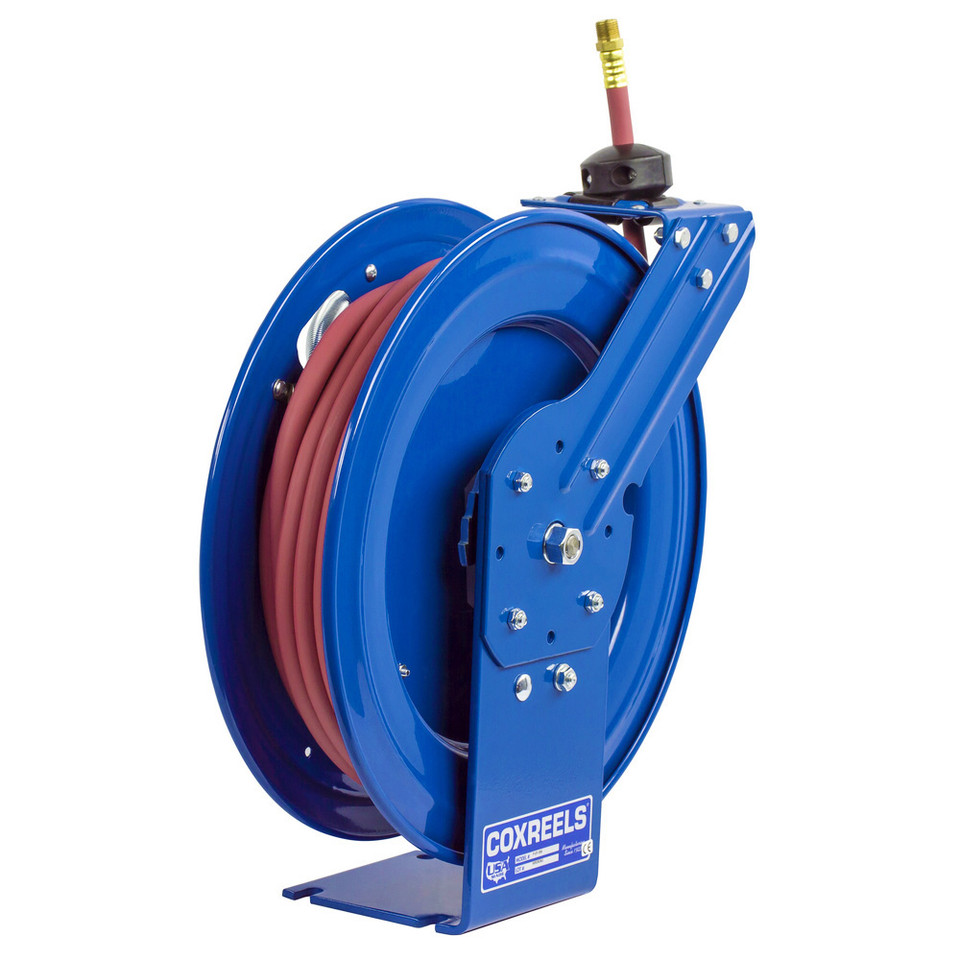

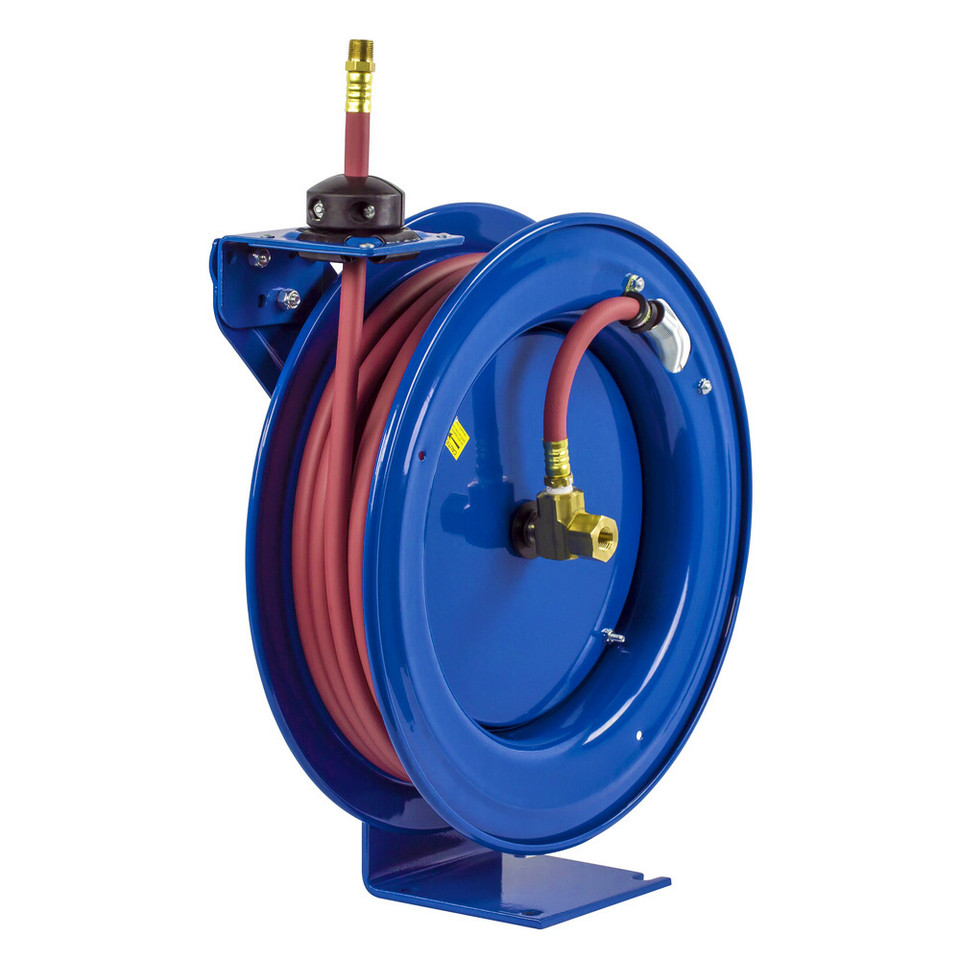

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Medium Pressure Spring Rewind Hose Reel | Series: P Series | SKU: P-MPL-335 | Configuration: Less Hose | Hose Included: No | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Capacity: 35 ft | Max Pressure: 3,000 PSI | Service: Grease, Hydraulic Oil, Lubrication | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 43 lb | Overall Dimensions: 7" W x 18.63" H x 17.13" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- Less-hose configuration allows the buyer to install compatible medium-pressure hose selected for the application, fitting style, fluid compatibility, and replacement preference.
- Spring rewind design retracts compatible hose after use to help reduce loose hose around service bays, vehicle lifts, lubrication points, and maintenance work areas.
- Medium-pressure configuration supports compatible lubrication, grease, and hydraulic oil systems when the installed hose, fittings, fluid requirements, and system pressure match the reel rating.
- Multi-position lock ratchet mechanism secures the hose at the desired working length during use.
- Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient service.
- External fluid path uses a full-flow NPT swivel with nitrile swivel seals for fluid transfer through the reel.
- Sturdy single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post provides mounting stability.
- Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
Made in USA:
Applications:
- Grease and lubrication stations where 35 ft of 3/8" hose capacity provides added reach while allowing hose selection to match the service requirements.
- Hydraulic oil service areas where the selected hose, fittings, and fluid compatibility match the 3,000 PSI reel rating.
- Fleet, truck, and heavy equipment maintenance bays where spring rewind storage helps keep medium-pressure hose routed neatly between service tasks.
- Industrial MRO workstations where a reel-only purchase supports custom hose installation, hose replacement, or standardized hose inventory.
- Wall, floor, ceiling, vehicle, bench, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.
FAQs:
- Q: Does the Coxreels P-MPL-335 include hose?
A: No. This is a less-hose model, so it is supplied as the reel only and does not include hose installed. - Q: What hose size is this reel designed to hold?
A: The P-MPL-335 is sized for up to 35 ft of 3/8" I.D. hose with an 11/16" hose O.D. Using hose with a different outside diameter may change the usable hose capacity. - Q: What does MPL mean in the model number?
A: MPL indicates a medium-pressure, less-hose configuration. This reel is rated for 3,000 PSI, but the buyer must install compatible hose and fittings before use. - Q: How is the P-MPL-335 different from the P-MP-335?
A: The P-MPL-335 is supplied without hose, while the P-MP-335 includes hose. Choose the less-hose model when hose material, fitting style, or fluid compatibility needs to be selected separately. - Q: How is the P-MPL-335 different from the P-MPL-330?
A: The P-MPL-335 is sized for 35 ft of hose capacity, while the P-MPL-330 is sized for 30 ft. Choose the 35 ft model when the workstation needs five additional feet of 3/8" hose capacity.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LP-125 | P-LPL-125 | 24 | 1 |
| P-LP-130 | 1/4" | 1/2" | 30 | 300 | 27 | - | P-LPL-130 | 24 | 1 |
| P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LP-135 | P-LPL-135 | 25 | 1 |
| P-LP-140 | 1/4" | 1/2" | 40 | 300 | 38 | - | P-LPL-140 | 34 | 3 |
| P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LP-150 | P-LPL-150 | 35 | 3 |
| P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325 | P-LPL-325 | 25 | 2 |
| P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LP-330 | P-LPL-330 | 33 | 3 |
| P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LP-335 | P-LPL-335 | 34 | 3 |
| P-LP-340 | 3/8" | 5/8" | 40 | 300 | 39 | - | P-LPL-340 | 34 | 3 |
| P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350 | P-LPL-350 | 36 | 3 |
| P-LP-415 | 1/2" | 3/4" | 15 | 300 | 41 | - | P-LPL-415 | 38 | 4 |
| P-LP-425 | 1/2" | 3/4" | 25 | 300 | 44 | - | P-LPL-425 | 39 | 4 |
| P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LP-430 | P-LPL-430 | 40 | 4 |
| P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450 | P-LPL-450 | 43 | 4 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-MP-320 | 3/8" | 1-1/16" | 20 | 3,000 | 46 | - | P-MPL-320 | 41 | 4 |
| P-MP-325 | 3/8" | 1-1/16" | 25 | 3,000 | 49 | - | P-MPL-325 | 42 | 4 |
| P-MP-330 | 3/8" | 1-1/16" | 30 | 3,000 | 51 | - | P-MPL-330 | 43 | 4 |
| P-MP-335 | 3/8" | 1-1/16" | 35 | 3,000 | 52 | - | P-MPL-335 | 43 | 4 |
| P-MP-420 | 1/2" | 13/16" | 20 | 2,500 | 47 | - | P-MPL-420 | 41 | 4 |
| P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MP-425 | P-MPL-425 | 42 | 4 |
| P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MP-430 | P-MPL-430 | 43 | 4 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-HP-120 | 1/4" | 9/16" | 20 | 5,000 | 46 | - | P-HPL-120 | 41 | 4 |
| P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HP-125 | P-HPL-125 | 42 | 4 |
| P-HP-130 | 1/4" | 9/16" | 30 | 5,000 | 50 | - | P-HPL-130 | 43 | 4 |
| P-HP-135 | 1/4" | 9/16" | 35 | 5,000 | 51 | - | P-HPL-135 | 43 | 4 |
| P-HP-320 | 3/8" | 1-1/16" | 20 | 4,000 | 47 | - | P-HPL-320 | 41 | 4 |
| P-HP-325 | 3/8" | 1-1/16" | 25 | 4,000 | 49 | EZ-P-HP-325 | P-HPL-325 | 42 | 4 |
| P-HP-330 | 3/8" | 1-1/16" | 30 | 4,000 | 51 | - | P-HPL-330 | 43 | 4 |
