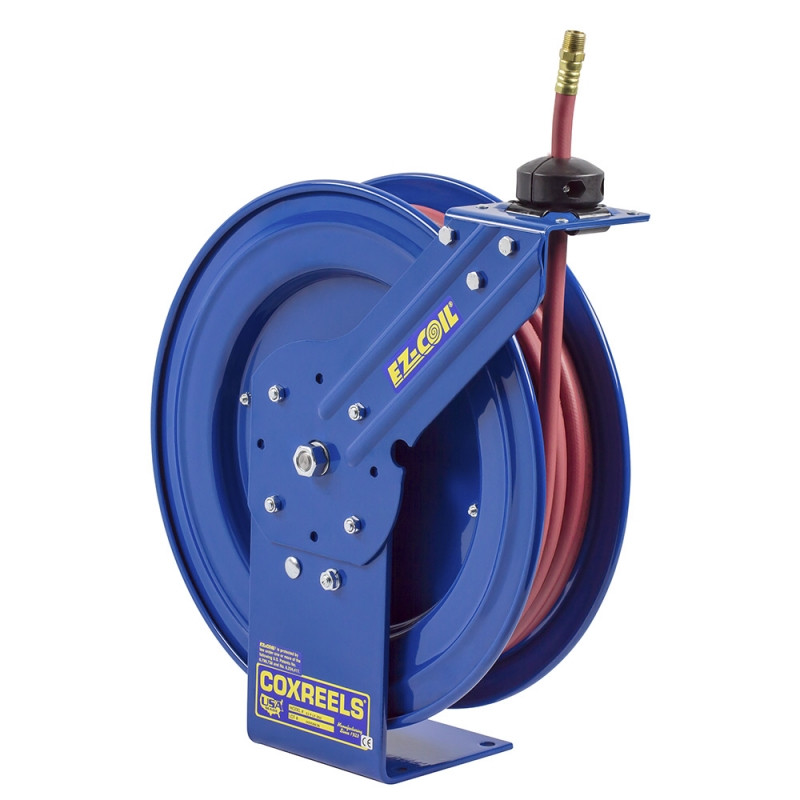

When the work runs at hydraulic-grade pressure and the application doesn't put operators in the rewind path, a standard spring rewind reel is the right call — simpler, more economical, and just as capable on the pressure spec sheet. The Coxreels P-HP-125 High Pressure Spring Rewind Hose Reel delivers 25 feet of 1/4-inch ID hose furnished to SAE 100R1 or R2 specifications (steel-reinforced hydraulic hose constructions used industry-wide for high-pressure fluid service) at the full 5,000 PSI working pressure of the HP lineup. Rated for grease and hydraulic oil service up to 212°F — or 135°F with water and synthetic fluids — the reel covers centralized lubrication routes, fleet grease bays, hydraulic test stations, and equipment-service points where high pressure is the requirement and the install location keeps the reel away from foot traffic. The heavy-duty spring motor pulls the stiff braided hose home, the all-steel frame with powder-coat finish stands up to industrial use, and the brass swivel inlet is rated to match the reel's full 5,000 PSI capacity. The P-HP-125 is at home in fleet lubrication bays, equipment dealer service centers, hydraulic shops, mining and heavy equipment maintenance, and industrial plants running centralized grease systems where the cost savings versus the EZ-Coil sibling add up across multiple reel installations.
Type: Spring Rewind Hose Reel | Series: P Series (High Pressure) | Hose ID (in.): 1/4 | Hose OD (in.): 9/16 | Hose Length (ft): 25 | Hose Construction: SAE 100R1 or R2 Steel Wire Braid | Max Pressure (PSI): 5,000 | Max Temperature (°F): 212 (135 with water or synthetic fluids) | Service: Grease, Hydraulic Oil | Retraction: Spring Rewind | Approx. Weight (lbs): 47
Features:
- All-steel frame and base with durable powder-coat finish for long service in industrial, fleet, and equipment-service environments
- Pre-mounted 25-foot, 1/4-inch ID hose furnished with SAE 100R1 or R2 steel wire braid construction — the hydraulic-rated specification supporting 5,000 PSI working pressure
- 5,000 max PSI rating purpose-built for grease and hydraulic oil delivery up to 212°F (135°F with water or synthetic fluids)
- Multi-position adjustable guide arm directs hose payout at floor, bench, or overhead angles to match installation
- Heavy-duty spring motor delivers consistent rewind tension on the stiff braided hose and is rebuildable in the field for extended service life
- CNC-machined brass swivel inlet provides a leak-resistant connection rated to the full 5,000 PSI of the reel
- 47 lb body mounts to wall, ceiling, bench, floor, or vehicle with standard hardware
Made in USA:
Applications:
- Fleet & truck lubrication bays — high-pressure grease delivery to chassis fittings, fifth-wheel components, and U-joints on Class 7 and Class 8 trucks, trailers, and tractors
- Heavy equipment & construction service — greasing excavators, dozers, loaders, and haul trucks at fixed shop bays with overhead or wall-mounted reels
- Centralized lubrication systems — distribution-point reels in industrial plants running automated or scheduled grease routes where reel cost adds up across multiple installations
- Hydraulic shop & test stand service — bench and rolling hydraulic test work, jack and ram service, and high-pressure tool charging within the 5,000 PSI rating
- Agricultural & equipment dealer service — lubrication of combines, tractors, balers, and implements in dealer service centers and farm equipment shops
FAQs:
- Q: When should I pick the standard P-HP-125 over the EZ-Coil version (EZ-P-HP-125)?
A: Pick the standard P-HP-125 when the reel is mounted away from foot traffic — overhead in a fixed bay, on a wall above head height, or in an enclosed equipment location where the rewinding hose end can't strike anyone. Pick it when reel cost matters across a multi-reel installation. The EZ-P-HP-125 is the better choice anywhere operators are nearby during rewind, because stiff 5,000 PSI braided hose can snap back hard without the dampener. Same hose, same pressure, same service ratings — the difference is whether you need controlled retraction or not. - Q: What's the difference between an HP reel and an MP reel? Why pay more for 5,000 PSI?
A: The two reels are built for different jobs. Medium-pressure reels (MP series, up to 3,000 PSI) cover pressure washing, oil dispensing, and light hydraulics. High-pressure reels (HP series, 5,000 PSI on the 1/4" models) are built for grease delivery and full hydraulic work, where pressures routinely exceed 3,000 PSI. If you're running a grease gun, charging a hydraulic system, or working on heavy equipment chassis lube, the HP reel is the right answer — a medium-pressure reel pushed beyond its rating fails dangerously. - Q: What does "SAE 100R1 or R2" mean, and why both?
A: SAE 100R1 and 100R2 are Society of Automotive Engineers specifications for hydraulic hose. R1 uses one layer of steel wire braid reinforcement; R2 uses two layers, giving a higher pressure rating and thicker construction. Coxreels furnishes the P-HP-125 with R1 or R2 hose depending on production lot and supplier; both meet or exceed the 5,000 PSI working pressure of the reel. - Q: Is this reel rated for hydraulic systems, or just lubrication?
A: Both. The hose construction is hydraulic-spec, and the reel is rated by Coxreels for grease and hydraulic oil service. That makes it suitable for hydraulic test stands, jack and ram service, and shop-side hydraulic work as well as chassis and equipment grease routes. Confirm fluid compatibility with Coxreels for non-standard hydraulic fluids before installation. - Q: Can I use this reel for water or pressure washing?
A: Not as a primary application. The P-HP-125 is rated specifically for grease and hydraulic oil. Water and synthetic fluids are permitted only up to 135°F, and the hose construction is optimized for petroleum fluids rather than continuous water service. For pressure washing and wash-bay work, use a medium-pressure or wash-bay-specific reel.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LP-125 | P-LPL-125 | 24 | 1 |
| P-LP-130 | 1/4" | 1/2" | 30 | 300 | 27 | - | P-LPL-130 | 24 | 1 |
| P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LP-135 | P-LPL-135 | 25 | 1 |
| P-LP-140 | 1/4" | 1/2" | 40 | 300 | 38 | - | P-LPL-140 | 34 | 3 |
| P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LP-150 | P-LPL-150 | 35 | 3 |
| P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325 | P-LPL-325 | 25 | 2 |
| P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LP-330 | P-LPL-330 | 33 | 3 |
| P-LP-335 | 3/8" | 5/8" | 35 | 300 | 39 | EZ-P-LP-335 | P-LPL-335 | 34 | 3 |
| P-LP-340 | 3/8" | 5/8" | 40 | 300 | 39 | - | P-LPL-340 | 34 | 3 |
| P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350 | P-LPL-350 | 36 | 3 |
| P-LP-415 | 1/2" | 3/4" | 15 | 300 | 41 | - | P-LPL-415 | 38 | 4 |
| P-LP-425 | 1/2" | 3/4" | 25 | 300 | 44 | - | P-LPL-425 | 39 | 4 |
| P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LP-430 | P-LPL-430 | 40 | 4 |
| P-LP-450 | 1/2" | 3/4" | 50 | 300 | 50 | EZ-P-LP-450 | P-LPL-450 | 43 | 4 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | |||||||||
| P-MP-320 | 3/8" | 11/16" | 25 | 3,000 | 46 | - | P-MPL-320 | 41 | 4 |
| P-MP-325 | 3/8" | 11/16" | 25 | 3,000 | 49 | - | P-MPL-325 | 42 | 4 |
| P-MP-330 | 3/8" | 11/16" | 30 | 3,000 | 51 | - | P-MPL-330 | 43 | 4 |
| P-MP-335 | 3/8" | 11/16" | 35 | 3,000 | 52 | - | P-MPL-335 | 43 | 4 |
| P-MP-420 | 1/2" | 13/16" | 20 | 2,500 | 47 | - | P-MPL-420 | 41 | 4 |
| P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MP-425 | P-MPL-425 | 42 | 4 |
| P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MP-430 | P-MPL-430 | 43 | 4 |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | |||||||||
| P-HP-120 | 1/4" | 9/16" | 20 | 5,000 | 46 | - | P-HPL-120 | 41 | 4 |
| P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HP-125 | P-HPL-125 | 42 | 4 |
| P-HP-130 | 1/4" | 9/16" | 30 | 5,000 | 50 | - | P-HPL-130 | 43 | 4 |
| P-HP-135 | 1/4" | 9/16" | 35 | 5,000 | 51 | - | P-HPL-135 | 43 | 4 |
| P-HP-320 | 3/8" | 11/16" | 20 | 4,000 | 47 | - | P-HPL-320 | 41 | 4 |
| P-HP-325 | 3/8" | 11/16" | 25 | 4,000 | 49 | EZ-P-HP-325 | P-HPL-325 | 42 | 4 |
| P-HP-330 | 3/8" | 11/16" | 30 | 4,000 | 51 | - | P-HPL-330 | 43 | 4 |
