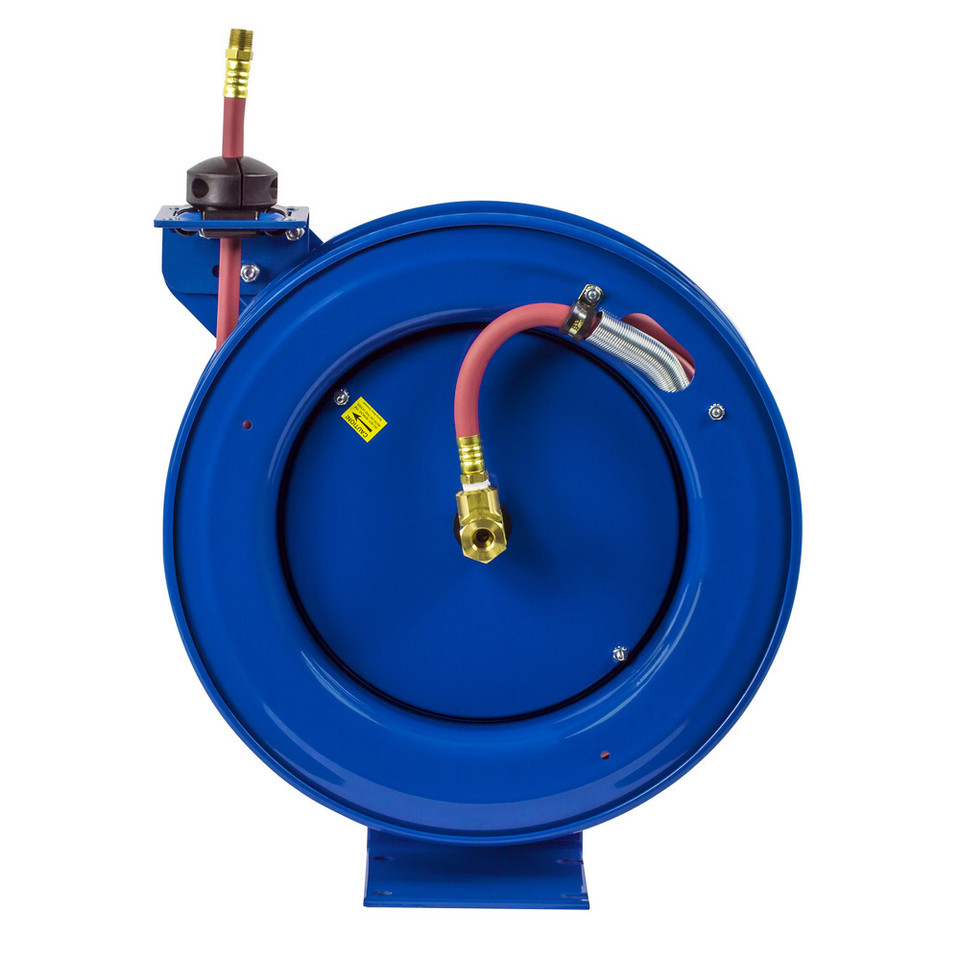

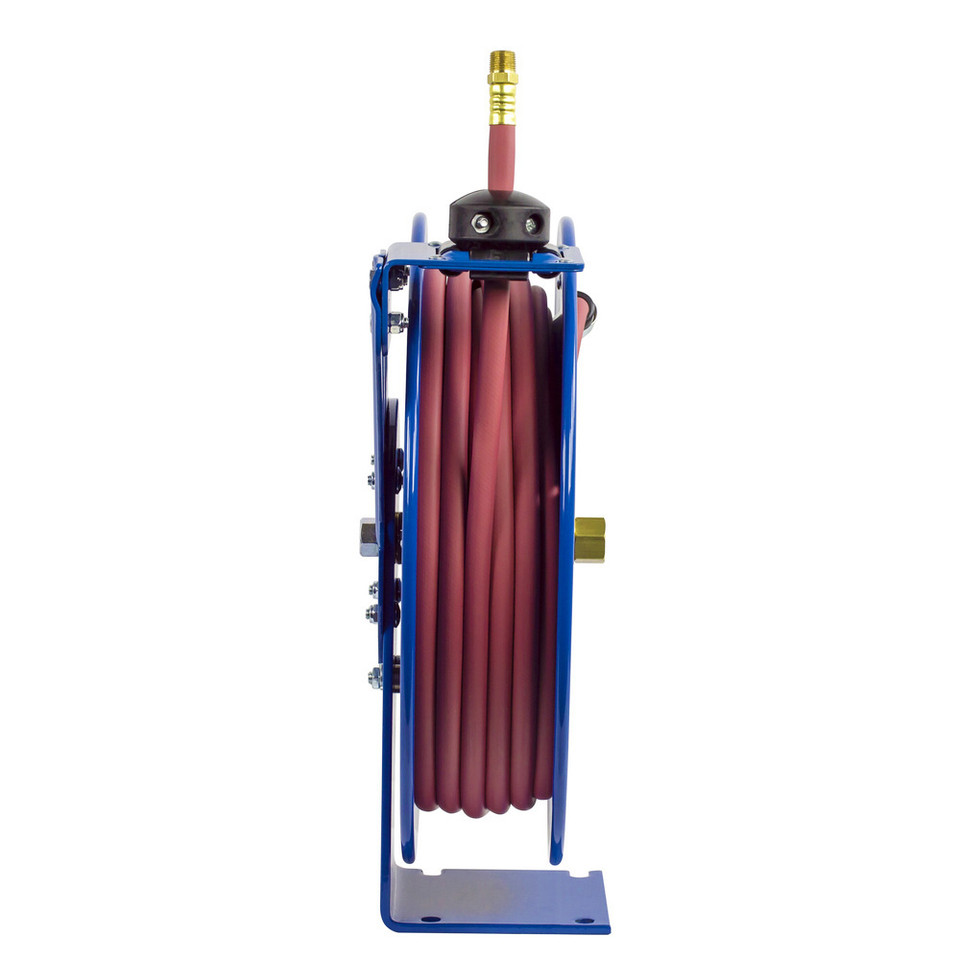

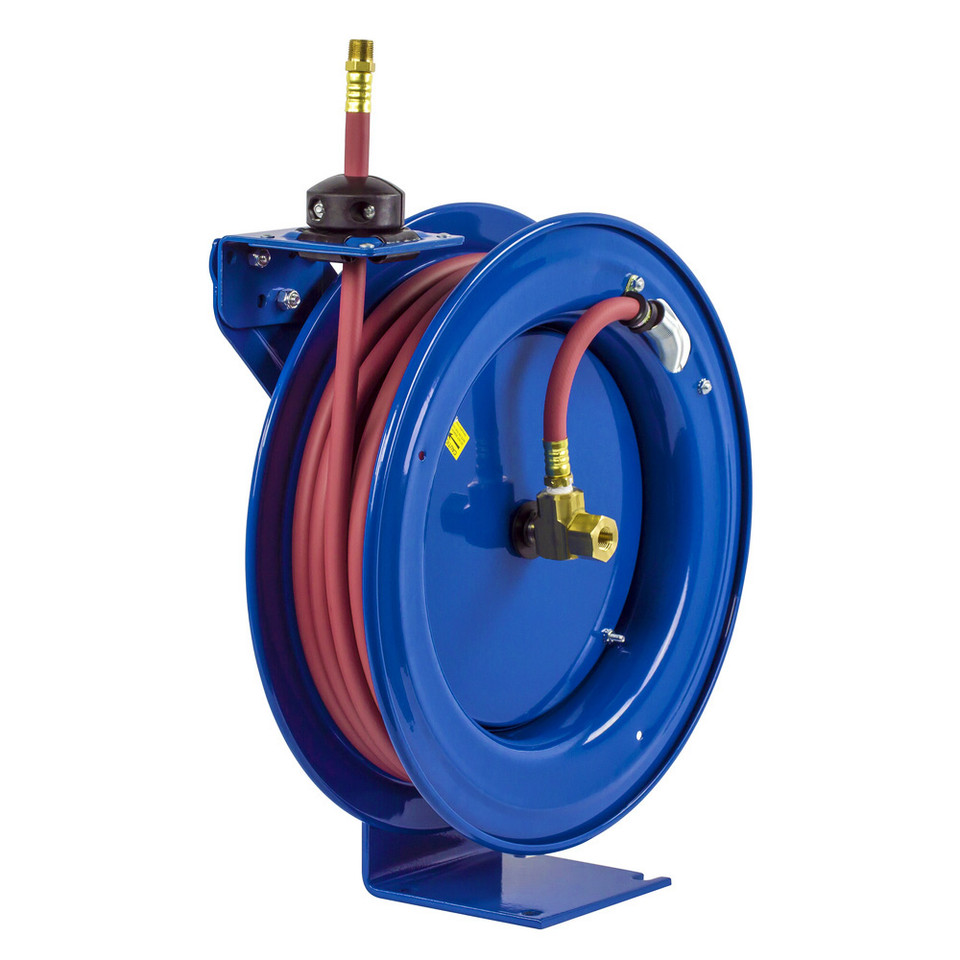

For low-pressure air and water stations that need more working reach than a 30 ft reel but less hose to manage than a 50 ft setup, the Coxreels P-LP-335 Low Pressure spring rewind hose reel keeps hose access organized in the P Series platform. This model includes 35 ft of 3/8" I.D. hose and is rated for 300 PSI, making it a practical choice for service bays, maintenance benches, fleet shops, garages, facility workstations, and light washdown points where hose needs to retract neatly after use.
The P-LP-335 uses spring rewind, a spring-powered retraction system that returns the hose to the reel after use. A multi-position lock ratchet secures the hose at the desired working length, while the adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions. Its single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, solid brass 90° full-flow NPT swivel, nitrile swivel seals, adjustable rubber hose stop, and CPC powder coat finish support cleaner hose handling in shop, garage, facility, and mobile service environments.
Type: Low Pressure Spring Rewind Hose Reel | Series: P Series | SKU: P-LP-335 | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 35 ft | Max Pressure: 300 PSI | Service: Air, Water | Hose Color: Red | Hose Cover: PVC | Hose Tube: PVC | Reinforcement: Yarn | Temperature Range: -15°F to +150°F | Swivel Material: Solid Brass | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 38 lb | Overall Dimensions: 6.75" W x 18.63" H x 17.13" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- Spring rewind design retracts hose after use to help reduce loose hose around benches, bays, walkways, and workstations.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient service.
- External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
- Sturdy single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post provides mounting stability.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
- Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
- CPC powder coat finish, adjustable solid rubber hose stop, and rolled ribbed discs support routine hose handling in commercial and maintenance settings.
Made in USA:
Applications:
- Shop air stations where 35 ft of 3/8" hose supports inflation, blow-off work, and connection to compatible low-pressure air tools or accessories.
- Maintenance benches and service bays where automatic hose return helps keep the immediate work area cleaner between tasks.
- Low-pressure water and light washdown points when the 300 PSI rating and -15°F to +150°F hose temperature range match the system requirements.
- Garage, fleet, and facility workstations that need more reach than a 25 ft or 30 ft reel without stepping up to a full 50 ft hose length.
- Wall, floor, ceiling, vehicle, bench, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.
FAQs:
- Q: Does the Coxreels P-LP-335 include hose?
A: Yes. This model includes 35 ft of 3/8" I.D. low-pressure red PVC hose and is rated for 300 PSI air and water service. - Q: What is the difference between the P-LP-335 and P-LP-330?
A: The P-LP-335 includes 35 ft of hose, while the P-LP-330 includes 30 ft. Choose the P-LP-335 when the workstation needs the same 3/8" hose size with five additional feet of reach. - Q: How is the P-LP-335 different from the P-LP-350?
A: The P-LP-335 includes 35 ft of 3/8" hose, while the P-LP-350 includes 50 ft. The shorter model helps reduce excess hose around compact work areas while still giving more reach than the 25 ft and 30 ft versions. - Q: Can the hose lock at different working lengths?
A: Yes. The multi-position lock ratchet mechanism allows the operator to stop the hose at the desired length instead of having it retract immediately. - Q: Is the P-LP-335 suitable for pressure washing?
A: No. This reel is rated for 300 PSI low-pressure service. For pressure washing, choose a reel and hose assembly rated for the pressure washer's operating pressure.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LP-125 | P-LPL-125 | 24 | 1 |
| P-LP-130 | 1/4" | 1/2" | 30 | 300 | 27 | - | P-LPL-130 | 24 | 1 |
| P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LP-135 | P-LPL-135 | 25 | 1 |
| P-LP-140 | 1/4" | 1/2" | 40 | 300 | 38 | - | P-LPL-140 | 34 | 3 |
| P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LP-150 | P-LPL-150 | 35 | 3 |
| P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325 | P-LPL-325 | 25 | 2 |
| P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LP-330 | P-LPL-330 | 33 | 3 |
| P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LP-335 | P-LPL-335 | 34 | 3 |
| P-LP-340 | 3/8" | 5/8" | 40 | 300 | 39 | - | P-LPL-340 | 34 | 3 |
| P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350 | P-LPL-350 | 36 | 3 |
| P-LP-415 | 1/2" | 3/4" | 15 | 300 | 41 | - | P-LPL-415 | 38 | 4 |
| P-LP-425 | 1/2" | 3/4" | 25 | 300 | 44 | - | P-LPL-425 | 39 | 4 |
| P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LP-430 | P-LPL-430 | 40 | 4 |
| P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450 | P-LPL-450 | 43 | 4 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-MP-320 | 3/8" | 1-1/16" | 20 | 3,000 | 46 | - | P-MPL-320 | 41 | 4 |
| P-MP-325 | 3/8" | 1-1/16" | 25 | 3,000 | 49 | - | P-MPL-325 | 42 | 4 |
| P-MP-330 | 3/8" | 1-1/16" | 30 | 3,000 | 51 | - | P-MPL-330 | 43 | 4 |
| P-MP-335 | 3/8" | 1-1/16" | 35 | 3,000 | 52 | - | P-MPL-335 | 43 | 4 |
| P-MP-420 | 1/2" | 13/16" | 20 | 2,500 | 47 | - | P-MPL-420 | 41 | 4 |
| P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MP-425 | P-MPL-425 | 42 | 4 |
| P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MP-430 | P-MPL-430 | 43 | 4 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-HP-120 | 1/4" | 9/16" | 20 | 5,000 | 46 | - | P-HPL-120 | 41 | 4 |
| P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HP-125 | P-HPL-125 | 42 | 4 |
| P-HP-130 | 1/4" | 9/16" | 30 | 5,000 | 50 | - | P-HPL-130 | 43 | 4 |
| P-HP-135 | 1/4" | 9/16" | 35 | 5,000 | 51 | - | P-HPL-135 | 43 | 4 |
| P-HP-320 | 3/8" | 1-1/16" | 20 | 4,000 | 47 | - | P-HPL-320 | 41 | 4 |
| P-HP-325 | 3/8" | 1-1/16" | 25 | 4,000 | 49 | EZ-P-HP-325 | P-HPL-325 | 42 | 4 |
| P-HP-330 | 3/8" | 1-1/16" | 30 | 4,000 | 51 | - | P-HPL-330 | 43 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email <a href="mailto:
